Kato 305 Nekos 230V - Metal Chain Actuator 300N - Stroke up to 500mm - White Black or Gray
Kato 305 Nekos 230V is a
linear electric actuator with double-row four-link articulated chain, enclosed in a suitable aluminum container, suitable for moving top-hung windows, bottom-hung windows, domes and dormer windows.
- Push and pull power of 300N.
- Supplied complete with universal tilting support brackets with quick coupling and without screws (patented).
- Electronic limit switch in opening with three strokes (200 - 300 - 500 mm) selectable at any time by dip-switch, with power absorption in closing and as overload protection.
- Soft Stop and Relax function. Can be connected in parallel. Compliant with Directives 2004/108
- CE (EMC Directive) and 2006/95 CE (LV Directive).
- Standard colours: Black (RAL9005) with black cable, White (RAL9010) and Gray (RAL9006) with white cables.
Kato 305 Nekos 230V is resistant and powerful
- Kato 305 Nekos has brilliantly passed the toughest heat and fire resistance tests as indicated by the EN 12101-2:2003-09 standard, obtaining the B 300 classification with certificate no. 13-000921 at the IFT test institute in Rosenheim year 2013.
- It is a guarantee of safety, quality, efficiency, reliability, constructive simplicity ; a pleasant design designed to integrate into an avant-garde window.
- It has a new electronic technology based on the use of a microprocessor for position control and management of each work phase.
- The body is in die-cast aluminum and the brackets are in zinc alloy (zamak).

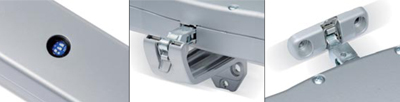

- It is easy to install, it is mounted with quick coupling in the supports, without screws or fasteners (Nekos patented system); another Nekos patent provides for the quick release from the window also for easy cleaning.
- Strokes selectable by dip-switch.
Technical data Kato 305 Nekos 230V
- Model: KATO 305 230V;
- Push and pull force: 300 N;
- Strokes (select at any time): 200, 300, 400, 500mm;
- Power supply voltage 110÷230VAC 50/60Hz;
- Current draw at rated load: 0.160A;
- Power consumption at nominal load: 36 W;
- No-load travel speed: 7.2 mm/s;
- Duration of idle stroke (500 mm): 70 s;
- Double electrical insulation: YES;
- Service type: S2 of 3 min;
- Operating temperature: - 5 + 65 ºC;
- Degree of protection for electrical devices: IP32;
- Adjustment of the attachment to the frame: Self-determination of the position;
- Parallel power supply of two or more motors: YES;
- Static holding force: 1700N;
- Opening limit switch: Electronic;
- Closing limit switch: Absorption of power;
- Power cord length: 2m;

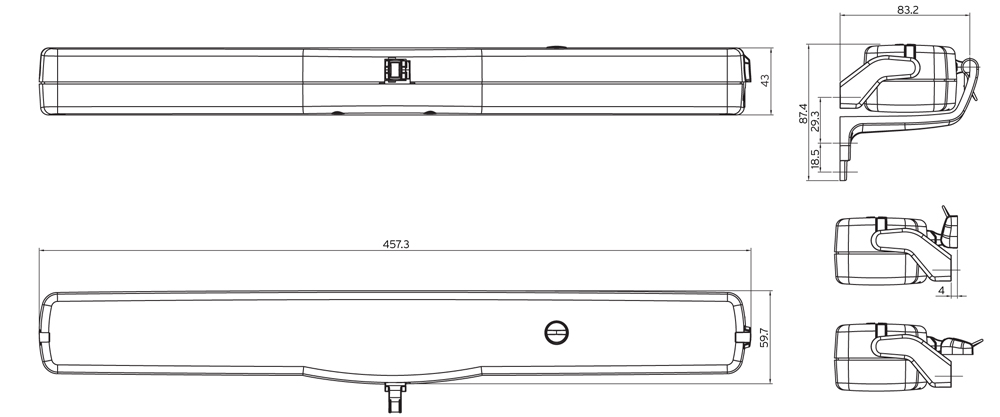

- Dimensions: 456x60x43mm;
- Appliance weight: 2.25 kg.
What does each pack of Nekos Kato 305 230V include?
- Electric actuator according to construction at 110÷230VAC 50/60Hz.
- 2 (2.5) meter (±5%) power cord with molded plug connector.

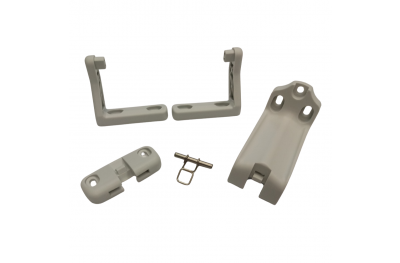

- Standard support brackets (A).
- Adhesive drilling template.
- Instruction manual.
- Bracket for bottom hung attachment (C) (supplied separately only on request).
- Bracket for projecting connection (D). (supplied separately only on request).
Check that the appliance has the same type of electrical power supply as that available for connection, checking the data shown on the label applied to the actuator.
What are the reasons for choosing Nekos window motors?
- Nekos products are built in a workmanlike manner in terms of safety, in compliance with the provisions of current laws.
- Correctly assembled, installed and used in compliance with these instructions, they do not constitute a danger to the safety of people, animals or property.
- The products that fall within the field of application of the EEC directives comply with the essential requirements contained therein.
- CE marked, they can be placed on the market and put into service in the European Union without further formalities.
For further information on this product (use, safety, cleaning, guarantee, certificate of conformity and much more) we recommend reading the Instructions (PDF downloadable in "Documents").
