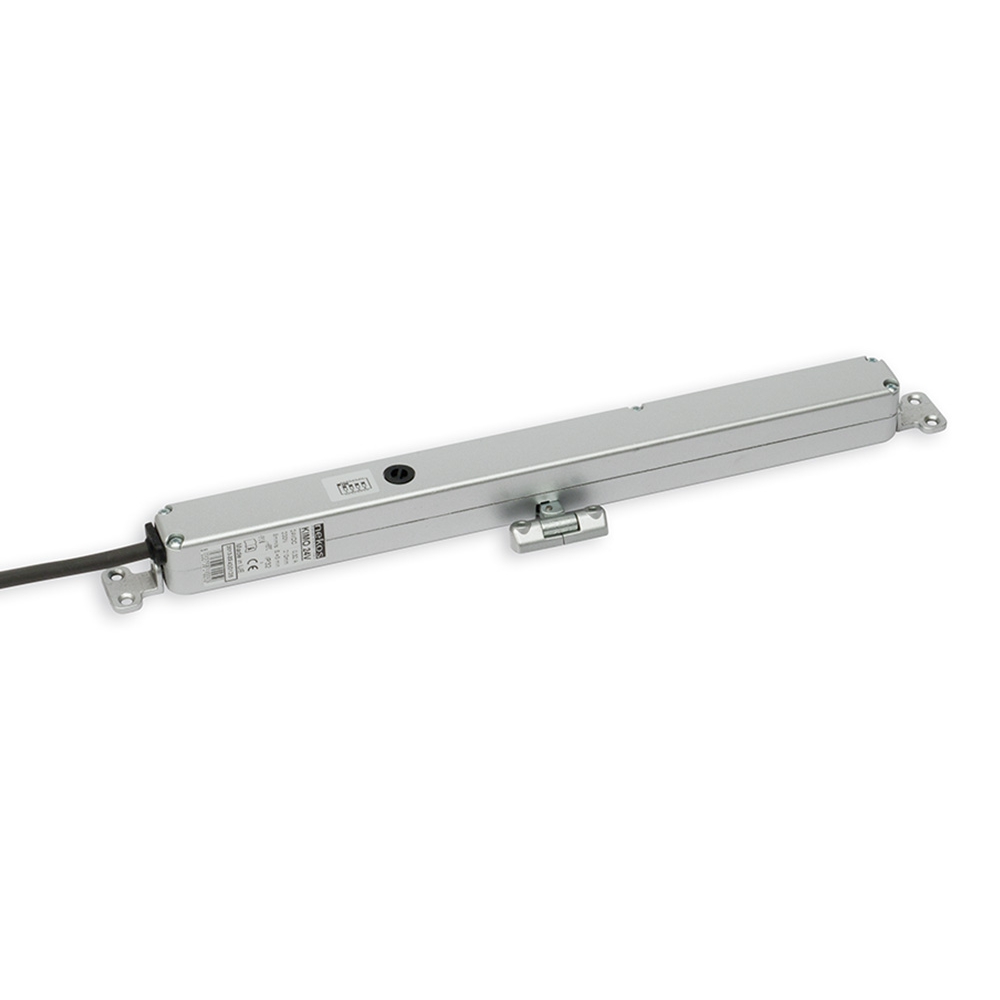

Kimo Nekos Small Size Chain Actuator 24V 200N Stroke 210 mm Gray
Kimo: one of the smallest chain actuators for windows
It measures only 29 x 29 x 310 mm (approx. 3 x 3 x 30 cm).
How to use the Kimo Nekos chain actuator?
You can use it to open and close automatically:
- Pivoting frames;
- Vasistas windows and doors;
- Mansard windows (on the roof);
- Top-hung windows.
Read how this small window actuator works
Operation
Linear electric actuator with three-link articulated chain (Nekos patent), enclosed in a suitable metal container. Suitable for moving top-hung windows and transom windows. Thrust and traction power of 200 N, works only at low voltage of 24V DC.
What is included in the package
Supplied complete with tilting support brackets, without screws and with universal mounting bracket for top and bottom hung windows.
Adjustable stroke end
End-of-stroke opening adjustable at any time by selecting appropriate dip-switches, in power absorption closing and as overload protection.
Can be connected in parallel. Compliant with the 2004/108 CE (EMC directive) and 2006/95 CE (LV Directive) Directives.
Technical data of the Kimo Nekos
- Model: KIMO 24V;
- Pushing force: 100 N;
- Traction force: 200 N;
- Strokes (selectable at any time): 70, 125, 170, 210 mm;
- Supply voltage: 24V;
- Current consumption at nominal load: 0.36 A;
- Power consumption at nominal load: 8.6 W;
- Idle translation speed: 5.5 mm / s;
- Duration of idle stroke (210 mm): 38 s;
- Service type: S2 of 3 min;
- Operating temperature: - 5 + 65 ºC;
- Degree of protection of electrical devices: IP32;
- Adjustment of the attack on the frame: Self-determination of the position;
- Power supply in parallel of two or more motors: SI (max 20 actuators recommended);
- Operation with BK-LOCK electromechanical lock: Yes;
- Synchronized operation: NOT expected;
- Static holding force (may vary depending on the components chosen): 1700N;
- End of opening stroke: Power absorption;
- End of stroke in closing: With power absorption;
- Chain exit: central;
- Power cord length: 2 m;
- Dimensions: 29 x 29 x 310 mm;
- Weight: 0.720 Kg.
How to know if it is the right actuator for you
Check that the appliance has the same type of power supply as the one available at the connection, checking the data on the label applied to the actuator.
Nekos: automation for doors and windows
Nekos products are manufactured in a workmanlike manner in terms of safety, in accordance with the provisions of current laws.
Correctly assembled, installed and used in compliance with these instructions, they do not constitute a danger to the safety of people, animals and property.
The products that fall within the scope of the EEC directives comply with the essential requirements contained therein.
CE marked, they can be placed on the market and placed in service in the European Union without further formalities.
