Hockenheim Onda 624 Aprimatic kit for sliding gates
- Kit for sliding gates
- Residential use for doors up to 600 kg
- Condominium use for doors up to 400 kg
Features kit for Hockenheim Onda 624 sliding gates
- Complies with current safety regulations regarding obstacle recognition and movement reversal based on EN12453 and EN12445 (certified product in ideal installation conditions). The electronic torque adjustment combined with the encoder technology guarantees a gentle slowdown during opening and closing.
- Continuity of service guaranteed , in case of power failure, by a group of optional batteries that can be inserted on board the actuator.
- Sturdiness and reliability thanks to the base made of die-cast aluminum.
- Worm screw gearmotor with aluminum body, containing the electronic equipment inside. Equipped with a foundation plate adjustable in height.
- Emergency release lever with personalized key in case of power failure.
- New SC24 control card with 433.92MHz radio receiver on board.
Technical data Hockenheim Onda 624 Aprimatic
- Mains power supply : 230 V - 50 Hz
- Motor power supply : 24V
- Maximum leaf weight : 600 kg
- Maximum number of cycles : 100 cycles / day
- Current consumption : 5A
- Power consumption : 100W
- Thrust force : 650N
- Pinion height from the ground : 55mm
Dimensions Hockenheim Onda 624 Aprimatic
Kit ready to install on automatic sliding gate

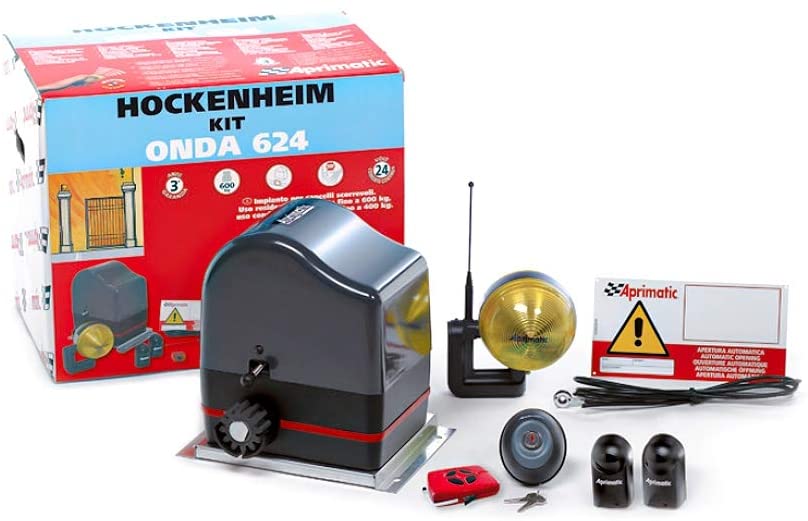

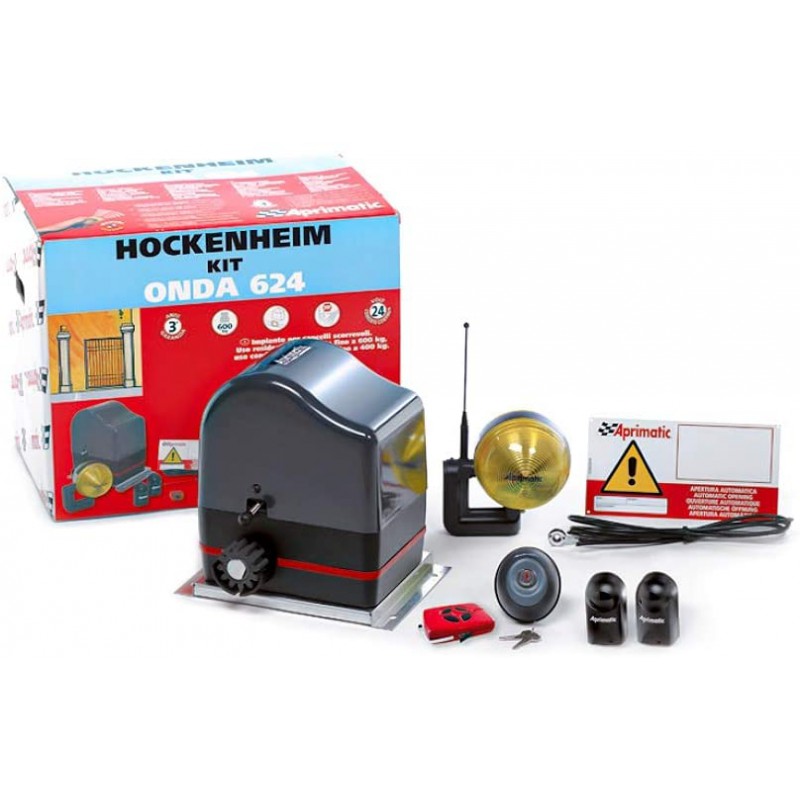

What's inside this kit? Here is the list of accessories included:

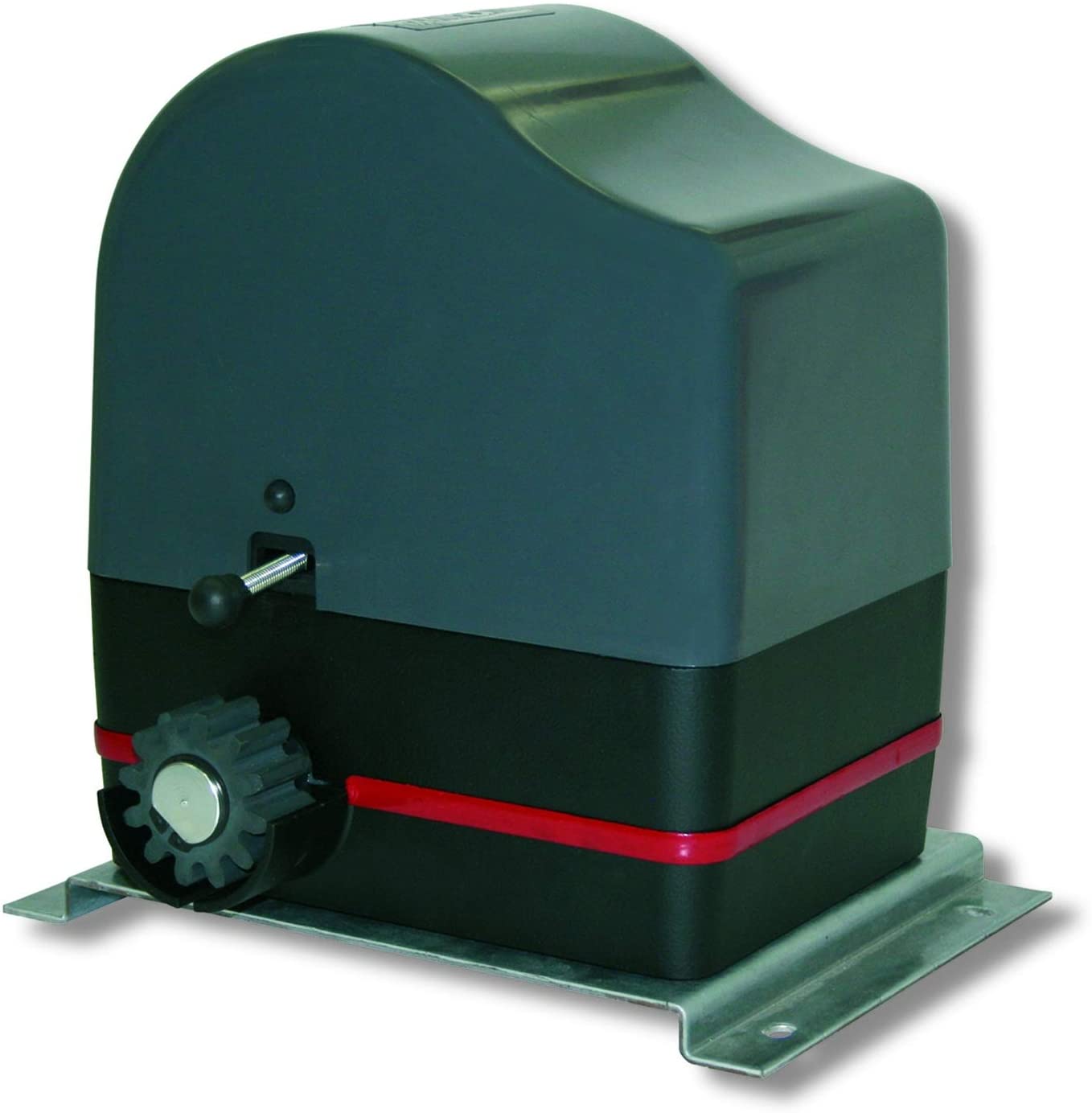

- 1 ONDA 624 gearmotor with SC24 electronic control unit on board, with integrated 433.92 MHz radio receiver, with release key and foundation kit (code 41102/001);

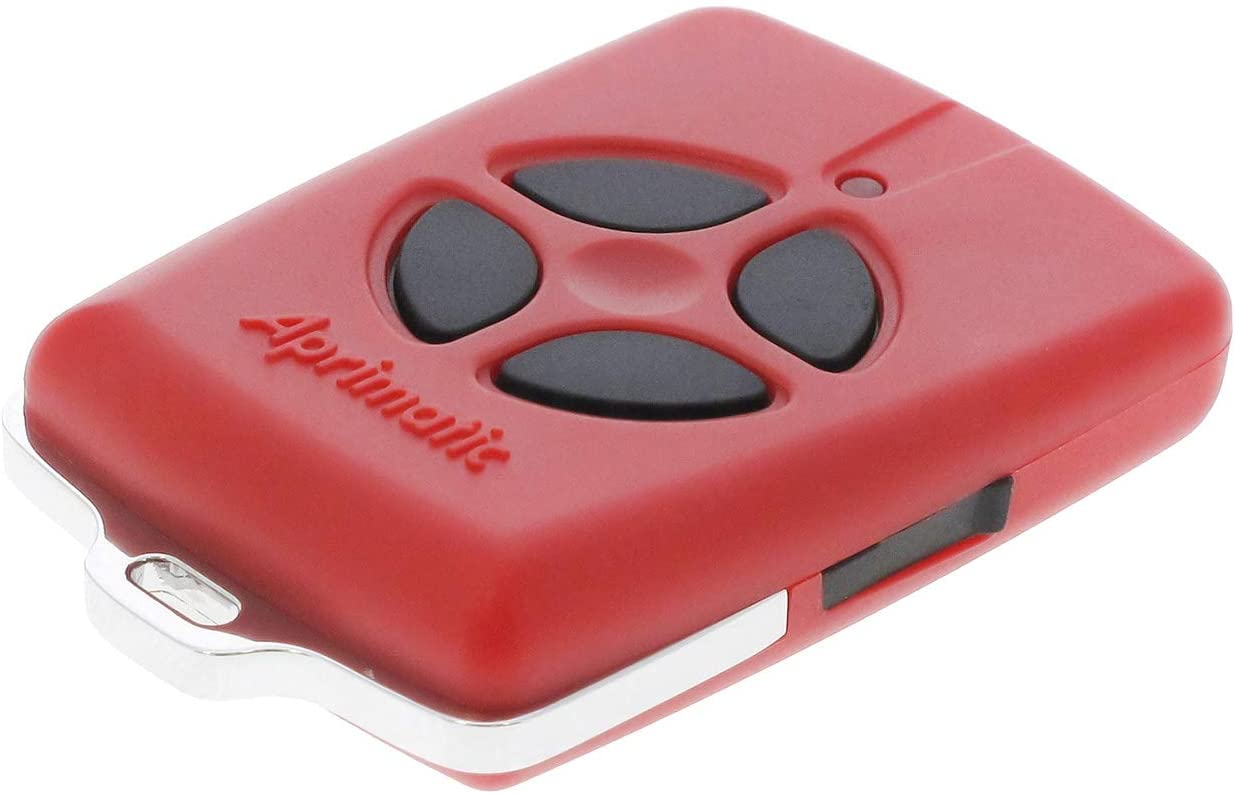

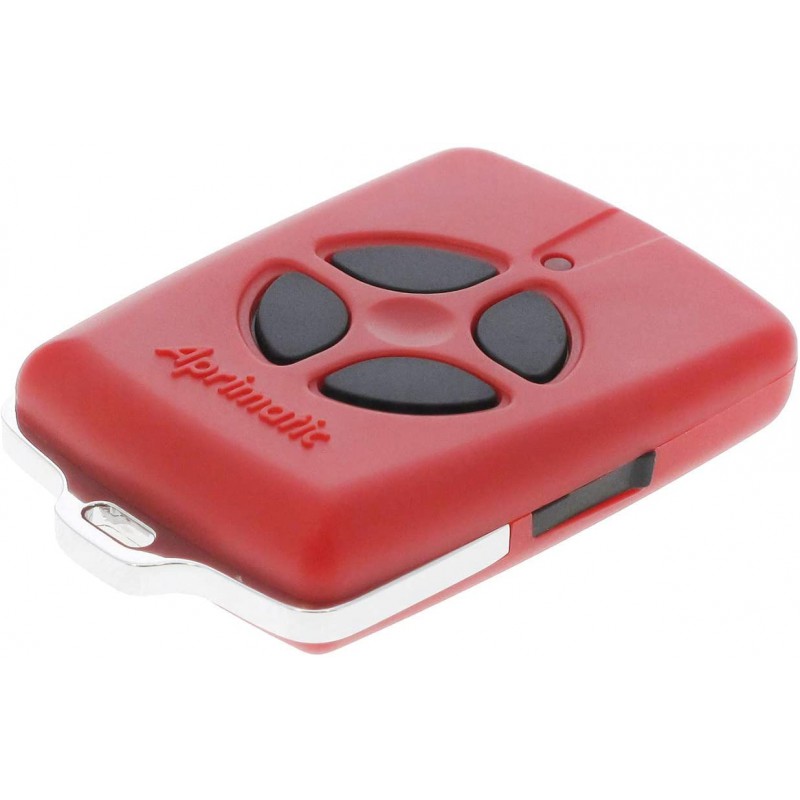

- 1 TM4L - 433.92 MHz four -channel transmitter (code 41905/024);
- 1 antenna KIT 433.92MHz for ET2N-ET20N (code 41929/003);

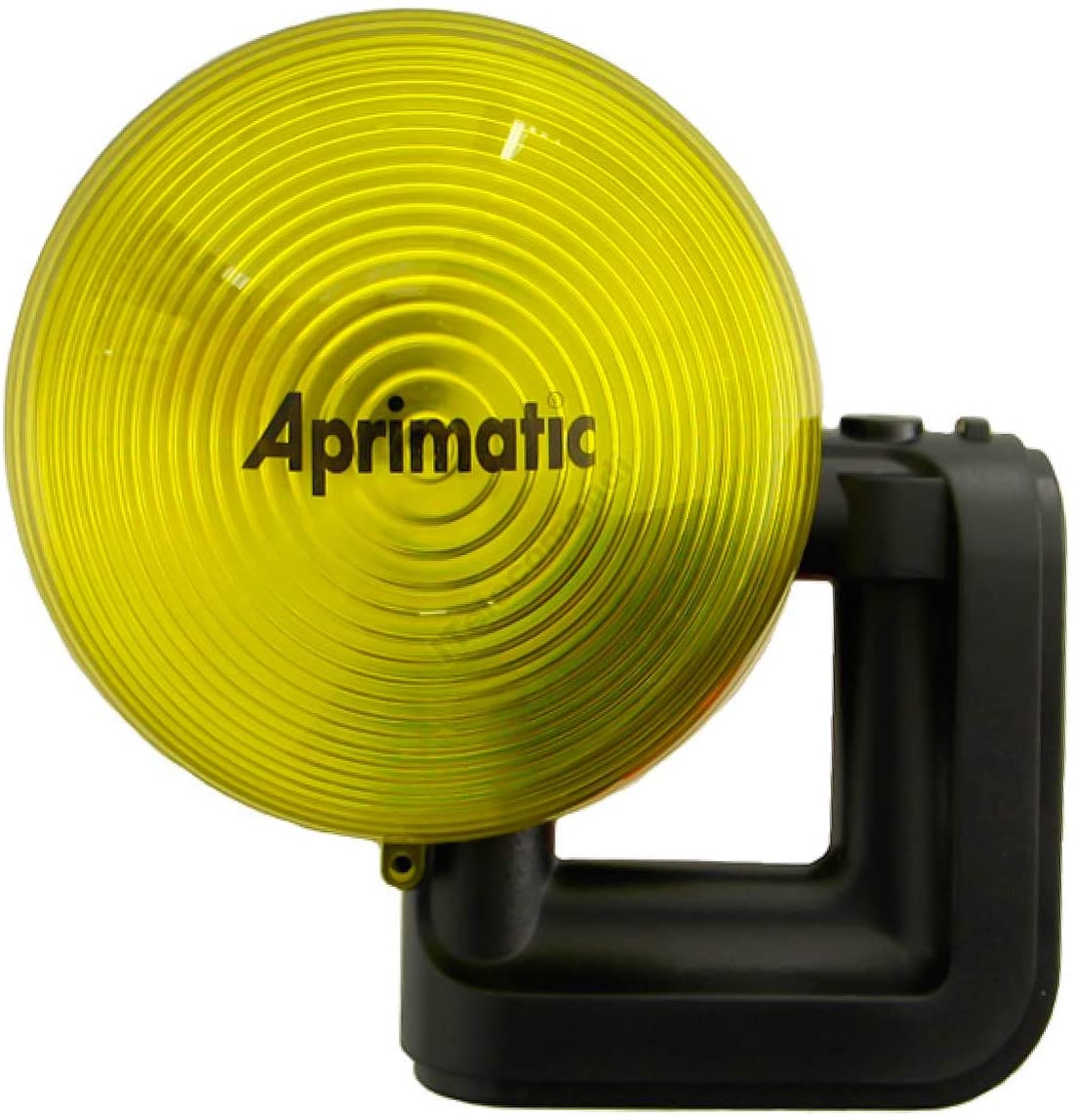

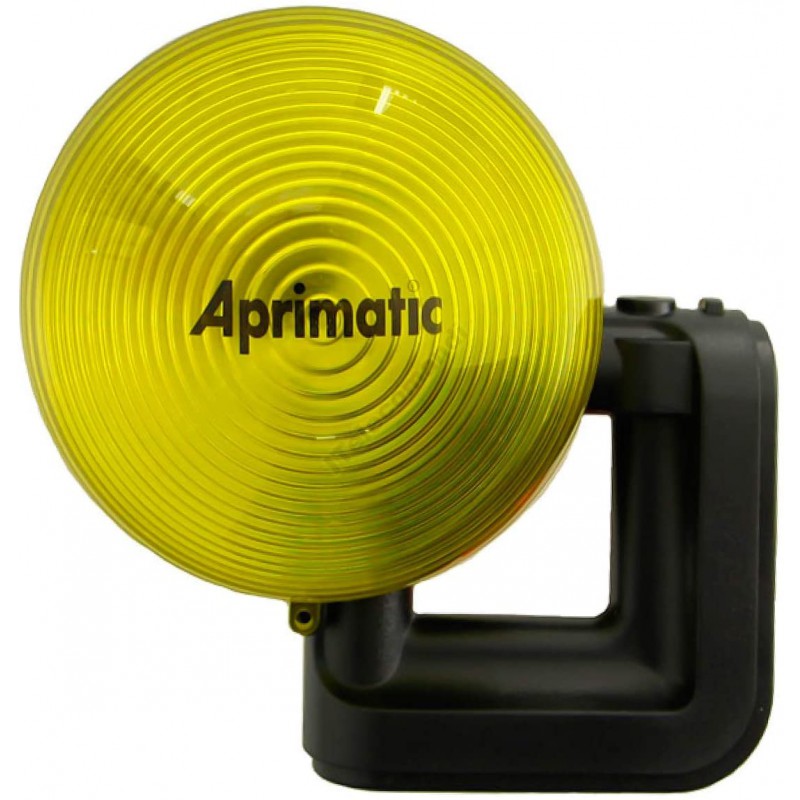

- 1 ET2N-W 24V flashing light (code 41840/010);

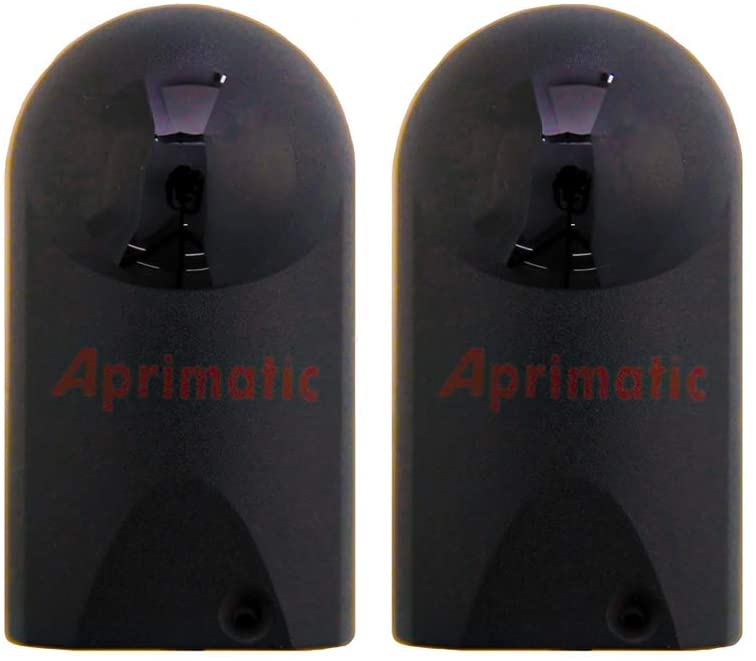

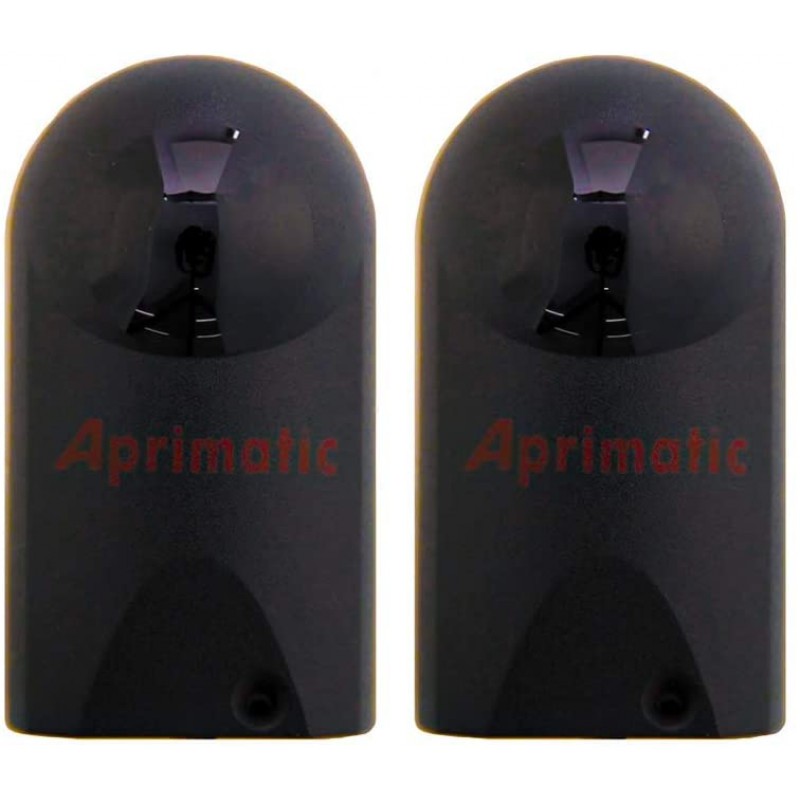

- 1 Pair of ER48 photocells 1 (12V-24V) (code 41812/010);
- 1 PC12E wall-mounted key button 1 (code 41830/007);
- Aprimatic warning sign .
Steel rack of your choice
Add this accessory by choosing from the purchase options:
- CZ - APRIMATIC 108.50 m 4 galvanized steel rack with couplings (module 4) (code 41180/063)
Aprimatic: Made in Italy automatic gate kit
Transform your sliding gate into an automatic gate with Aprimatic motors and installation kits. Windowo is a selected Aprimatic dealer. We sell a wide range of accessories such as kits, motors, actuators and accessories for gates.
