Liwin L35 Radio Chain Actuator 230V L=<1250 Comunello Mowin

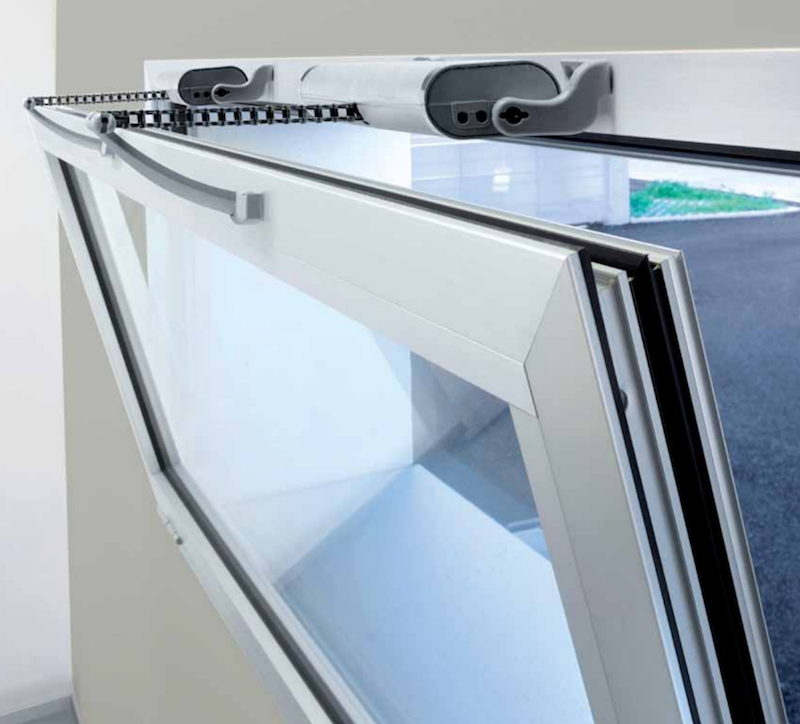

Liwin L35 Radio 230V electric chain actuator for opening and closing top hinged windows, sheds, skylights, bottom hung windows in wood, PVC and aluminium.
Comunello radio motor
operated by remote control (to be purchased separately).
Actuator with remote control not included
Liwin L35 Radio version with 230V voltage set up to be able to operate the engine thanks to the
R-Control radio control (434.15 Mhz). The remote control can be purchased separately on Windowo.
Inside the package you will find all the elements and tools that make assembly and connection operations with the electrical system simple.
The package contains: chain actuator with electric cable, support brackets, attachment for top-hung and top-hung windows, adhesive template included and multilingual instruction booklet.
Liwin L35 Radio 230V Comunello Technical characteristics
- Model: L35 RADIO 230Vac;
- VAC power supply: 230VAC;
- Frequency 50Hz;
- Service: S2 4min;
- Push force: 350N;
- Pulling force: 350N;
- No-load translation speed: 18 mm/s;
- Degree of protection: IP44;
- Double AC insulation: Yes;
- VAC Current: 0.19A;
- Power: 28W;
- Operating temperature: -5° / +50°;
- Strokes: 50 – 100 – 150 – 200 – 250 – 300 – 350 – 400 – 420 mm;
- Closing limit switch: by absorption;
- Soft Start / Soft Stop: Yes / Yes;
- Obstacle detection: Yes;
- Parallel connection: yes (max 30 actuators);
- Synchronization: no;
- Dimensions: 390x38x73mm.

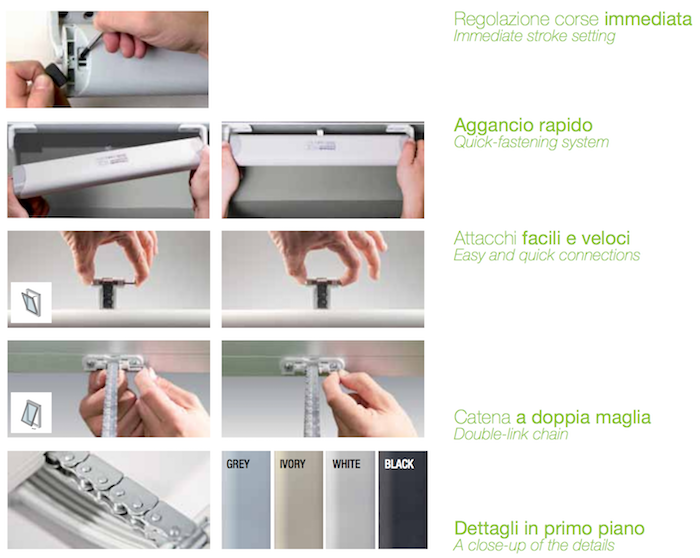

Immediate stroke adjustment - Quick coupling.
Quick and easy attachments - Double link chain - Details in close-up.
