Lock for up-and-over door with round cylinder Prefer B551.0810.0200
Lock for up-and-over door with Ø25 cylinder with handle follower (2 keys supplied).
The
Prefer lock B551.0810.0200 has the dimension B 5.5 mm (external protrusion of the cylinder).
Lock for up-and-over garage doors with operation from inside and outside. The Prefer up-and-over lock is opened with a handle and unlocked from the outside with a key and from the inside with a side lever. The round cylinder is made of brass with a galvanized box.
The application of the Prefer B551.0810.0200 lock is foreseen on up-and-over doors, 1 lock on the upper side.
Prefer lock for up-and-over door with round cylinder and 2 keys
- Application: on up-and-over doors, 1 closure on the upper side;
- Operation: opening with handle from inside and outside, unlocking from outside with key, from inside with lever.

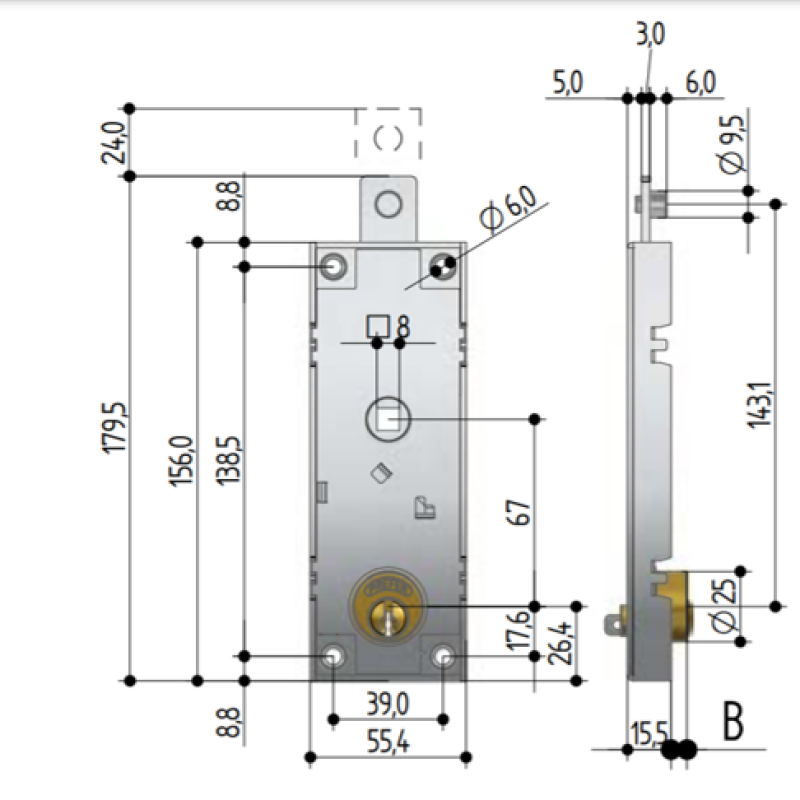

Features and dimensions lock for Prefer overhead door B551.0810.0200
- Lock for overhead doors;
- Operation from inside and outside;
- The key blocks the rod command by means of the square and handle;
- Opening with handle;
- Unlocking from the outside with key; from inside with side lever;
- Round cylinder in brass, galvanized box;
- 1 top side closure;
- Handle follower 8 mm;
- Cylinder diameter 25mm;
- Outer cylinder protrusion 5.5 mm;
- Rod stroke 24 mm;
- Supplied with 2 keys.
