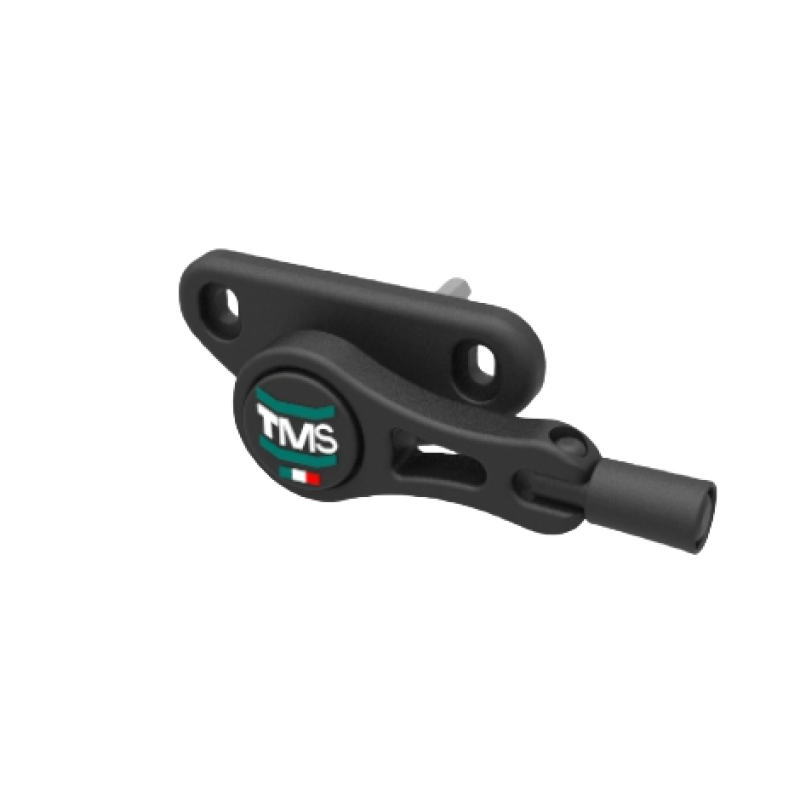

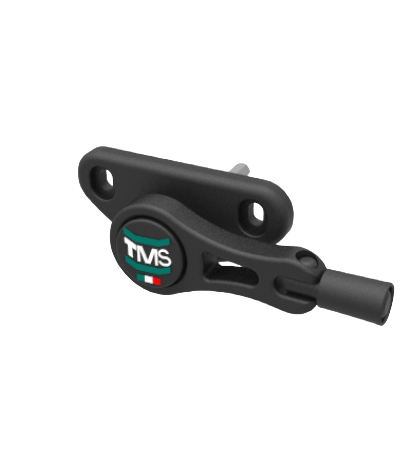

Lowered Crank - for Adjustable Shutter - Rotary Chamber 25/36
The
lowered crank while taking up the design of the classic handle for opening / closing the adjustable shutter, it has been designed with the aim of reducing
the overall dimensions to a minimum through a patented system.
The TMS crank can be mounted on all Tecnometalsystem adjustable shutter mechanisms, it is assembled with the
rotary mechanism and mounted both on chamber doors 24-25 and on bedroom doors 35-36.

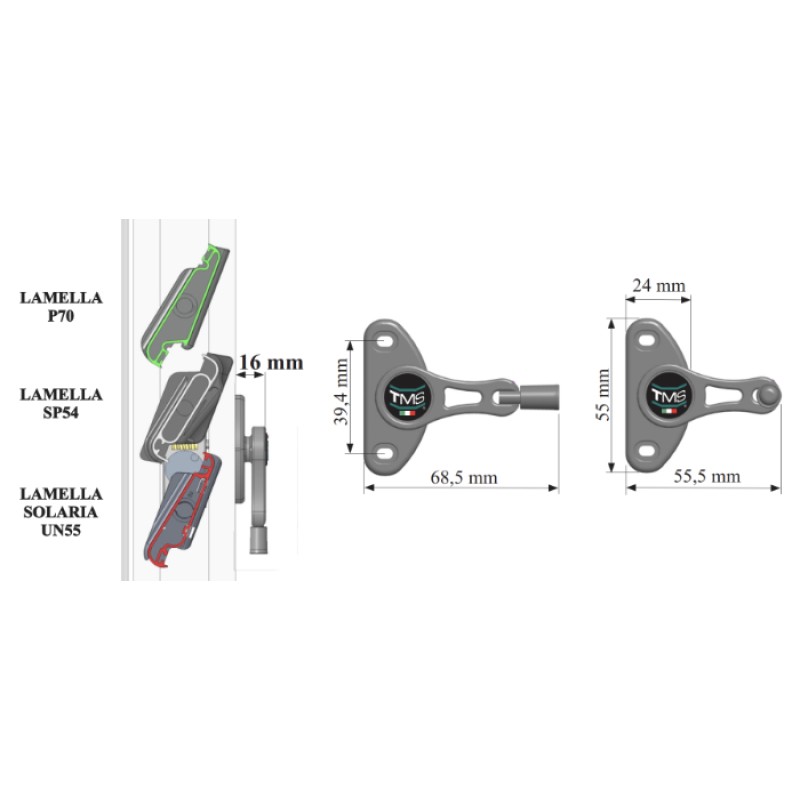

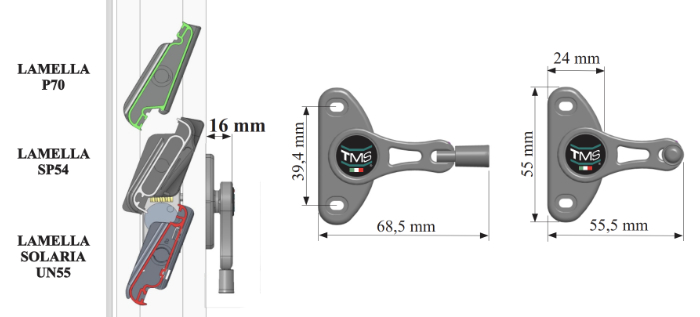

This shutter crank has a footprint from the leaf plane of 16 mm.
The TMS adjustable shutter handle can be mounted on all types of slats.
Hole position for lowered handle assembly for shutter
The rotary positioning hole is made using a 9 mm diameter drill bit and drilling according to the profile.
Versions lowered crank for Tecnometalsystem shutter
You can buy 2 different
versions of the Tecnometalsystem lowered crank.
Select the Persian crank version you want according to your need.
What are the versions of the Tecnometalsystem LOWERED crank? Here's the list:

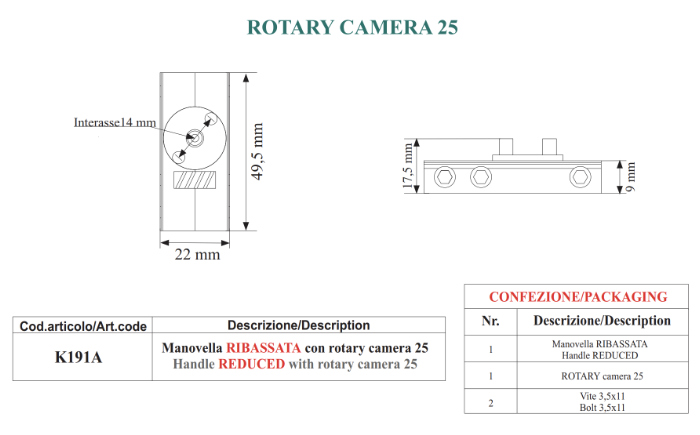

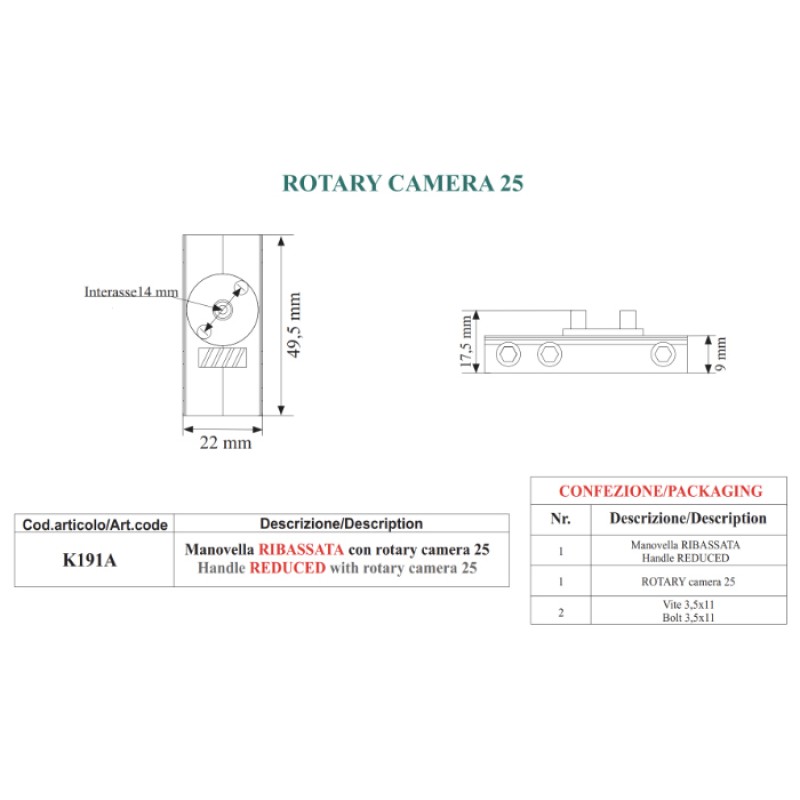

- K191A : LOWERED crank with rotary chamber 25;

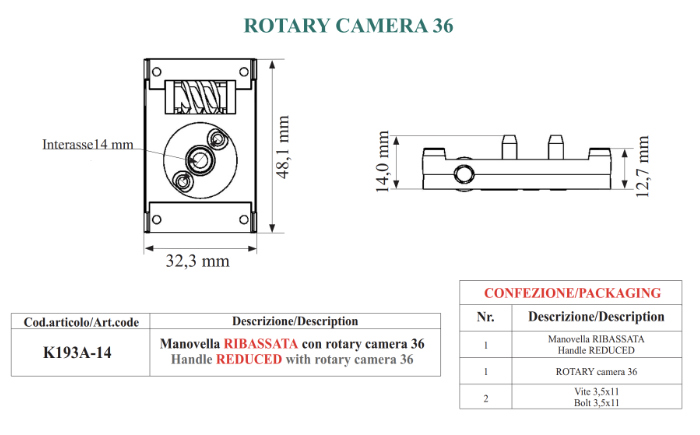

- K193A-14 : LOWERED crank with rotary camera 36.
The package includes the shutter crank of the selected code and two 3.5x11 mm screws.
For more information, we recommend that you read the technical data sheets (click on DOCUMENTS).
Tecnometalsystem lowered Persian crank colors
Each version can be ordered in black or colored version.
The
standard version is black . The colors of
the colored version are: white, gray, brown, dark brown or green.
If you decide to buy the colored device we will ask you later which of these colors you would like to receive.
