Magnetic Contact IoT Connected to Battery 03980 Vimar
Magnetic contact for doors and windows , IoT technology on Bluetooth technology 5.0 standard for the construction of the View Wireless mesh system, 1 input for clean contact, powered by AA LR6 1.5 V batteries (not supplied), white.
It can be used as an
accessory of the connected thermostat or, in combination with the IoT gateway, as a
sensor for opening / closing notifications of the magnetic contact or of the dry contact input.

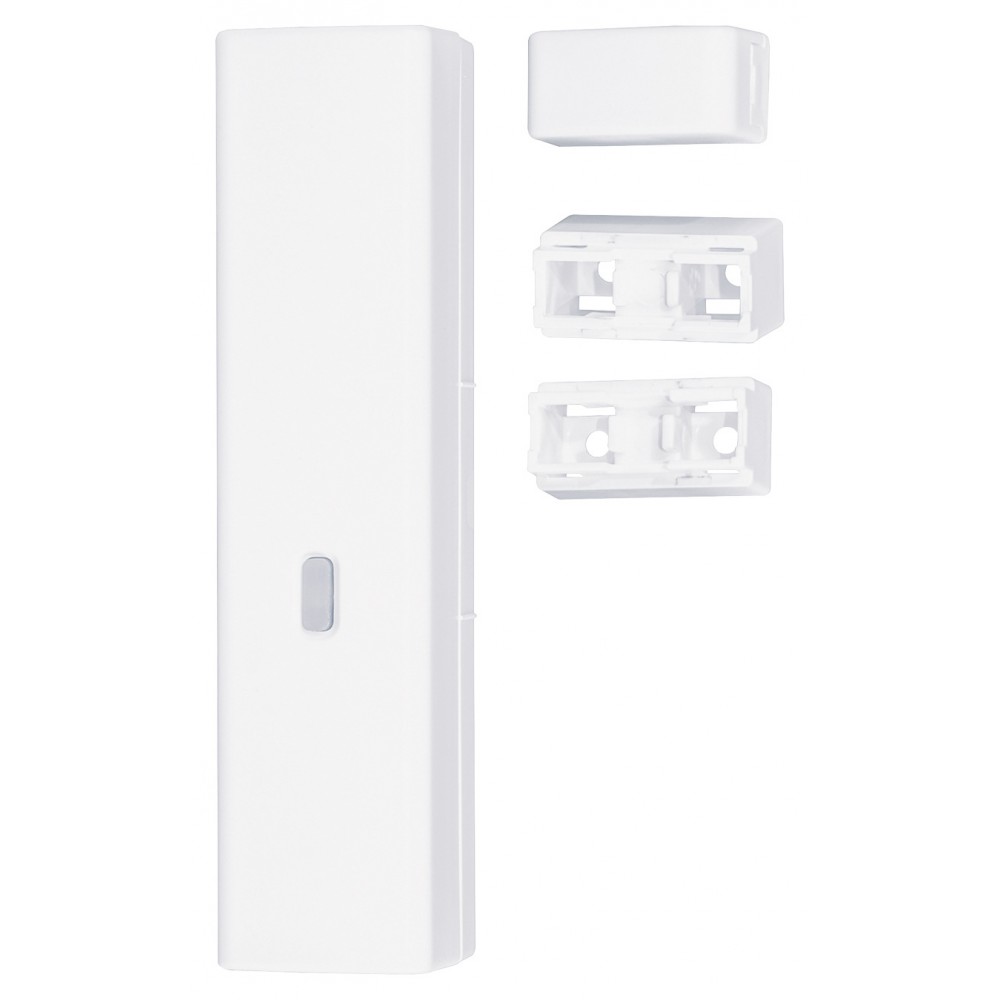

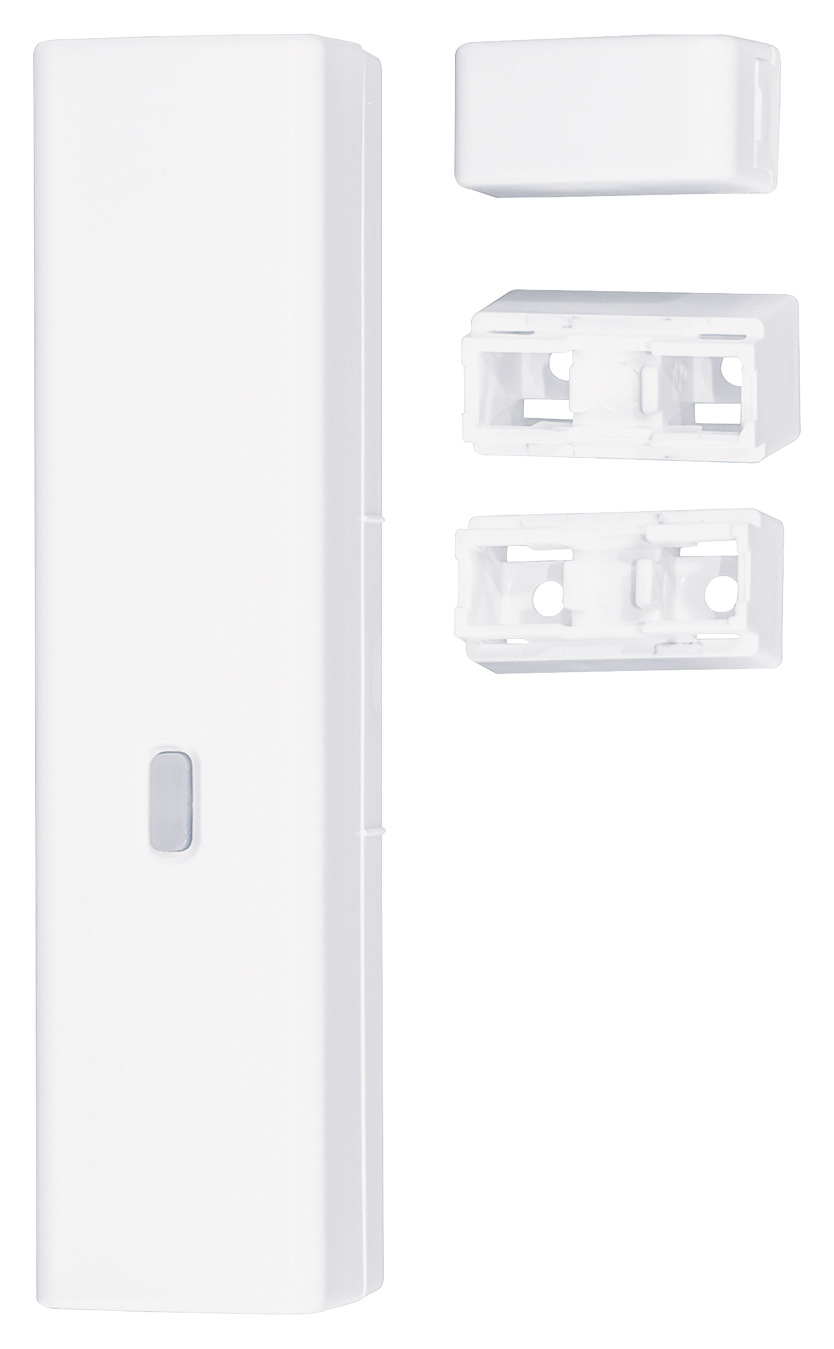

The connected device is equipped with a
magnetic contact and a wire contact that can be used independently. On the front there is a button for configuration and a two-color red / blue LED for signaling the various states. The device can be configured in the Bluetooth technology system using the View Wireless app and, through the gateway 20597-19597-16497-14597, can communicate with the View app to notify the opening or closing of one of the 2 contacts.
The magnetic contact 03980 Vimar can be associated with the thermostat 02973 to switch off the system in the event of an open window. It is also able to recall
scenarios created with the View app .
Characteristics of the magnetic contact 03980 Vimar
- Rated power supply voltage: 1.5 V (AA (LR6) battery not supplied);
- Battery life: 3 years.
Warning: If the system is switched off (for example in seasonal use) the batteries will discharge more quickly because the contact will continue the search for powered devices. We therefore recommend that you remove the batteries if possible.
- Transmitted RF power: <100mW (20dBm);
- Frequency range: 2400-2483.5 MHz.
Clamps:
- 2 terminals for wire contact;
- 1 not used.
- Magnetic contact to be combined with the supplied magnet;
- The wire contact must be used for potential-free connections;
- Wired contact installation distance: max 30 m;
- 1 front configuration button;
- 1 bi-color LED to signal configuration status (blue flashing) and output status;
- Operating temperature: 0 ° C ÷ + 40 ° C (indoor use);
- Configuration from App View Wireless for Bluetooth technology system.
Vimar connected device for sale online
Vimar is an Italian company that produces
home automation and electrical equipment of different types: connected domestic series, wireless smart home products, video door entry systems, security, plates, electrical switches, plugs, sockets, adapters and much more.
The
Wireless View App allows the configuration of the connected domestic series devices which represent the ideal solution in new systems or renovations where basic smart functions are required.
