Micro Evo 2 Mingardi Chain Actuator for Protruding or Vasistas Windows

Micro Evo 2 Mingardi Double Link Chain Actuator for Top Hinged or Vasistas Windows

Thanks to its versatility, Micro Evo 2 adapts perfectly to any application. The 24V version is RWA (tested to be installed on smoke and heat evacuation devices).




• Wide range of voltages and strokes;
• Tested according to the specifications of the European Standard EN 12101 - 2: 2017 - RWA;

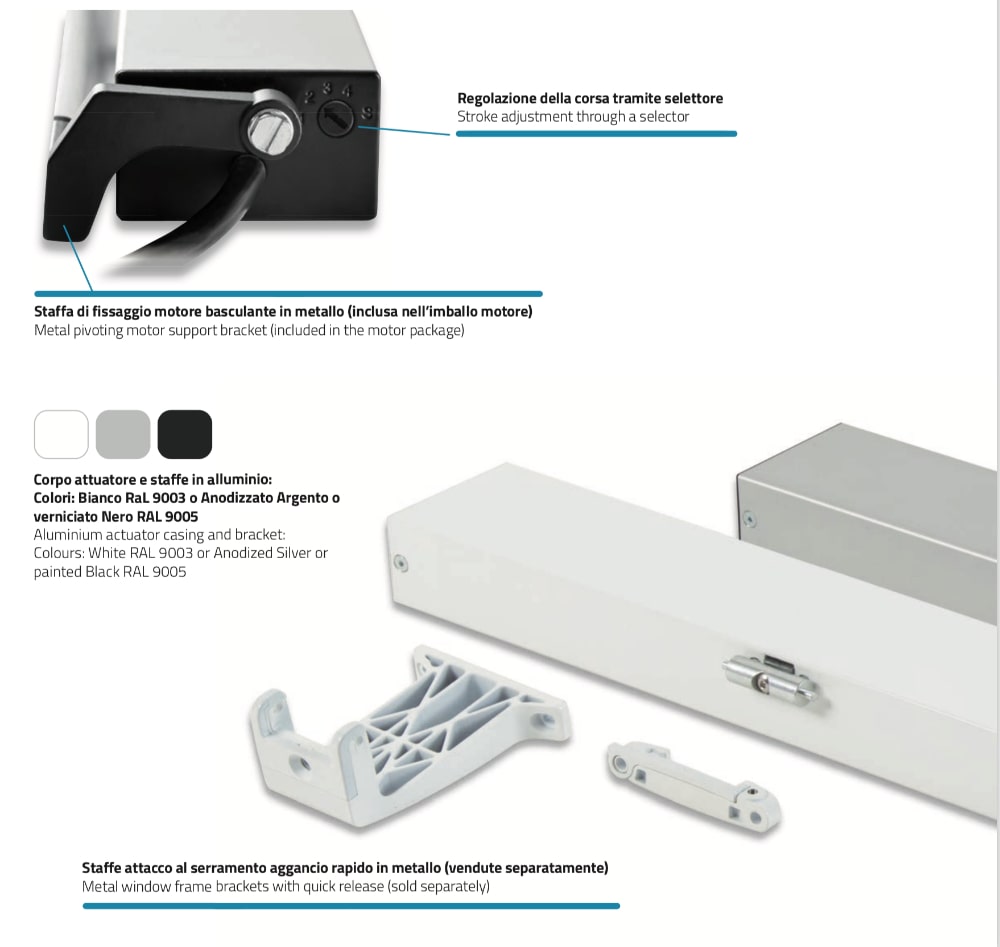

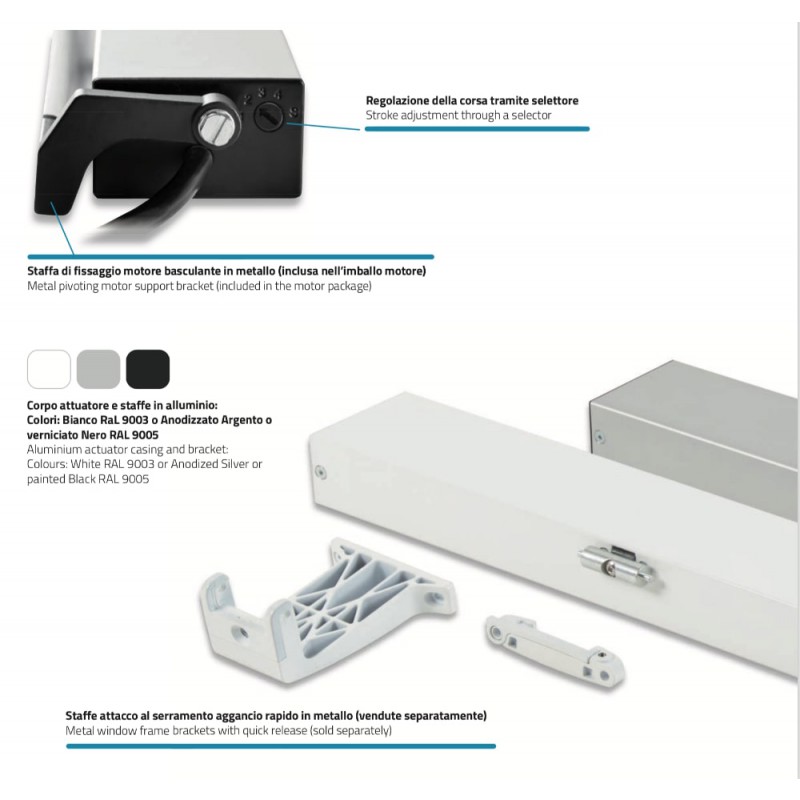

• Possibility of stroke adjustment by selector;
• Synchronization function manageable during installation, for the application of more actuators on the same window;
• Limit switch self-learning;
• Soft stop to preserve the window seals and the motor;
• Double electrical insulation: Class II AC version - Class III DC version;
• Aluminum casing;
• Double link chain with anti-corrosion treatment;
• Easy to install thanks to the new simplified fixing system.

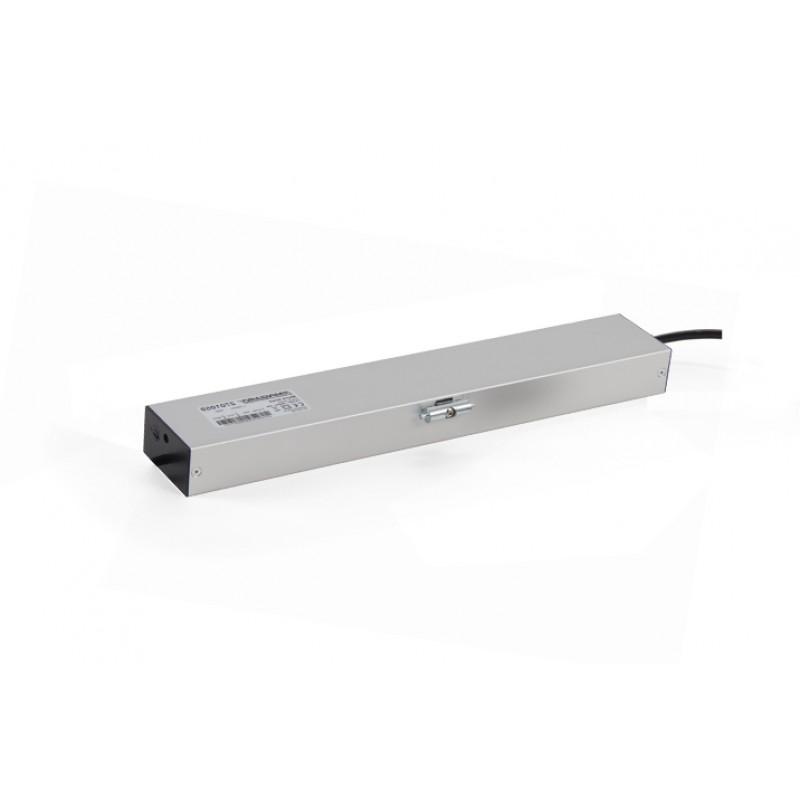

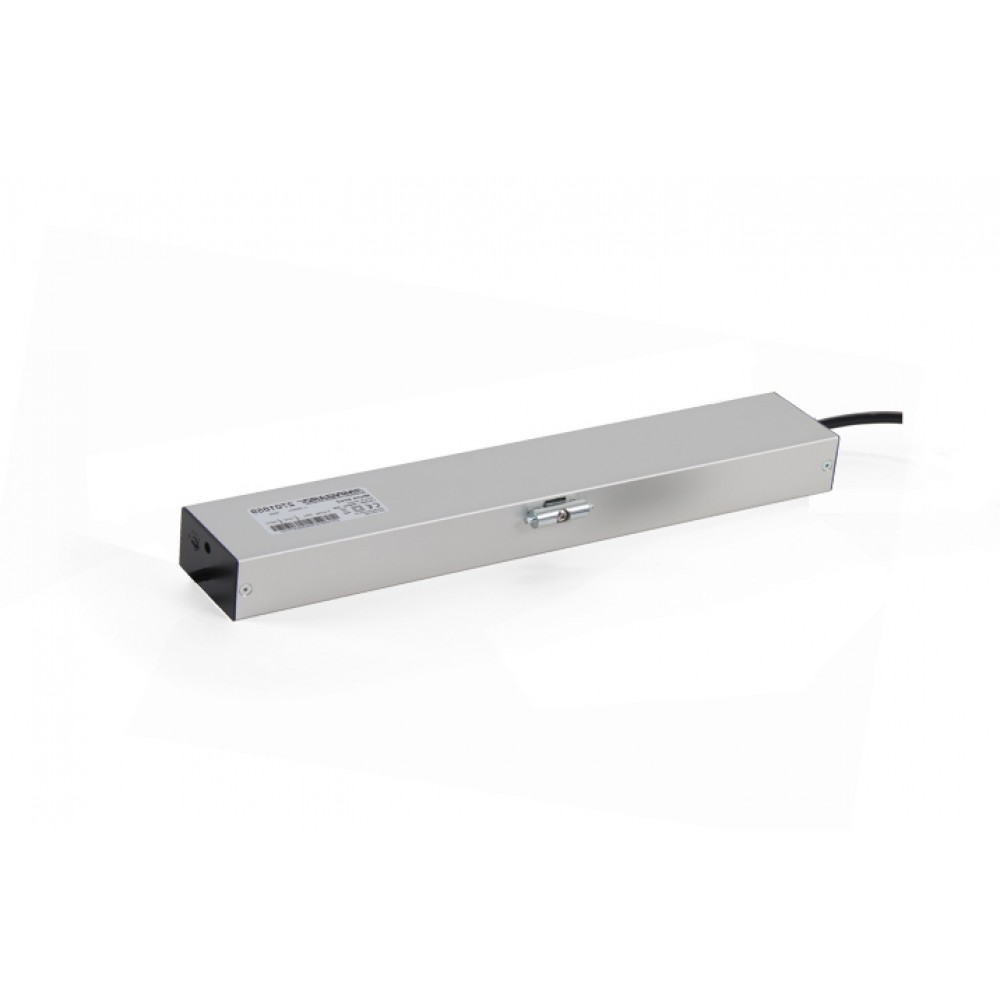

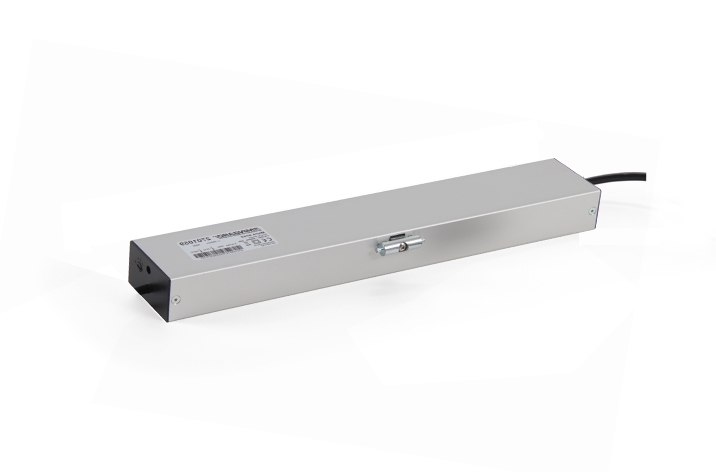

Micro Evo 2 Mingardi: double link chain actuator in a metal casing

• Equipped with overload protection system and automatic closing limit switch adjustment;
• It has 4 types of electronically selectable strokes;
• Equipped with a synchronization system capable of coordinating the movement of the chain of several actuators (up to 4) without the need for any external control unit;
• Available in the version operating with alternating current (110-240V, 50-60 Hz) or direct current (24V) power supply voltage;
• Can be connected in parallel.
• Compliant with the relevant European Directives;

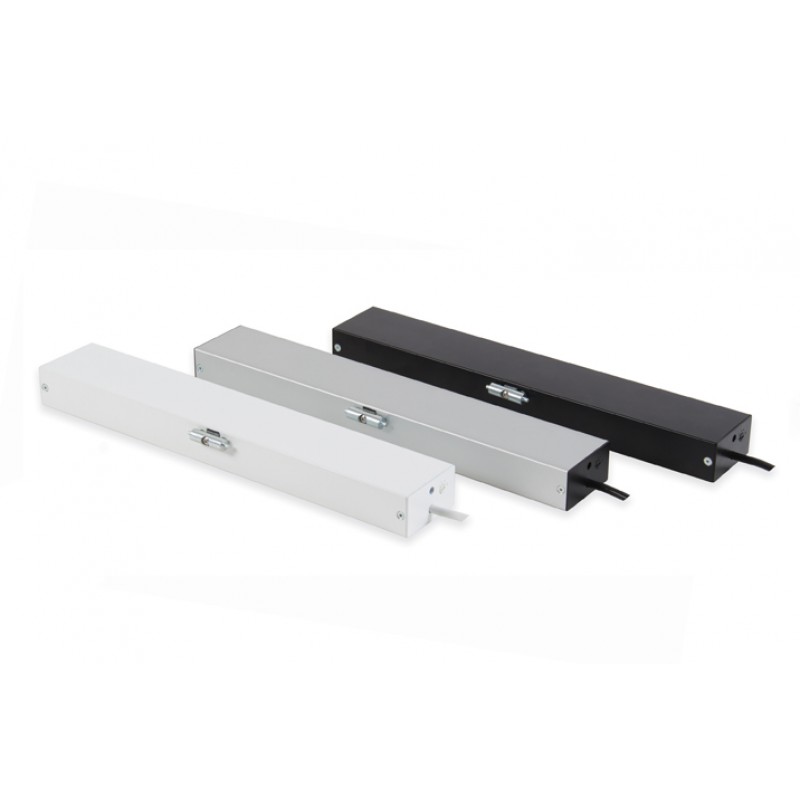

• Available in the version with silver or black casing (RAL9005) with accessories and black cable or with white casing (RAL9003) with accessories and white cable;
• Can be installed on top hinged windows or vasistas;
• Tested to be installed on smoke and heat evacuation devices (RWA version with 24V direct current).

Micro Evo 2 Mingardi chain actuator technical features:

• Force: Thrust - Traction: 300N;
• Voltage: 110-240V AC (50 / 60Hz) or 24V DC (RWA version);
• Power: 110-240V AC: 30W - 24V DC: 28W;
• Selectable stroke (mm) and thrust force: 150 (400N) - 300 (400N) - 450 (350N) - 600 (300N);
• Traction force: 400N;
• Degree of protection (for internal use): IP32;
• Operating temperature: -10 ° C + 60 ° C;
• Cable: 110-240V AC: Black or White PVC H05VV-F 5x0,75mm2 - L.1500 / 24V DC: SILICONE Black SiHF 4x1mm2 - L.1500;
• Color: White RAL 9003 or Anodized Silver or Black RAL 9005;

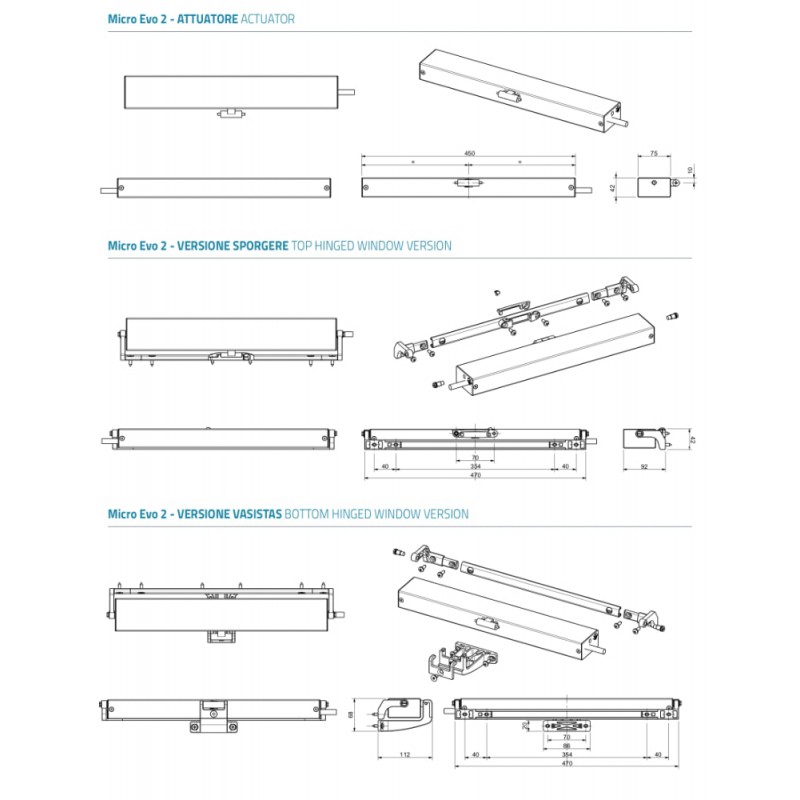

• Dimensions: L. 450 x H. 42 x W. 75;
• Synchronization: Yes max 4 actuators;
• Soft stop closing: Yes.

Not compatible with radio receiver 2701029.

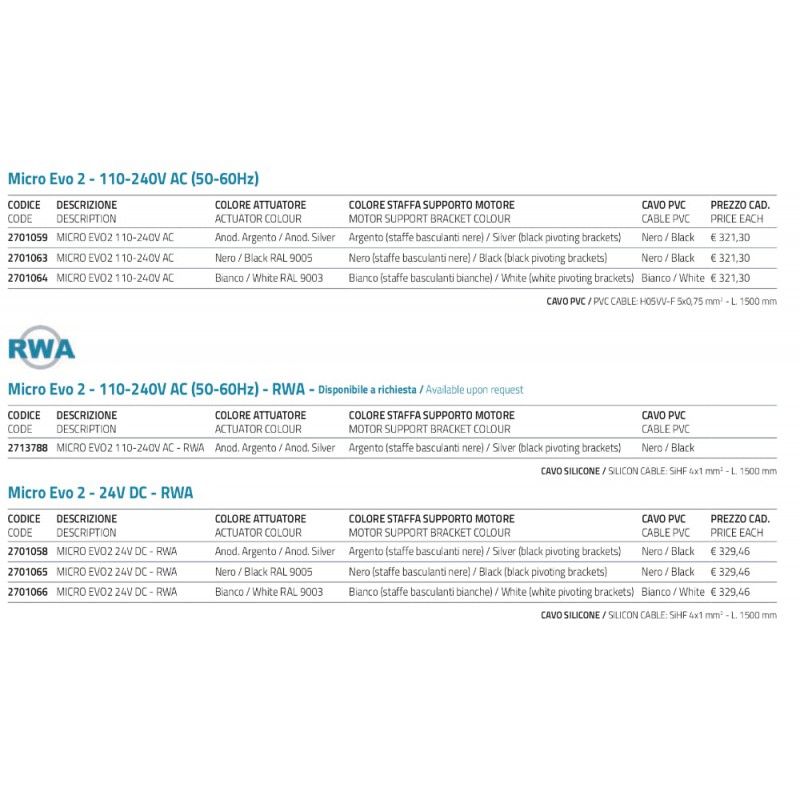

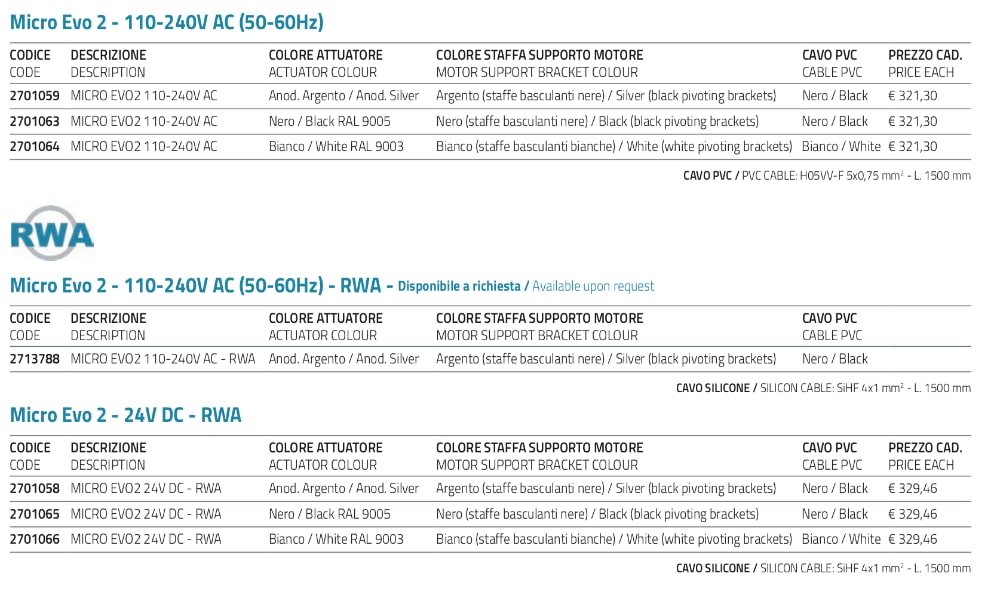

Micro Evo 2 - PACKAGING CONFIGURATION:

• Micro Evo 1 Mingardi actuator;
• Tilting actuator support bracket;
• Window fixing brackets sold separately (on top hinged window, bottom hinged or tilting motor support).
