Modular Stand-Alone Management Electronics 56611 Access Series Opera
Use
Stand-alone system for access control. Allows memorisation of user codes or cards managed directly by the user via activation and cancellation cards.
Easy installation and programming, can be utilised to activate an electromechanical lock or motorisation.
Characteristics

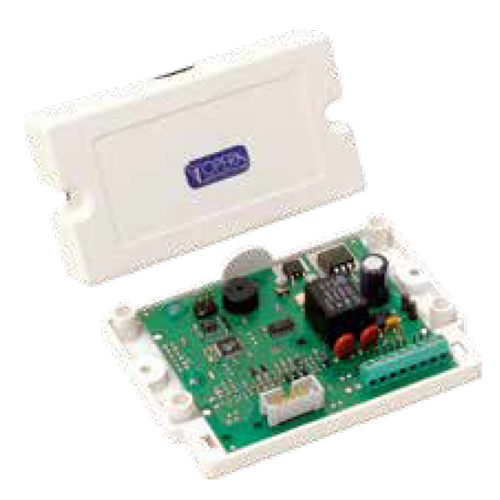

Electronic circuit in white ABS container.
Container dimensions (mm) : 111 x 72 x 29.
Operating voltage: 12 – 18 Vac/Vdc.
Absorbed current: 100 mA in stand-by / 130 mA with relay active.
Timed output contact from 0.5 to 25 seconds for control of lock opening.
Up to 500 magnetic strip or transponder cards or codes (made up of 1 to 10 digits) can be memorised.
Memorisation via card, transponder or activation code.
Cancellation via card, transponder or cancellation code (if in possession of the system manager) If a lost card must be cancelled, total cancellation must be utilised and subsequently the activated cards must be re-memorised.
Code cancellation: single (if in possession of card or code) or total.
Supply of 4 Master codes (if used with 55612S or 55612SS or 4 cards (if used with 55613 or 55613AL or 4 transponders (if used with 55614 or 55614PD) or 4 Dallas Keys (if used with 55618PD):
1 programming.
1 single cancellation.
1 total cancellation.
1 time adjustment for relay activation.
Can be connected to 1 keypad series 55612 or 55612SS or 1 card reader 55613 or 55613AL or to 1 transponder reader 55614 or 55614PD.
Input for indoor opening push buttons.
Relay with C./N.O./N.C contacts for opening of electromechanical locks.
Applications example
Access Series Opera
Access control system.
Code key pad, magnetic cards reader and RFID.
People counter system for libraries, museums, shopping centers.
Stand-alone version for individual applications.
On line version with PC management for multi doors systems.
