Mortise Lock for Metal Doors - Prefer 5520
5520 Prefer lock for doors with metal profile, front plate 134x131x20 mm, center distance 28 mm, cylinder length 56 mm.
The
mortise lock is equipped with a reversible latch that can be operated with a handle. It is a safety device designed to ensure maximum protection for metal doors.
This lock is made of high quality materials and equipped with a locking mechanism, which prevents the door from being opened without using the key.

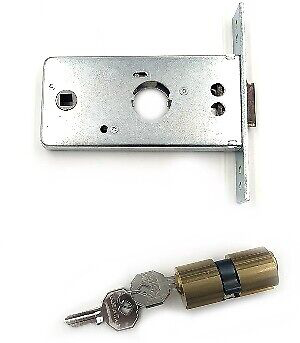

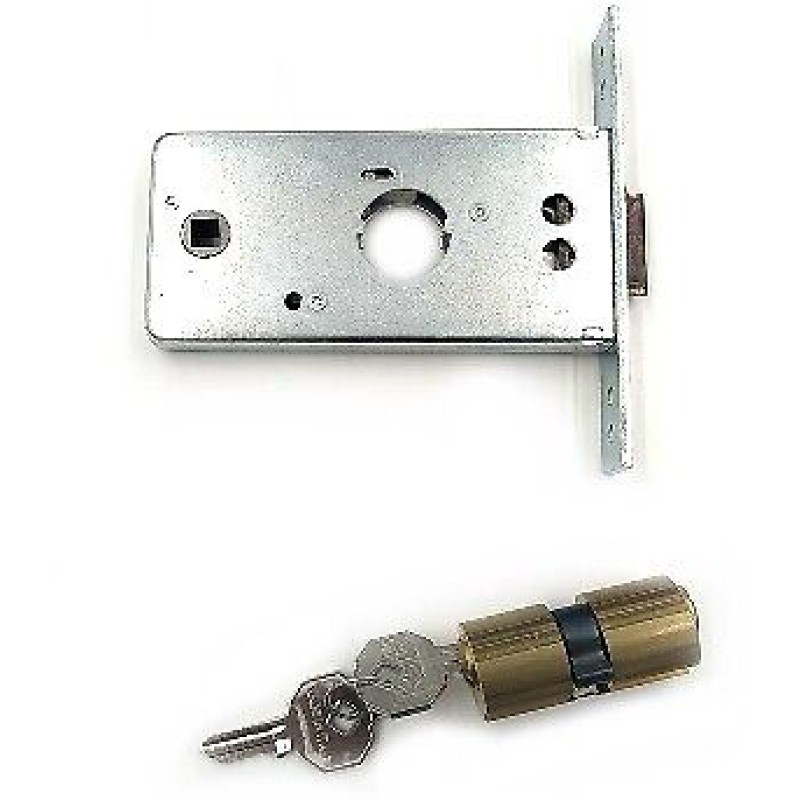

You can buy the
version with or without cylinder (select the variant you want).

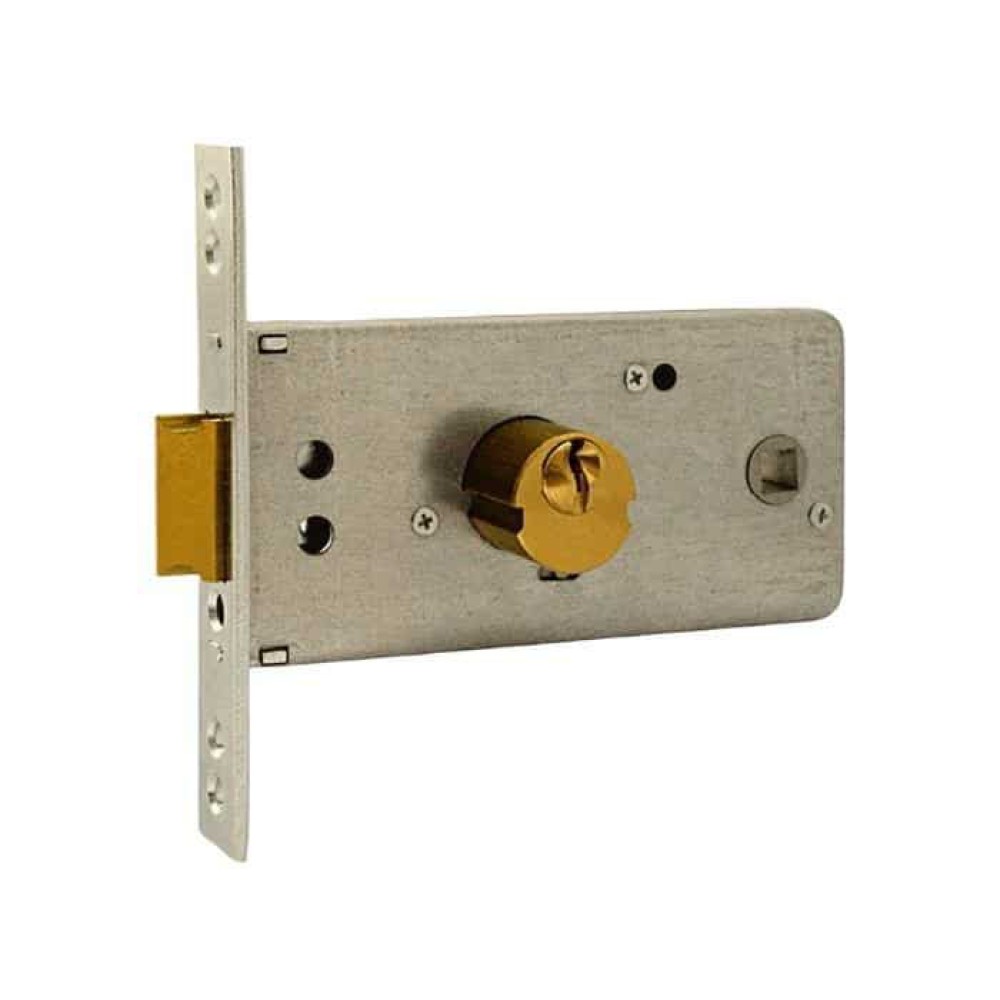

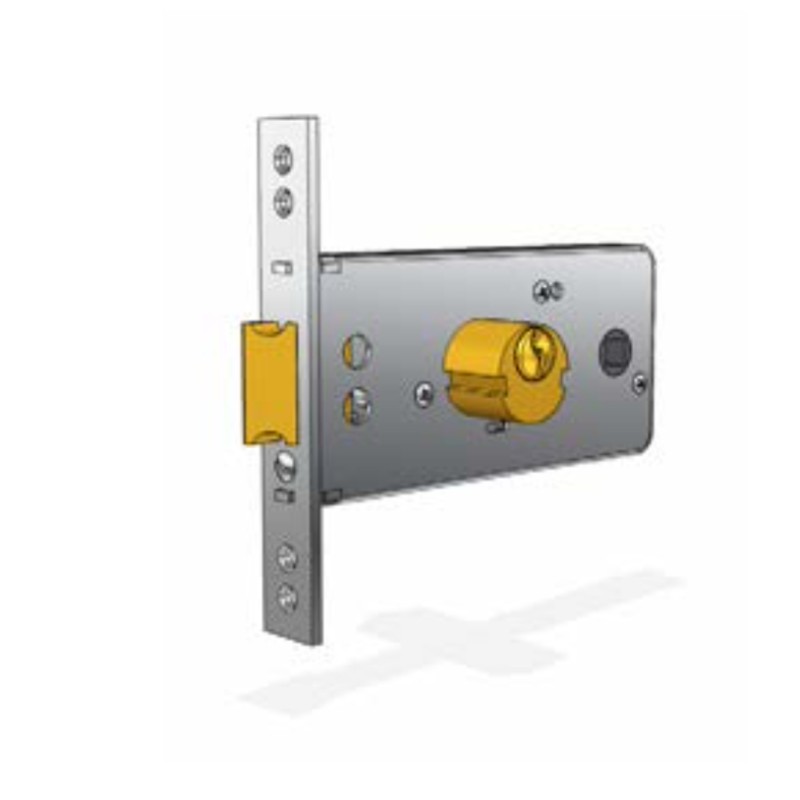

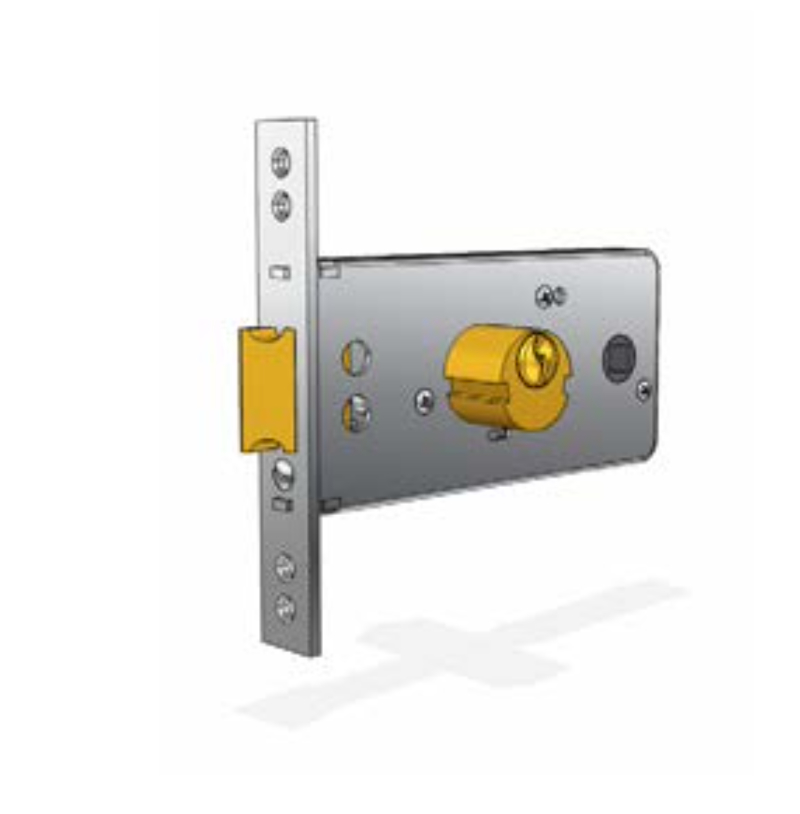

Prefer 5520 mortise lock for metal doors
- Application: Mortise for transit doors;
- Operation : handle-operated reversible latch, 1-throw locking with key;
- Finishes: brass cylinder, galvanized box.

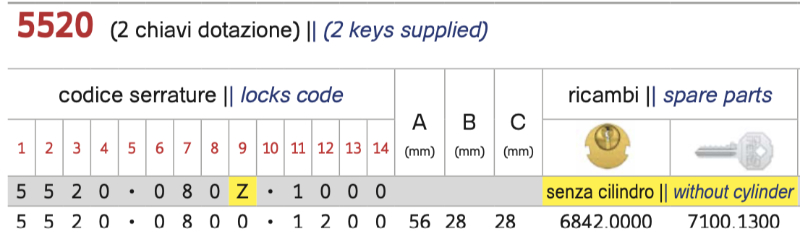

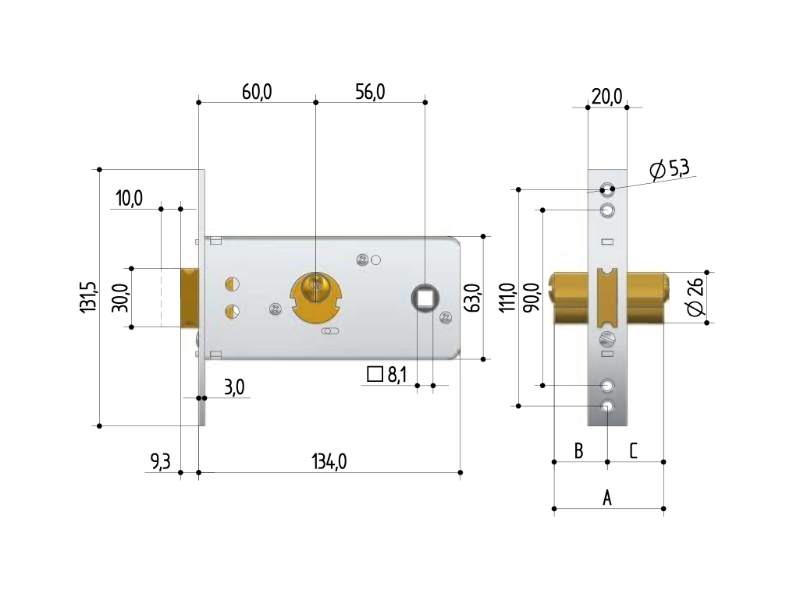

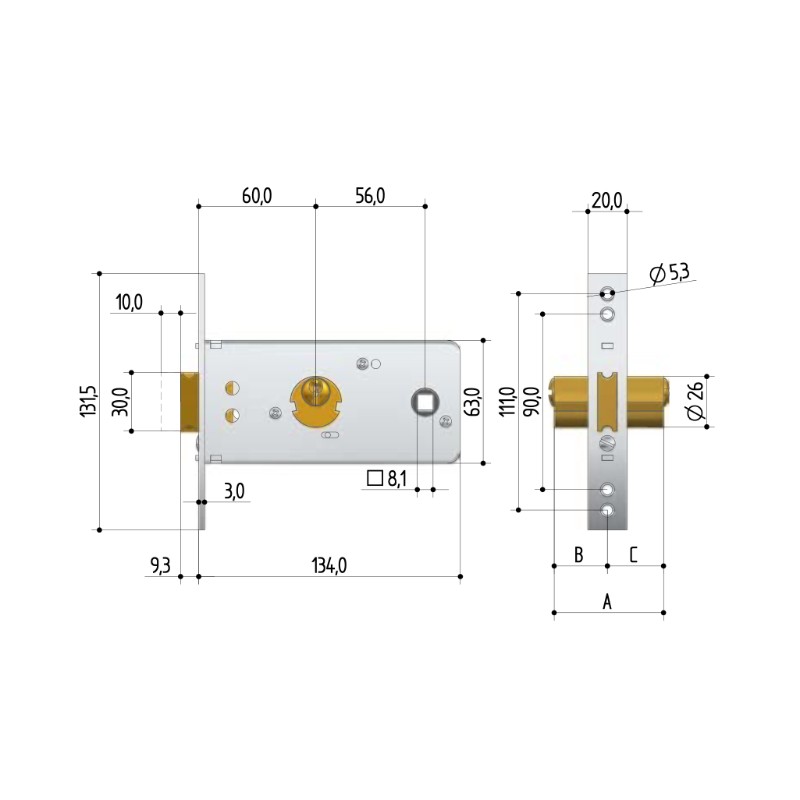

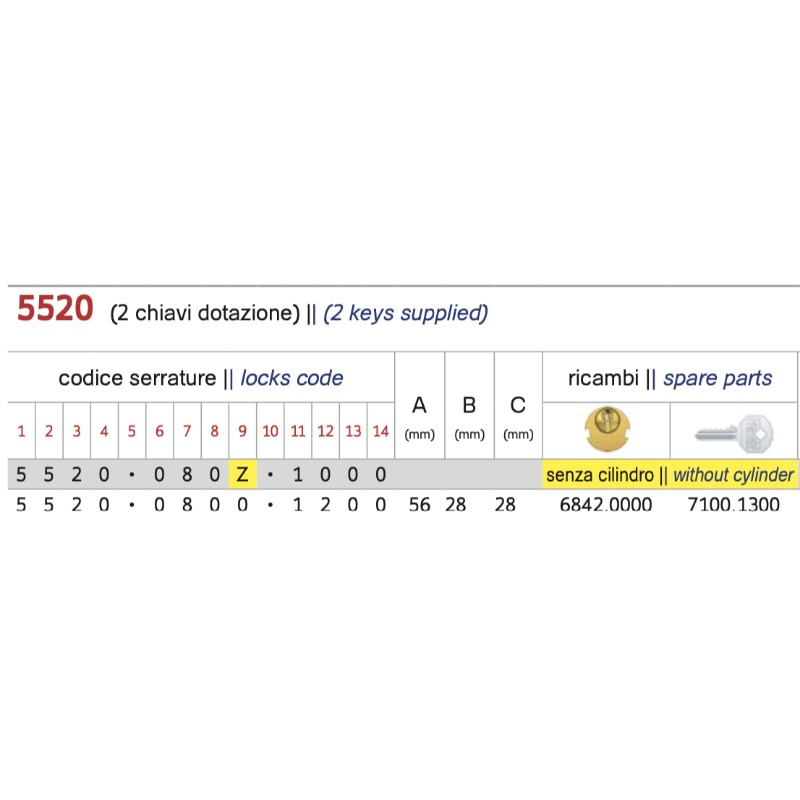

Technical characteristics - Mortise lock for metal doors - Prefer 5520
- Cylinder diameter: 26mm;
- Cylinder Length (A): 56mm;
- Cylinder distances (B and C): 28 mm;
- Handle follower: 8mm;
- Cylinder finish: brass;
- Box finish: galvanized;
- 1-turn locking with key;
- 2 keys are included.
