Self-managed Alarm Alarm System 55005 for Controlled Emergency Exits Opera
Self-managed Alarm Deployment Opera
Alarm system for controlling the opening of emergency exits equipped with only a mechanical lock or handle.

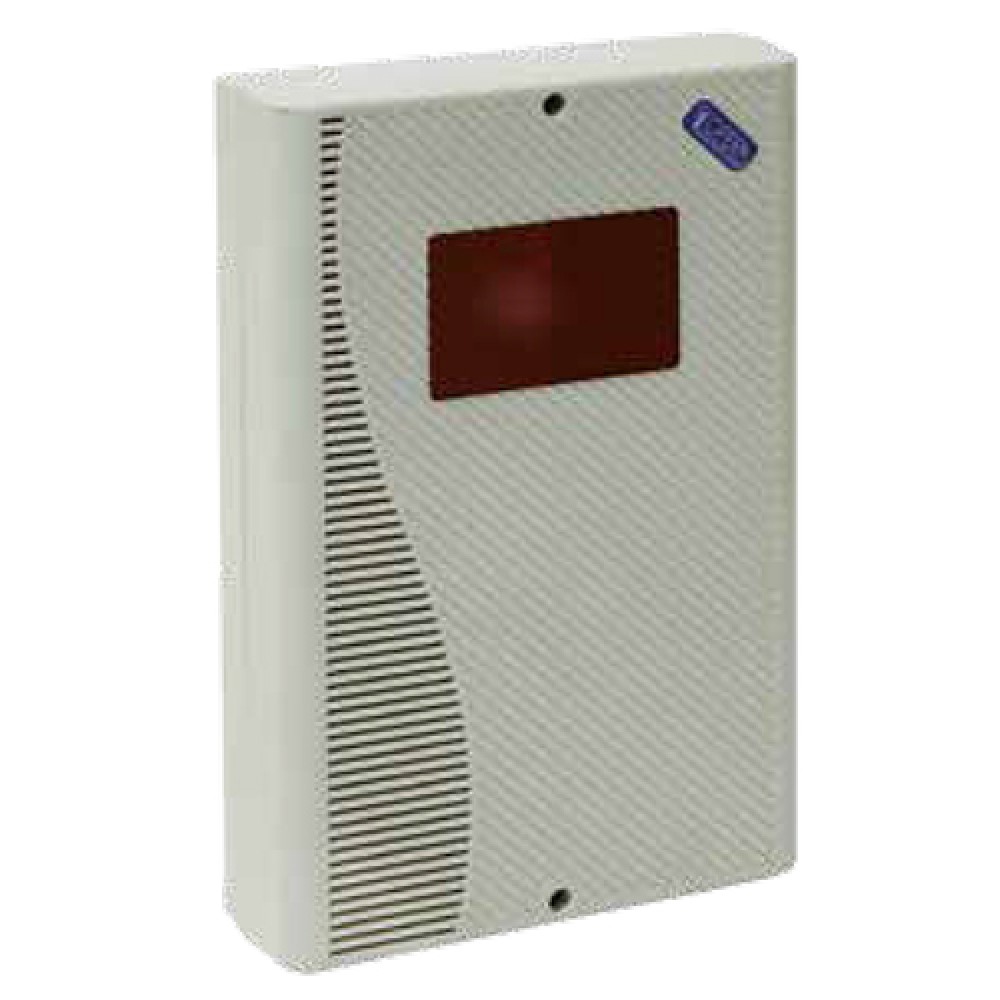

Technical features "Alarm System" 55005 Opera
- Beige ABS wall container.
- Dimensions: mm. 240 x 150 x 48.
- Board power supply: 12 Vac/dc.
- Built-in buffer battery charging circuit.
- Alarm signalling via lamp and intermittent buzzer.
Adjustable timings for:
- Alarm interval before auto-reset (adjustable from 5 to 60 sec.) .
- Alarm shutdown by reset with fixed time of 5 sec.
- Extended door opening alarm adjustable from 5 to 120 sec.
Inputs with NO contact for:
- Immediate opening authorised (without alarm)
- Door sensor
- Reset
Outputs with NO relay contact for:
- Unauthorized opening alarm.
- Prolonged door opening alarm.
- System activation.
Description of the Self-Managed Alarm Operation
The control unit allows you to monitor the passages performed through the emergency exits. Personnel authorized to pass, by activating a clean contact via badge or keyboard or key switch etc. can open the door without activating the alarm. If the door is closed within the set time, no alarm is activated.
If the door remains open beyond the “Extended Opening” intervention time of the door, the specific alarm is activated, which is automatically deactivated when the door is closed or by pressing the reset button.
Conversely, if the door is opened without authorization, the “Opening” alarm is immediately activated and remains activated for the set alarm interval, after which an auto-reset is automatically performed which deactivates the alarm for 5 seconds. At this point, if the door has been closed again, the system returns to stand-by. On the contrary, if the door remains open, the alarm status is reactivated. The reset can also be performed by remote button.

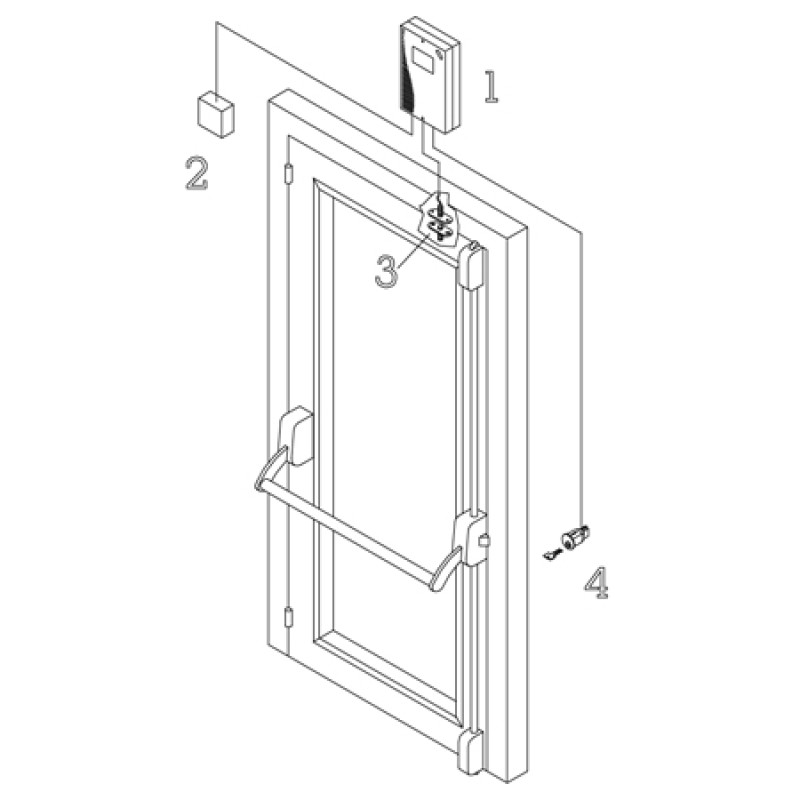

Operating diagram Opera Alarm System 55005
The components can be purchased separately on Windowo.
1 - Alarm control panel
2 - Transformer or Power Supply
3 - Magnetic sensor
4 - Key selector
Accessories for Electromagnets Safety Series Opera
- Safety electromagnets.
- Ideal for emergency exits and stairwell doors in apartment buildings.
- Silent and resistant.
- Tractive forces from 150 to 1,500 kg.
- Applicable on pre-existing doors.
