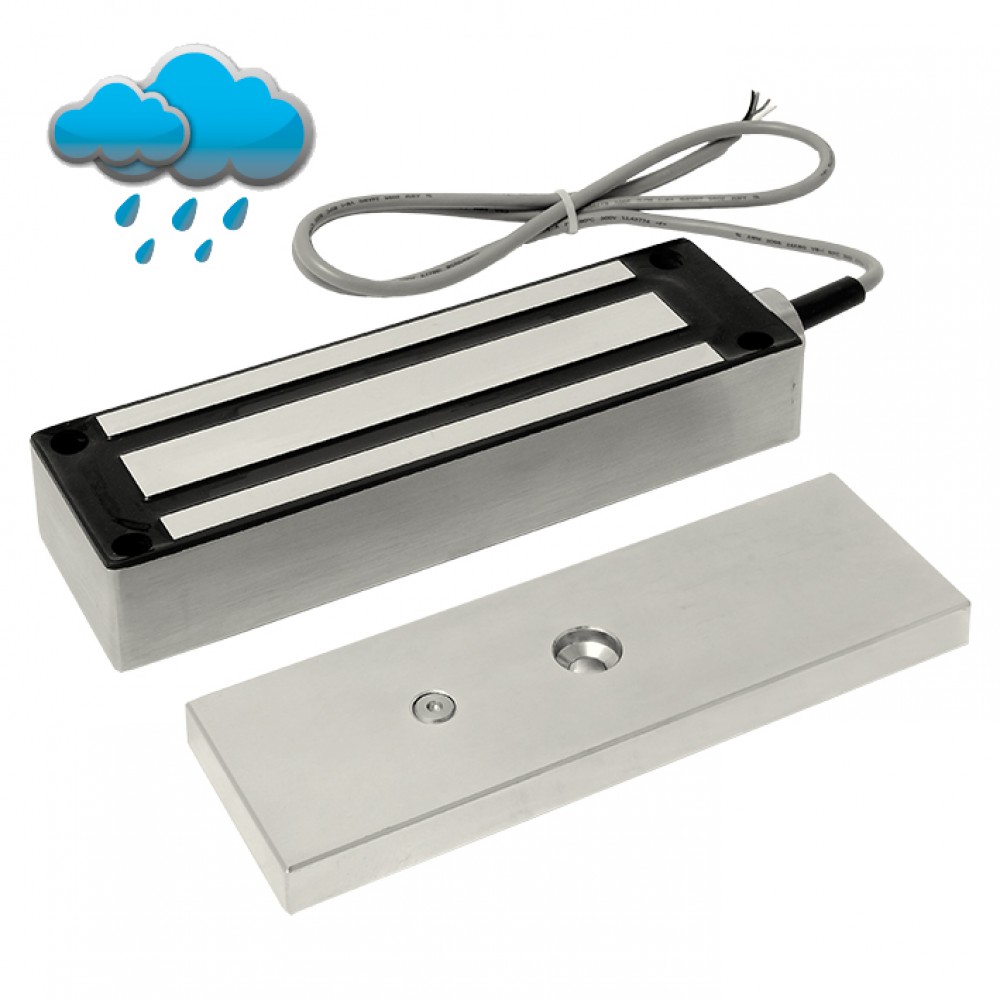

Gate Lock Electromagnet 600 Kg - 14212R Opera - Stainless Steel with Sensor
Use of Electromagnet Gate Lock Opera
Safety locking system for swing and sliding gates.
Electromagnet Version
- To be applied.
- Power supply: 12/24 Vdc with automatic selection;
- With status sensor.
Power supply of your choice
- Power supply: 12 Vdc - Current: 450 mA.
- Power supply: 24 Vdc - Current: 230 mA.

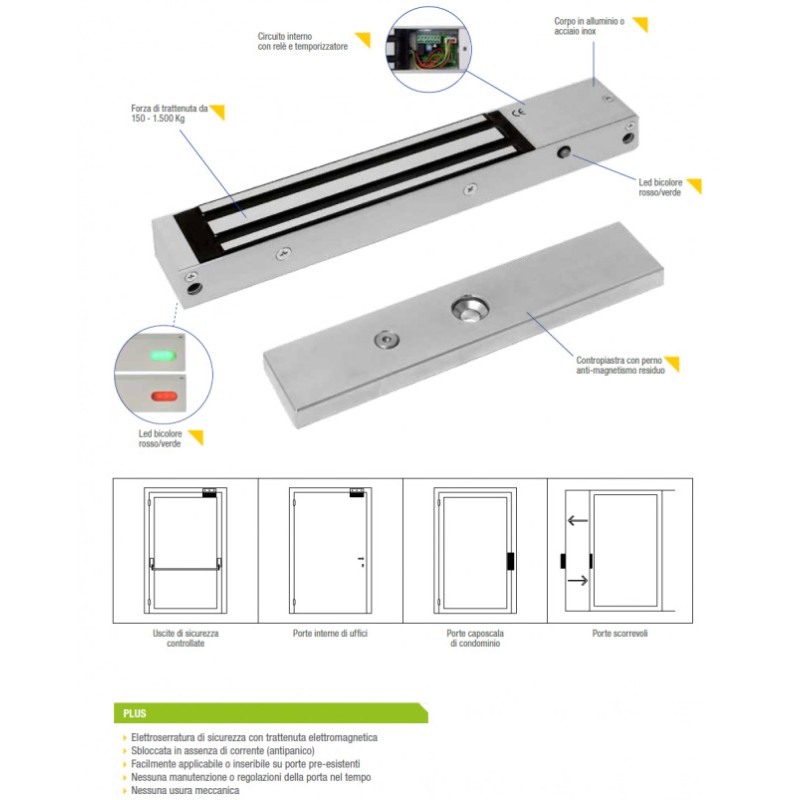

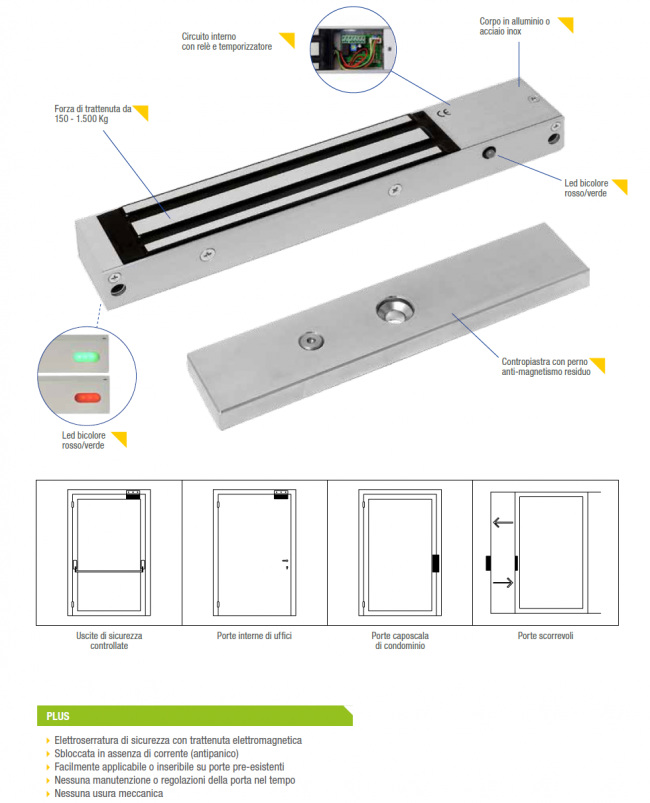

Technical features of the Opera Gate Lock Electromagnet
- Stainless steel body protected against humidity;
- Dimensions mm. 204 x 64 x 41;
- Counterplate with anti-residual magnetism pin: mm. 185 x 60 x 16;
- Magnetic reed status sensor C./NA/NC
- Traction force: up to 600 kg.
Can be combined with:
IP65 cable gland connector art.
00142 Opera (available in Windowo)
Packaging
Electromagnet, counterplate and mounting accessories.
The Blacksmith of Modena and the electromagnets
Why do many condominiums in Modena have electromagnets? In the 60s in Modena there was a locksmith who wanted to improve the closing of condominium doors. In fact, many condominium owners complained about the constant maintenance costs. One day the locksmith arrived with a magnet that would solve that annoying problem.
Word of mouth did the rest and to this day Modena maintains this primacy, obviously no longer with simple magnets, but with modern and more effective electromagnets.
Safety Opera Series
- Safety electromagnets.

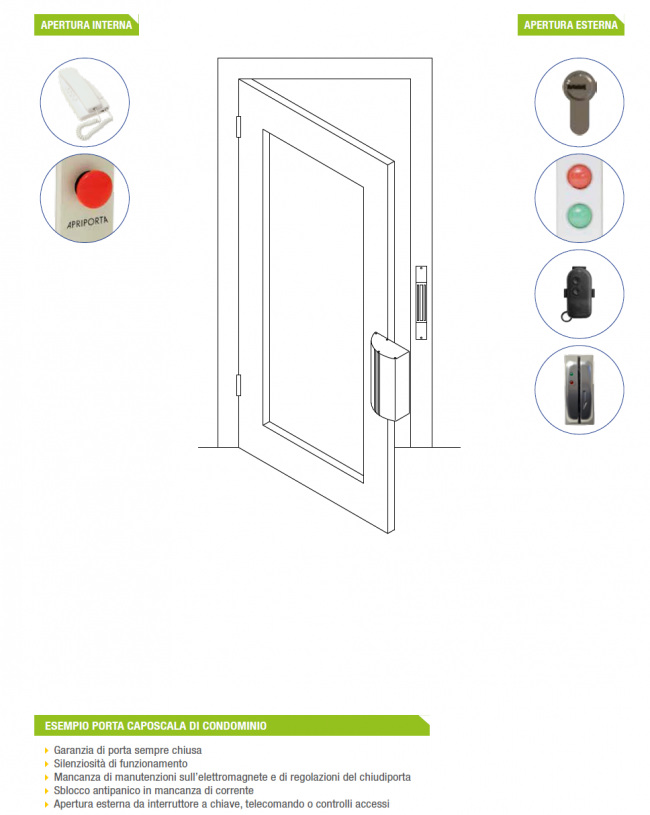

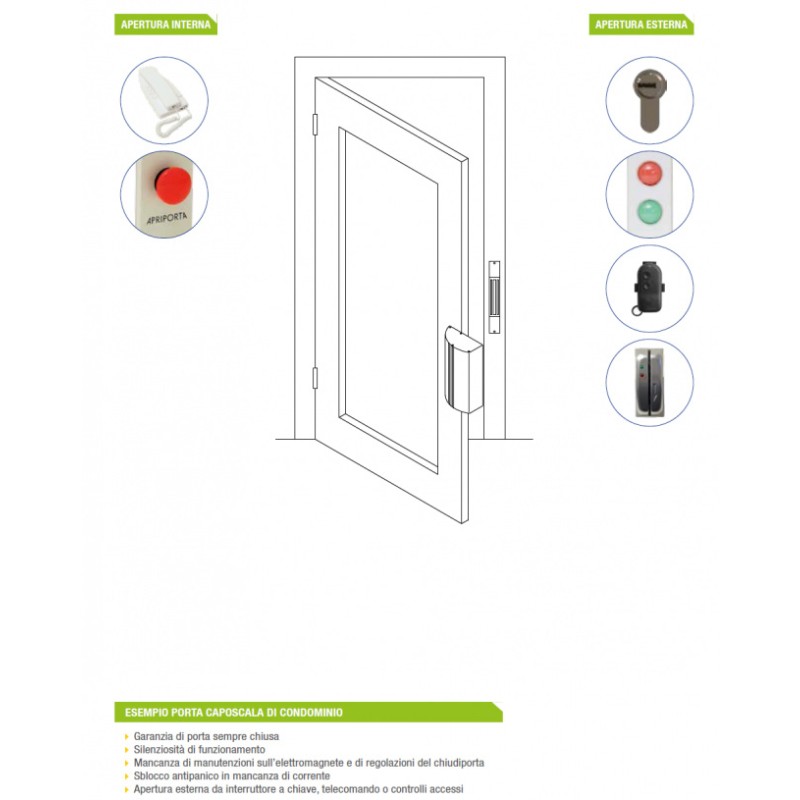

- Ideal for emergency exits and stairwell doors in apartment buildings.
- Silent and resistant.
- Tractive forces from 150 to 1,500 kg.
- Applicable on pre-existing doors.
Opera Operating Access
Opera srl, specialized in the design and production of electric handles, was created in 1997 in Modena, Emilia Romagna, land of food and engines. All the management of the company comes from the experience of Corni serrature which for over a century has been present in the city of Modena. The company is characterized by a continuous expansion in world markets but with strong roots in Italy.
Made in Italy
Over 40% of our turnover is made abroad, but 90% of our suppliers are local. Almost all of our products are manufactured in our modern industrial plant, with technologies that respect the environment and the quality of work. We are proud to produce and live in Modena, a town in northern Italy that has been a UNESCO World Heritage Site since 1997.
