pba 2022T Pair of Lever Handles in Stainless Steel AISI 316L
Standard finish: satin
On request finish: bright (contact us if you are interested)
You can choose 4 types of rose.
Select your favoutire rose in the variants.
Variants:
2MM.022.00T8 Round rose
2MM.022.0008 Oval rose
2MM.022.00T4 Round rose low
2MM.022.0004 Oval rose low

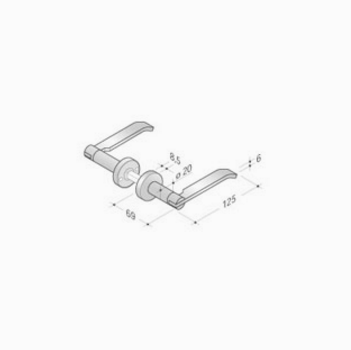

2MM.022.00T8 Round rose

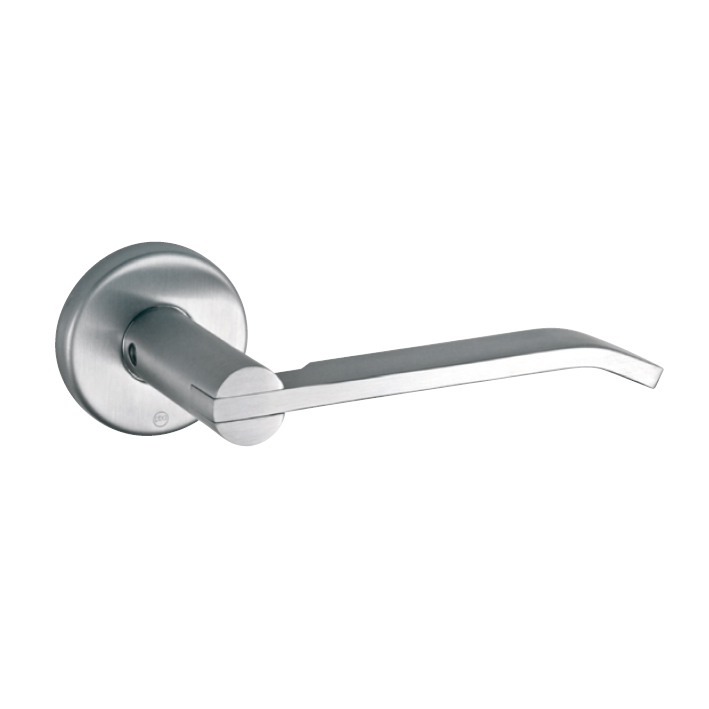

Pair of lever handles in stainless steel AISI 316L.
Length 125 mm.
Lever diameter: 20 mm.
Lever plate: 6 mm.
Round rose diameter 50 mm.
Rose base-plate in metal alloy with return spring.
Galvanized steel spindle, 8 mm.
Security grub screw in stainless steel AISI 316L with TORX form.
Fixing system, grub screw clamping onto spindle.

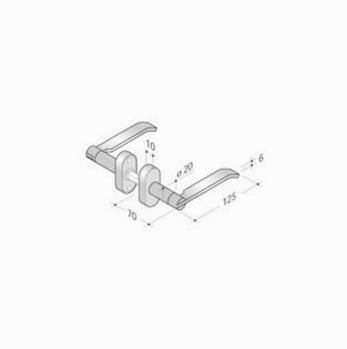

2MM.022.0008 Oval rose
Pair of lever handles in stainless steel AISI 316L.
Length 125 mm.
Lever diameter: 20 mm.
Lever plate: 6 mm.
Oval rose diameter 34 mm X 64 mm.
Rose base-plate in metal alloy with return spring.
Galvanized steel spindle, 8 mm.
Security grub screw in stainless steel AISI 316L with TORX form.
Fixing system, grub screw clamping onto spindle.

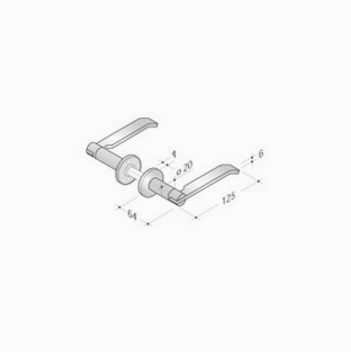

2MM.022.00T4 Round rose low
Pair of lever handles in stainless steel AISI 316L.
Length 125 mm.
Lever diameter: 20 mm.
Lever plate: 6 mm.
Round rose diameter 50 mm.
Rose base-plate in metal alloy without return spring.
Galvanized steel spindle, 8 mm.
Security grub screw in stainless steel AISI 316L with TORX form.
Fixing system, grub screw clamping onto spindle.
2MM.022.0004 Oval rose low
Pair of lever handles in stainless steel AISI 316L.
Length 125 mm.
Lever diameter: 20 mm.
Oval rose diameter 34 mm X 64 mm.
Rose base-plate in metal alloy without return spring.
Galvanized steel spindle, 8 mm.
Security grub screw in stainless steel AISI 316L with TORX form.
Fixing system, grub screw clamping onto spindle.
pba: the italian company for inox handles.
If you’ve opened a door, you’re bound to have seen a spectacular empty urban setting, or you may have strolled through environments free of annoying architectural barriers that block your way, and if you’ve done so – you’ve grasped our idea. We’ve made our name in AISI 316L stainless steel, the hardest, most resistant and elastic of steels, and in polyamide 6 thermoplastic resin, the noblest of plastics. We develop our themes: handles for doors and windows, pull handles, pull handles with lock, balustrades, ischial support benches and supports for “living without barriers”, convinced that objects create an environment, its temperament, illusions, and possibilities. Forms “inform” and have logical effects, changing the world and establishing priorities. For us the priority is that – here and now – beauty is only real if it is accessible to all.
Exclusively manufactured in Italy.
