pba 2045 Window Handle in Stainless Steel AISI 316L
Customize your window handle by choosing variants.
You can select the combination and the shape of lever handles.
Variants combination:
Combination pull handle and plate
Pair of pull handles
Variants shape:
Lever handle “L”
Lever handle “U”
Lever handle “T”

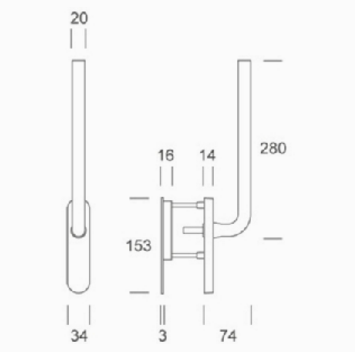

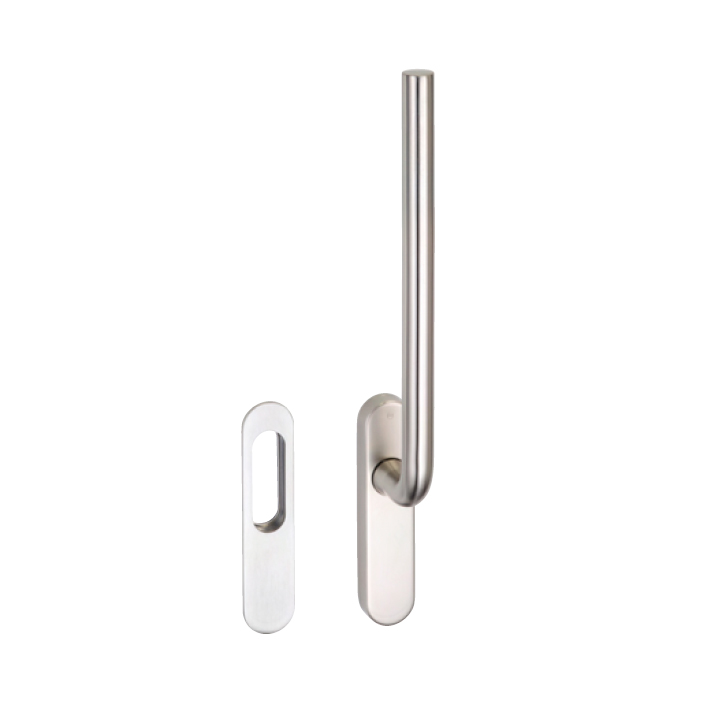

2MM.045.0000 Combination pull handle and plate - Lever handle “L”
Combination pull handle and plate for lifting sliding in stainless steel AISI 316L.
Lever handle “L”, length 320 mm.
Lever diameter 20 mm.
Oval rose, dimensions 151 mm x 34 mm, thickness 14 mm.
Oval finger pull 151 mm x 34 mm, with finger recess in stainless steel AISI 316L 16 mm.
Galvanized steel spindle, 10 mm.
M6 fixing screws.

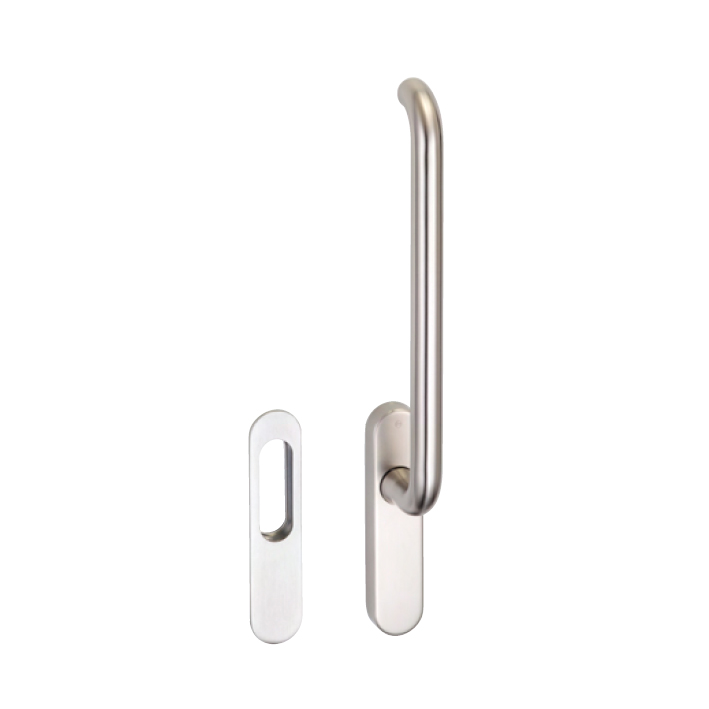

2MM.046.0000 Combination pull handle and plate - Lever handle “U”
Combination pull handle and plate for lifting sliding in stainless steel AISI 316L.
Lever handle “U”, length 320 mm.
Lever diameter 20 mm.
Oval rose, dimensions 151 mm x 34 mm, thickness 14 mm.
Oval finger pull 151 mm x 34 mm, with finger recess in stainless steel AISI 316L 16 mm.
Galvanized steel spindle, 10 mm.
M6 fixing screws.

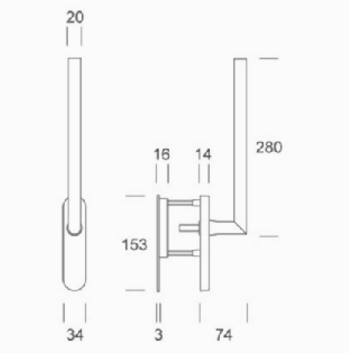

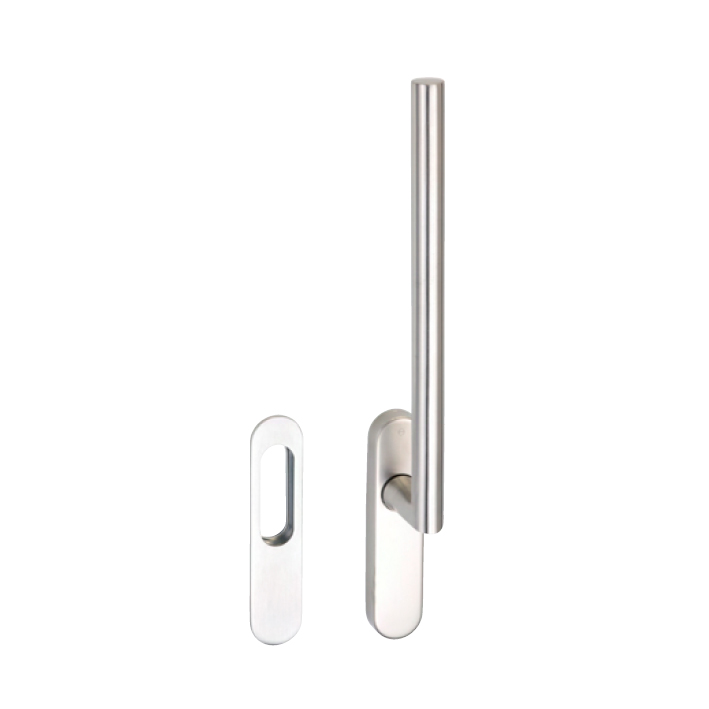

2MM.047.0000 Combination pull handle and plate - Lever handle “T”
Combination pull handle and plate for lifting sliding in stainless steel AISI 316L.
Lever handle “T”, length 320 mm.
Lever diameter 20 mm.
Oval rose, dimensions 151 mm x 34 mm, thickness 14 mm.
Oval finger pull 151 mm x 34 mm, with finger recess in stainless steel AISI 316L 16 mm.
Galvanized steel spindle, 10 mm.
M6 fixing screws.
2MM.045.000D Pair of pull handles - Lever handle “L”
Pair of pull handles for sliding lift-up in stainless steel AISI 316L.
Lever handle “L”, length 320 mm.
Lever diameter 20 mm.
Oval rose, dimensions 151 mm x 34 mm, thickness 14 mm, suitable for Yale cylinder 33 mm x 17,5 mm x 10 mm.
Galvanized steel spindle, 10 mm.
M6 fixing screws

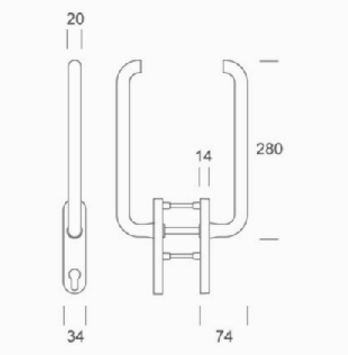

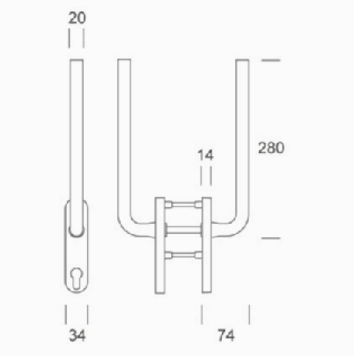

2MM.046.000D Pair of pull handles - Lever handle “U”
Pair of pull handles for sliding lift-up in stainless steel AISI 316L
Lever handle “U”, length 320 mm.
Lever diameter 20 mm.
Oval rose, dimensions 151 mm x 34 mm, thickness 14 mm, suitable for Yale cylinder 33 mm x 17,5 mm x 10 mm.
Galvanized steel spindle, 10 mm.
M6 fixing screws.

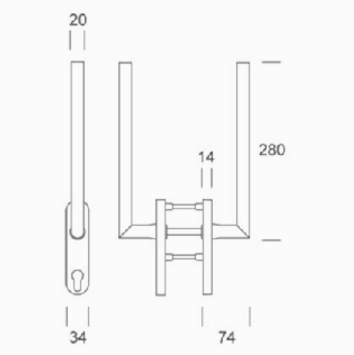

2MM.047.000D Pair of pull handles - Lever handle “T”
Pair of pull handles for sliding lift-up in stainless steel AISI 316L
Lever handle “T”, length 320 mm.
Lever diameter 20 mm.
Oval rose, dimensions 151 mm x 34 mm, thickness 14 mm, suitable for Yale cylinder 33 mm x 17,5 mm x 10 mm.
Galvanized steel spindle, 10 mm.
M6 fixing screws.
Standard finish: satin
On request finish: bright (contact us if you are interested)
pba: the italian company for inox handles.
If you’ve opened a door, you’re bound to have seen a spectacular empty urban setting, or you may have strolled through environments free of annoying architectural barriers that block your way, and if you’ve done so – you’ve grasped our idea. We’ve made our name in AISI 316L stainless steel, the hardest, most resistant and elastic of steels, and in polyamide 6 thermoplastic resin, the noblest of plastics. We develop our themes: handles for doors and windows, pull handles, pull handles with lock, balustrades, ischial support benches and supports for “living without barriers”, convinced that objects create an environment, its temperament, illusions, and possibilities. Forms “inform” and have logical effects, changing the world and establishing priorities. For us the priority is that – here and now – beauty is only real if it is accessible to all.
Exclusively manufactured in Italy.
