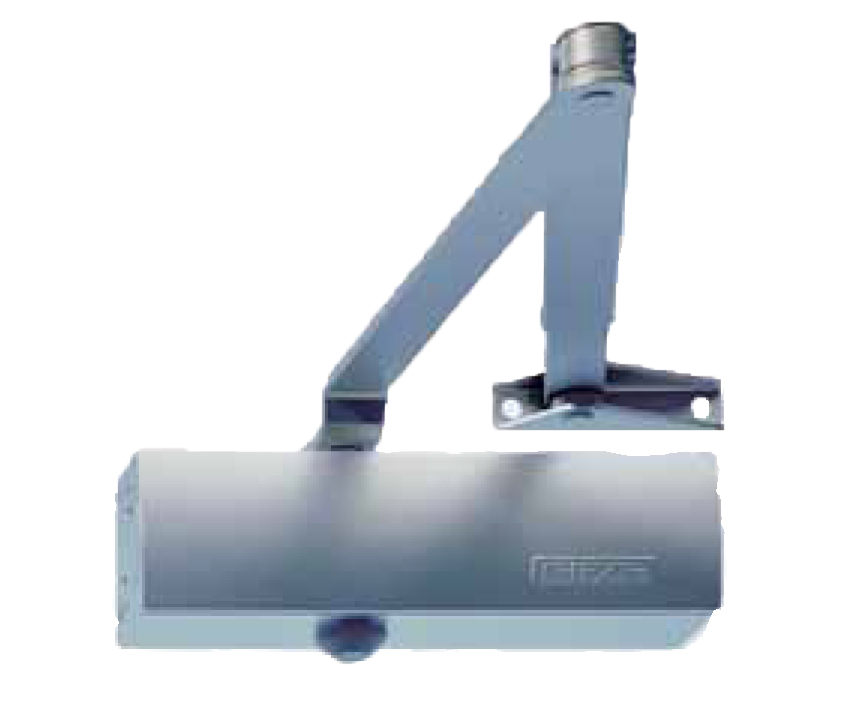

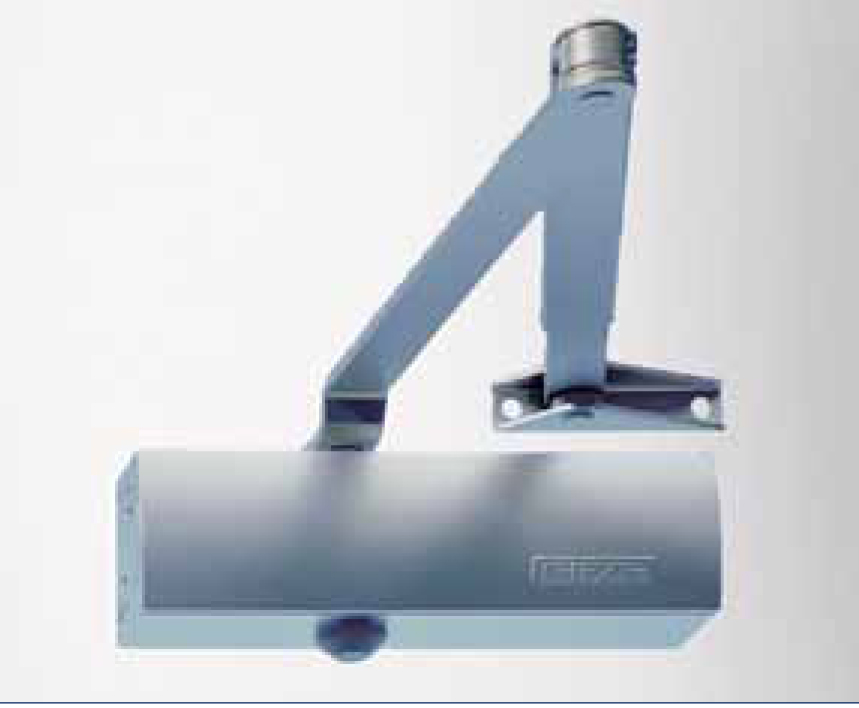

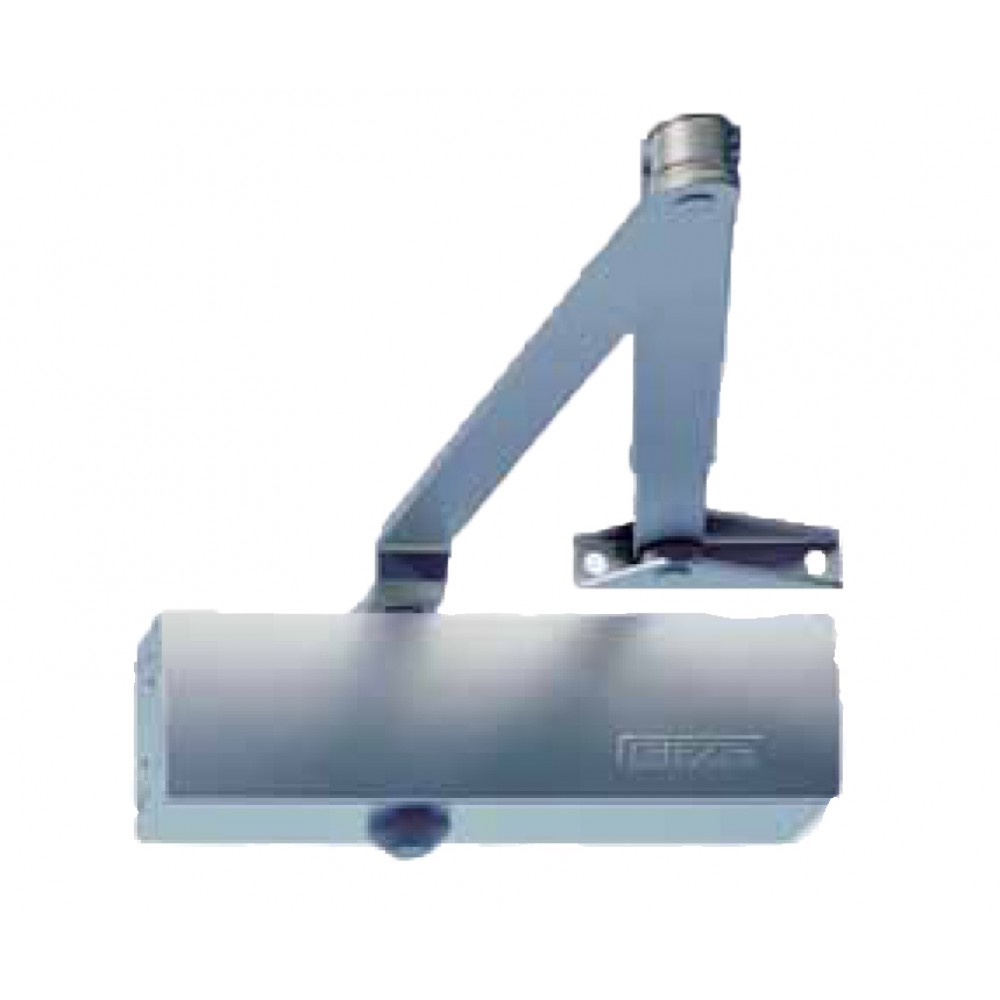

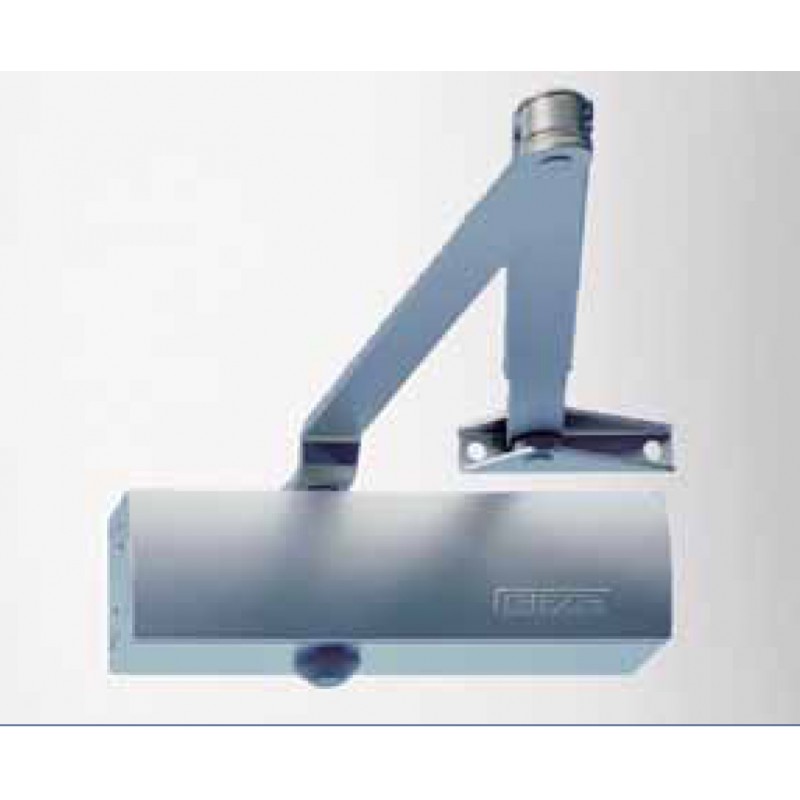

Geze TS 1500; Plane closers with arm V Without Stationary, Closing Force 3-4 (EN1154)

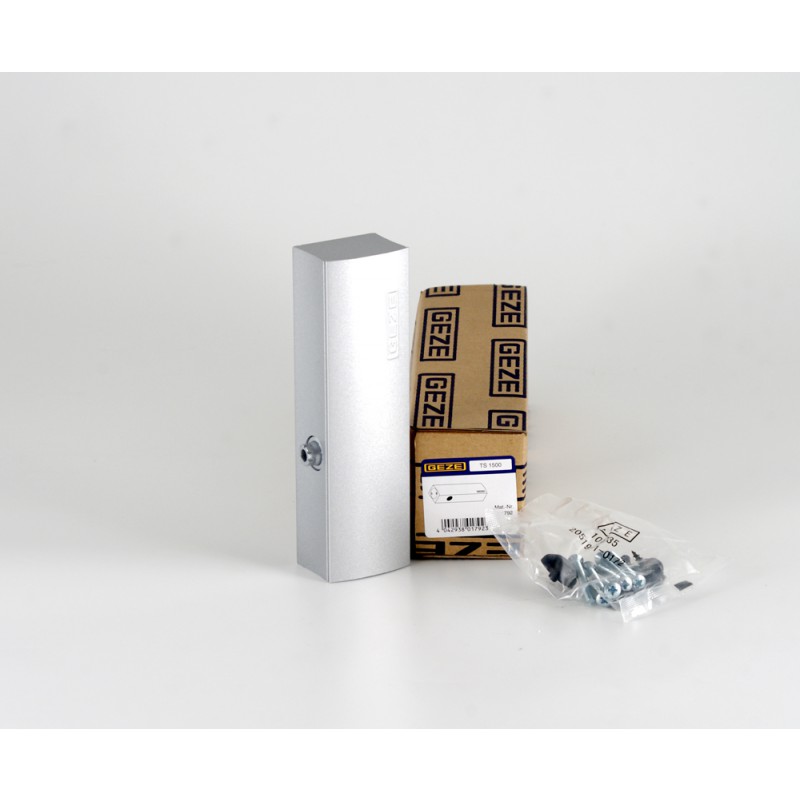

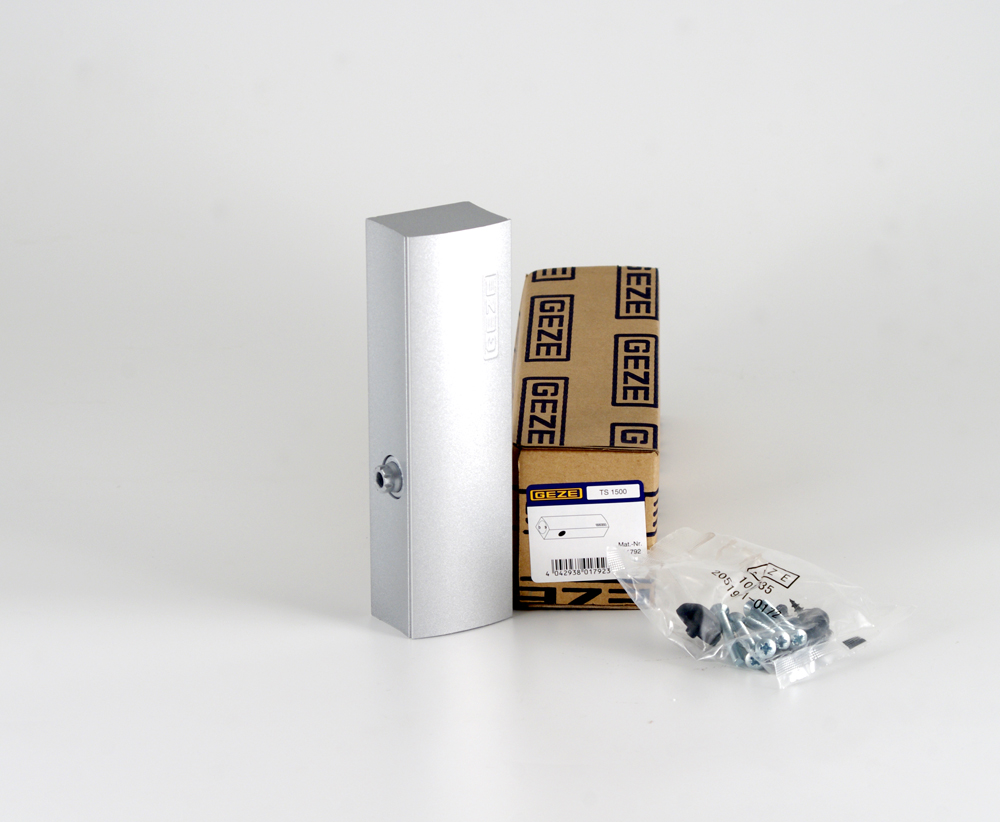

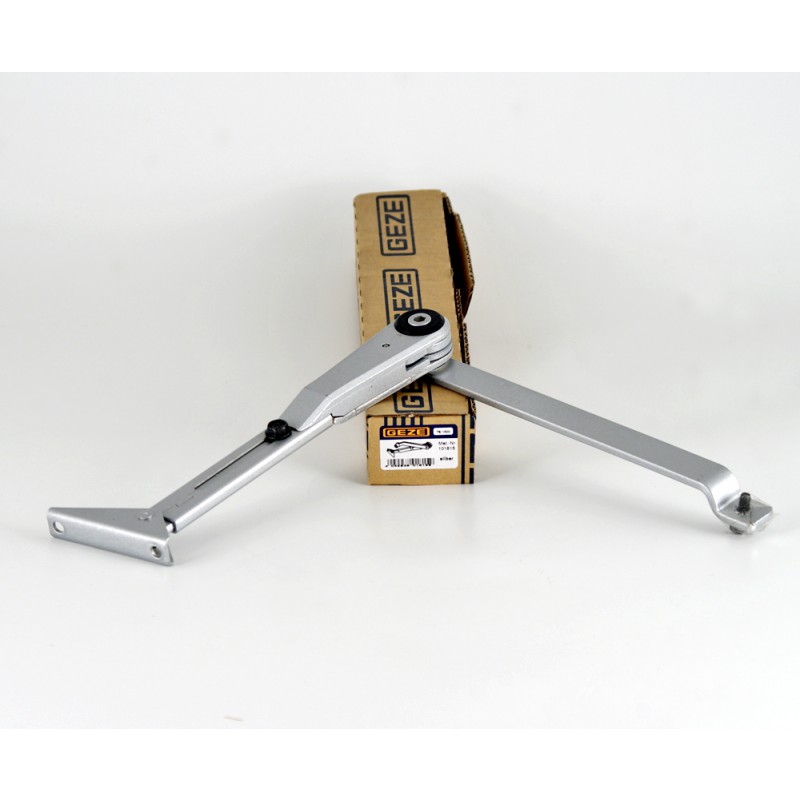

GEZE TS 1500, with arm V-retainer with adjustable power, complete with hardware and installation template (mounting plate not included).

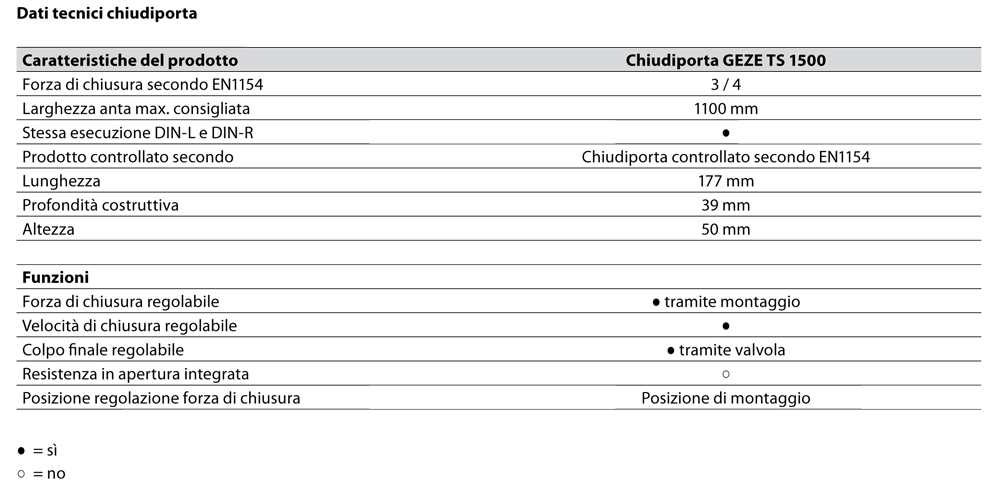

TECHNICAL DESCRIPTION:
Adjustable closing force in two sizes achieved by simply reversing the jumper arm:
- Closing force "reduced" (force 3 seconds EN1154) for leaf widths up to 950mm;
- Closing force "great" (force 4 seconds EN1154) for leaf widths up to 1100mm.
Closing speed and hydraulic latching adjustable.
FIELD OF USE:
For single leaf door, with widths up to 1100mm;
For doors with opening on the right and left without any modification;

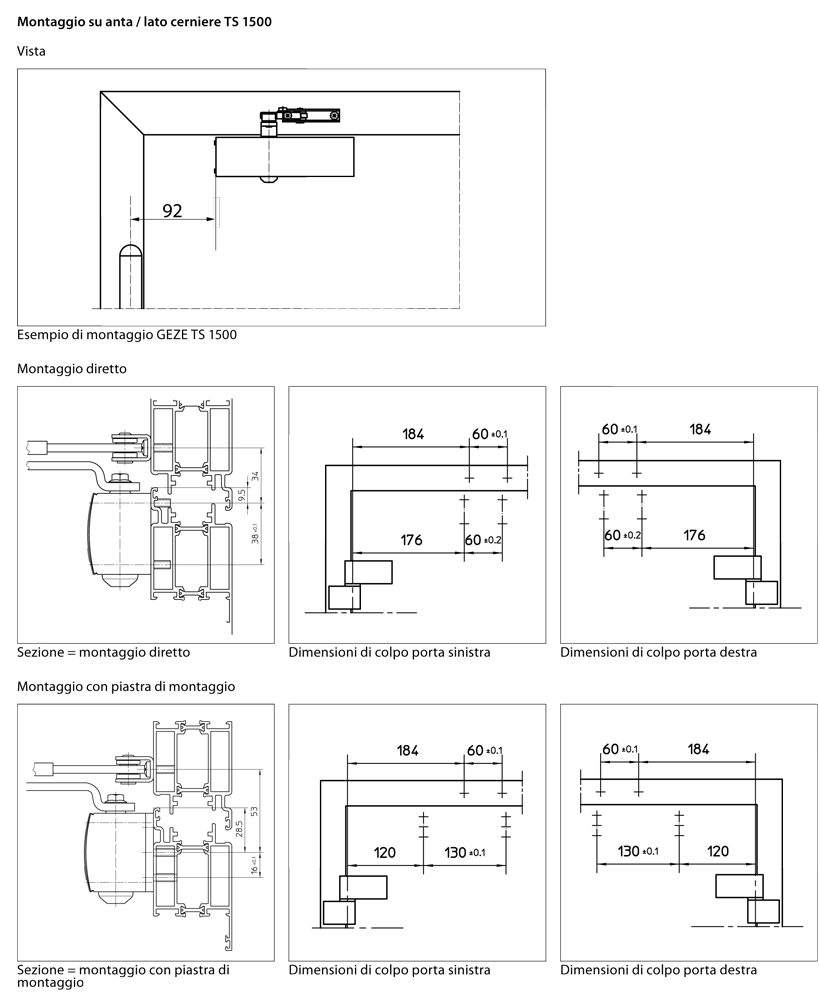

Possibility of traditional assembly, on the wing, or the reverse.
NOTE: For adjustment of the opening angle between 70 ° and 150 ° is recommended buying the version with brake (available in "Closer Aircraft"): "Geze TS 1500 closers with Air Arm Vee Still, Strength Closing 3-4 ".
GENERAL INFORMATION ON AIR GEZE DOOR CLOSER WITH ARM (taken from the catalog Geze):
