Plane closers Geze TS 2000 V V With Arm Still not inhibited

Geze
Brands: Geze
Code: TS 2000 V CON FERMO NON DISIN.
£ 73,66
Prices excluding VAT
You have chosen:

- +

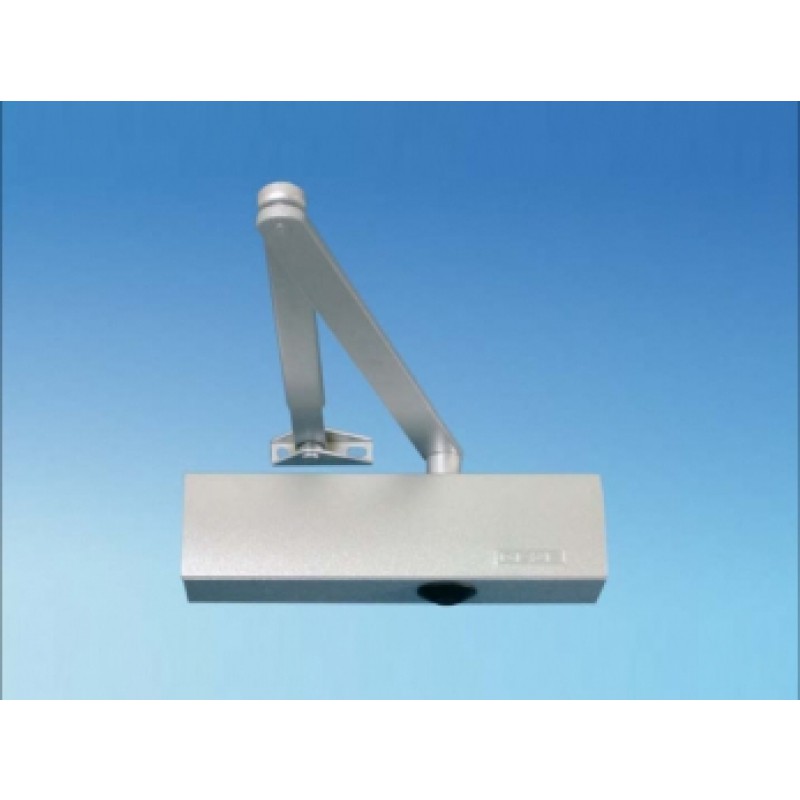

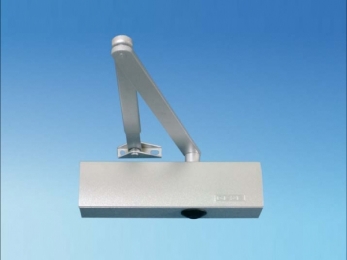

Geze TS 2000 V; closers with Air Arm Vee Still not inhibited, Force Closing 2/4/5 (EN1154)

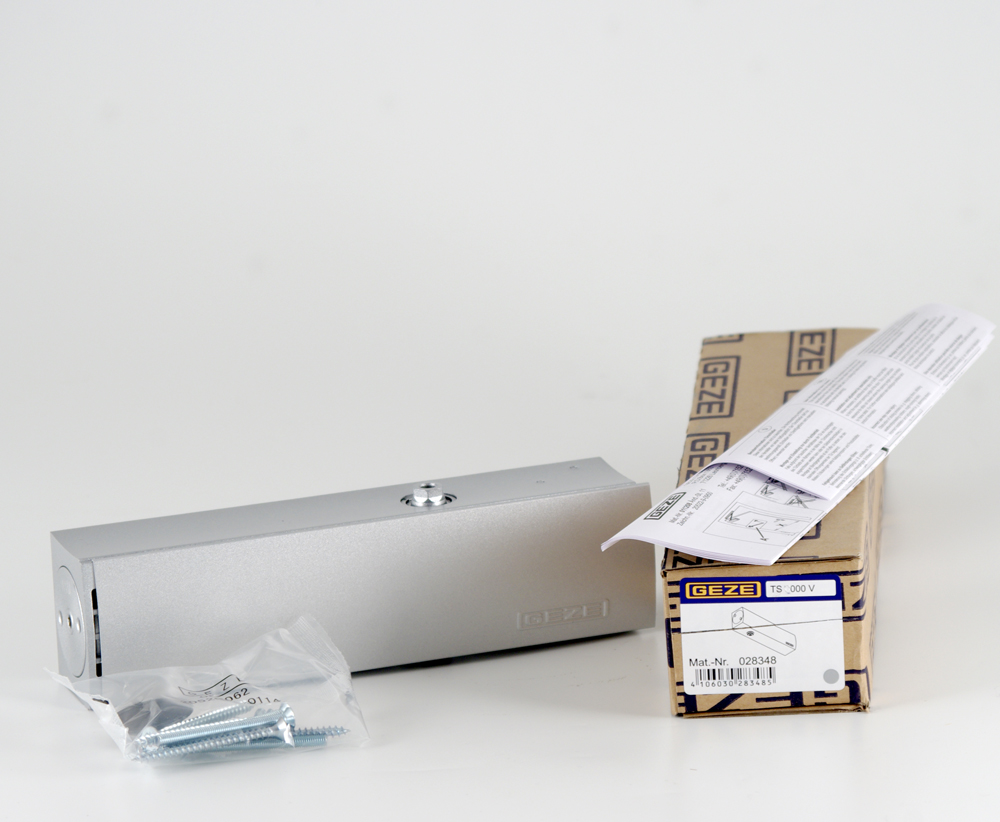

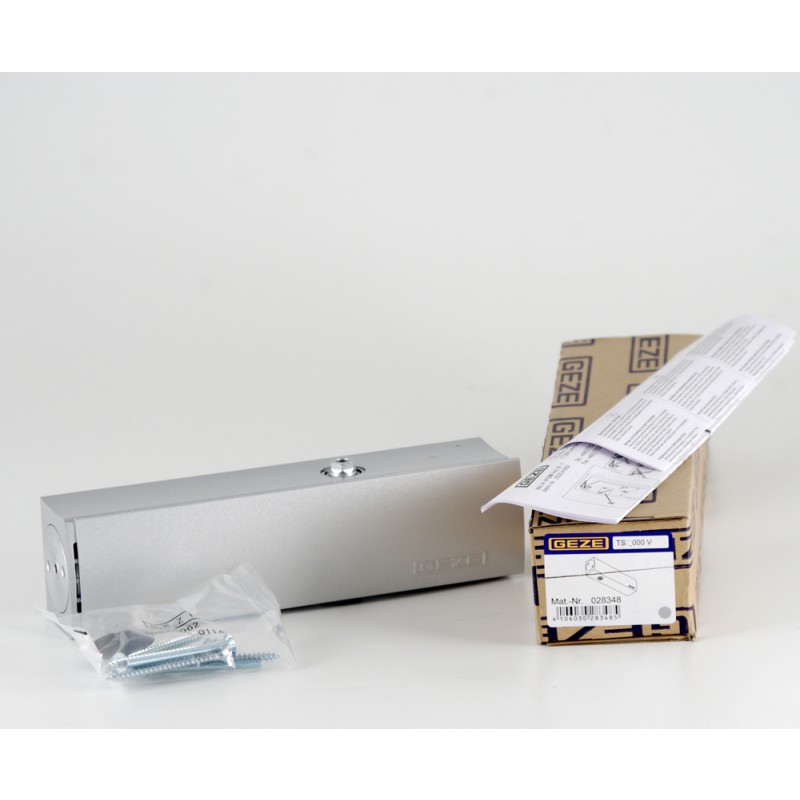

GEZE TS 2000 V, with V-shaped arm with latch disengaged, with nuts and bolts and installation template (mounting plate not included).

TECHNICAL DESCRIPTION:
Closing force, force 2/4/5 according to EN 1154.
One measure of clutter.
Closing speed adjustable from the front.
Adjusting the final blow on the arm.
Mounting plate not included.


door closers GEZE 2000 features air

FIELD OF USE:
  • For single leaf door, with widths up to 1250mm;
  • For doors with opening on the right and left without any modification;
  • Possibility of traditional assembly, on the leaf or on the frame.
Product Features Closers Geze TS 2000 V
Closing force to EN 1154 2/4/5
Leaf width max. recommended 1250mm
Same performance DIN-L and DIN-R Yes
Controlled product according Closers controlled according to EN 1154

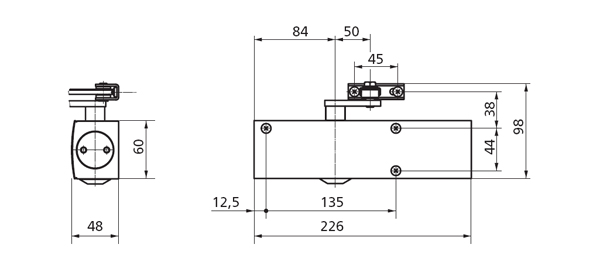

Length 226mm
Constructive depth 48mm
Height 60mm
Features Closers Geze TS 2000 V
Adjustable closing force Yes, via mounting
Adjustable closing speed Yes
Latching action adjustable Yes, via arm
Resistance in integrated opening No
Position adjustable clamping force Mounting position
Valves termostabilizzate Yes

GENERAL INFORMATION ON AIR GEZE DOOR CLOSER WITH ARM (taken from the catalog Geze):
