Plane closers Geze TS 5000 Doors 1 Door Guide Scrolling with Lever

Brands: Geze

Code: TS 5000

£ 186,58

Prices excluding VAT

Door Closer Components

Door Closer Finishes

You have chosen:

Quantity

- +

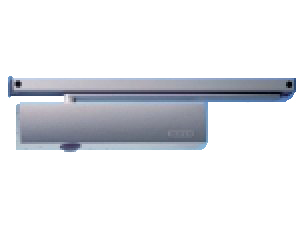

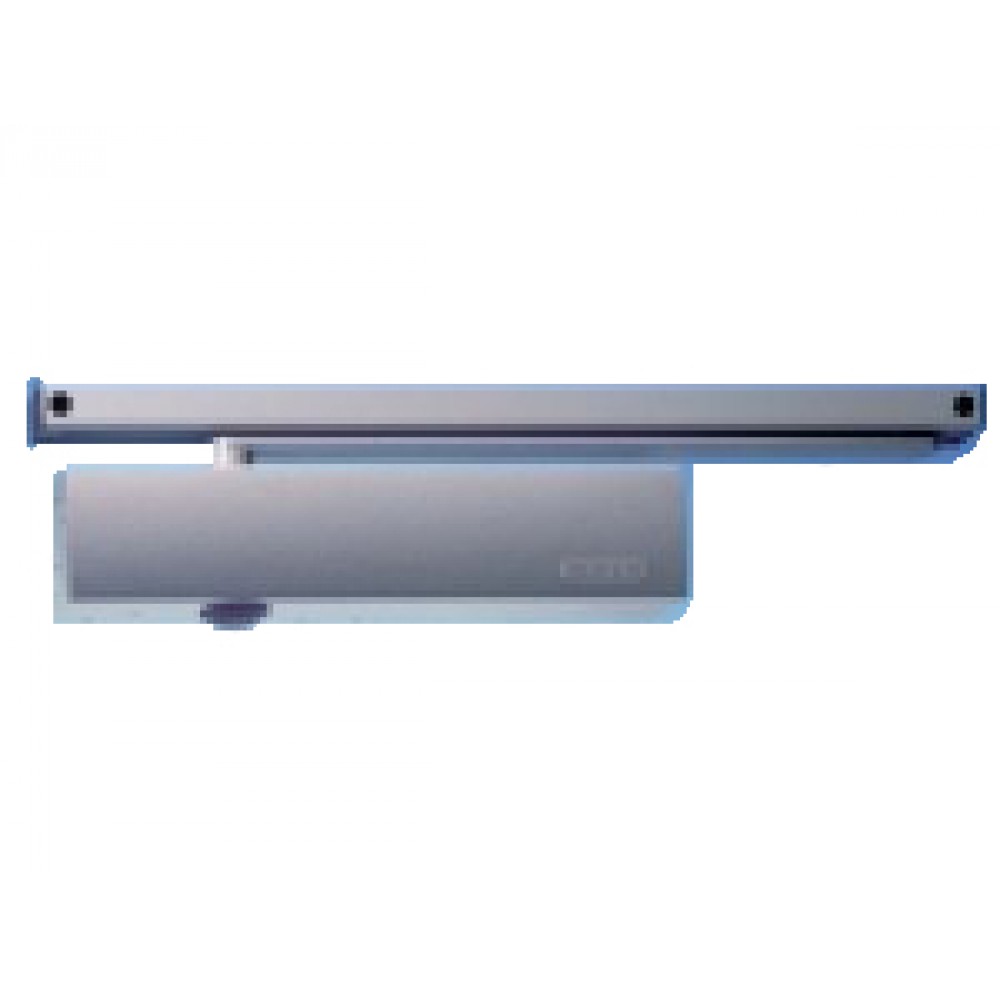

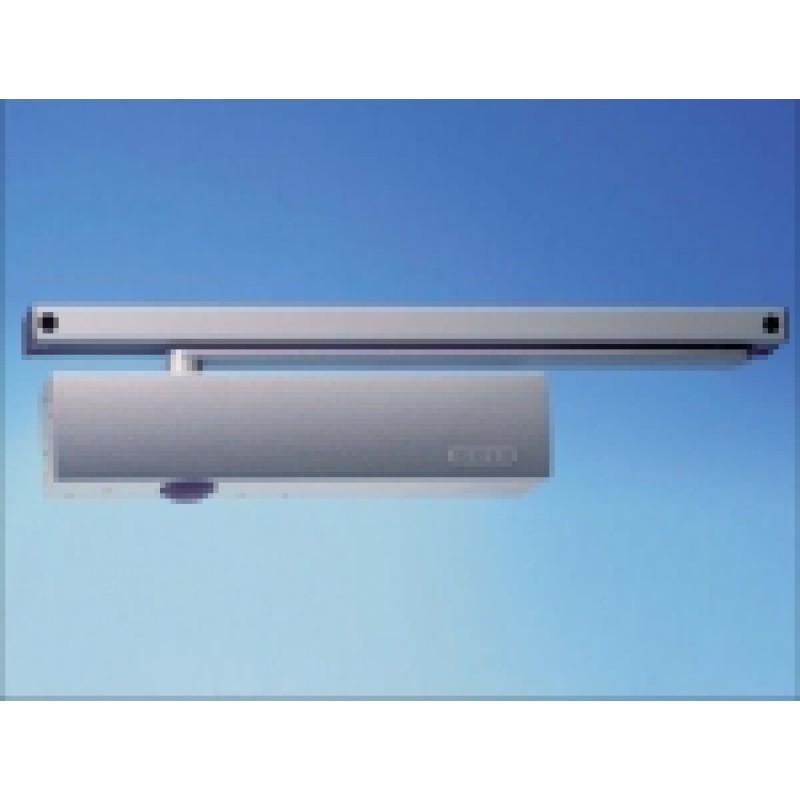

Ge ze TS 5000; Plane closers for doors 1 Door with Guide Scrolling with Lever

The overhead door closer TS 5000 is characterized by a modern and essential design. It is approved for the doors to swing left and right-wing width of max. 1400 mm and for mounting on fire and smoke doors. The closing force to EN 1154, size 2-6, closing speed termostabilizzata, the final blow and hydraulic resistance in the opening can be easily adjusted from the front with the door closer mounted. Thanks to the indicator optical magnitude, the closing force can be adjusted easily control.

GEZE TS 5000 with guide rail with lever, complete with mounting material and the jig stop (mounting plate not included).

TECHNICAL DESCRIPTION:

Door closer EN 1154 A with guide rail;
Adjustable closing force 2-6;
Indicator light of the measure;
Damper opening, hydraulic buffer stop and closing speed adjustable termostabilizzata;
All functions can be adjusted from the front.

FIELD OF USE:

For hinged doors, leaf width up to 1400mm;
For doors hinged on the left and right can be used without inversion;
For smoke and fire doors (mounting on doors with mounting plate).

Product Features	Closers Geze TS 5000
Closing force sec. EN 1154	2-6
Leaf width max. recommended	1400mm
Same performance DIN-L and DIN-R	Yes
Controlled product according	Tested in accordance with EN1154

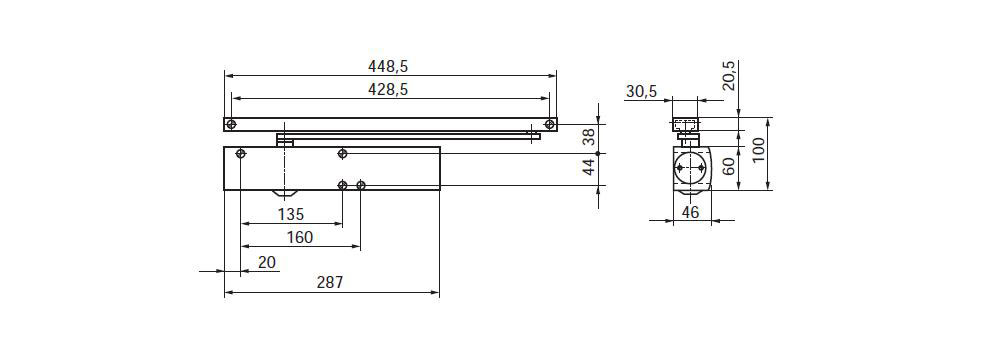

Length	287mm
Constructive depth	47mm
Height	60mm

Features	Closers Geze TS 5000
Adjustable closing force	It is, without solution of continuity
Adjustable closing speed	Yes
Latching action adjustable	Yes, via valve
Resistance in integrated opening	Yes, hydraulically adjustable
Closing delay Integrated	Yes
Position adjusting clamping force	Front
Indicator light clamping force	Yes
Safety valve against willful damage	Yes
Valves termostabilizzate	Yes
