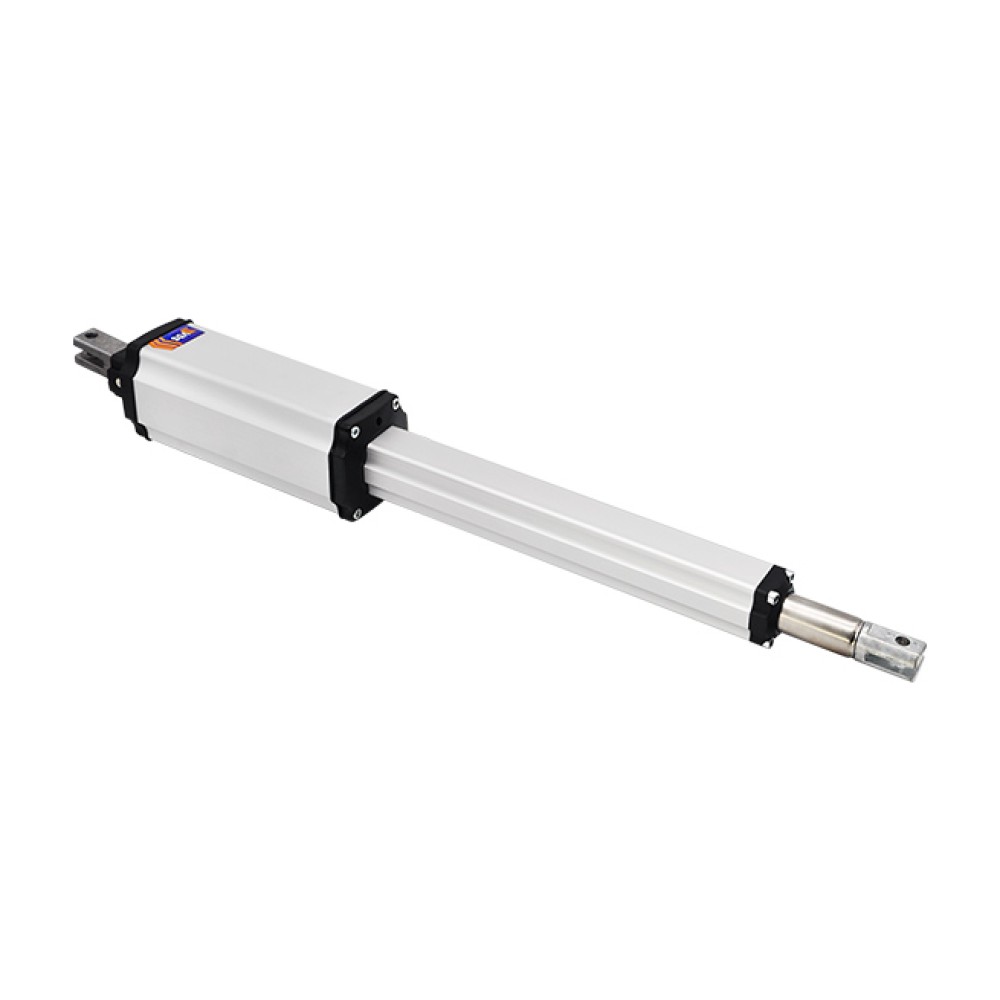

PM1 VDS - Swing Gate Motor - Linear Arm Actuator
PM1 VDS is a
swing gate motor with a maximum leaf of 3.5 meters. The voltage is 230V.
The PM1 VDS
electromechanical linear actuator is sold online in
the motor only version or in kit with control equipment and accessories included.
In addition, this VDS Automation PM1 gate automation has a
thrust force of 1500 N and a maximum lift of
250 kg .
Advantages PM1 VDS Motor for Swing Gate
- Actuator in sturdy aluminum structure pushed "in axis";

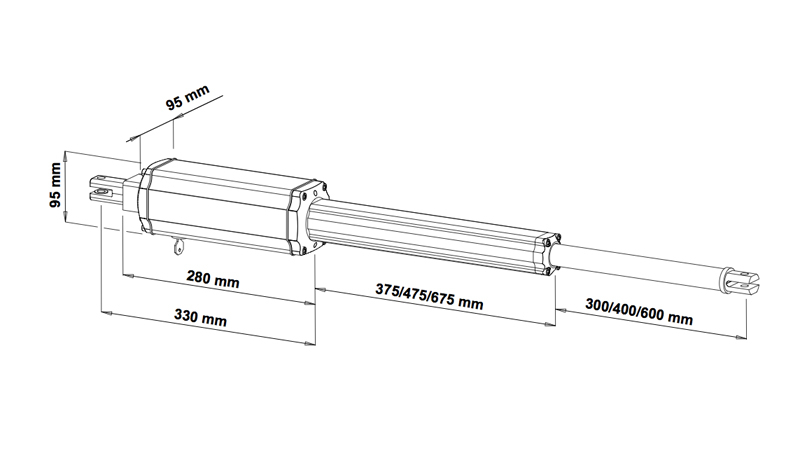

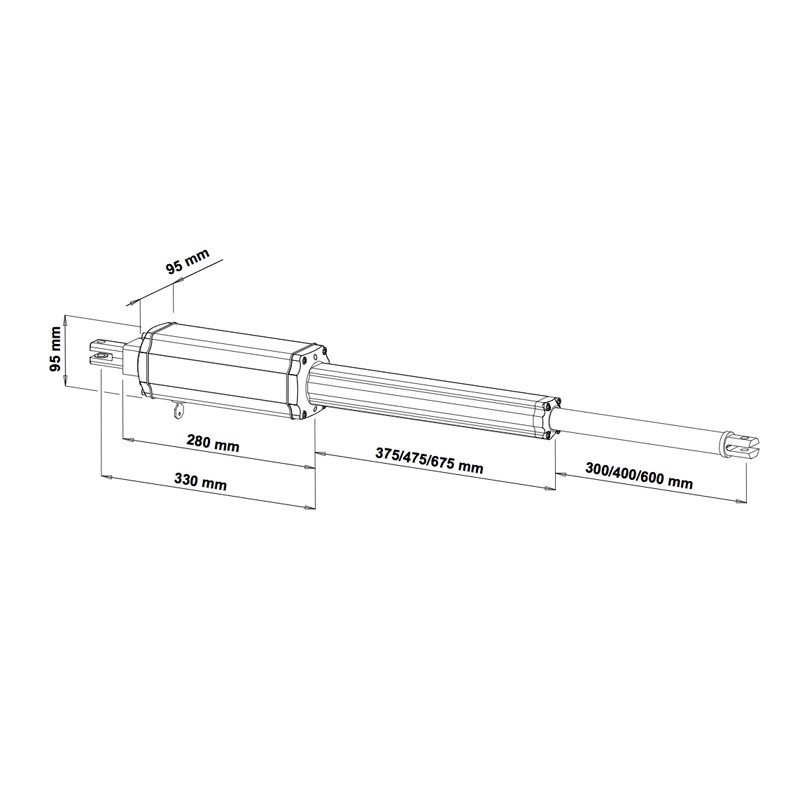

- Useful stroke MM300 - MM400 - MM600;
- Stainless steel rod with dust scraper;
- Maximum silent operation;
- Electric motor with electro-brake (PM1);
- 140 ° thermal protection;
- Manual release with personalized key;
- Mechanical parts lubricated with lithium grease against corrosion, oxidation and rust;
- 120 ° opening;
- Quick assembly with multi-position brackets;
- and bracket covers in technopolymers;
- Anti-crushing device (EN 12453);
- Speed slowdown (EN 12453);
- 230 VAC power supply.
Performance Requirements PM1 Electromechanical Actuator
The
PM1 230V Electromechanical Linear Actuator is suitable for:
- SEMI-INTENSIVE use;
- Frequency of use 50%;
- Opening time 15 - 25 - 30 SEC;
- Thrust force 1500 N.
In the Pm 1 series (irreversible) when the leaf exceeds 1.80 meters. the use of the electric lock is recommended.
In the Pm series (reversible) it is necessary to use the electric lock.
For better radio reception we recommend the use of an external antenna cod. 210/1.
In strong winds and cold temperatures, the performance of the actuator can be considerably reduced.
Color supplement (on request): customize the engine by indicating the RAL code when placing the order.

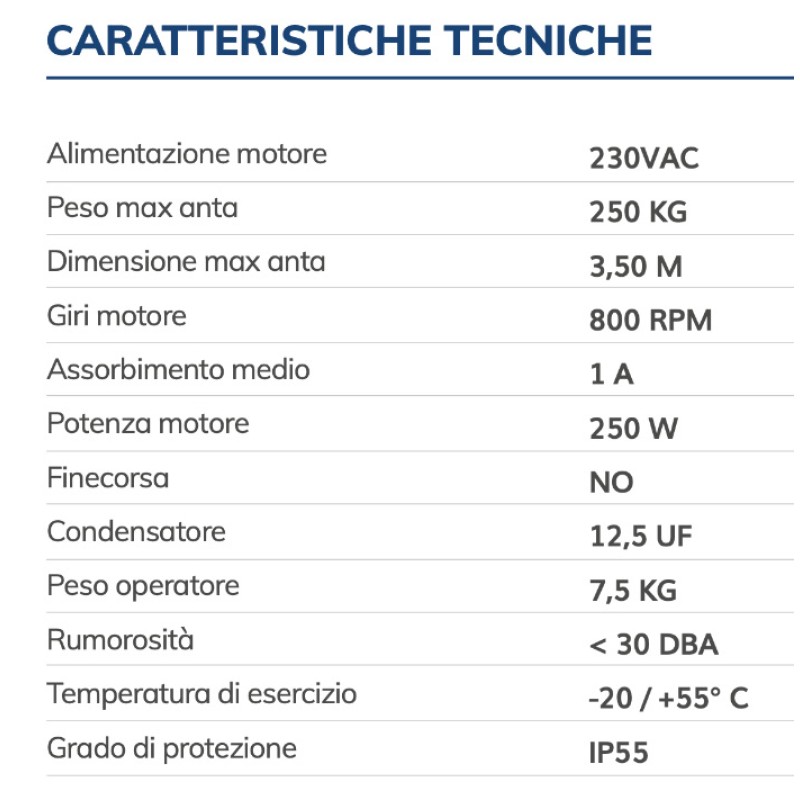

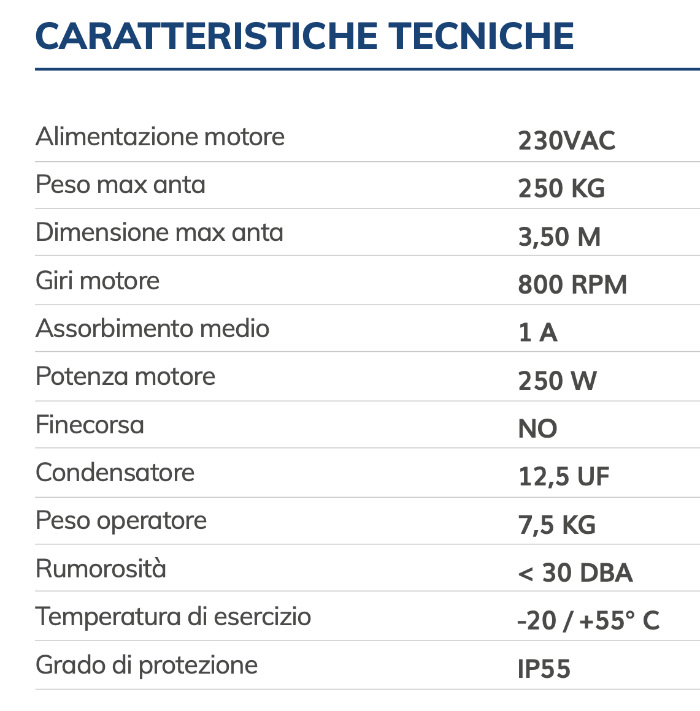

Technical features of the automation for swing gate PM1 VDS
- Motor power supply: 230 VAC;
- Maximum leaf weight: 250 KG;
- Maximum leaf size: 3.5 MT;
- Engine revolutions: 800 RPM;
- Average absorption: 1 A;
- Motor power: 250 W;
- Limit switch: NO;
- Capacitor: 12.5UF;
- Operator weight: 7.5 KG;
- Noise: <30 DBA;
- Operating temperature: -20 ° / + 55 ° C;
- Degree of protection: IP55.
Photo of Kit PM1 - 2 Doors 230V:
PM1 kit contents
- COD. E105 - 230V control unit;
- COD. 12 / C - Pair of photocells;
- COD. 23/8 - LED flasher;
- COD. 198/5 - Key selector;
- COD. E010 - Transmitter;
- COD. 165B - Warning sign.
These accessories are included only in the kit version.
Swing gate accessories can also be purchased separately on Windowo.
Motorized swing gate, how does it work?
The
swing gate is the type of gate widely used for houses, villas and residential complexes. This solution is much appreciated because it is able to combine the convenience of an automatic gate with an elegant and customizable aesthetic.
An
automated swing gate has an electrical panel and a command impulse control unit (created by a remote control or key selector).
It is possible to open it remotely with a remote control, avoiding being in adverse weather conditions.
Each swing gate has different size and weight characteristics. Depending on the number of daily openings and closings, a motor capable of supporting operation must be installed.
The frequency of use of swing gates is divided into:
- Residential use , where the automation is operated a few times during the day;
- Condominium use , with many families and with continuous opening and closing of the gate during the day and night;
- Work use , in front of a company or an industry where machines and heavy vehicles often enter and leave for work.
