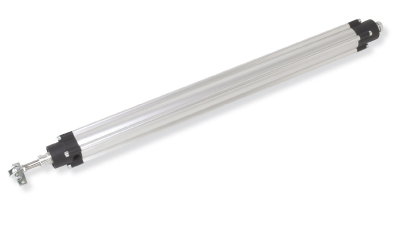

Pneumatic Actuator WAY Mingardi G1 Stroke 180-350-550-750-1000mm Ø40mm
Pneumatic actuator for: top hinged windows, domes.
MINGARDI pneumatic safety actuator suitable for being used for smoke evacuators in compliance with the UNI 9494 standards.
It has a plaincoloured aluminium body and is provided with automatic lockings in the furthermost position to keep the frames opened or closed even when internal pressure is absent.
Prepared in advance for direct installation of the thermal valve.
Characteristics:
- Suitable for smoke evacuation;
- High thrust force;
- Easy maintenance;
- Wide range of accessories;
- Protection degree: IP 66;
- Max thrust force: 2000 N;
- Colour: White Anodisation EV1;
- Locking hold load: 5000 N ± 10%;
- Operating temperature 1 cycle: - 30°C + 300°C.
Cylinder front bracket (code: 2700442) sold separately.
Front bracket for window frame (code: 2700064) sold separately.
Rotating joint (code: 2700438) sold separately.
Fixed joint (code: 2700704) sold separately.

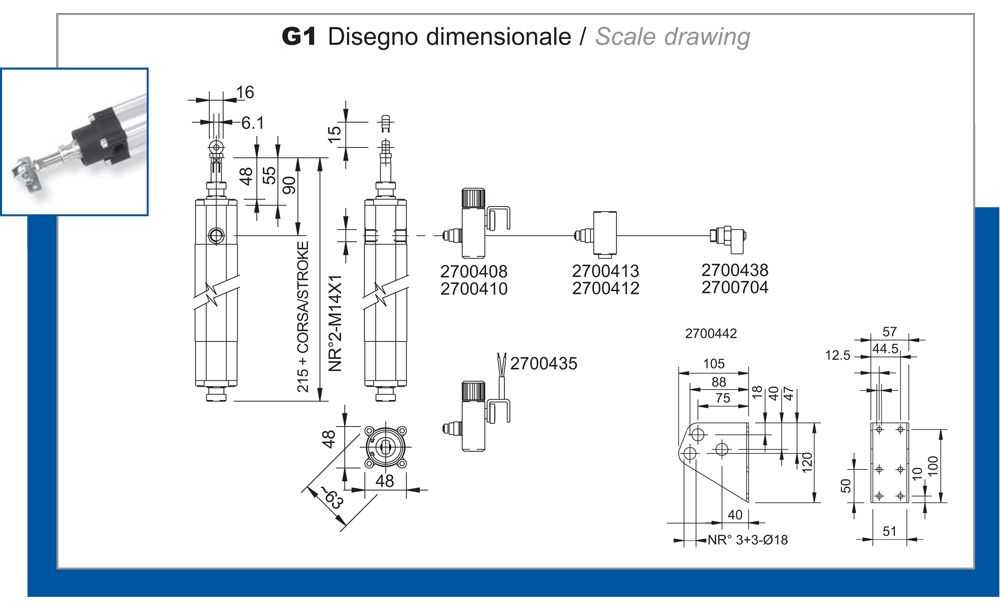

Technical Features:
| DESCRIPTION |
THRUST FORCE
TENSILE FORCE 1 MPA |
STROKE |
CYLINDER
DIAMETER |
ROD
DIAMETER |
WEIGHT |
| G1 - Ø 40 mm |
1250 N / 1120 N |
180mm 350mm
550mm
750mm
1000mm |
Ø 40 mm |
Ø 12 mm |
1,33 Kg
1,74 Kg
2,23 Kg
2,73 Kg
3,41 Kg |
