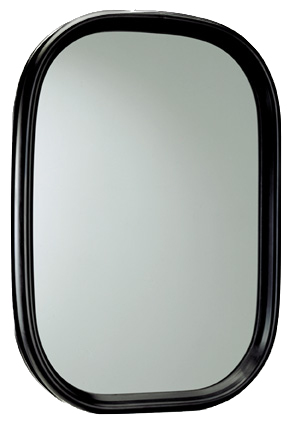

Porthole Big Rubber Rectangular Glass 5+5 Colombo
R = 150mm

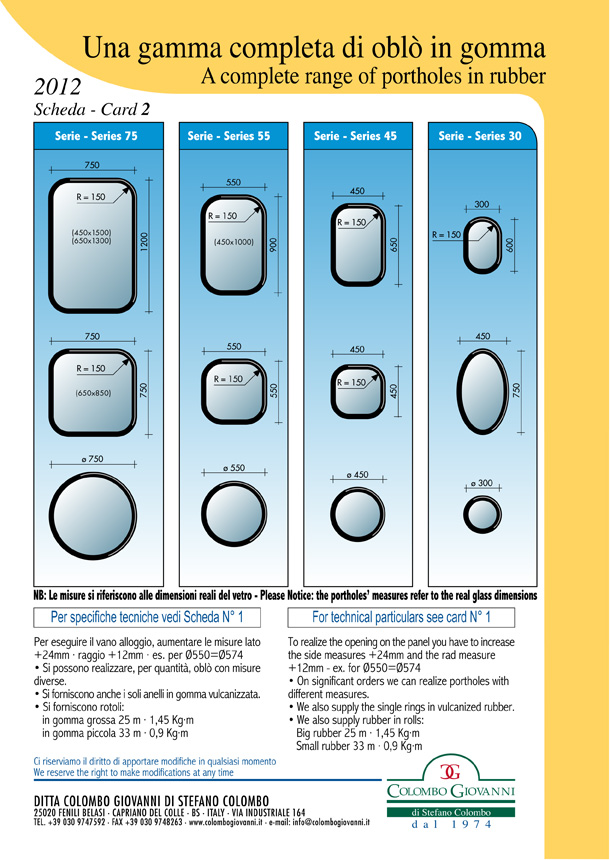

MEASURES (mm):
750x1200, 450x1200, 650x1300, 550x900, 450x1000, 450x650, 300x600.
TECHNICAL CHARACTERISTICS:
- Realized in black EPDM rubber;
- Trasparent or satiny 5+5 glasses;
- Perimetrical ground glasses;
- Black vulcanized ring junction;
- Anti-aging composition;
- Rubber and glasses are assembled;
- Big rubber (panel 40-60mm).
The measures refer to the glasses.
Rubber and glasses are assembled: easy and safe laying.
All the materials are certified.
To realize the opening on the panel you have to increase the side measures +24mm and the rad measure +12mm. For example Ø550=Ø574.
