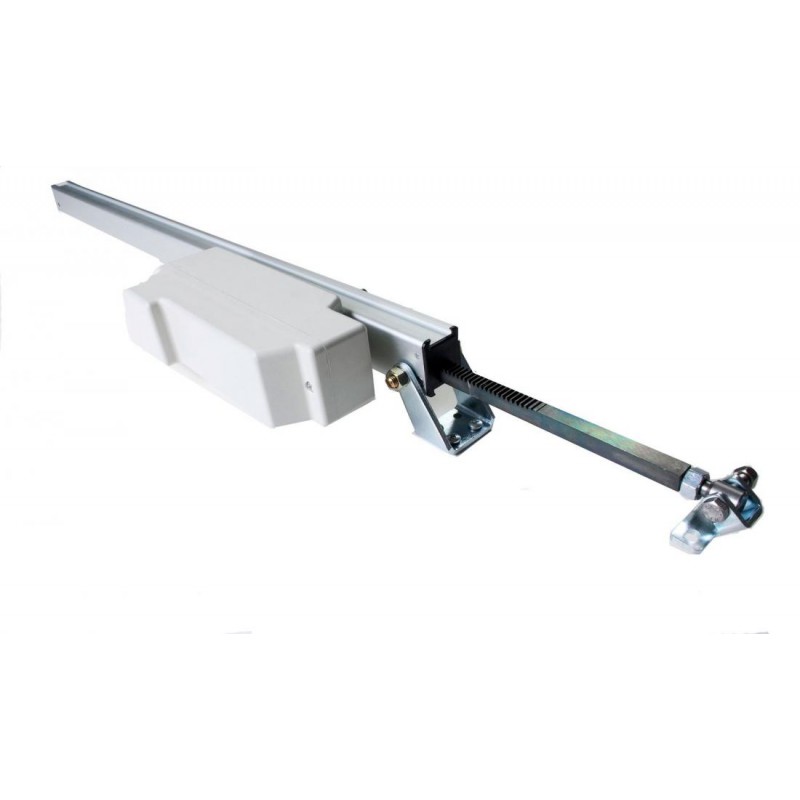

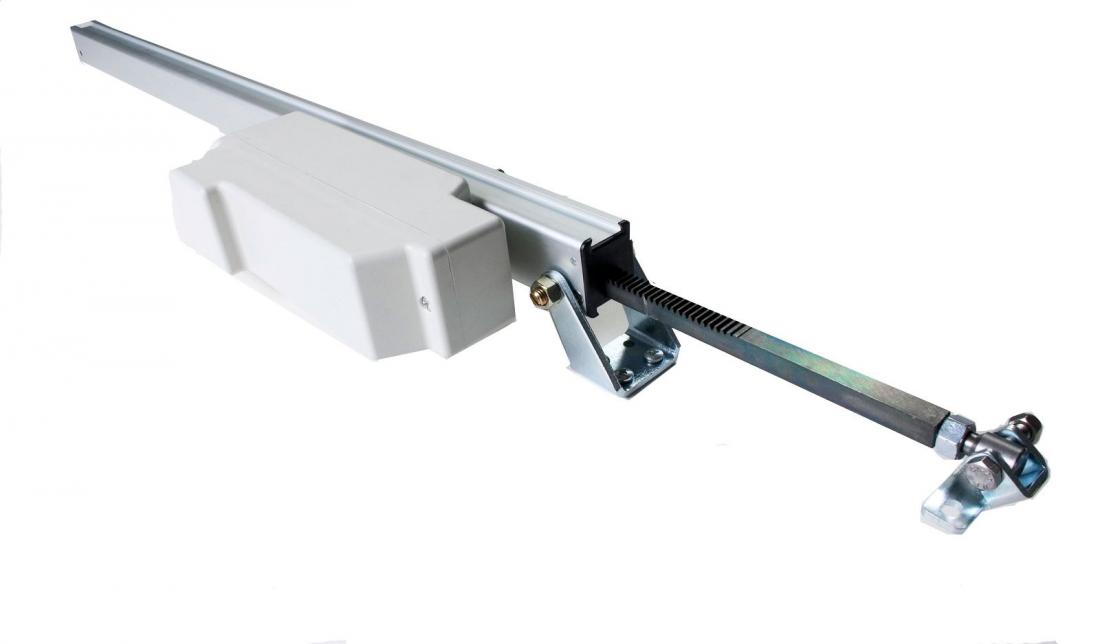

Rack Ultraflex UCS 230Vac - Rack Actuator 650N
With Rack Ultraflex you open your window automatically by rack
- Ultraflex Rack travel (choice between): 180 - 350 - 550 - 750 - 1000 mm;
- Color: anodized silver;

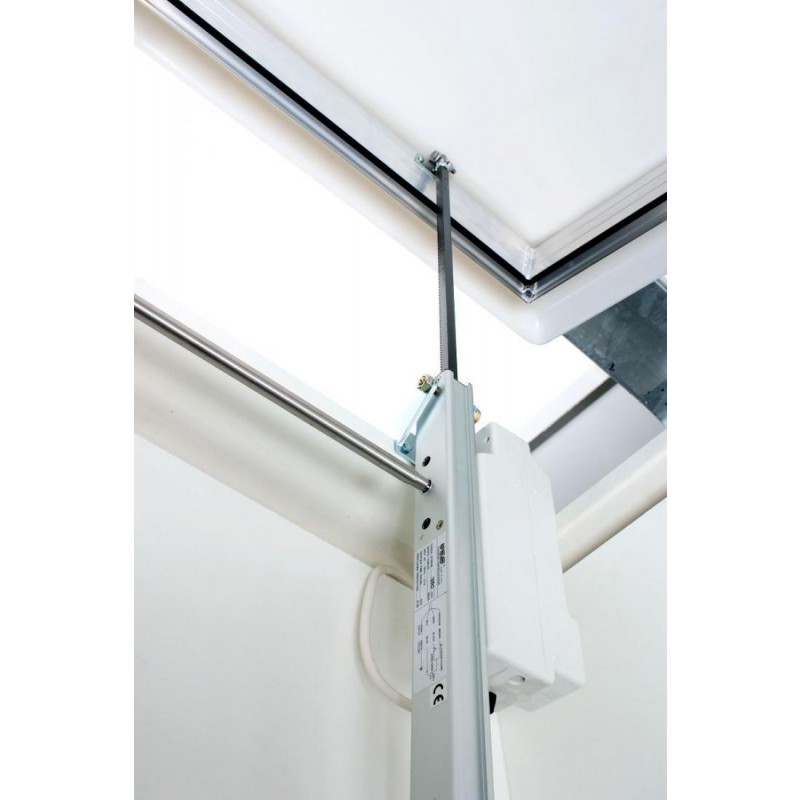

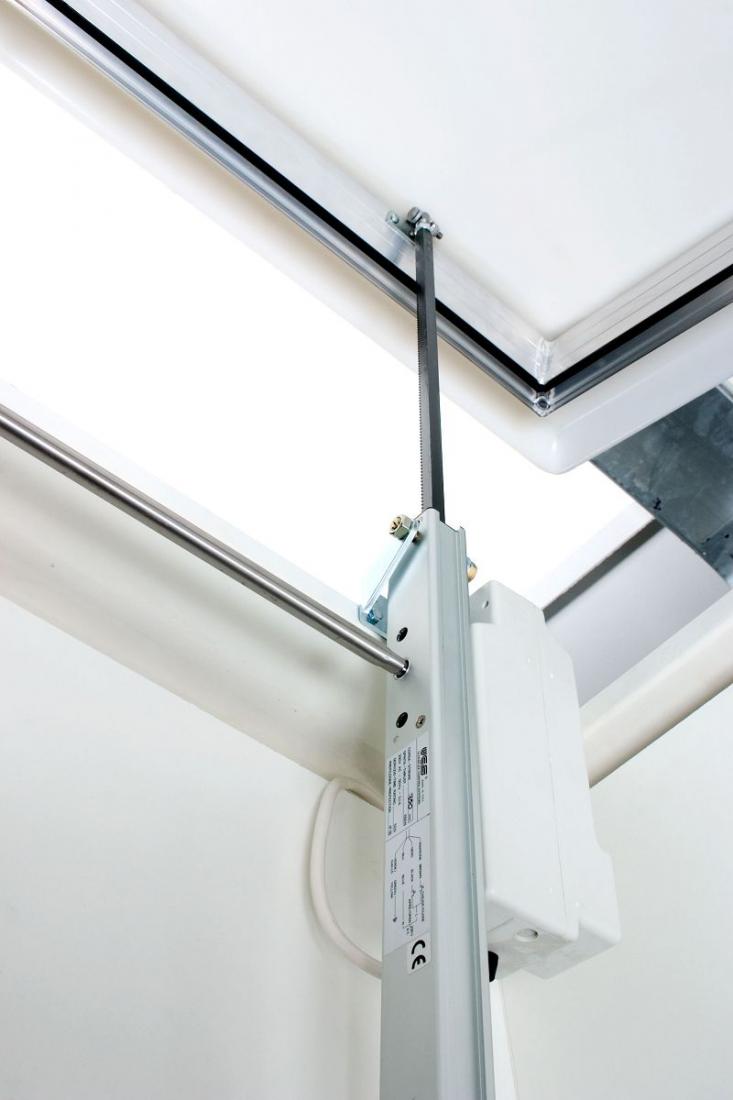

- Possible applications: on top-hung windows, on domes, on sunshade blades, etc.

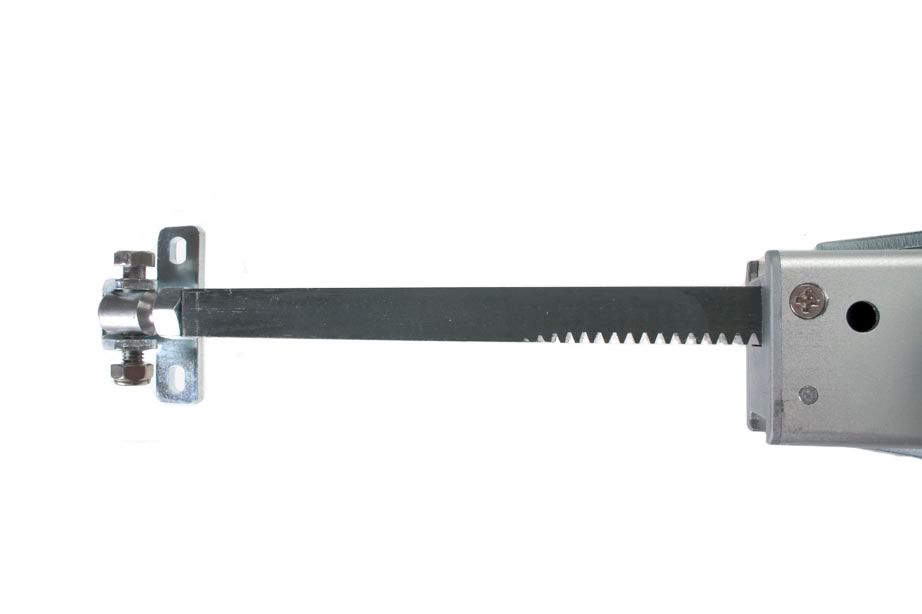

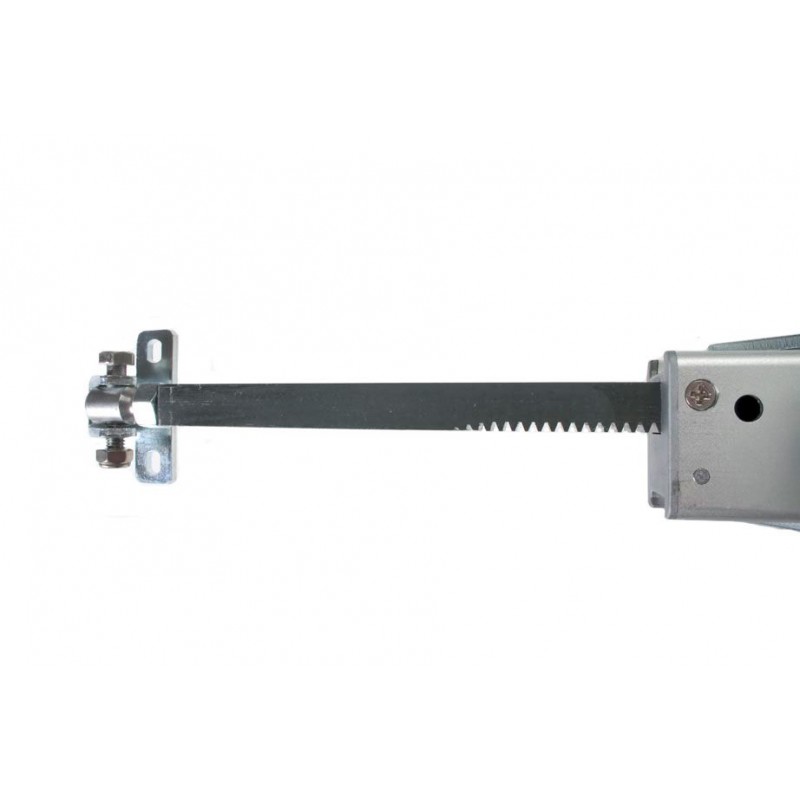

Movement transmission by 10 mm square rack for 180 mm, 350 mm and 550 mm strokes and 12 mm square rack for 750 mm and 1000 mm strokes.
The Rack Ultraflex actuator is supplied with 1.5m of electrical cable.
To be ordered separately, the brackets for front-rear fixing or sliding within the dovetail guides for fixing the actuator along its entire length.
Technical characteristics Rack 230Vac Ultraflex UCS
- POWER SUPPLY 230 Vac ± 10%
- ELECTRICAL CONNECTION 3 wires + earth
- PUSH FORCE 650 N
- FORCE IN TRACTION 300 N
- SPEED ~8 mm/s
- ABSORPTION (at maximum load) 0.1 A
- CAN BE CONNECTED IN PARALLEL YES
- LIMIT SWITCH electronic stop
- PROTECTION electronic shutdown
- PROTECTION DEGREE IP 55
- ANODIZED SILVER COLOUR .
| CODE |
MODEL |
DESCRIPTION |
| 40209F |
AC racks |
Rack actuator 230 Vac 180 stroke 180mm |
| 40211T |
AC racks |
Rack actuator 230 Vac 350 stroke 350mm |
| 40213V |
AC racks |
Rack actuator 230 Vac 550 stroke 550mm |
| 40789D |
AC racks |
Rack actuator 230 Vac 750 stroke 750mm |
| 40790E |
AC racks |
Rack actuator 230 Vac 1000 stroke 1000mm |
Accessories supplied with Rack Ultraflex: sliding bracket in galvanized steel cod. 40235F (makes it possible to fix the entire length of the actuator), galvanized steel connector for fixing the stem to the mobile leaf.
