Rapid Block Pettiti - Quick Coupling Hinge for Ambidextrous Grates
The

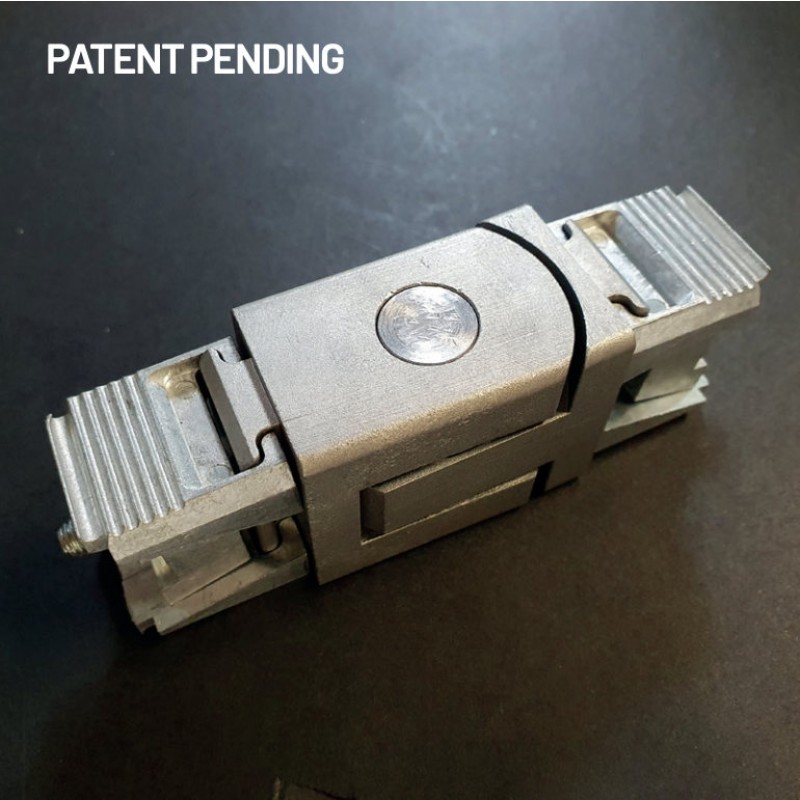

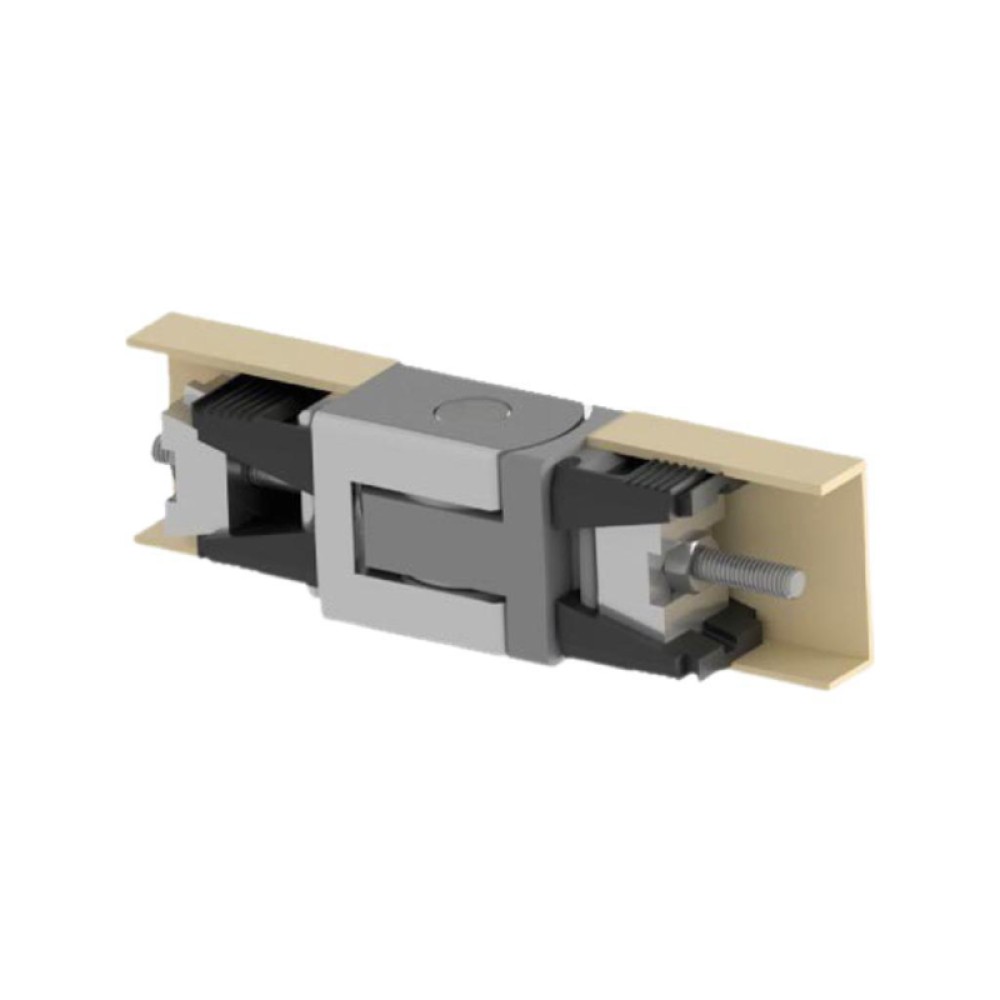

Pettiti RAPID BLOCK hinge is made of zamak with a
central stainless steel pin allowing quick assembly inside the door frame without welding or screwing.
The

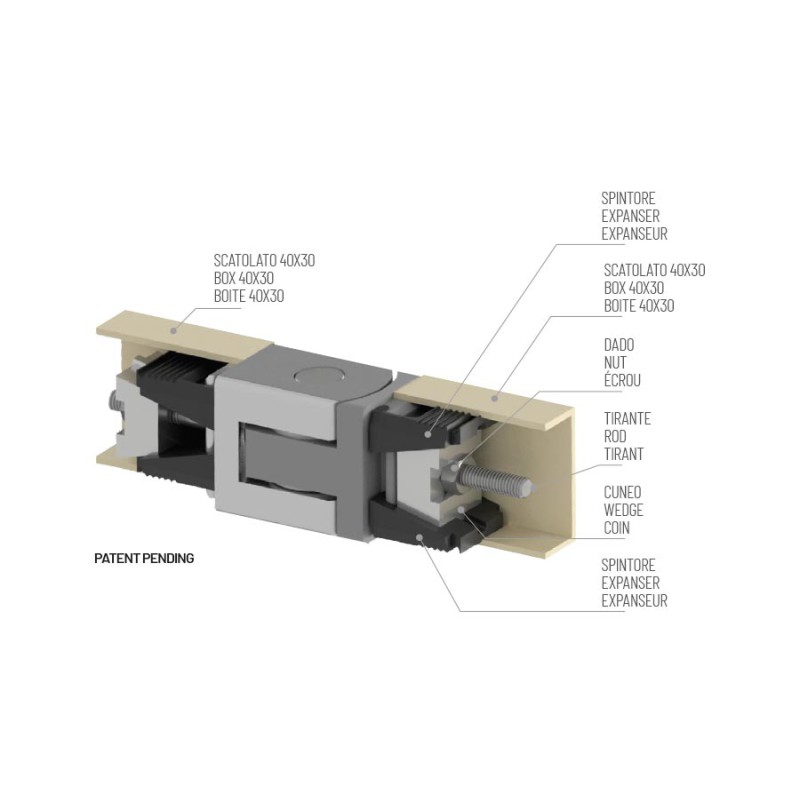

innovative fixing system allows to block the pushers against the internal walls of the box simply by screwing the hidden tie rod
inside the hinge body making it one with the frame.
The same system allows the quick release of the hinge for any maintenance operations.
The fixing
resists the vibrations induced by the normal use of the grating.
The RAPID BLOCK hinge is suitable for 40x30 section boxes with a wall thickness of 1.5 / 2mm.
With Rapid Block you no longer have to weld!
Extremely
easy to assemble . It is not necessary to resort to welding and subsequent grinding.
Being
ambidextrous , assembly and storage problems are reduced. Removable central pin to allow painting and maintenance even with the railing installed.
Advantages Rapid Block Pettiti hinge for railings
- It no longer welds , therefore the presence of a welder and the use of discs and electrodes is not necessary;
- Eliminates cuts at 45 ° - Reduces the construction time of the railing;
- Eliminates any assembly imperfections;
- Aesthetically linear and modern;
- Removable at a later time;
- Economic;
- Single item to be used for each movement of the railing;
- Ambidextrous;
- Boxed cuts symmetrical with respect to the hinge pin;
- Paintable.

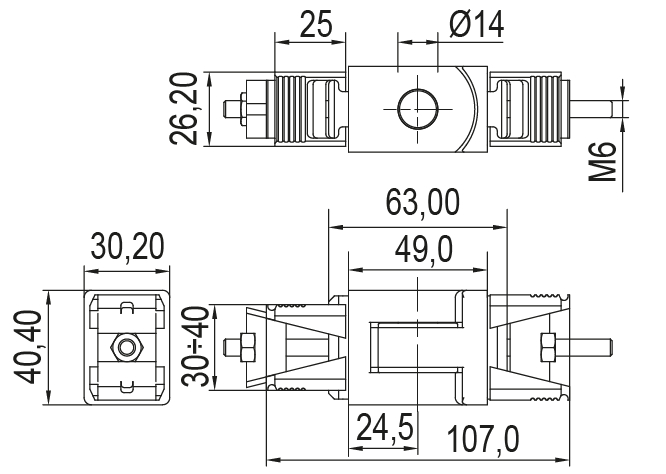

Rapid Block technical data
- 40x30mm boxed;
- Box thickness 1,5 / 2,5mm;
- Stainless steel pin;
- ZAMAK body;
- Shear strength: 39000N.
