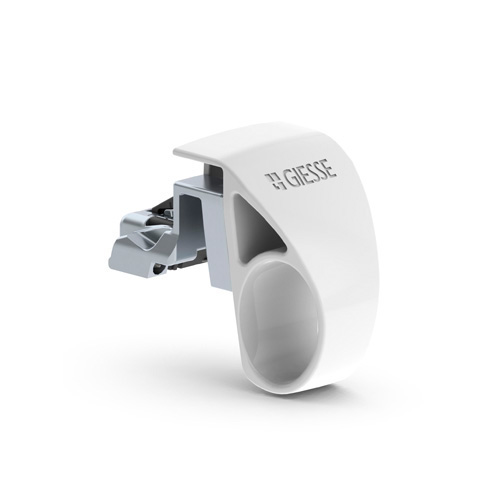

Ratchet for Closing Bottom Vasistas Windows - Model Giesse Twin R Series R40
Functions Ratchet Accessory Giesse Vasistas Twin R:
Ratchet for closing bottom-hung windows Giesse Twin R model for R40 series.
The device for closing bottom-hung windows with
frontal application does not require machining on the profile.
Ratchet features for windows - Giesse Vasistas Twin R:
- Quick fixing on the channel of the door by means of contrasting grains.

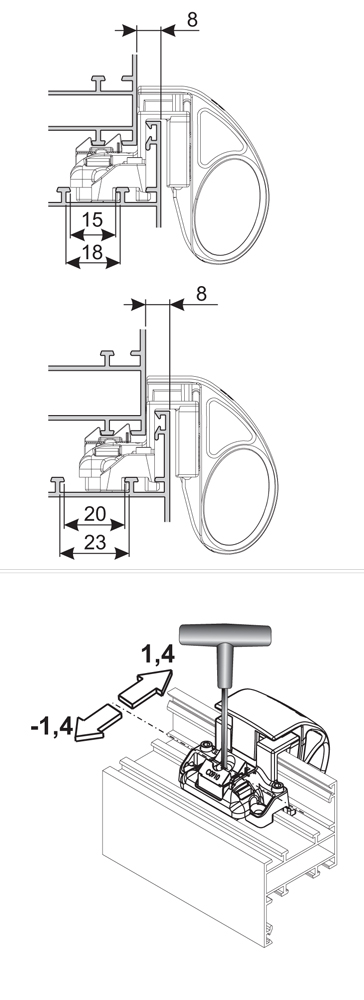

- The Twin Ratchet allows +1.4mm, -1.4mm compression adjustment on the seals.

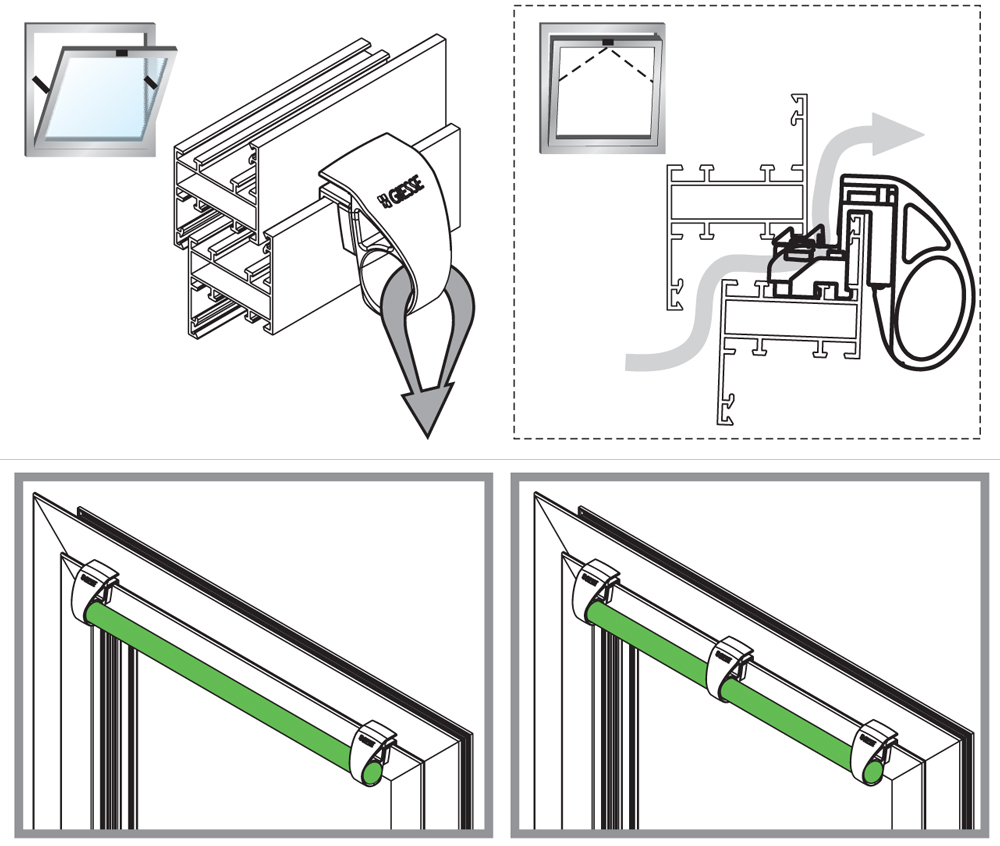

- The particular shape of the double hooking device for these profiles gives the ratchet the possibility of having a second closing position which keeps the sash slightly open and also acts as a micro-ventilation.
SUPPLIED WITH: Assembly instructions.
MATERIAL:
- Hooking tooth and lower tray in nylon.
- Tooth support and ratchet body in zamak.
- ABS/polycarbonate ratchet handle.
- Screws, grains and spring in stainless steel.
NOTE: For complete knowledge of the features, we recommend reading the PDFs attached to the product sheet.
