Reinforced PVC Shutter Kg 5/Mq Resistant Non-deformable Sole Pinto

Sole Pinto: reinforced PVC shutter that does not deform at high temperatures

PVC shutter with reinforcements in the slats resistant and non-deformable to the sun's rays

• The internal reinforcements of the reinforced PVC shutter increase the resistance to high temperatures.
• The Sole Pinto roller shutter does not deform and withstands the hottest days of the year.

Attention: the pvc terminal is included in the price.

Sun Pinto reinforced PVC roller shutter

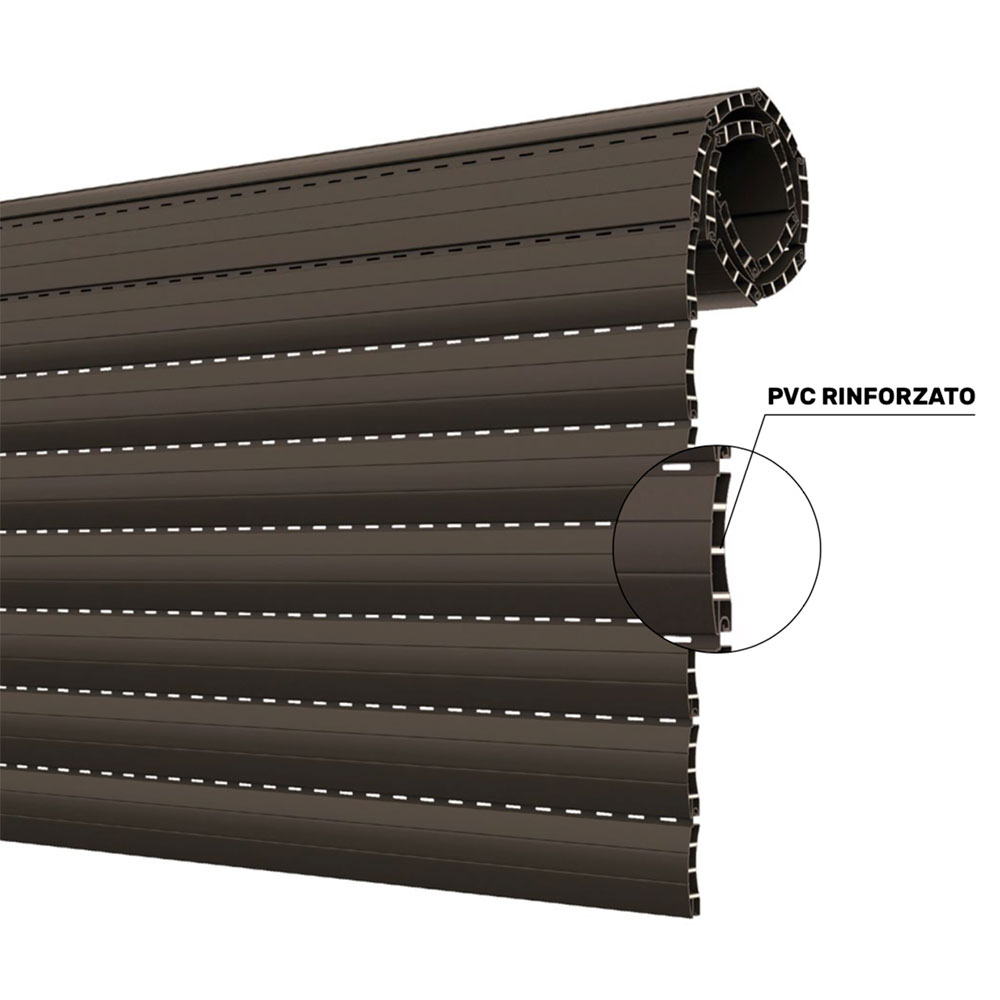

The SOLE 5 reinforced PVC roller shutter ( standard specific weight of about 5 kg / m2 ) is made with self-hooking slats (double-walled, with internal stiffening intersections and resin reinforcements) measuring 13 mm at the base and 55 mm in height. The profile is equipped with an "anti-slip" side stop which serves to block the slats.

Thanks to its PVC reinforcement, the profile of the Sole roller shutter acquires mechanical strength and dimensional stability, no longer requiring the application of metal reinforcements.

Measures of the Sole Pinto reinforced PVC shutter slat

Read the dimensions of the slats of this PVC roller shutter.

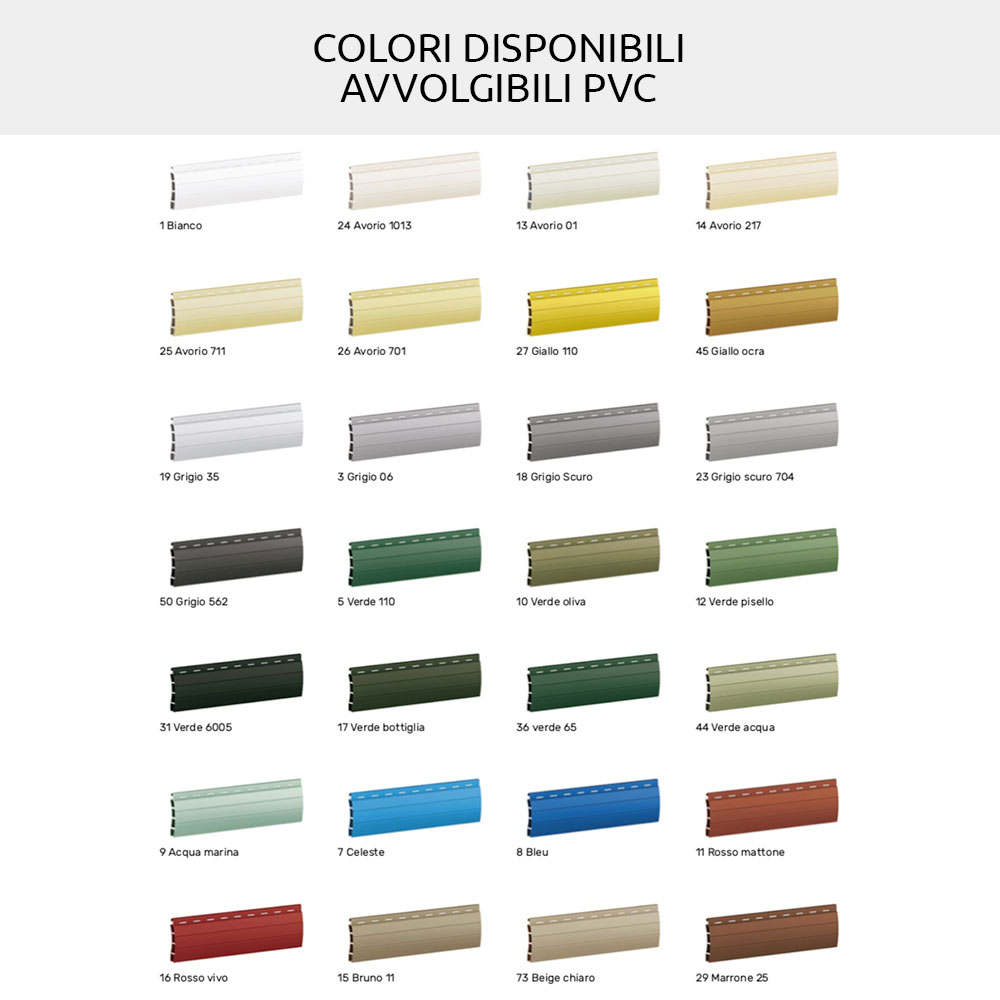

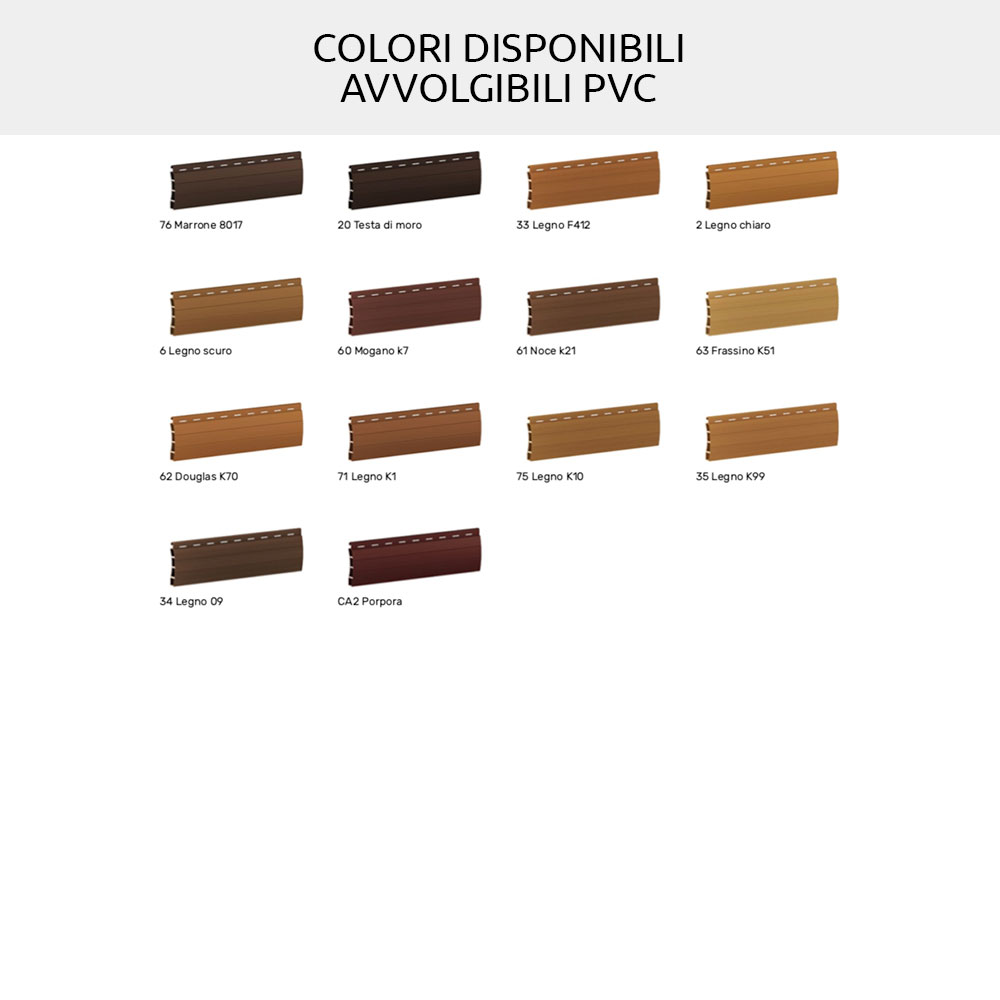

Pvc roller shutter colors: choose your favorite

Choose the color of your roller shutter from those available.
To see better, we recommend that you see the photo above.

Security: add the deadbolt (optional)

The deadbolt is a safety system for the roller shutter.
In practice, it prevents the shutter from being raised, and is very useful especially on the hottest evenings, when we sleep only with the shutters down.

The deadbolt is optional and excluded from this product. Ask to add it to your PVC roller shutter.

Technical characteristics of the Sole Pinto roller shutter

• Profile size : 13 x 55 mm;
• Weight per m2 : about 5 Kg;
• Number of bars per 1 meter of height : 18;
• Maximum working width : 2100 mm;
• Maximum production length : 6.5 linear meters;
• ONLY roller shutter (this product does not include belts or motors to raise and lower the roller shutter);
• PVC terminal (the terminal is the last stick that rests on the ground).

How does the batten lock work?

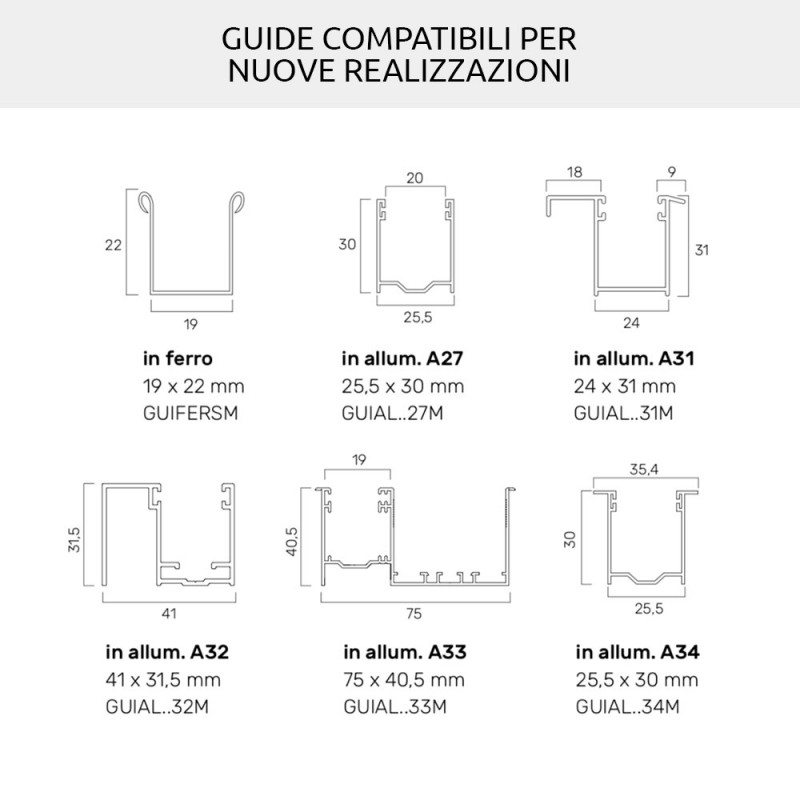

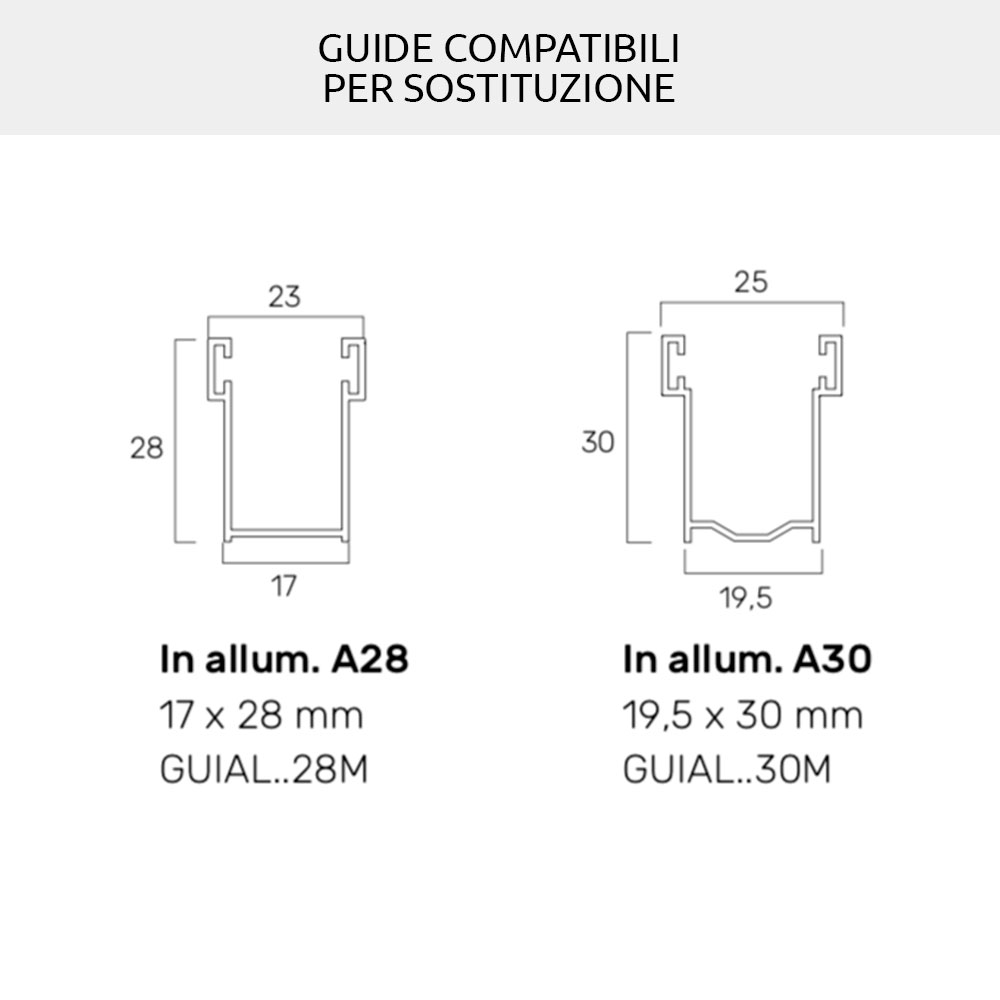

Compatible guides: see the photos above

Look at the compatible guides of this roller shutter in the photos above.

We have put compatible guides for:

• New achievements;
• Replacements of shutters;
• Aluminum bins.

Before buying: how to measure the pvc roller shutter?

We recommend that you take measurements based on what you need to do:

1. Replacement of an existing roller shutter: you can take the measurement of the old roller shutter.
2. Replacement or new installation of roller shutters and sliding guides: for the width of the roller shutter, with reference to the guides to be used, the necessary tolerances must be taken. You can use the old guides if they are in good condition and if they have at least 16.5mm of usable space inside.
3. Enter the finished measurements, in millimeters (base and height). By finished measurements, we mean the total measurements of the product, including any side caps and completion accessories.
4. For the choice of the shutter profile, if you need to make a replacement, measure the height of the single plank without considering the connecting hook between the slats.

Pinto Tapparelle: buy your roller shutters online

Pinto Tapparelle is an Italian company specialized in the design and production of PVC and Aluminum roller shutters.
The production plants are in Italy: in Polla (SA) and Polesine Parmense (PR).

Buy Pinto roller shutters in the Windowo online store.
