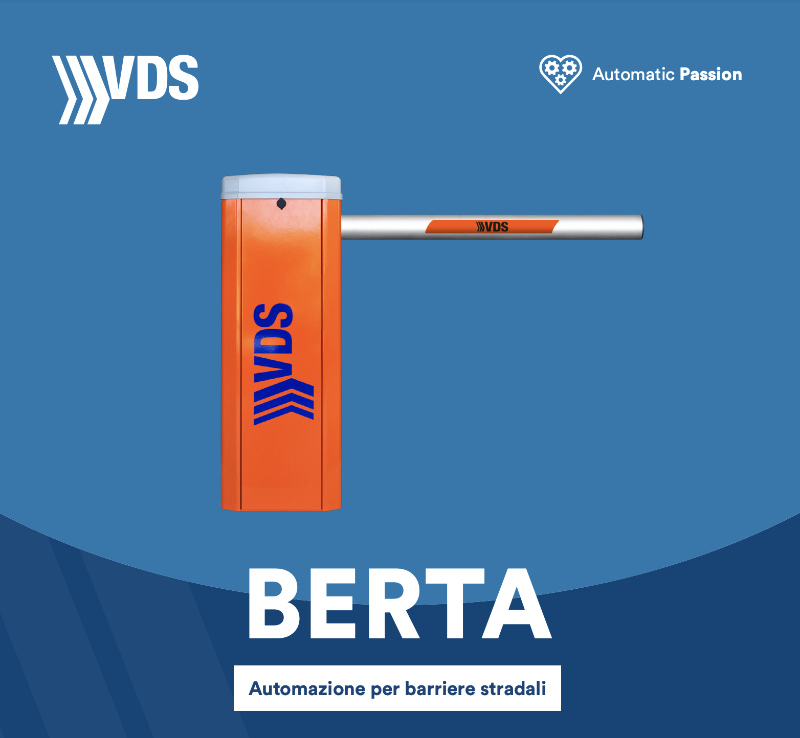

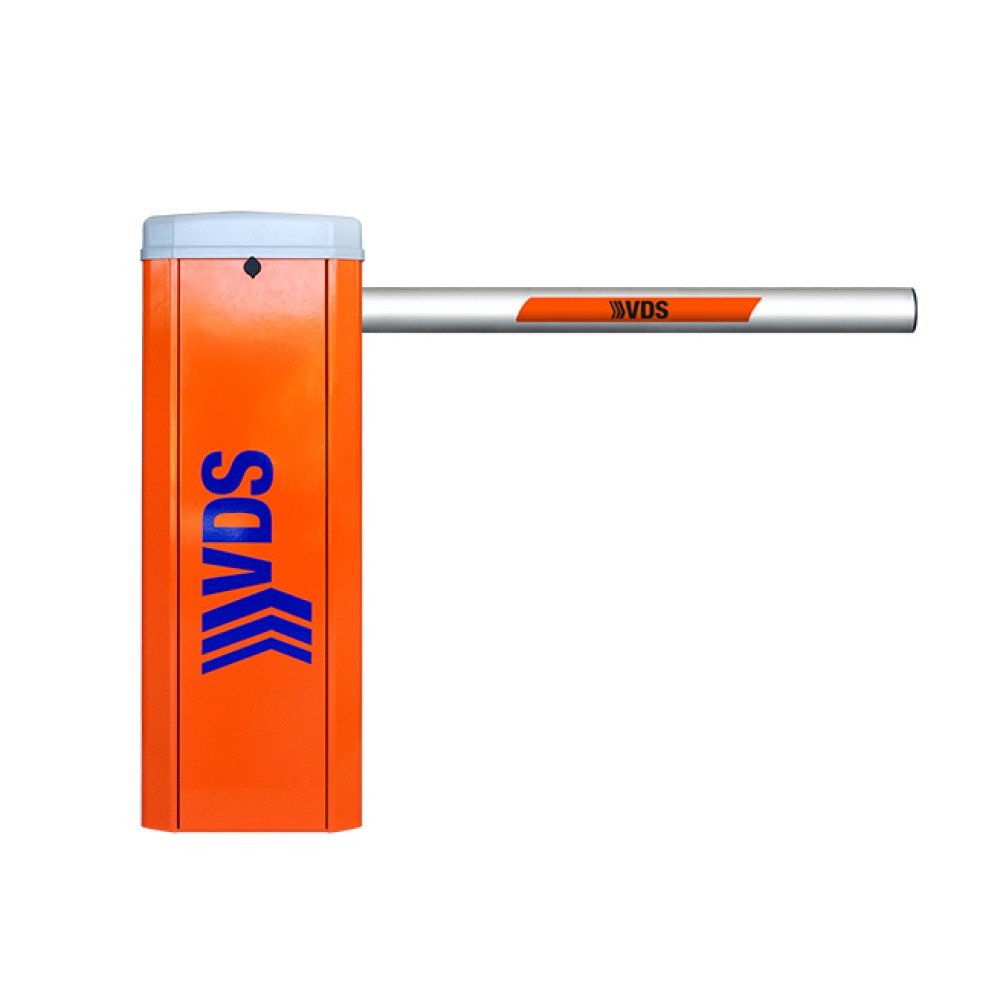

Road Barrier - Electromechanical Automatic Bar - BERTA VDS
BERTA VDS is a
road barrier equipped with an electromechanical automatic bar.
The BERTA VDS
automatic barrier is available in the 230V or 24V version with booms up to 6 meters.
ATTENTION: rods must be purchased separately. Contact us for more information.
What is an automatic barrier?
An automatic barrier is an
access control device normally used for controlling condominium parking lots or public parking lots.
The road barrier is also used in motorway barriers and at toll tunnels in order to stop motorists and charge the ticket. When the ticket is paid, the automatic barrier goes up and the driver passes.
Advantages BERTA VDS automatic road barrier
- Irreversible for intensive use;
- Self-supporting powder coated steel cabinet;
- Motor box in die-cast aluminum;
- Cast iron and steel gears;
- High Performance electric motor;
- Mechanical parts lubricated with lithium grease;
- Opening and closing microswitches;
- Spring balance;
- Standard round rod attachment - Optional rectangular rod;
- Emergency release with crank handle 230V - Mechanical release with key 24V;
- Rod length max 6m / LED rod kit (optional);
- Easy programming software;
- Control unit with radio receiver and antenna;
- Anti-crushing device (EN 12453);
- Speed slowdown (EN 12453);
- Electronic torque regulation;
- Anti black out battery kit.
BERTA VDS automatic barrier performance requirements
- SEMI-INTENSIVE use 230VAC, INTENSIVE 24VDC;
- Frequency of use 50% (230VAC) - 100% (24 DC);
- Opening time 10 SEC.

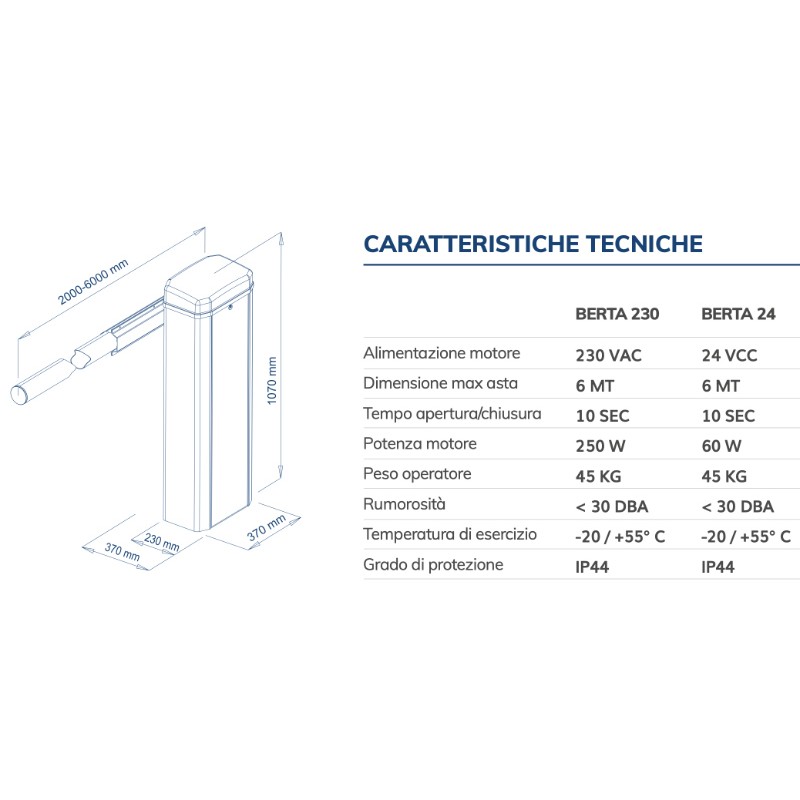

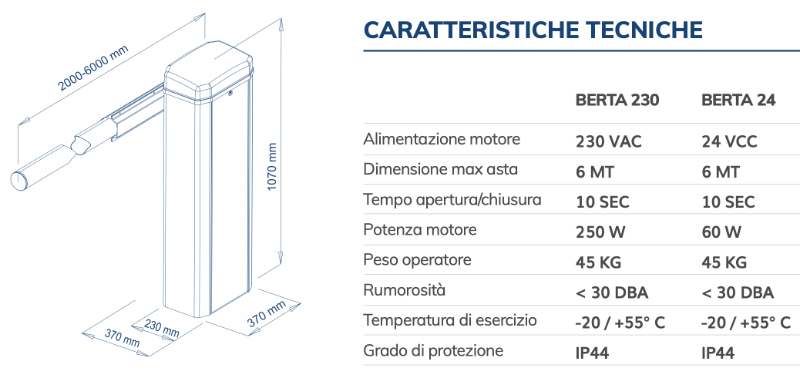

Technical features of the BERTA VDS road barrier automation
- Motor power supply: 230V or 24V (by choice);
- Maximum pole size: 6 meters;
- Opening / closing time: 10 seconds;
- Motor power: 250W (230V) or 60W (24V);
- Operator weight: 45 kg;
- Noise: <30 DBA;
- Operating temperature: -20 / + 55 ° C;
- Degree of protection: IP44.

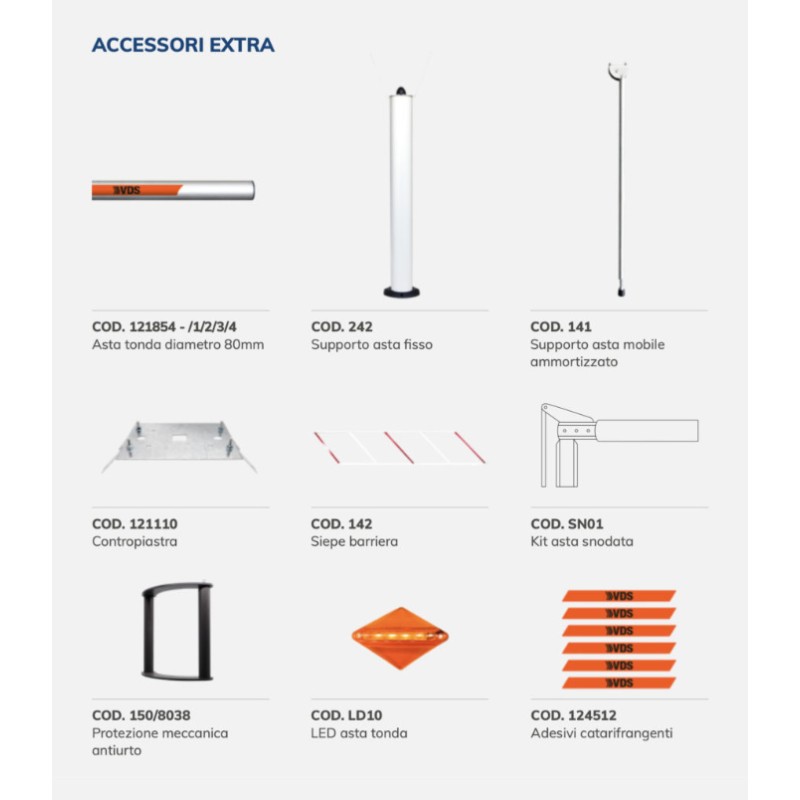

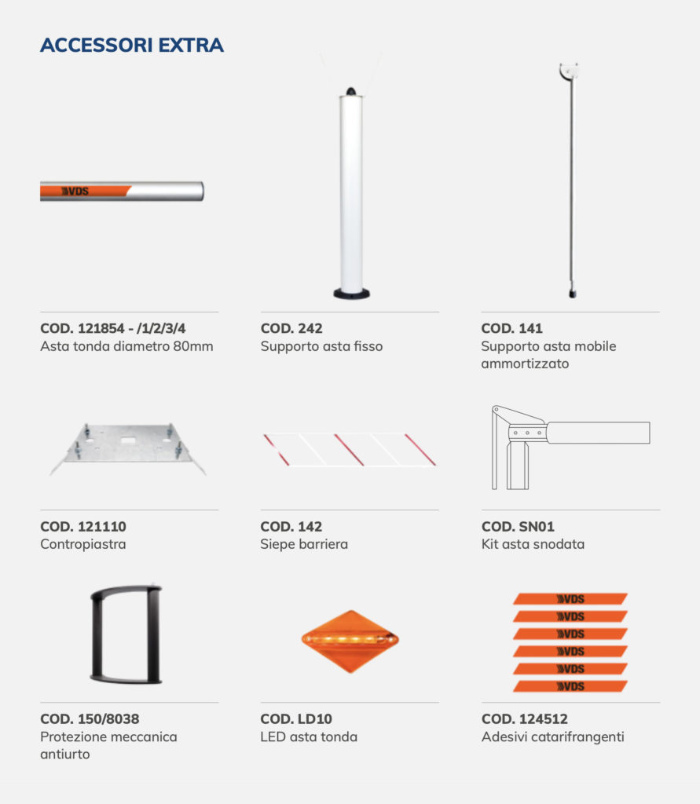

Extra accessories to be requested separately (if you are interested contact us):
VDS automation for road barriers for sale online
The
VDS company has been operating in the field of automation for gates and road safety for over thirty years.
Each
VDS road barrier is manufactured in Italy by specialized personnel with quality raw materials.
Find the best automatic barriers VDS Automations on Windowo with a special offer price.
