Rolling shutter IoT Connected Mechanism Plana Vimar - Wiring Device
VIEW Wireless
electronic control device for 1 roller shutter with orientation of the slats with changeover relay output for motor cosφ 0,6 2 A 100-240 V ~ 50/60 Hz, local control with button or remotely.

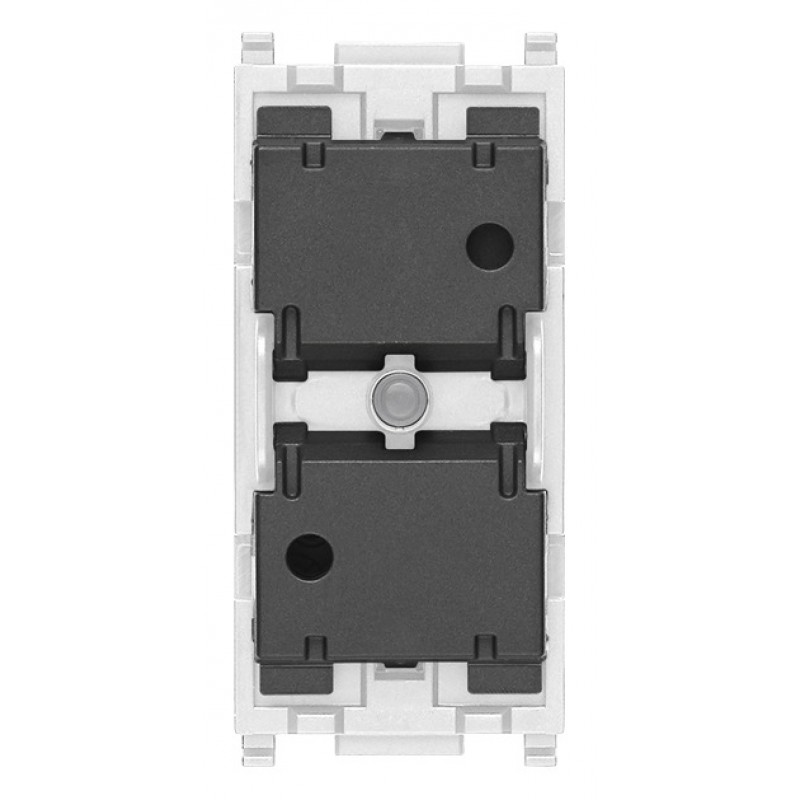

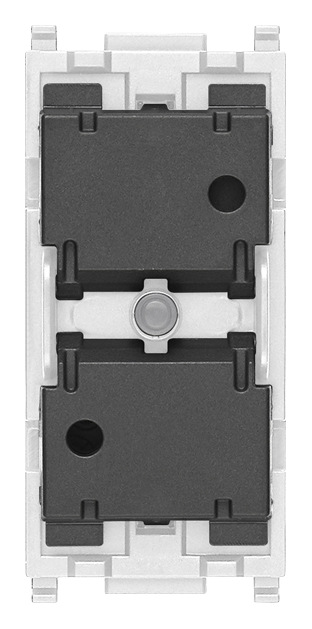

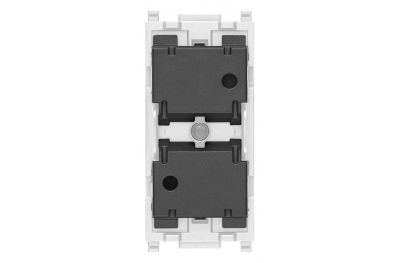

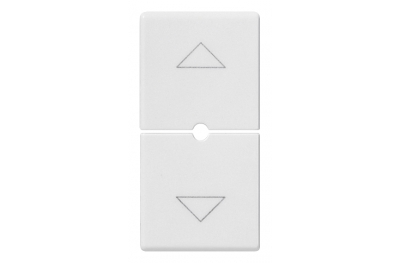

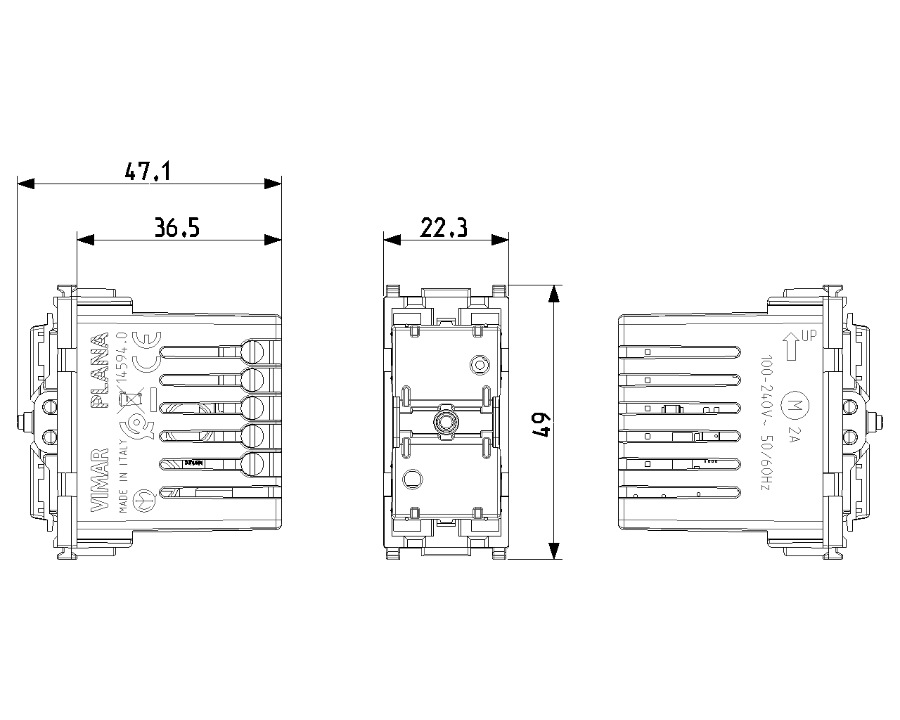

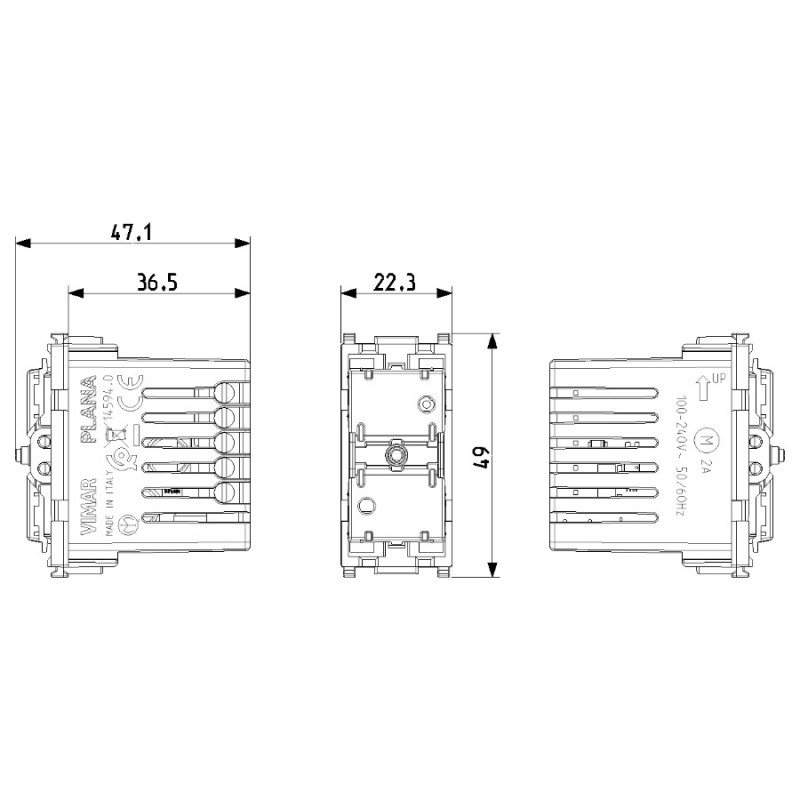

Plana Vimar shutter mechanism equipped with double IoT technology on Bluetooth 5.0 standard for creating VIEW Wireless mesh system and on Zigbee 3.0 standard, 1 input for external button for recalling a scenario, preferred position recall function, RGB LED detection in the dark with adjustment of intensity, power supply 100-240 V 50/60 Hz, to be completed with two interchangeable half-buttons 1 Plana module.
- Configuration from App View Wireless for Bluetooth technology system and Amazon App for Zigbee technology;
- Compatible with Alexa, Google Home and IFTTT, through the appropriate Zigbee gateway or hub.

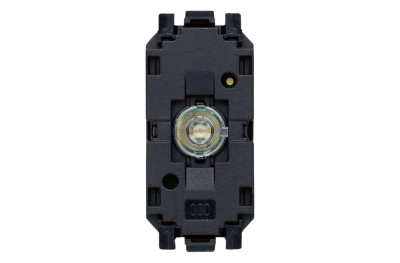

Connected device for smart rolling shutter
The device is equipped with an
output with 2 monostable relays with interlocked operation, i.e. with mutually exclusive activation of the relays with minimum interlocking time. In the event of a power failure, the relays both remain open.
The
front keys of the device only control the roller shutter actuator on board:
- Short press: if the shutter is stationary, the slat rotates; if the shutter is moving it stops;
- Long press: the upper key raises the shutter while the lower key lowers it;
- Double pressure of either of the two keys: recall of the preferred position (the memorization takes place through the App View Wireless).
Characteristics of the connected shutter control device
- Nominal supply voltage: 100-240 V ~, 50/60 Hz.
- Power dissipated: 0.55W
- Transmitted RF Power: <100mW (20dBm).
- Frequency range: 2400-2483.5 MHz.
Clamps:
- 2 terminals (L and N) for line and neutral.
- 1 terminal (P) for connection to the wired remote control (for example art.20008-19008-16080-14008).
- The maximum distance between the IoT device and the button is 50 m with a cable with a minimum section of 1.5 mm2.
- 2 terminals for shutter output.
- 2 front keys that are used both for load control and as configuration buttons.
- RGB LED that signals the movement of the rolling shutter (settable from the App View Wireless) and the configuration status (flashing blue).
- In Bluetooth technology mode, up to 2 radio devices (art.03925) can be associated with the device, allowing the actuator to be controlled or a scenario to be activated.
- Operating temperature: -10 ÷ +40 ° C (for indoors).
- Degree of protection: IP20.
- Configuration from App View Wireless for Bluetooth technology system and Amazon App for Zigbee technology.
- Can be controlled from App View (for Bluetooth technology) and Amazon Alexa App (for Zigbee technology).
Vimar connected shutter system for smart homes
- Vimar is the Italian company that produces home automation and electrical equipment of different types.
- The Wireless View App allows the configuration of the connected domestic series devices.
