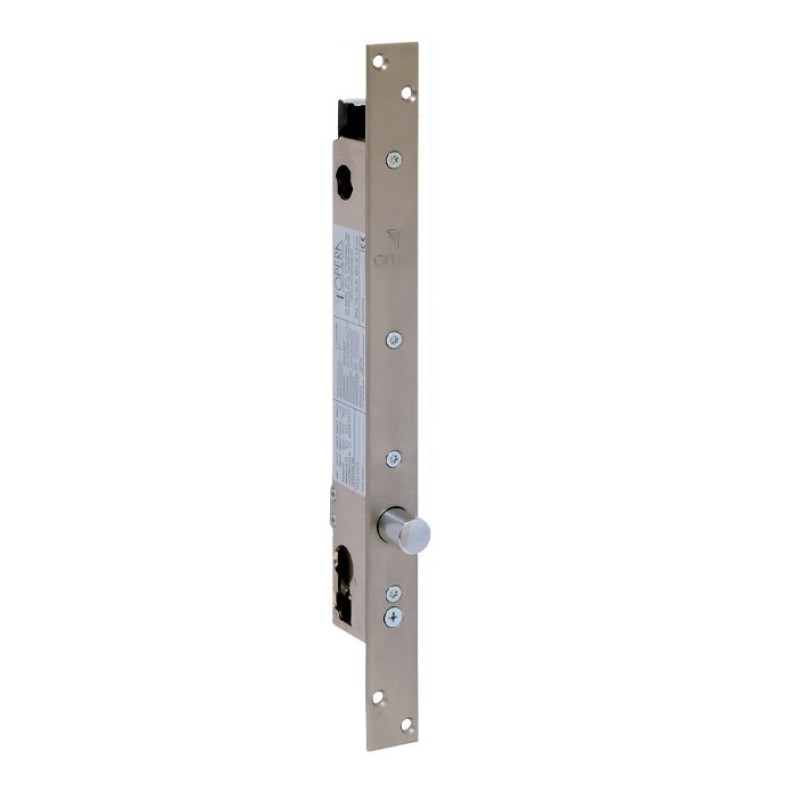

Safety Electrolock Opera 25800 for Single Door with Deadbolt Closed in Power Failure
Use of Safety Electrolock for Opera Door
The
Opera 25800 safety solenoid lock is an advanced solution designed to guarantee the safety of single doors, keeping the deadbolt closed in the absence of power.
This device is ideal for environments where security is a priority and where it is necessary to ensure that
doors remain locked in the event of a power failure .
Deadbolt closed in case of power failure available versions:
- Without handle frame.
- With square handle mm. 8.
Available income:
Features Safety Electrolock for Opera Door
- Mechanical opening with European cylinder.
- (the cylinder with internal knob cannot be used).
- Stainless steel front mm. 320 x 25 x 3.
- Stainless steel strike plate mm. 150 x 25 x 3 with alignment magnet.
- Rotating deadbolt in anti-cut tempered steel with mechanical lock in the closed position.
- Deadbolt dimensions: extension mm.20 (mm.25 in the XL version), diameter mm. 16.
- Power supply: from 10 to 30 Vdc.
- Absorbed current: 2.5/3 A peak - 130/230 mA maintenance with permanent electronic control.
- Internal microprocessor control electronics.
- Connection via quick-fit connector.
- Arrangement for interlock connection between 2 or more doors.
- NA Opening Command.
- C./NO/NC contact for deadbolt position.
- Opto-electronic control of the deadbolt position.
- Internal magnetic sensor for door position.
- Buttons for monitoring and adjusting the closing times from 0-5 sec. when the door approaches and from 0-60 sec. if the door is not opened.
- The timings can be deactivated for the use of the electric piston with external management electronics.
- Operation: vertical (horizontal on request).
Opera 25800 Safety Electrocution Pack
Electropiston, counterplate, connector and cylinder screw.
Dimensions of the Opera 25800 safety solenoid
Application example of electric lock for single door
- Electric lock for safety doors.
- Insertion on the frame or on the door.
- Management for single door (condominiums, offices, companies...).
- Management for interlocked doors (banks, jewelers, institutions...).
- Can be combined with intercoms and access control systems.
Opera First Series
- Safety electrobolts.
- Anti-cut and anti-burglary rotating deadbolt.
- Manual operation with European cylinder and handle.
- For intensive and continuous use.
- Ideal for aluminum or steel doors.
- In single or interlocked configurations.
Opera Operating Access Safety Electrocution
Opera srl, specialized in the design and production of electric handles, was created in 1997 in Modena, Emilia Romagna, land of food and motors. The entire management of the company comes from the Corni Serrature experience which has been present in the city of Modena for over a century. The company is characterized by continuous expansion in world markets but with strong roots in Italy.
Italian quality electric locks for doors
Over 40% of the turnover is made abroad, but 90% of our suppliers are local. Almost all of the products are manufactured in our modern industrial plant, with technologies that respect the environment and the quality of work. We are proud to produce and live in Modena, a town in northern Italy which has been included in the UNESCO world heritage site since 1997.
