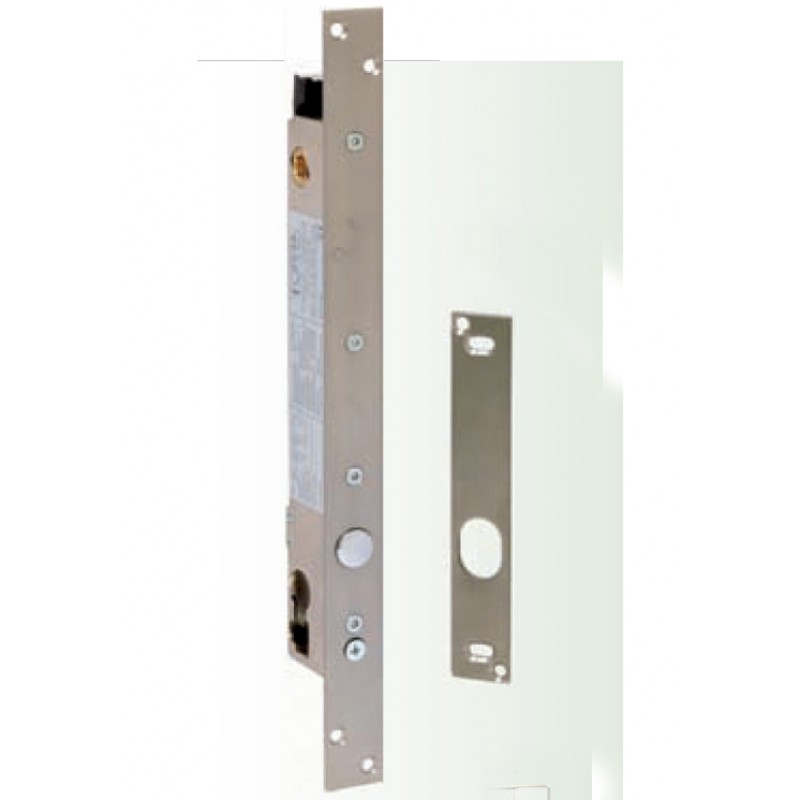

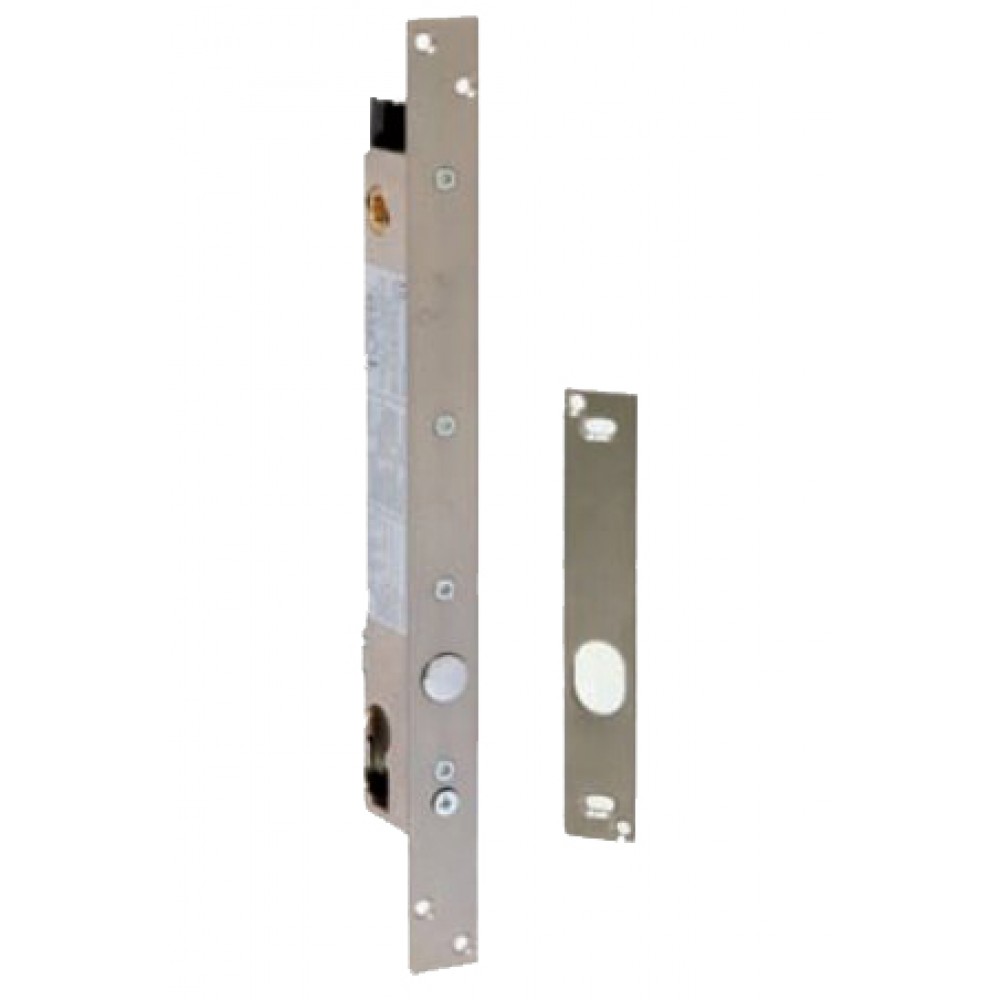

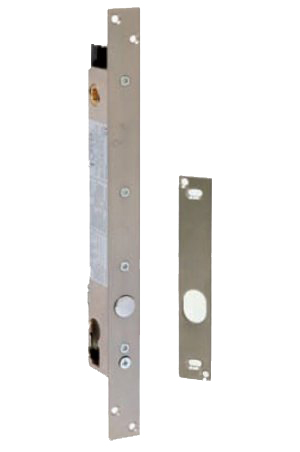

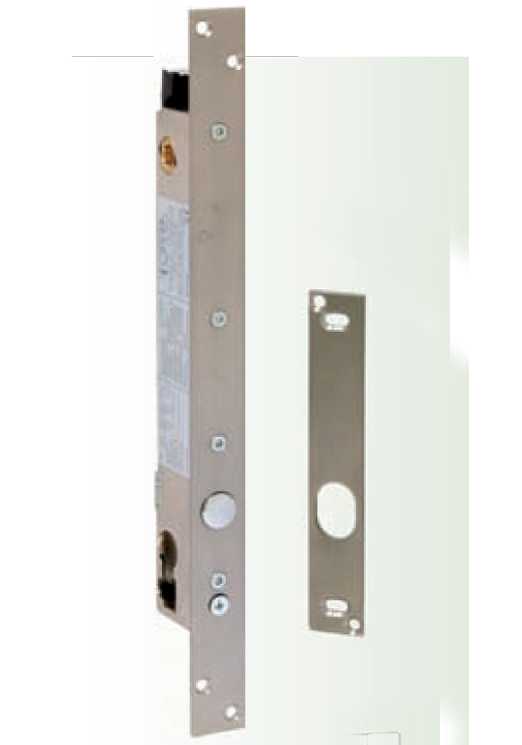

Solenoid Security Vertical Art.25609 Opera; With Quadro handle 9mm;
Security solenoid bolt for single door. With handle square 9mm. Openbolt without power. The package includes: solenoid, armature, connector and screw cylinder. The package does not include the power supply.
OPTIONS (choose between):
Standard version: normal and without modification;
XL: Deadbolt, broadening increased + 5mm;
SA version: with anti-bounce ball alignment mounted directly on the counter, with the slide in ABS front.
Technical features:
Mechanical opening with European cylinder (not usable cylinder with internal knob);
Stainless steel front 320 x 25 x 3 mm;
Counterplate in stainless steel 150 x 25 x 3mm with magnet alignment;
Revolving bolt in anti-cutting hardened steel with mechanical block in closing position;
Current consumption: 2.5 / 3 A peak - 130/230 mA for maintenance with electronic control;
Electronic control Internal microprocessor;
Connection via quick coupling;
Provision for interlock connection between 2 or more ports;
Opening command NA;
Contact C. / NO / NC Bolt position;
Opto-electronic bolt position;
Internal magnetic sensor for door position;
Buttons for monitoring and adjustment of reclosing times from 0-5 sec. to approach of door and from 0-60 sec. if the door is not opened;
Timings can be turned off for use of solenoid with outside management electronics;
Operation: vertical.
Revenue available: 25-30-35mm.
NOTE: Complete your solenoid considering the purchase of the Switching Art.05320 Opera, Windowo available in the same section.
It 'can be purchased separately also Grommet Disappearance Art.08600, for the direct passage of the wires between the door and the frame.
