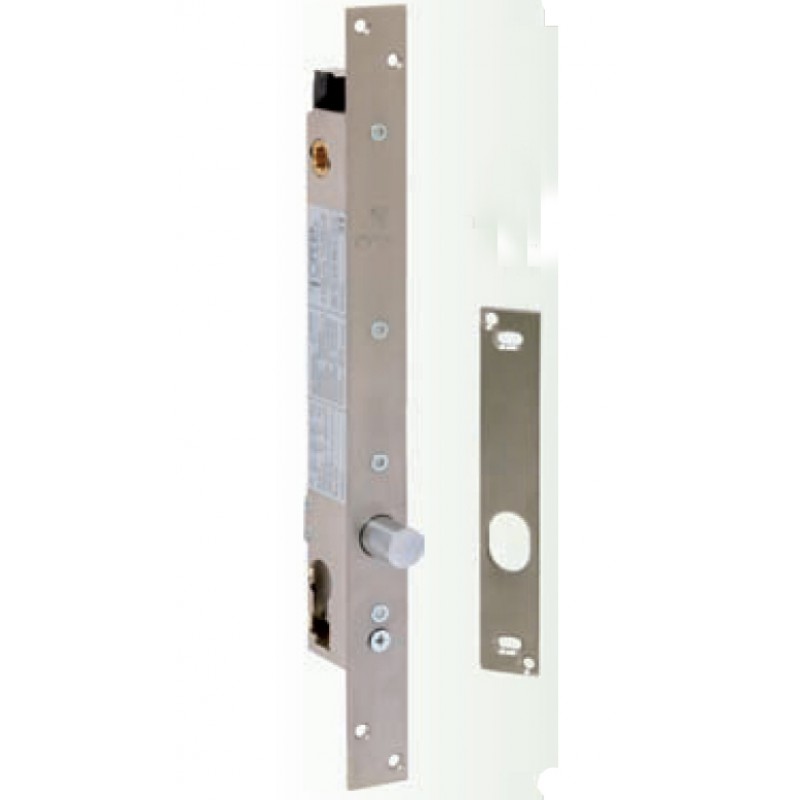

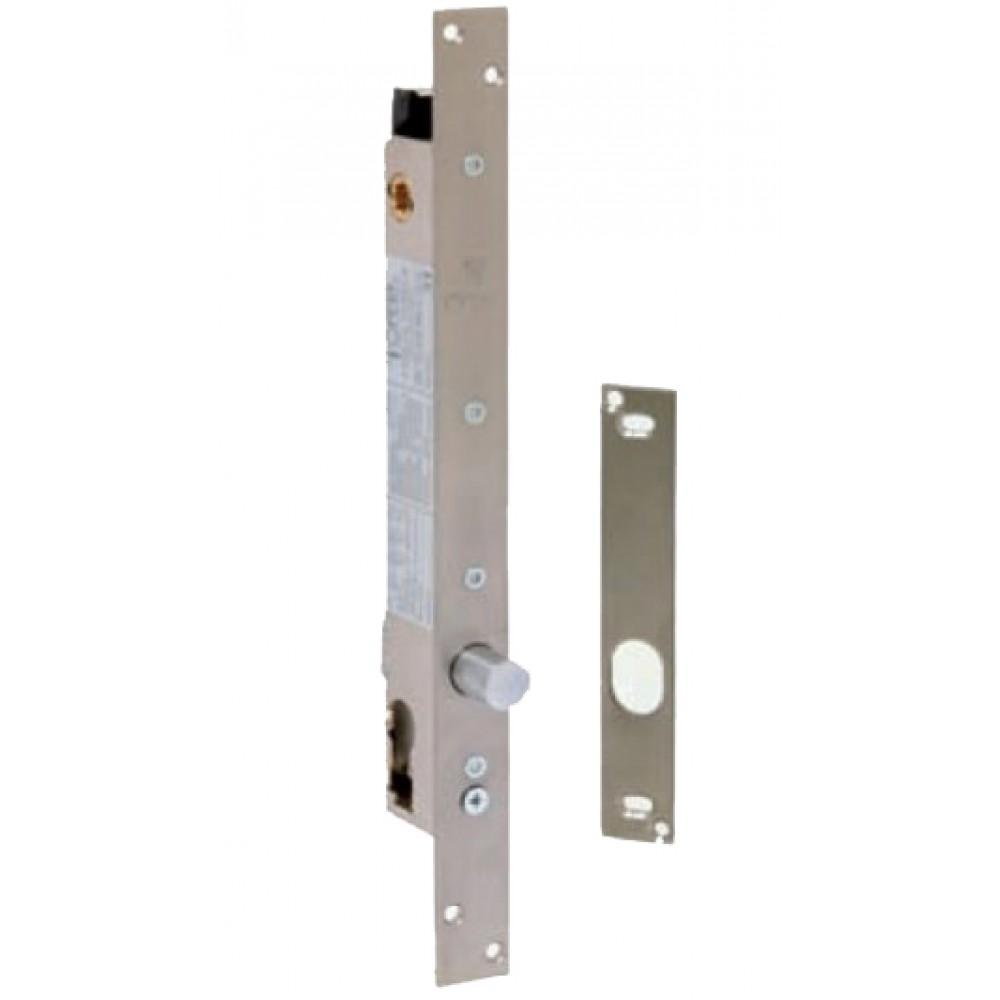

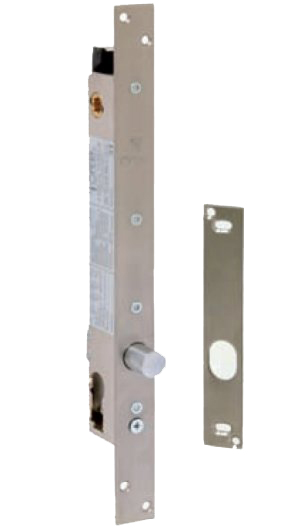

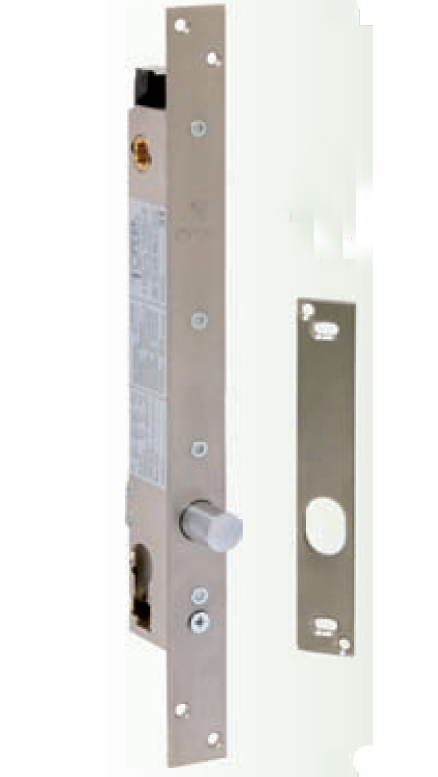

Opera 25809 Vertical Safety Solenoid Lock with 9mm Square Handle

Vertical Safety Electrocution Art. 25809 Work with 9mm handle square

• Safety electrolock for single door. With 9mm handle square.
• Deadbolt Closed   in the absence of power.
• The package includes: electropiston, counterplate, connector and cylinder screw.
• The package does not include the power supply.

• Standard Version : normal and without modifications;
• XL version : with +5mm increased extension deadbolt;
• SA version : with anti-bounce alignment ball mounted directly on the counterplate, with front ABS slide.

Technical characteristics - Opera 25809 safety solenoid lock

• Mechanical opening with European cylinder (cylinder with internal knob cannot be used);
• Stainless steel front 320 x 25 x 3mm;
• Stainless steel strike plate 150 x 25 x 3mm with alignment magnet;
• Rotating deadbolt in anti-cut tempered steel with mechanical lock in the closed position;
• Deadbolt dimensions: 20mm extension (25mm in the XL version), 16mm diameter;
• Power supply: 12/24 Vdc;
• Absorbed current: 2.5/3 A peak - 130/230 mA electronically controlled maintenance;
• Internal microprocessor control electronics;
• Connection via quick-fit connector;
• Arrangement for interlocking connection between 2 or more doors;
• NA Opening Command;
• C./NO/NC contact for deadbolt position;
• Opto-electronic control of the deadbolt position;
• Internal magnetic sensor for door position;
• Buttons for monitoring and adjusting the closing times from 0-5 sec. when the door approaches and from 0-60 sec. if the door is not opened;
• The timings can be deactivated for the use of the solenoid valve with external management electronics;

• Dimensions Series First (41,08 KB)
