Sclak Access Control System Open the Lock with your Smartphone
WITH SCLAK YOUR SMARTPHONE IS YOUR KEY.
Your smartphone is your camera, your navigator, your credit card… From now on it will also be a keychain to give you access to all your premises.
SCLAK IS A SECURE ACCESS CONTROL SYSTEM MADE BY AN ELECTRONIC DEVICE AND A MOBILE APPLICATION.
It can be used in different scenarios, home, office or in general as an access control system.
USE CASES
Users that have been activated can use the app to open doors and gates enabled with SCLAK. The SCLAK unit has a range of 15 mt (50 feet) which can be reduced if there are any onstacles in between. When the device is on and connnected to the app the button on the dashboard will be colored and ready to be push to open the door. Users can personalise the way they access their doors and gates through the lock’s setting:
- Auto-open: the door or gate will open automatically when the user will be in close proximity.The app has to run in background in order to work properly;
- Knock Knock: the user can double tap on the phone and open the door or get when in range.The app has to run in background in order to work properly.

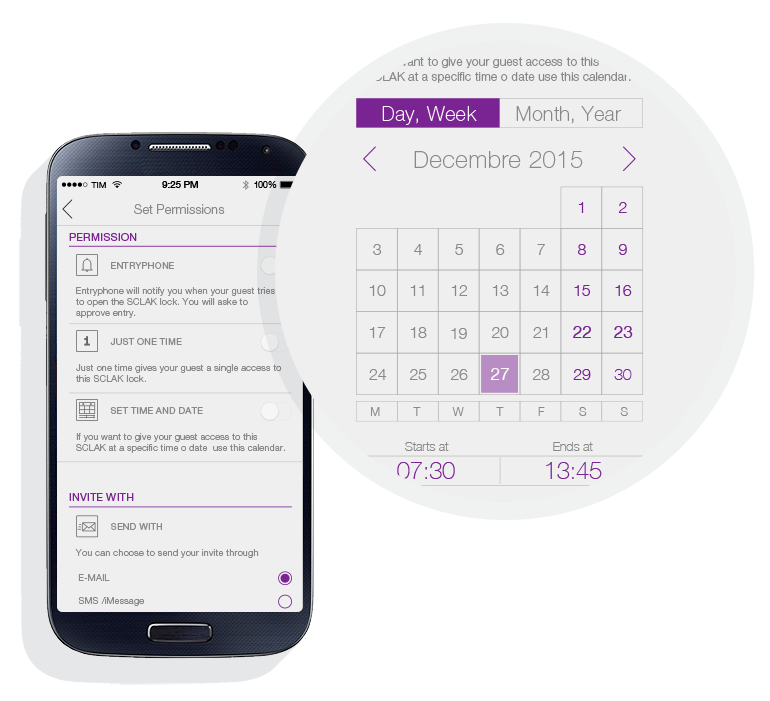

INVITE GUESTS
The admin and the owners can invite guests who will be able to use the app to open the doors and gates to which they have been abilitated. It’s possible to set up special permissions:
- ENTRYPHONE: the guest won’t be able to access by himself. Once the guest is in front of the door and try to open it, the SCLAK unit will send a request to the owner. If the owner accept the request, then the guest will be authorised to open the door.
- JUST ONE TIME: the guest will be able to access the door or gate enabled with SCLAK just one time.
- TIME AND DATE: the owner will be able to define the time and date when the guest can access, with specific routine daily, weekly or monthly (for example, “every Wednesday”).
ADMIN SCLAK
The admin can be defined or invited by the installer.
The admin will be able to do the following via the SCLAK app:
- Create owners and guests users.
- Set up preferences for LED lights and sounds when the SCLAK open the lock.
- Enable and disable both users and SCLAK units.
SCLAK IS SAFE
SHA-2 is the protocol used to transfer data.
Transfer of data using SHA-2 with authenticated certificates.
Bluetooth™ 4.0 is the standard protocol used by SCLAK.
Every single transaction is protected by 2 steps authentication.
AUTHENTICATION SYSTEM
During the authentication SCLAK verifies that the phone is authorized to connect.
ENCRYPTED COMMUNICATION
In other words the secret key changes at every new message.
Messages cannot be analysed to extract the secret key.
SCLAK CAN BE INSTALLED IN DIFFERENT SCENARIOS BOTH DOMESTIC, INDUSTRIAL OR PROFESSIONAL.
MOBILE APP

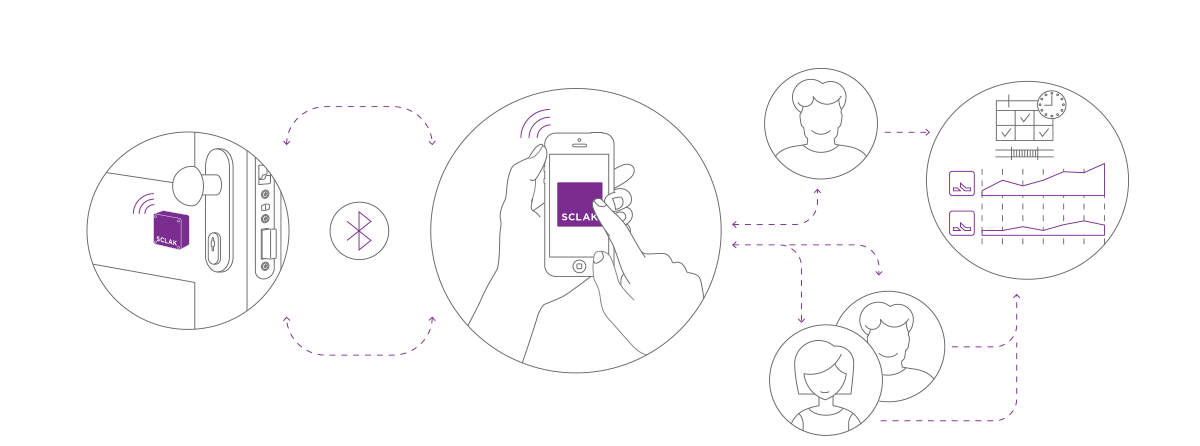

SCLAK is a smartphone application that can be used to substitute physical keys to open doors and gates.
It’s a smart and safe digital keychain, that can be used to operate any electric lock in new ways.
TECHNICAL DETAILS
SCLAK is compatible with any type of electric lock in the world. It can be used together with other type of access control system and traditional keys. It doesn’t require any internet connection in order to work.
SCLAK works with any smartphone with Bluetootht 4.0 running iOS 8 or higher or Android 4.3 or higher.
DIMENSION: 50x50x24 mm;
POWER: AC-DC 12-24V;
POWER CONSUMPTION: Max 1W;
OUTPUT: NO rele contact (monostable);
MAX OUTPUT: 1A;
CERTIFICATION: CE conformity marking;
OPERATING TEMPERATURE: -20° + 60° C;
FREQUENCY: 2.4 GHZ;
PROTECTION: IP44 if installed in conformity of the dispositions;
CONNECTION: Bluetooth 4.1 BT.
