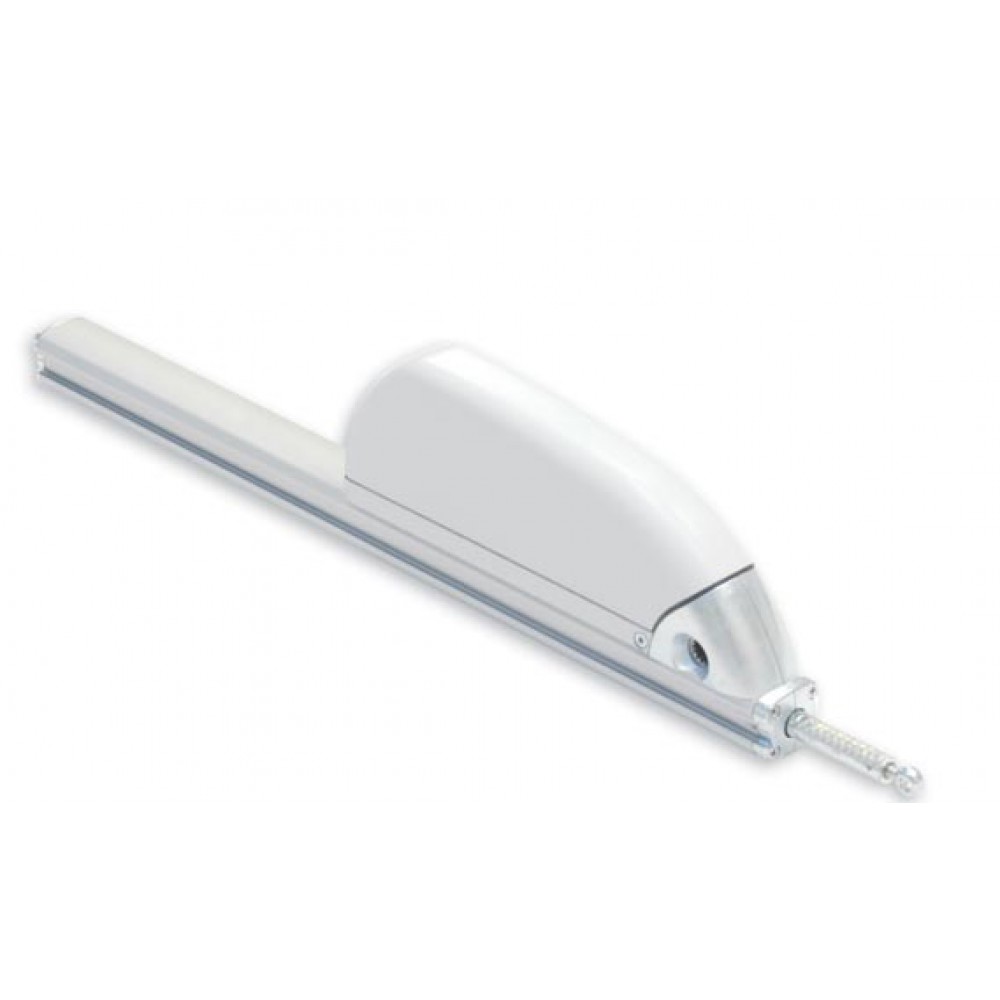

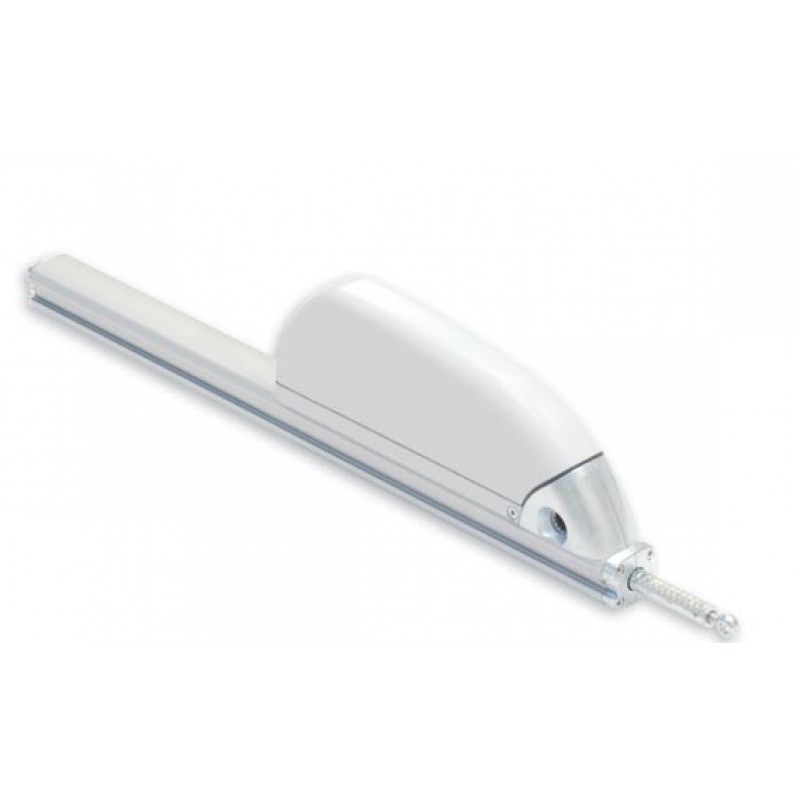

Skyro650 Nekos - Rack Actuator 650N 230V - Stroke 180-230-350-550-750-1000mm
Skyro650 Nekos has multiple possibilities of use thanks to the
650N force in traction and thrust, controlled and managed by a microprocessor.
This is the Skyro650 Nekos version for solo use. The Skyro650 Syncro3 Nekos version is also available on Windowo which allows a synchronized connection with other actuators in parallel.
The Skyro 650 Nekos model is the new rack actuator and replaces the old Sky 650 actuator. Warning: they are not compatible with each other.
Skyro650 Nekos rack actuator for sale online
After the first decade, Nekos has made changes and evolution also in the linear rack actuator family.
- The new Skyro650 improves its performance, reliability and usability.
- 650N in traction and thrust controlled and managed by a microprocessor are a guarantee of reliability and durability over time.
- The application is versatile and modular, without particular and expensive accessories; the addition of the new electronics and the latest generation mechanical set-up further contribute to making this actuator one of a kind.
- Applications on domes, skylights, sunscreen blades, protruding series windows are the most frequent applications.
- The variety of rack strokes between 180 and 1000 mm offer wide fields of application.
- The actuator is fixed by means of a vice system along the entire length of the stem with an oscillating support which allows the actuator to follow the opening radius of the window.
Skyro650 Nekos available strokes: 180, 230 mm for slats and sunshade blades, 350, 550, 750, 1000 mm for application on windows.
Skyro650 Nekos technical characteristics:
- Linear rack actuator suitable for moving domes, hinged windows, transom windows and dormer windows.
- Push and pull power of 650 N. One or more push points with up to four motorized actuators.
- Operating at 230V AC 50Hz.
- Supplied complete with universal tilting bracket, which can be fixed along the entire length of the rod by means of two sliding vices.
- Limit switch with power absorption in opening and closing and as electronic overload protection.
Skyro650 Nekos engine Standard colors:
Anodized Silver for the metal parts in extruded aluminium, Galvanized for the die-cast parts and Gray (approximately RAL7035) for the gearmotor casing.
White power cable.
Skyro650 Nekos Technical data:
- Model: SKYRO650 230V;
- Push and pull force: 650 N;
- Available strokes: 180, 230, 350, 550, 750, 1000 mm (*);
- Power supply voltage: 110÷230V~(ac) 50/60Hz;
- Current consumption at rated load: 0.37A / 0.18A;
- Power consumption at nominal load: ~ 28W / 24W;
- Average speed: 7mm/s;
- Breakdown Current: 1.20A;
- Stop at end of stroke: for power absorption;
- Duration of the idle stroke: Depending on the stroke;
- Electrical Insulation: Class II;
- Type of service: 2 cycles;
- Operating temperature: -20 +70 ºC;
- Degree of protection of electrical devices: IP65;
- Adjustment of the attachment to the frame: Self-determination of the position;
- Limit switch in opening and closing: Absorption of power;
- Overload protection in opening and closing: By power absorption;

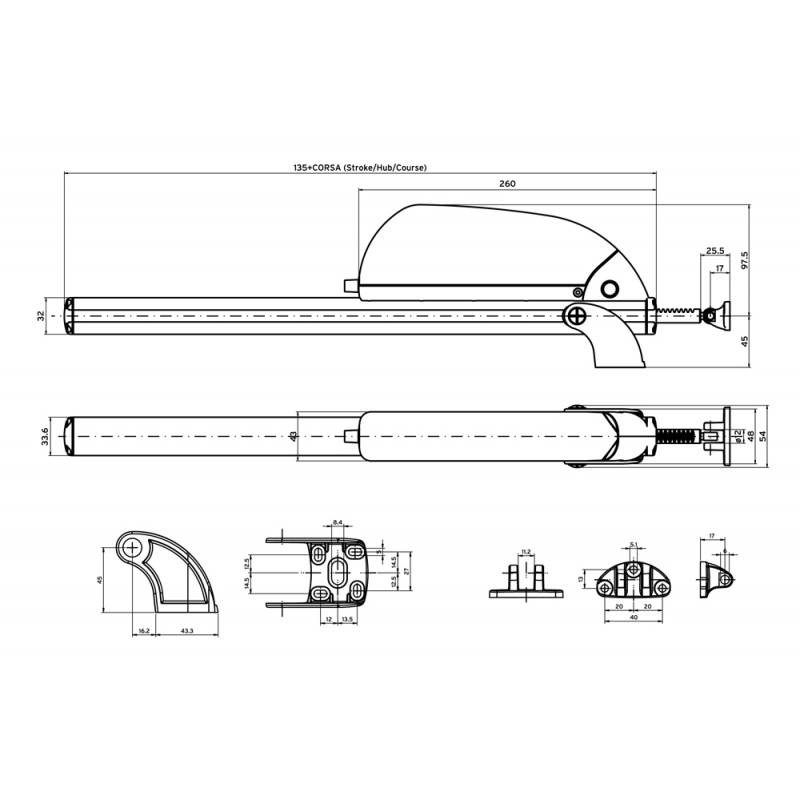

- Dimensions: 44.6x113(Stroke + 163) mm;
- Appliance weight: Various according to construction.
(*) Strokes can be reduced with technical intervention on the internal limit switch.
Check that the appliance has the same type of electrical power supply as that available for connection, checking the data shown on the label applied to the actuator.
Nekos rack actuators for sale on Windowo
- Nekos products are built in a workmanlike manner in terms of safety, in compliance with the provisions of current laws.
- Correctly assembled, installed and used in compliance with these instructions, they do not constitute a danger to the safety of people, animals or property.
- The products that fall within the field of application of the EEC directives comply with the essential requirements contained therein.
- CE marked, they can be placed on the market and put into service in the European Union without further formalities.
For further information on this product (use, safety, cleaning, guarantee, certificate of conformity and much more) we recommend reading the Instructions (PDF downloadable in "Documents").
