Slide 80 24Vdc Chiaroscuro - Automation Kit for Sliding Shutters - Max 160Kg
Slide 80 24Vdc Chiaroscuro with 24 Vdc power supply - Max total weight 160 Kg - Force 80 N.
The

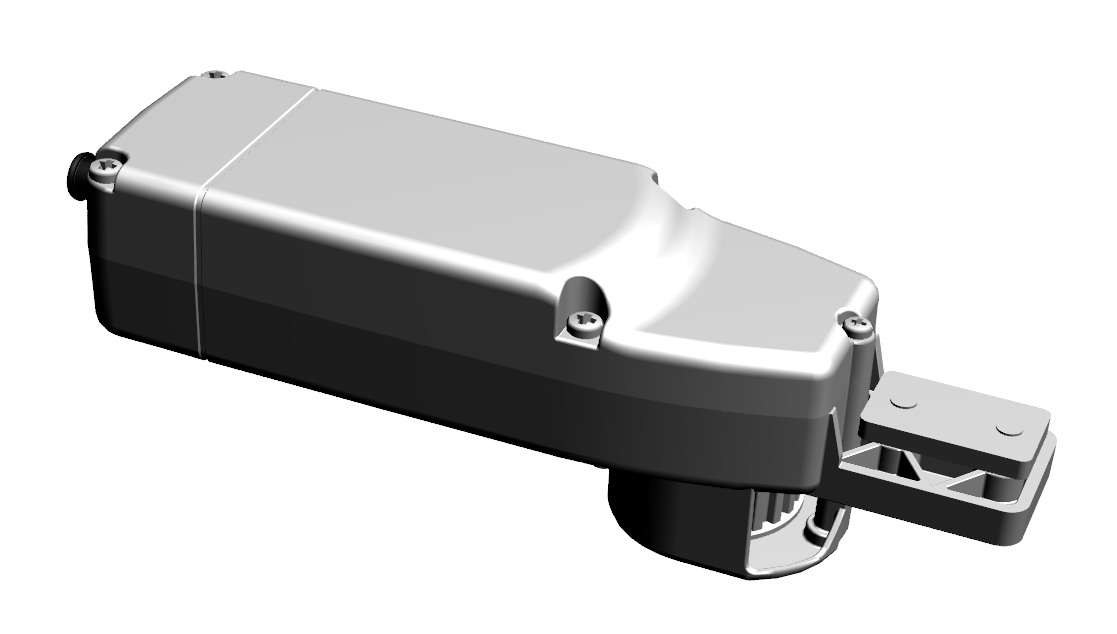

SL80 24V Chiaroscuro automation is designed to operate sliding shutters installed on the outside of the wall. Thanks to the low profile of 38mm it can also be integrated into existing windows.
What does the Slide 80 24Vdc Chiaroscuro Shutter Automation Kit include?
- Motor with rail plate with internal groove max 15mm - Pieces: 1;
- Belt T5H10 - Meters: 10;
- Straight dragging bracket - Pieces: 2;
- Tensioner with idle transmission pinion - Pieces: 1;
- Use and maintenance manual.
Compact and versatile automation for shutters
The ideal solution for comfort and practicality of life at home.
Convenient: no cold, rain and wind in winter or heat and mosquitoes in summer, the doors close by pressing a button inside the house without opening the windows.
Ultra compact: recommended for installations with limited space.
Safe: thanks to the 24V irreversible motor.
Practical: designed to fit perfectly into systems with aluminum cover and rail.
Integrated control unit: self-learning system. Automatic movement control unit that can be fully integrated with all home automation systems; it complies with the safety requirements in the event of an impact and allows movement with partially closed scenarios or intermediate stops with a simple click.
It is possible to purchase the
Chiaroscuro SL 80 230V motor separately on Windowo and you can also find the useful
230Vac input power supply 24Vdc output .
Template |
Slides 80 |
Motor power supply |
24 Vdc |
Max total weight |
160 Kg |
light max |
300cms |
Speed |
10cm/s |
Engine power |
40W |
Average absorption |
0.8A |
Force |
80 No |
Working cycle |
10 cycles/hour |
Noisiness |
50dB |
Degree of protection |
IP56 |
Irreversible |
Yup |
Electric lock |
Yup |

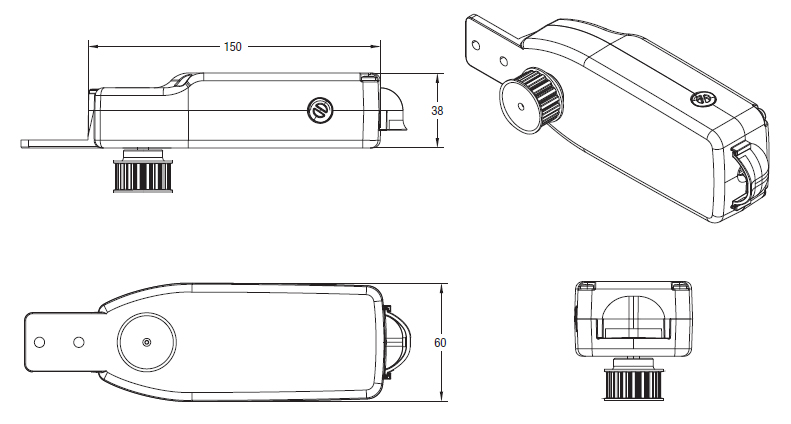

Dimensions |
150x50x38mm |
Power cord length |
1.5m |
Maximum stroke |
7.5m |
Maximum push and pull force |
145 No |

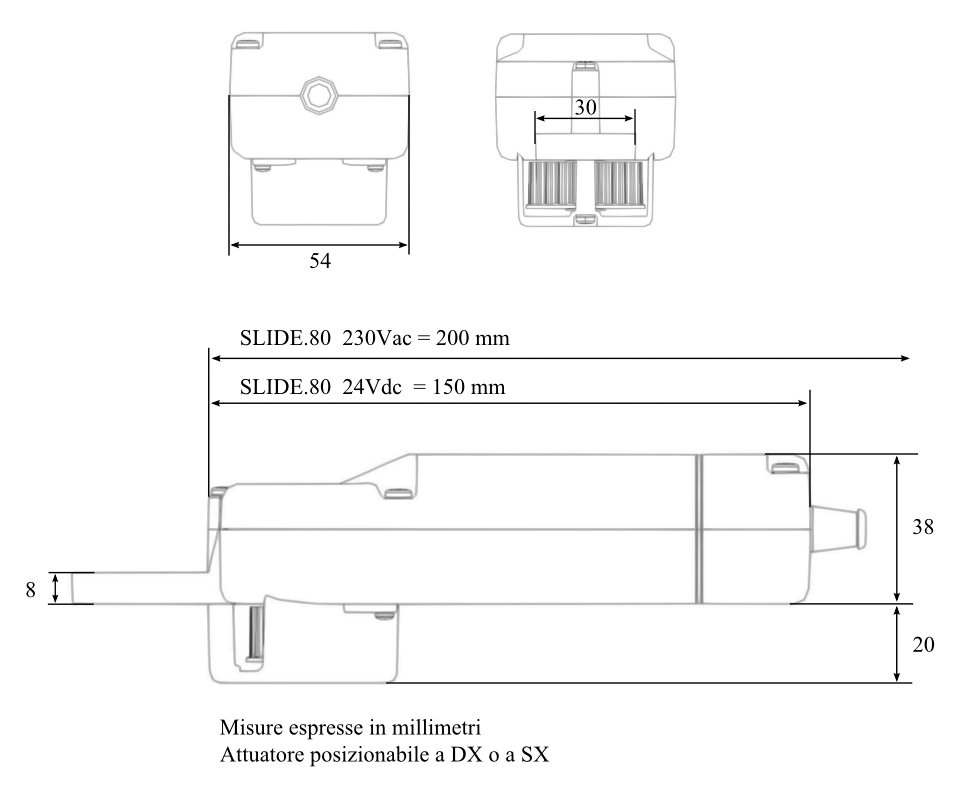

Checking the dimensions
Check that the motor housing compartment or the space beyond the track is sufficient for installing the product, otherwise installing the item will decrease the travel of the leaf.
Guide for installing the sliding shutter automation kit
We recommend reading the "Slide 80 Instruction Manual", which you can find in PDF format by clicking on "Documents", at the top of this sheet.
In this manual you can find the
guide for installing the motor , divided in turn into the following phases:
- Fixing the motor on the rail;
- Opening the clamp and inserting the motor into the track;
- Positioning and fastening of the strap;
- Completion of the mechanical installation of the sliding system;
- Fixing of the pulling bracket to the leaf.
