Automatic Sliding Gates Kit - Bft DEIMOS BT KIT A600 ITA R925270 00002
Bft DEIMOS BT KIT A600 ITA 24 V for automatic sliding gates up to 600 kg in weight. Leaf speed 12 m / min. Electromechanical limit switch. Central unit with Trimmer and dip switch.
- DEIMOS BT KIT A600 ITA;
- Bft Code: R925270 00002 ;
- Complete 24V kit for sliding gates up to 600 kg in weight. Leaf speed 12 m / min;
- Technology: 24V D-Track technology - Electromechanical limit switch - Trimmer control unit and dip switch.
What does Bft DEIMOS BT KIT A600 ITA include?

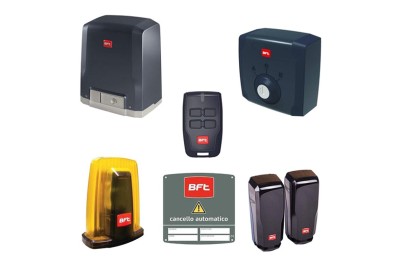

Bft DEIMOS BT KIT A600 ITA includes:
- 1 DEIMOS BT A600 : 24 V operator for sliding gates up to 600 kg in weight. Leaf speed 12 m / min;
- 1 MITTO B RCB04 R1 : 4-channel transmitter. Range 50/100 m. 12 V power supply with 1 23 A battery;
- 1 Q.BO KEY WM : External key selector with double contact;
- 1 COMPACTA A20-180 : Pair of photocells adjustable by 180 ° horizontally. Range 20 meters. Power supply 12 - 33Vac / 15 - 35Vdc;
- 1 RADIUS LED BT A R1 : Flashing light with integrated antenna for motors powered in 24 V;
- 1 CMS : Warning sign.

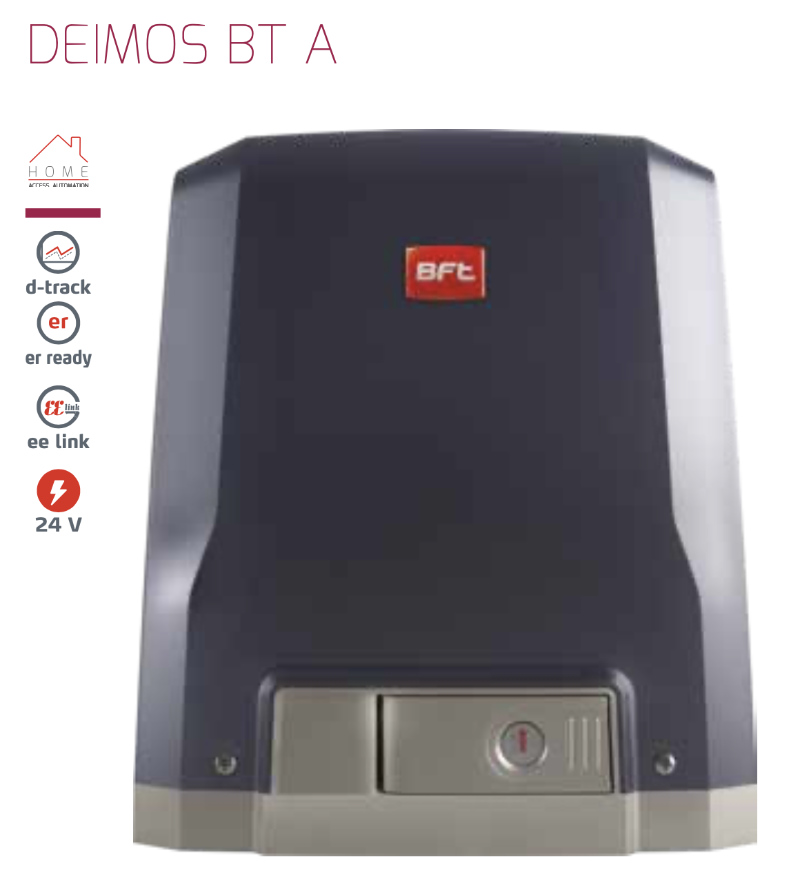

DEIMOS BT KIT A600 ITA - 600KG 24V gate automation

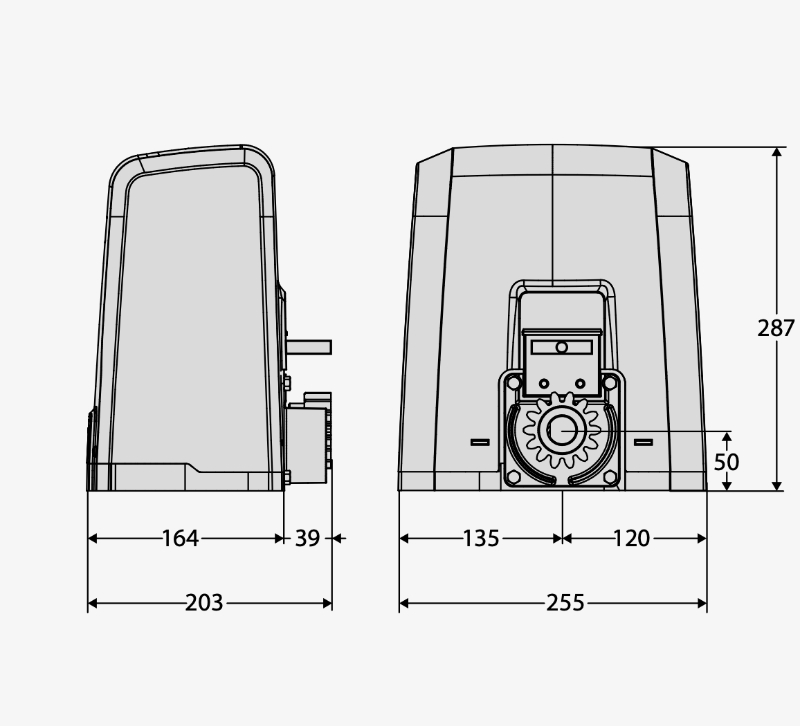

Technical sheet DEIMOS BT KIT A400 ITA
- Impact reaction: D-Track;
- Power consumption: 70 W;
- Frequency of use: Intensive;
- Max weight of the gate: 600 kg;
- Degree of protection: IP24;
- Leaf speed: 12 m / min;
- Environmental conditions: -20 ÷ 55 ° C;
- Limit switch type: Electromechanical;
- Interconnectivity: NO;
- Pinion module: 4;
- Slowdown: Yes;
- Control unit: HAMAL;
- Lock: Mechanical;
- Motor voltage: 24 V;
- Board power supply: 230 V;
- Release: Lever with personalized key.
DEIMOS BT KIT A600 ITA with D-Track dynamic route
The push needed to operate safely. This intelligent torque management system is based on the microprocessor technology of Bft control units. By acquiring data from various indicators, it updates the level of thrust required to perform the maneuver. D-Track also makes it easier for the installer to prepare the certifications required by law.
Traditional control units do not "read" the exact position of the gate and consequently adopt constant thrust levels, without guaranteeing stable sensitivity over time during opening and closing operations. The Bft devices, on the other hand, record the smallest variations in the force of the gate or door due for example to temperature differences or wear, constantly supplying the motor with optimal torque.
A traditional power plant would not be able to detect the variations of the necessary thrust and would end up signaling the presence of non-existent obstacles. The BFT system therefore guarantees maximum system safety and perfect operation, regardless of climatic conditions, temperature or degree of mechanical wear.
DEIMOS BT KIT A600 ITA with EElink
For fast and safe programming. EELINK is a system developed by Bft which, through a connection to handheld programmers (Unipro, Uniradio and Proxima), allows data to be transferred from the automatisms to the personal computers and vice versa. Thus EEdbase or U-base, the information databases stored in the installed systems, are constantly updated. Thanks to these software it is possible to associate the necessary personal details to each system: general information and contact details of the owner, name of the maintenance technician and of the owner of each remote control and many other information.
With EElink, just press a few buttons to easily manage your customer base or preventive maintenance. In addition, even previously complex operations become simpler: for example the reconfiguration of the control unit or radio receiver in the event of replacement or the setup of a control panel, starting from a standard or customized configuration.
DEIMOS BT KIT A600 ITA with Er - Ready
New coding system for direct cloning of remote controls Based on microprocessor technology, this system allows you to clone any MITTO remote control into a MITTO REPLAY remote control. The first radio control, in fact, will "teach" the second the correct code to memorize itself in the receiver during the first use. All this takes place at the highest levels of safety thanks to the use of the Rolling Code safe transmission system.
DEIMOS BT KIT A600 ITA with 24v Technology
A precise, safe and reliable
technology, Bft's 24V technology ensures optimal performance with a precise adjustment of the slowdown in closing and opening. Safety is another fundamental aspect, guaranteeing the stop and immediate reversal of the stroke in the presence of obstacles. The efficiency of the technology is a guarantee of the reliability of the product.
Difference between Deimos in the ULTRA version and the standard model
The ULTRA models, unlike the standard ones, are equipped with a more advanced electronic control unit, BFT MERAK series, equipped with a display in which it is possible to program by setting the parameters in detail, and with various electronically configurable outputs (operation and photocell logic, ribs, 2nd radio channel output, etc.). Furthermore, the DEIMOS ULTRA kits are equipped with magnetic limit switches.
This is not the ULTRA version. If you wish you can find the ULTRA version of this model on Windowo.
