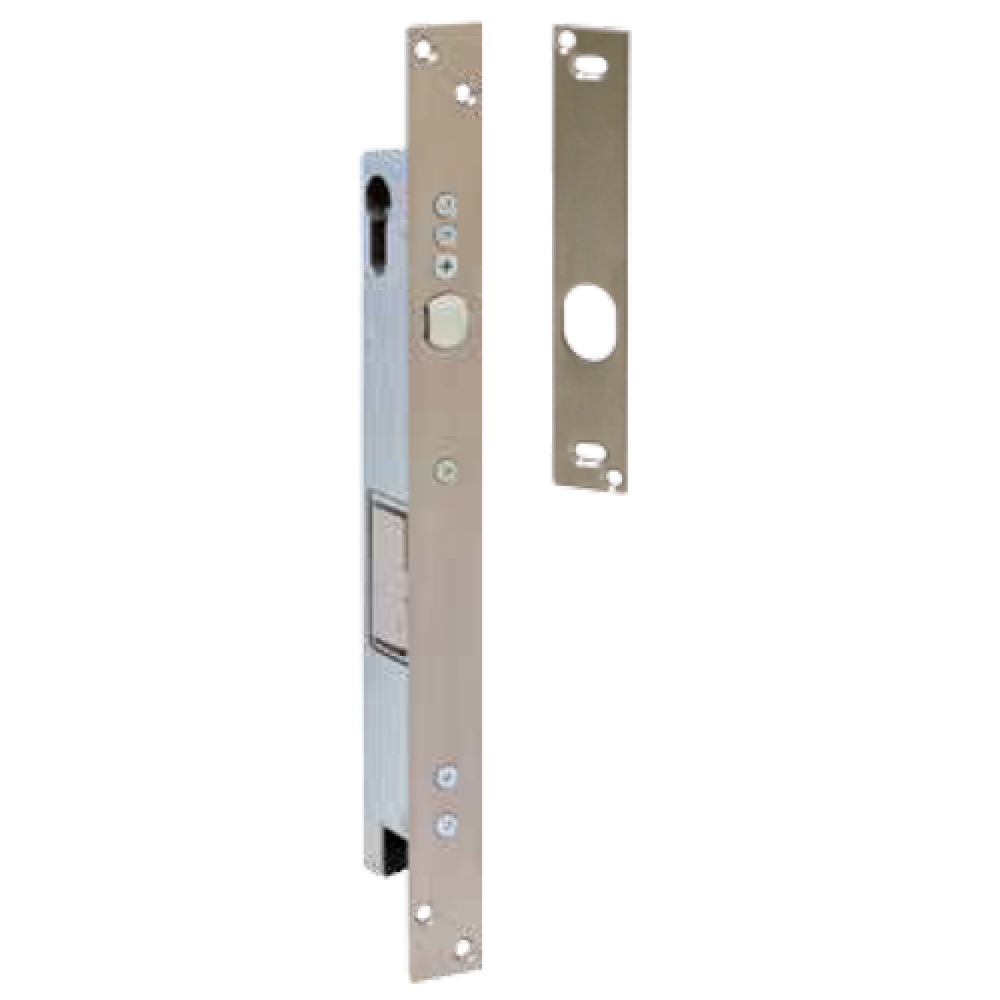

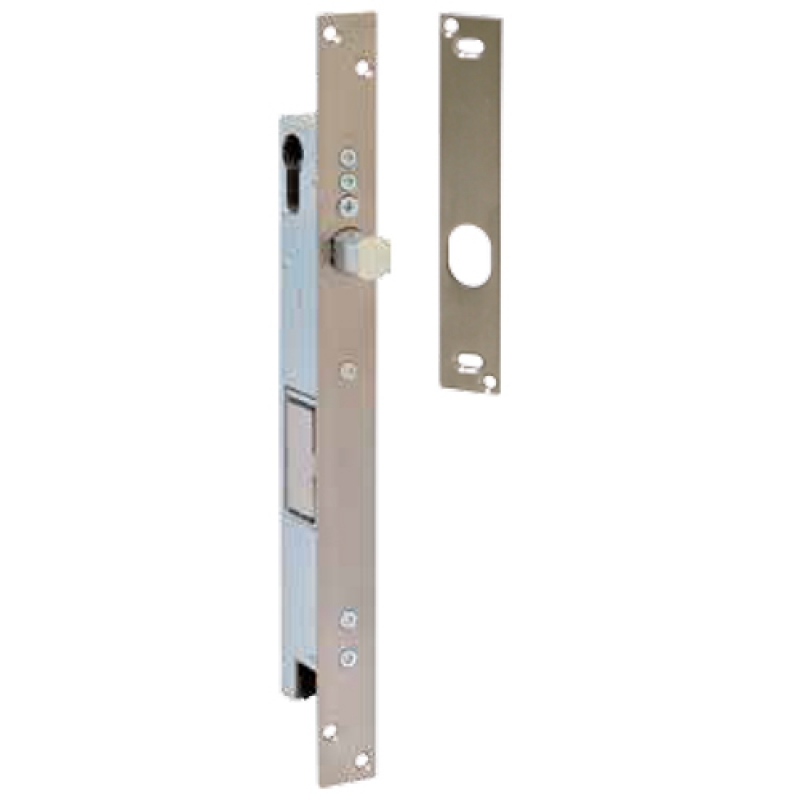

Solenoid Bolt for Single Doors SOP55036 Prima Series Opera
Use
Vertical security solenoid bolt for single doors.
Deadbolt variants:
- Fail unlocked deadbolt open without power
- Fail locked deadbolt closed without power
Backsets available:
- 25 mm
- 30 mm
- 35 mm
Characteristics
(Spare parts – Interchangeable with Corni type solenoid locks).
Mechanical opening with European type cylinder (cylinder with internal knob not usable).
Striking plate in stainless steel (mm) 320 x 25 x 3.
Armature plate in stainless steel (mm) 150 x 25 x 3 with alignment magnet.
Deadbolt in anti-cutting hardened steel with mechanical block in closed position.
Deadbolt dimensions (mm): extension 20, diameter 18 x 14.
Operating voltage: from 10 to 30 Vdc.
Absorbed current: 2.5/3 A peak - 130/230 mA for permanent maintenance with electronic control.
Internal microprocessor control electronics.
Rapid plug-in connector.
Ready for interlocking connection of 2 or more doors.
N.O. Opening control.
Deadbolt position contact C. / N.O. / N.C.
Opto-electronic bolt position control.
Magnetic door position sensor.
Push buttons for monitoring and adjustment of relocking times from 0-5 seconds upon approach of the door and from 0-60 seconds if the door is not opened.
The timings can be disabled for use of the solenoid bolt with external control electronics.
Packaging
Solenoid bolt, armature plate, cylinder screw and connector.
Measures
Example single door with solenoid lock
Solenoid lock to be mounted on emergency exits.
To be mounted on the frame or on the shutter.
Single door operating system (condominiums, offices, companies.).
Interlocked doors operating system (banks, jewelries, corporations).
To be matched with intercom and access control systems.
Prima Series Opera
Security solenoid locks.
Anti cutting and anti breaking and entering revolving bolt.
Manual activation with European cylinder and handle.
For an intensive and continous use.
Ideal for steel or aluminium doors.
Single or interlocked configuration.
