Roller shutter motor kit for small window type Somfy Radio RTS MRR 1000 - 10 Nm
Features Somfy 10 Newton Radio RTS MRR 1000 roller shutter motor kit
This Somfy roller shutter motorization kit is ready for installation and is used to automate a small-sized roller shutter.
- Tubular radio motor with RTS radio receiver;
- Designed for small windows (10 Newton per meter);
- Ideal for automating a roller shutter in order to open and close it easily;
- The lifting force is 10N;
- No masonry work is required to install the motor.

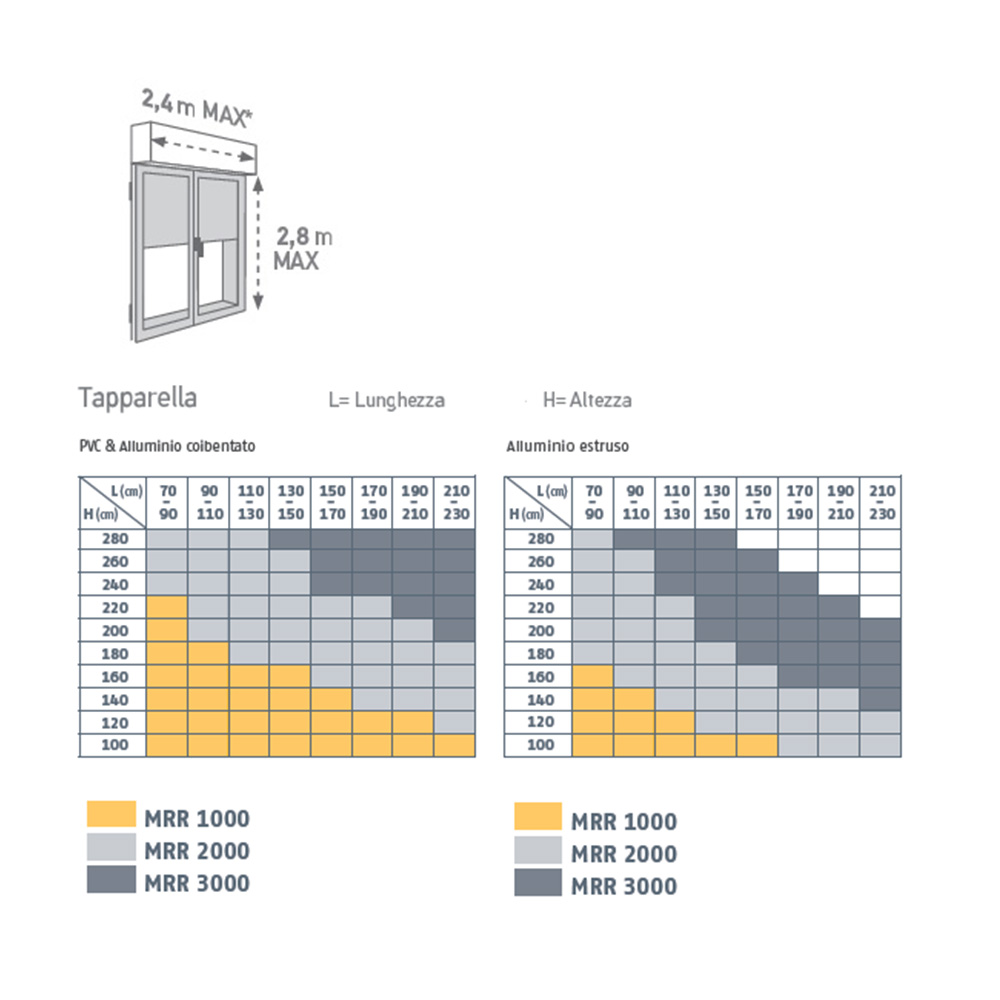

Surfaces on which to apply the Somfy roller shutter motor kit
Read below the surface and the material of the roller shutter that you can motorize.
- PVC plastic : 4 m² maximum area;
- Insulated aluminum : 5 m² of maximum area;
- Extruded aluminum : 1.66 m² of maximum area.
The advantages of a Somfy roller shutter motor kit
Here are the 2 main advantages of motorizing the shutter with a Somfy tubular motor.
- Easy installation - you just need to fix, connect and program;
- The kit contains everything you need : the components are made to be transported, installed and stored easily.

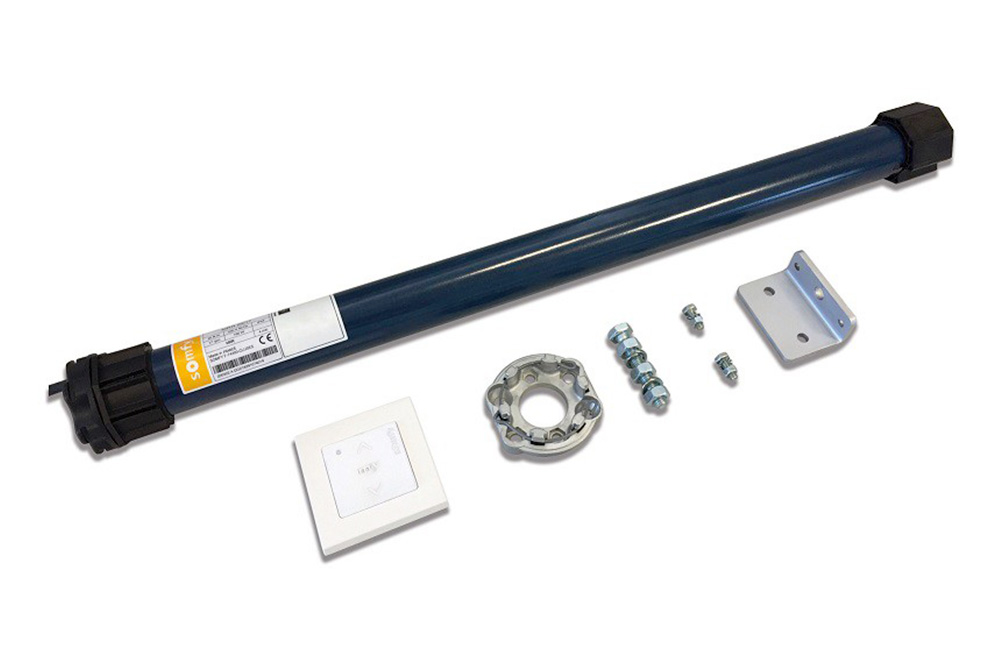

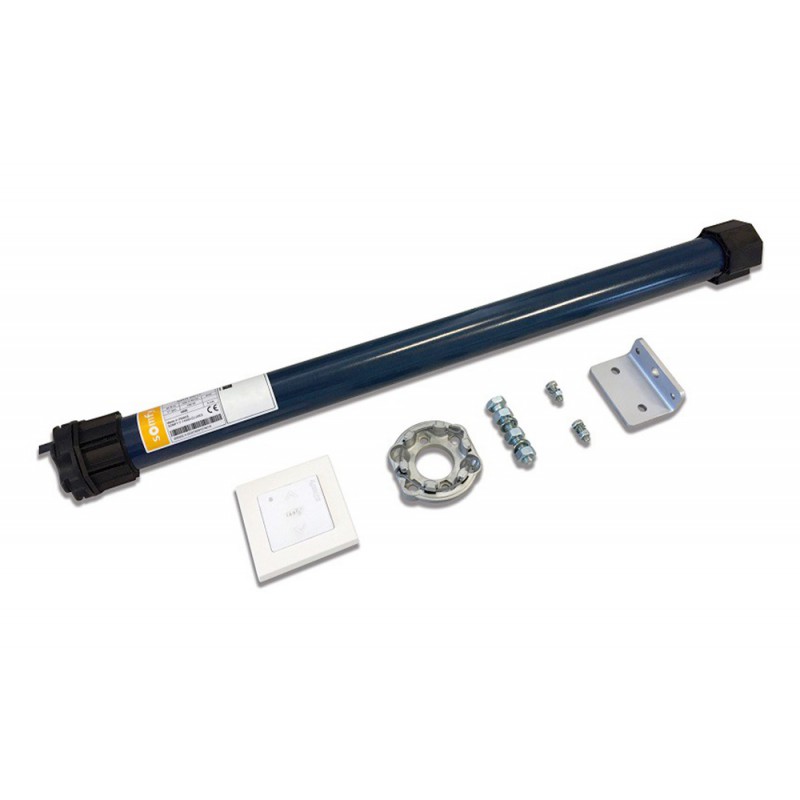

Contents: What is included in the installation kit?
The kit is ready to install and includes the necessary motor and accessories:
- Wired tubular motor - motor for roller shutters type LT50 10 / 17G1 MR;
- Pre-assembled octagonal roller adapters - crown and wheel;
- Support for operator in zamak;
- "L" team for support;
- Screws, washers and nuts for installing the roller shutter motor.
ATTENTION: the control device is not included . This accessory allows you to choose the up and down of the rolling shutter for each motor.
Which motors can you replace with this roller shutter motor kit?
The MR 100 motor is compatible with the following Somfy roller shutter motors:
- LT 50 JET 10/12;
- LT 50 WAX 8/12;
- LT 50 ARIANE 6/17;
- LT 50 WAX 8/17;
- LT 50 JET 10/17.
Compatible: Box Tunnel, roller shutter integrated into the wall.
Technical features: motor specifications for rolling shutters
This electric roller shutter motor has the following technical features.
- Power supply : 230 V - 50 Mz;
- Torque : 10 Nm - 17 Rpm;
- Power : 120W;
- Degree of protection : IP 44;
- Limit switch: push button.
