Speedy M60 Casma - Hydraulic floor door closer - SpeedybyCasma
Speedy M60 Casma hydraulic floor mounted door closer designed for both indoor and outdoor use, which can be ordered in variable sizes.
If you wish, on Windowo you can also buy the
kit version for external doors including the Casma Speedy M60 door closer.

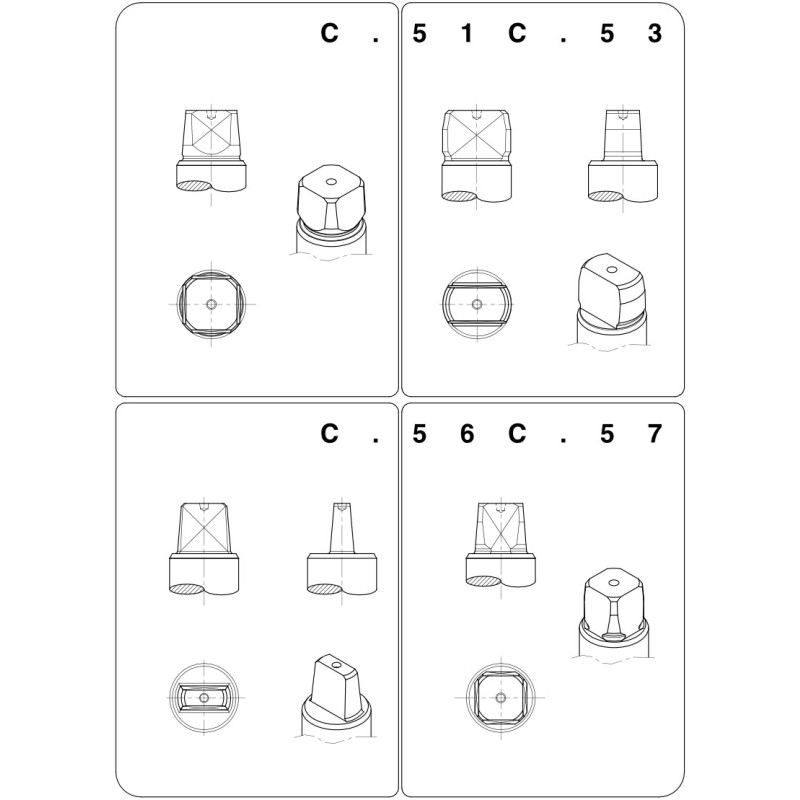

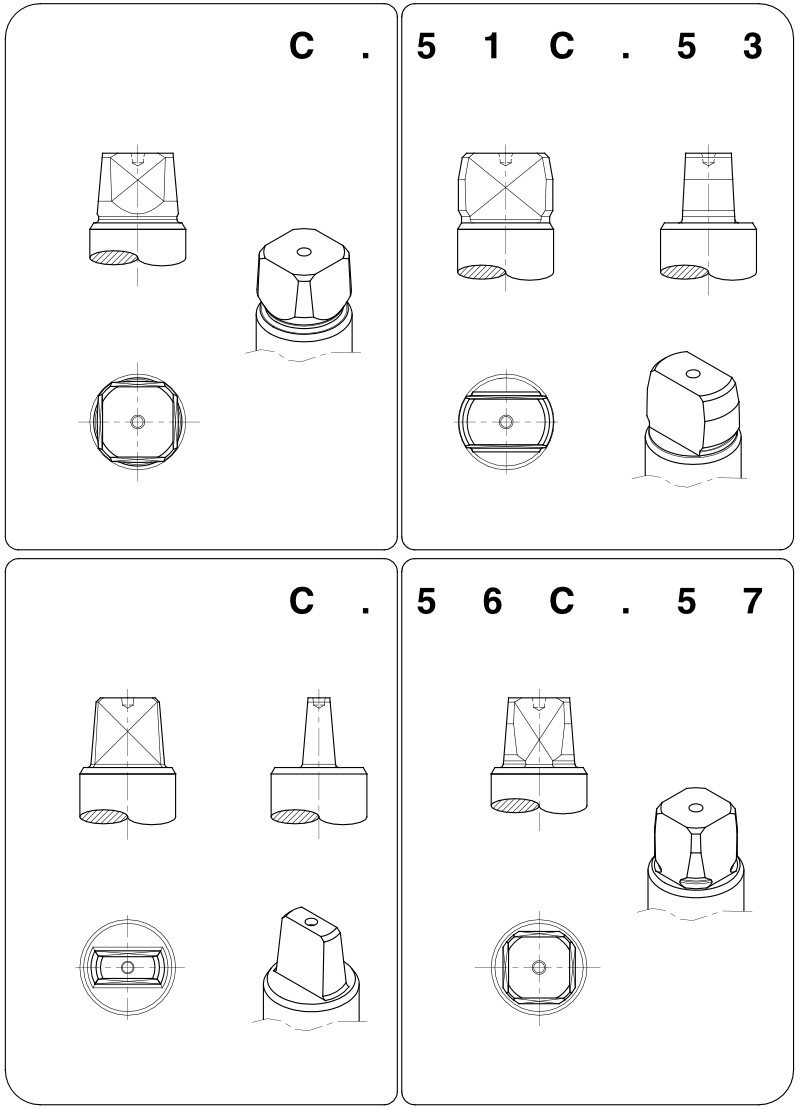

Please indicate
by email when ordering which
type of pin you need for the Casma door closer. If you do not write anything, we will insert the standard one for your country.

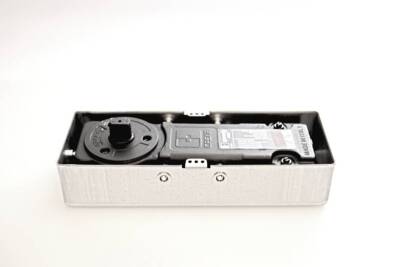

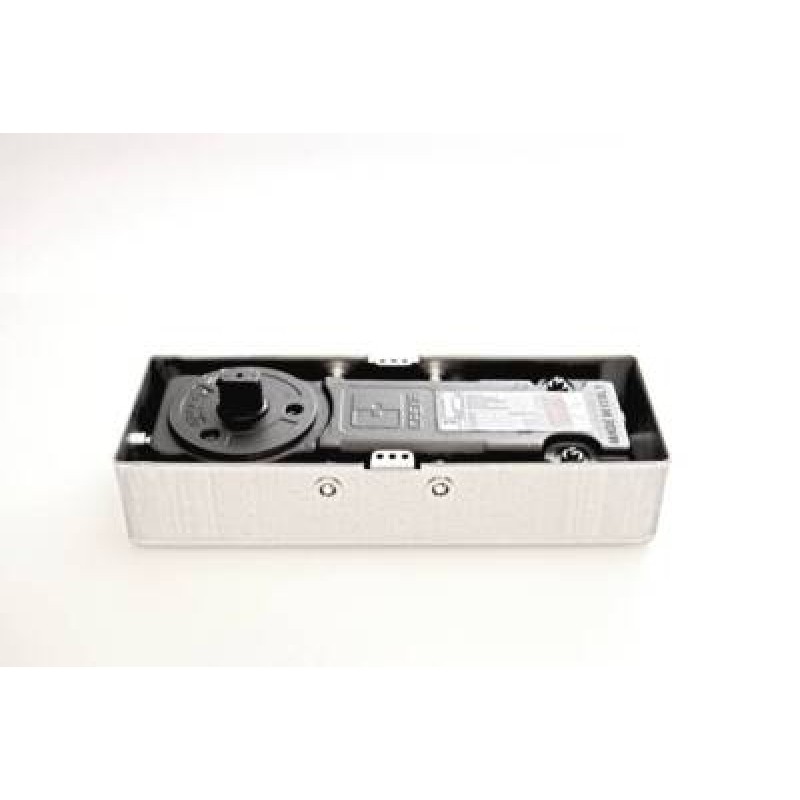

Description Speedy M60 Casma - Floor standing door closer

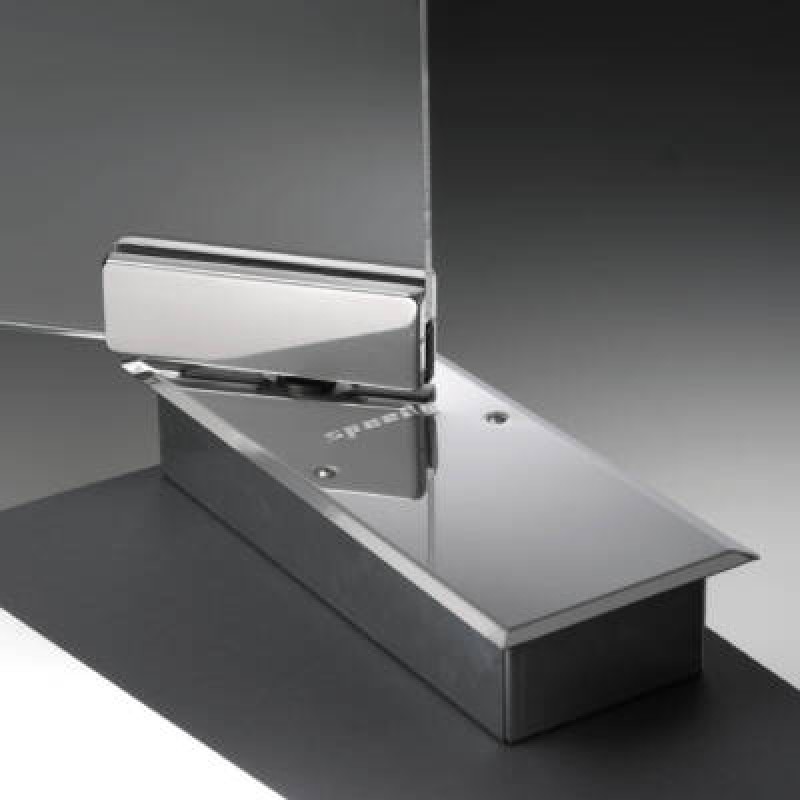

- The floor mounted door closer with a refined and modern aesthetic.
- A valve programs the closing speeds from 130° to 15°.
- A valve regulates the final click from 15° to 0°.
Technical data Speedy M60 SpeedybyCasma
- Force preconfigured by the manufacturer : EN1154-3 (red force);
- Lid with fixing : box to be cemented;
- Dimensions of the box to be cemented : 96 x 267 x 56 mm;
- Stop preconfigured by the manufacturer : 90°;
- Pin : square.
- Thermoconstancy : standard;
- Standard door weight : 160 kg;
- Maximum external door width : less than 1100 mm.
Center distance of the floor door closer M60
A) With the box leaning against the wall, the door closer can be adjusted by acting on the appropriate screws, and varies from 56 to 68 mm.
B) In the case of greater center distances, the box moved from the wall must be cemented. For example, for a center distance of 68-70 mm, the box must be moved 8 mm from the wall.
(TO)
(B)

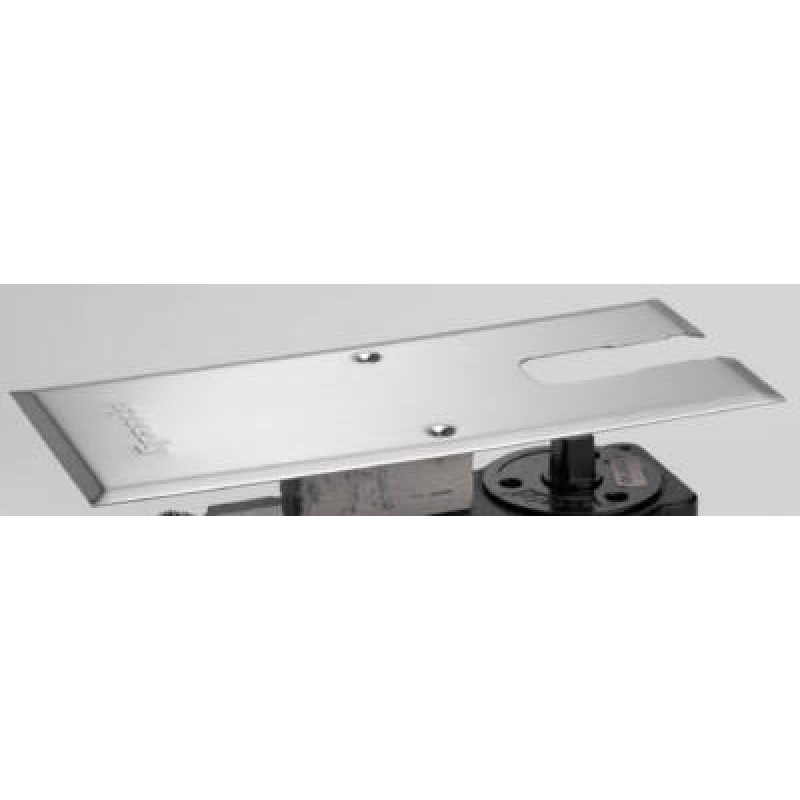

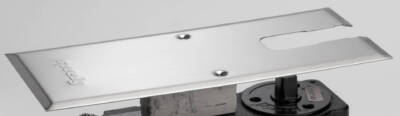

Finishes available for Speedy M60 door closer
Choose the lid finish:
- Aluminum ;
- Stainless steel .
Firm variants on request
The door closer is sold with a standard 90° stop.
Contact us to have the door closer without latch, or with latch at 105° (see diagram).
Options on request
Contact us to add the following options:
- Strength for the disabled : on request;
- Aggressive environments : on request;
- Extended pin heads : upon request;
- Interchangeable pin heads : on request.

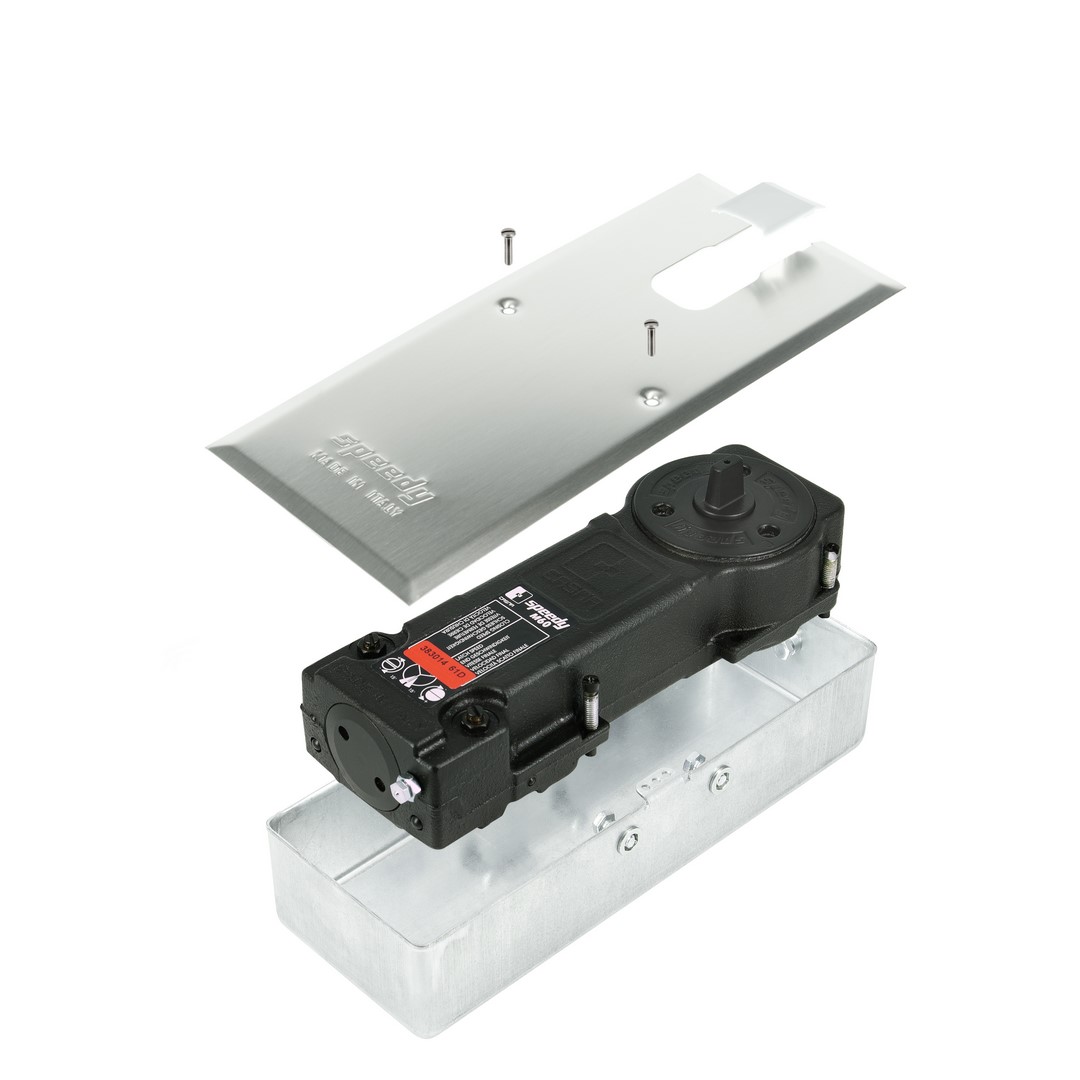

Installation of the Speedy M60 Casma door closer
It is not necessary to cut the cover on the jamb side as there are 3 fixing positions on the cistern to be chosen on site. The patented locking system is unique and allows height adjustment that exceeds the height of the box to be cemented by as much as 5 mm or, by shimming, the door closer even protrudes by 10 mm. The locking system allows for less deformation of the cassette thanks to the greater support surface of the locks themselves on the cassette.
The locking system also includes 3 pointed screws, one that comes out of the box to be cemented in on the jamb side and two that come out of the body of the door closer on the opposite side. These alone would be sufficient for fixing the door closer in the case of installations where it is not possible to cement the box on all sides. In fact, by using the 3 pointed screws for fixing, the locking of the door closer is safe. A less deformed cassette thanks to the locking device ensures easier positioning and fixing of the lid.
The cover is fixed with only 2 screws (not 4) placed in a central position and therefore protected from the wear of the passage. The box has rounded edges to facilitate breaking into the floor. Inserting the plug is easy and must be done with the door and cover installed. To remove it, it is not necessary to disassemble the door.
UNI EN 1154 certified
- Speedy M60 Casma complies with the European regulation UNI EN 1154.
- Download the certificate by clicking on the "Documents" panel.
Speedy door closer, Italian quality since 1942
- Speedy are completely designed and produced in Italy using the highest quality materials and components.
- Speedy are reliable floor door closers on the market that can be used in any installation.
