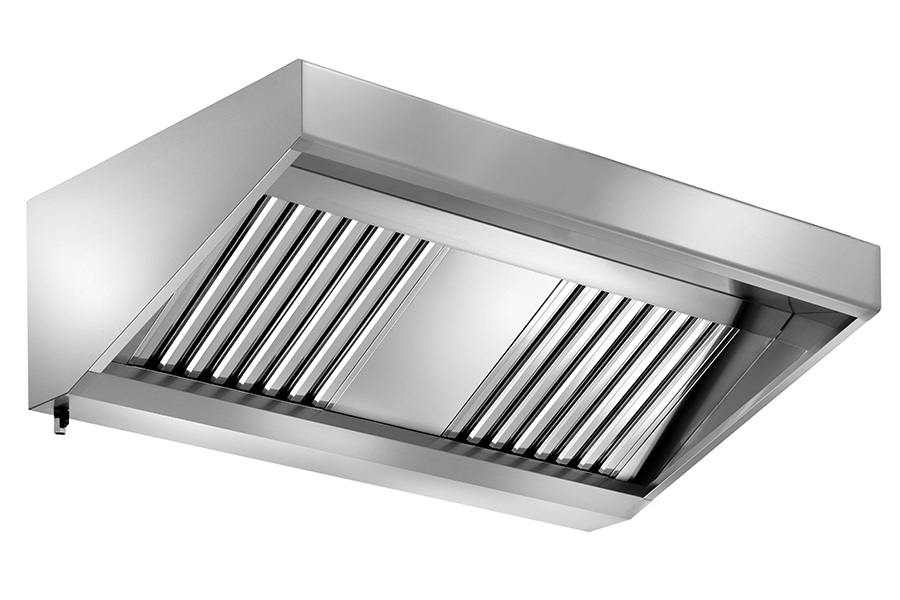

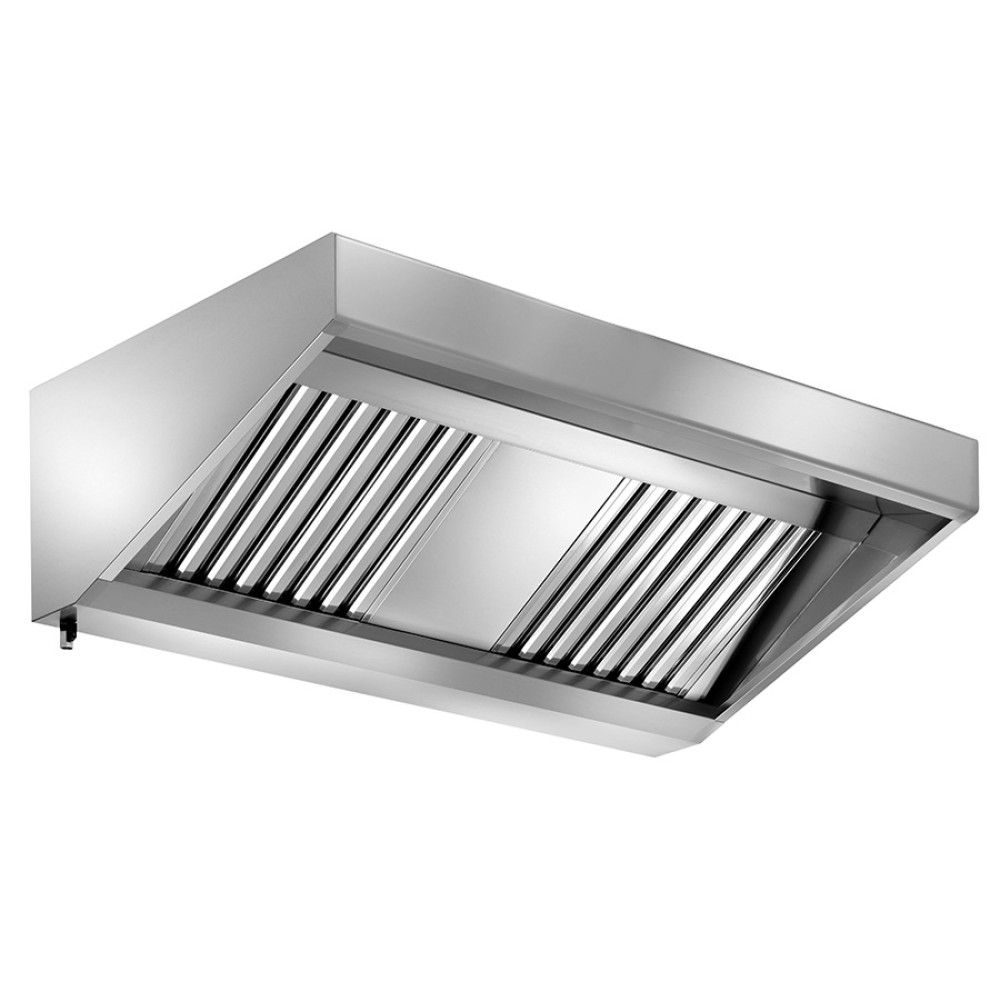

Stainless Steel Snack Hood Without Motor Custom Made in Italy

Brands: OndaInox

Code: CS

-20%

£ 343,16 £ 428,94

Prices excluding VAT

Depth hood (cm)

Hood length (cm)

Notes on stainless steel hoods:

They are custom made in Italy;
Includes wooden crate that protects during transport.

Right of withdrawal not applicable (Article 59 Consumer Code).

Quantity

- +

Stainless Steel Snack Hood - Without Motor - Custom Made in Italy

Inox Snack Hood Without Motor is a reliable and high quality solution for the extraction of fumes in your kitchen.

This stainless steel hood is custom made in Italy to meet your specific needs.

The Inox Snack hood offers superior quality and an elegant design. Purchase this customized solution for reliable, high-quality fume extraction today.

Stainless Steel Snack Hood - Without Motor - Custom Made in Italy

Technical characteristics of the Inox Snack hood

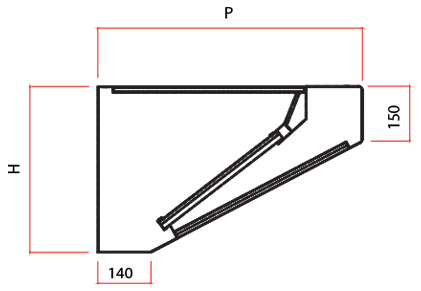

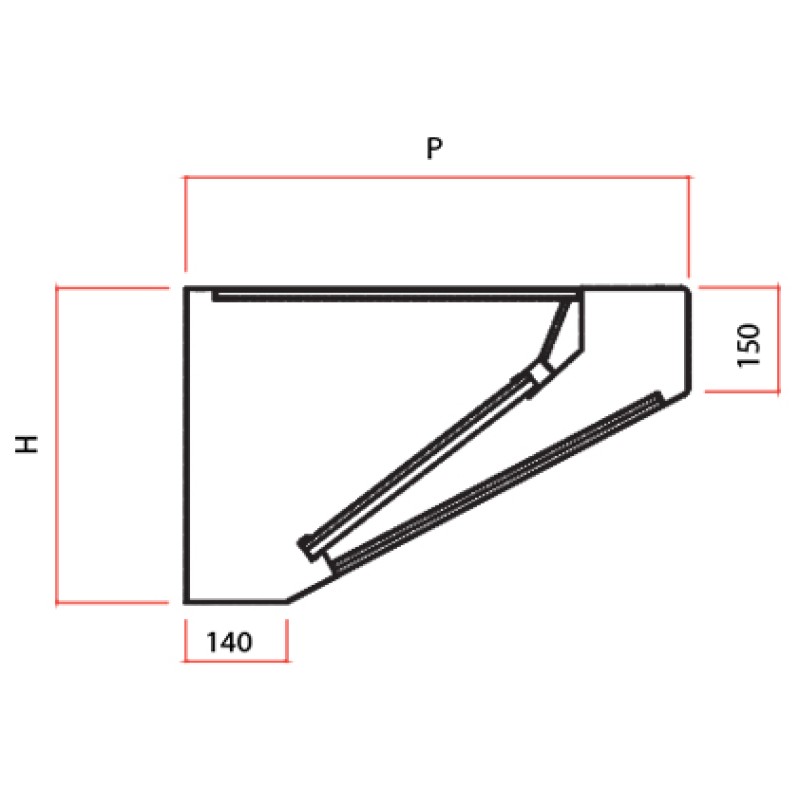

The particular profile makes it ideal for cooking blocks with a depth of 60-70-90 cm , positioned against the wall even with low ceilings.

Construction in AISI 430 , Scotch-Brite satin finish. Completely rimbordata, even in the internal parts.

Assembled by electro-welding. Special executions (execution in AISI 304, assembly by welding) on request.

Inox Snack hood is equipped with:

Labyrinth grease filters in AISI 430 stainless steel;
1/2” condensate drain.

Notes on the Snack hood without motor:

Packing included;
Hanging kit and flange not included.

The hoods of unmarked intermediate lengths have the same price as the hoods with immediately greater lengths (e.g.: CS711 = CS712).

Inox Snack hood - Depth 700 mm

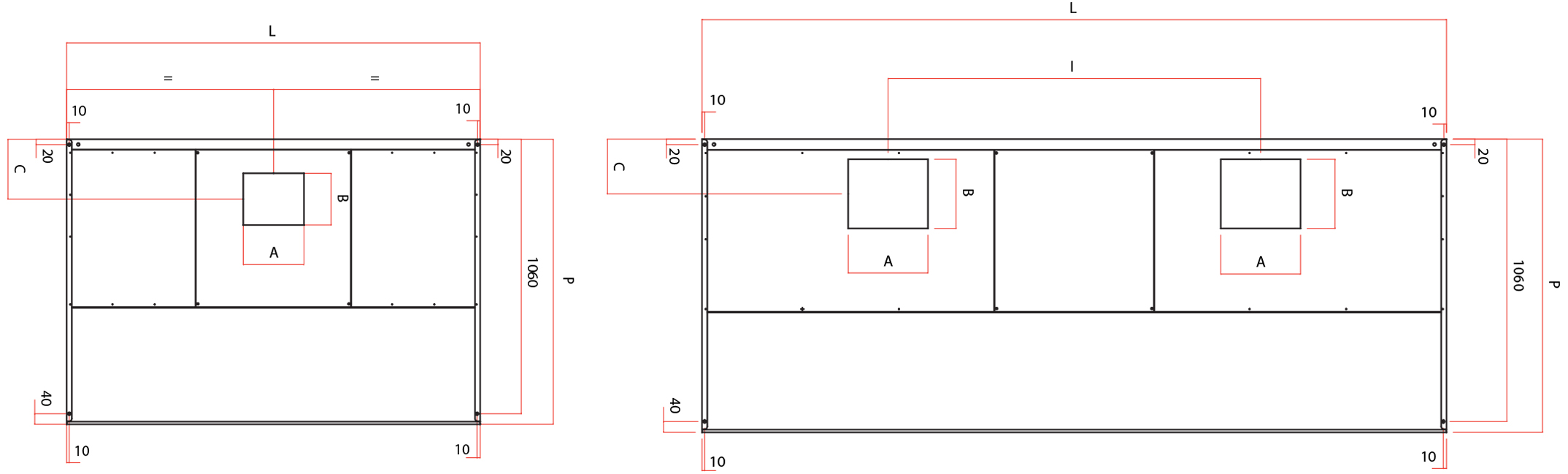

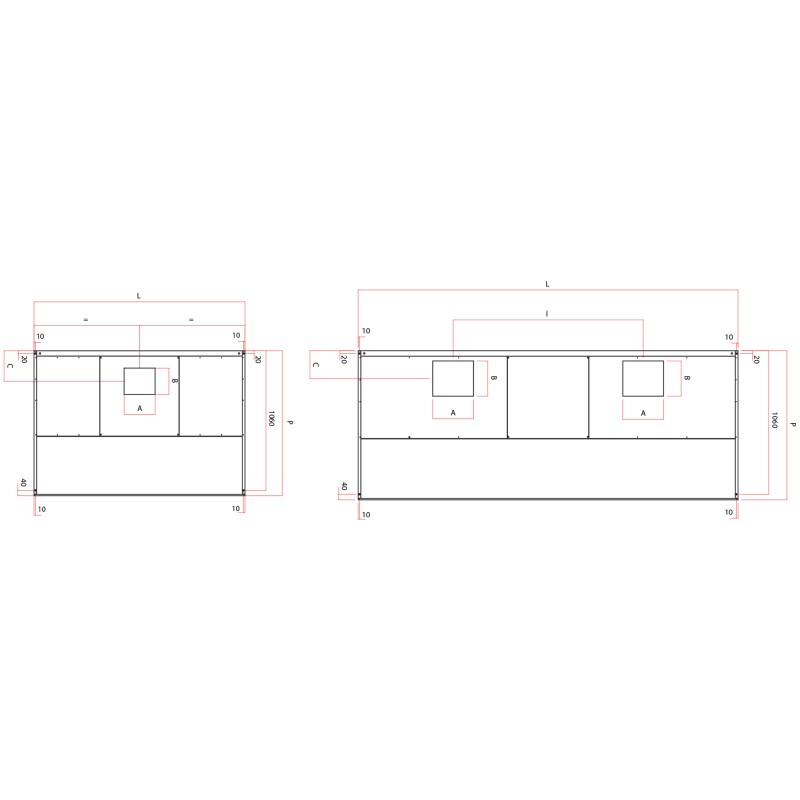

Model	Dimensions WxLxH (mm)	A x B (mm)	c (mm)	n° Filters	Weight (kg)	*Flow rate (m ³ /h)**	THE (mm)
CS 7/10	700x1000x450	230x200	230	2a	26	900
CS 7/12	700x1200x450	230x200	230	2b	30	1100
CS 7/14	700x1400x450	230x200	230	2b	34	1250
CS 7/16	700x1600x450	230x200	230	3a	37	1400
CS 7/18	700x1800x450	230x200	230	3b	40	1600
CS 7/20	700x2000x450	300x260	210	4a	44	1800
CS 7/22	700x2200x450	300x260	210	4a	46	1950
CS 7/24	700x2400x450	300x260	210	4b	48	2200
CS 7/26	700x2600x450	300x260	210	4b	51	2300
CS 7/28	700x2800x450	230x200x20	230	5b	54	2500	1400
CS 7/30	700x3000x450	230x200x20	230	5b	57	2700	1500
CS 7/32	700x3200x450	230x200x20	230	5b	61	2800	1600
CS 7/34	700x3400x450	300x260x20	210	6b	64	3000	1700
CS 7/36	700x3600x450	300x260x20	210	6b	67	3200	1800
CS 7/38	700x3800x450	300x260x20	210	6b	71	3350	1900

NB: the hoods from model CS 7/28 onwards have two expulsion holes.

Inox Snack hood - Depth 900 mm

Model	Dimensions WxLxH (mm)	A x B (mm)	c (mm)	n° Filters	Weight (kg)	Flow rate (m ³ /h)	THE (mm)
CS 9/10	900x1000x450	230x200	230	2a	34	1100
CS 9/12	900x1200x450	230x200	230	2b	38	1400
CS 9/14	900x1400x450	230x200	230	2b	42	1600
CS 9/16	900x1600x450	300x260	210	3a	45	1800
CS 9/18	900x1800x450	300x260	210	3b	48	2000
CS 9/20	900x2000x450	300x260	210	4a	52	2250
CS 9/22	900x2200x450	300x260	210	4a	54	2500
CS 9/24	900x2400x450	300x260	210	4b	56	2700
CS 9/26	900x2600x450	300x260x20	210	4b	59	2950	1300
CS 9/28	900x2800x450	300x260x20	210	5b	62	3200	1400
CS 9/30	900x3000x450	300x260x20	210	5b	65	3400	1500
CS 9/32	900x3200x450	300x260x20	210	5b	69	3650	1600
CS 9/34	900x3400x450	300x260x20	210	6b	72	3850	1700
CS 9/36	900x3600x450	300x260x20	210	6b	75	4050	1800
CS 9/38	900x3800x450	300x260x20	210	6b	79	4300	1900

NB: the hoods from model CS 9/26 onwards have two ejection holes.

Inox Snack hood - Depth 1100 mm

Model	Dimensions WxLxH (mm)	A x B (mm)	c (mm)	n° Filters	Weight (kg)	Flow rate (m ³ /h)	THE (mm)
CS 11/10	1100x1000x450	230x200	230	2c	35	1400
CS 11/12	1100x1200x450	300x260	210	2d	38	1700
CS 11/14	1100x1400x450	300x260	210	2d	41	1950
CS 11/16	1100x1600x450	300x260	210	3c	44	2200
CS 11/18	1100x1800x450	300x260	210	3d	47	2500
CS 11/20	1100x2000x450	300x260	210	4c	50	2800
CS 11/22	1100x2200x450	300x260	210	4c	53	3100
CS 11/24	1100x2400x450	300x260x20	210	4d	56	3400	1200
CS 11/26	1100x2600x450	300x260x20	210	4d	59	3600	1300
CS 11/28	1100x2800x450	300x260x20	210	5d	62	3900	1400
CS 11/30	1100x3000x450	300x260x20	210	5d	65	4200	1500
CS 11/32	1100x3200x450	300x260x20	210	5d	68	4500	1600
CS 11/34	1100x3400x450	300x260x20	210	6d	73	4700	1700
CS 11/36	1100x3600x450	300x260x20	210	6d	78	5000	1800
CS 11/38	1100x3800x450	300x260x20	210	6d	83	5300	1900
