MIFARE® Standalone CENTRAL + MIFARE® READER 1 GATE MANAGEMENT 1 GATE

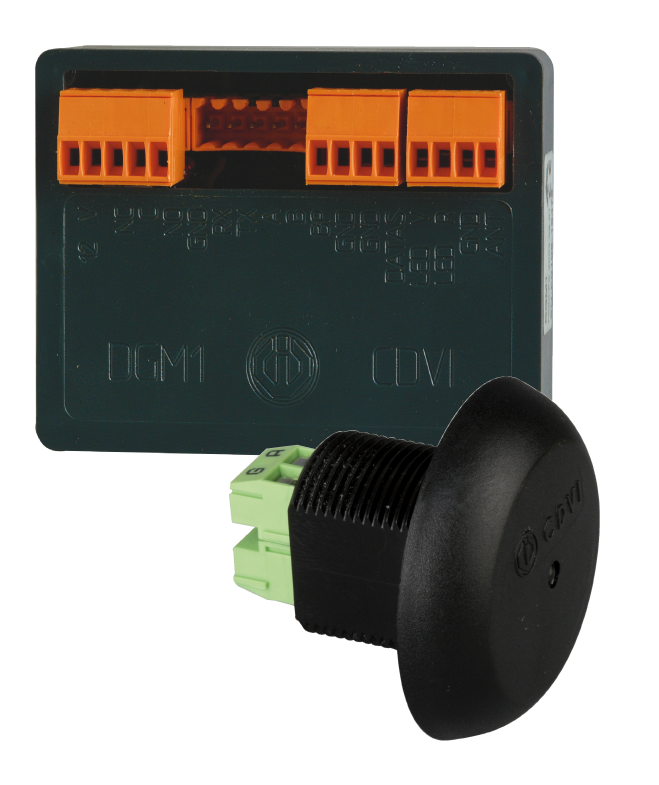

DGM1D Mifare Stand-Alone Reader allows a door to be opened with a badge.

DGM1D is a self-contained MIFARE reader. Its integrated electronics make it safe in any environment. This product is recommended for control and gate or door management applications.

Ideal for bed & breakfast, buildings, offices, simple and quick to install. Its elegant and technological design makes it perfect for any environment.

Strengths

• Compatible with Mifare®;
• Hierarchical Association Access with the creation date of the Tag: 1 access on 100 possibilities + access point;
• Easy to program.

Mode 1

• PC Tag Programming;
• Transfer to PCV123D;
• Tag transfer on the system by proximity from PCV123D to tag reader;
• Unlimited number of TAGs on the plant.

Mode 2

• Programming with Badge Master;
• User badge programming: read master badges to enter programming;
• Read all user badges to be enabled (max 200 badges);
• Close the programming by reading the master badge again.

• Low cost;
• Possibility of cancellation and reprogramming of tags;
• Tag cancellation and wireless access;
• Connector terminal block.

dimensions

• DGM1D Control unit (W x W x D) = 78 x 57 x 24mm,
• DGM1D Reader (Ø x D) = Ø44 x 41mm.

• Management of 1 gate: 1 NA / NC relay;
• 1 input for exit button;
• Installation use a shielded SYT cable 1/10 max 2mt from the reader;
• System code present in the badge;
• "Blacklist" mode (allows to detect lost or stolen badges).

Works with the following products:

• PVP (Tag MIFARE®);
• BV Badges (ISO MIFARE® credit card format);
• METAL (Tag MIFARE®);
• ERV (RF & MIFARE® radio remote control).

• Direct connection of the reader;
• RS-232 serial port;
• Power supply: 12V ac / dc;
• Absorption: max. 300mA.
