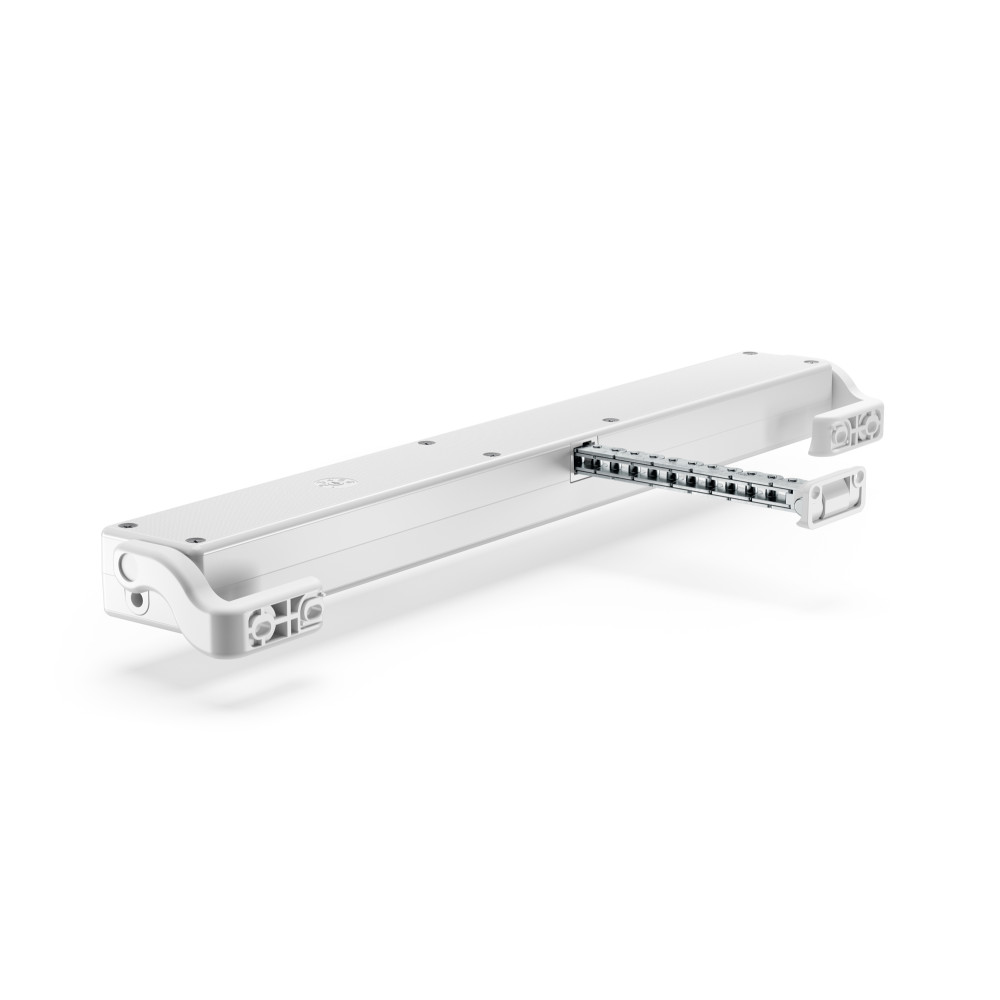

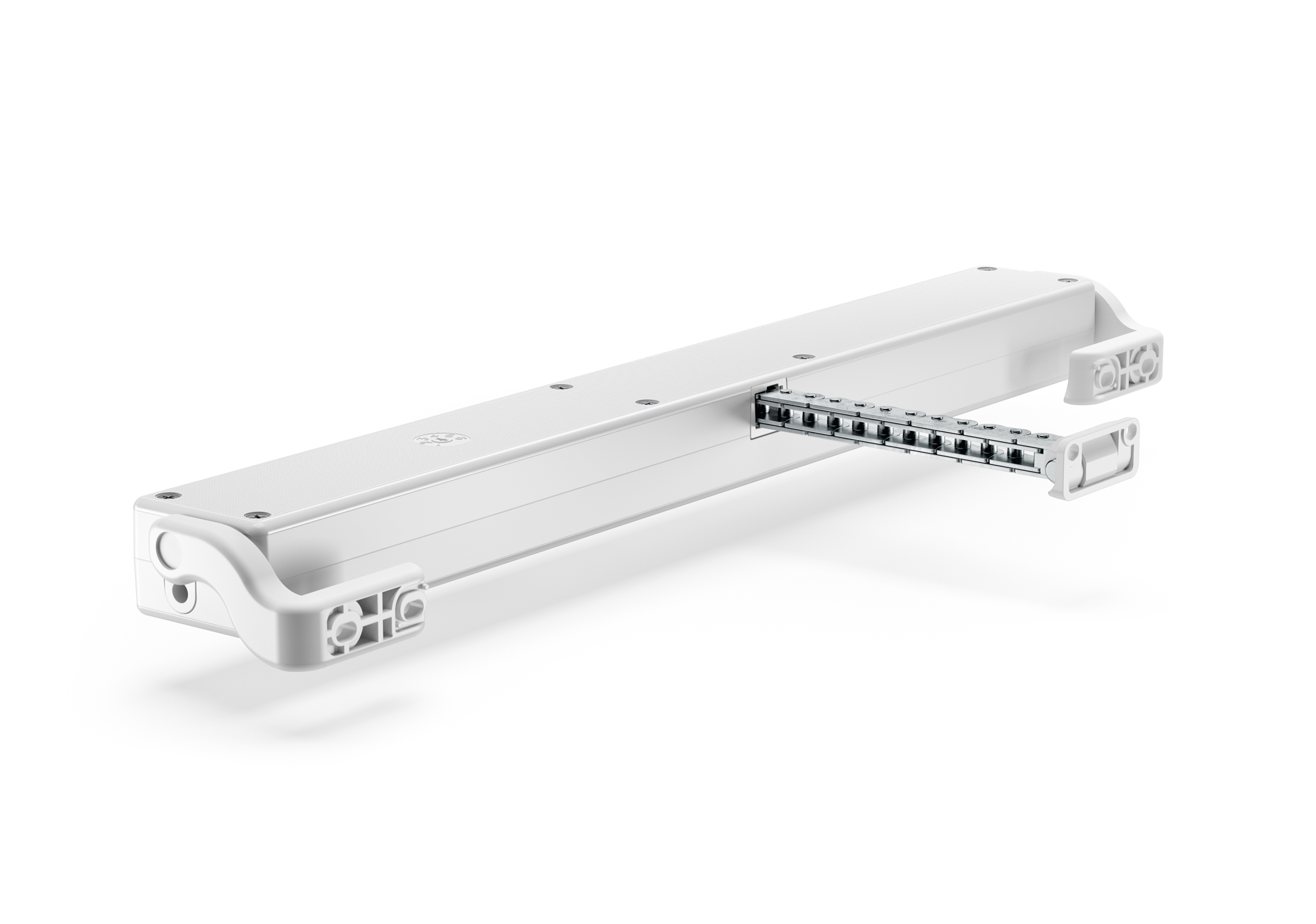

Star 25 Comunello - Chain Actuator for Windows - Voltage 230V or 24V - Stroke 100-380mm
The

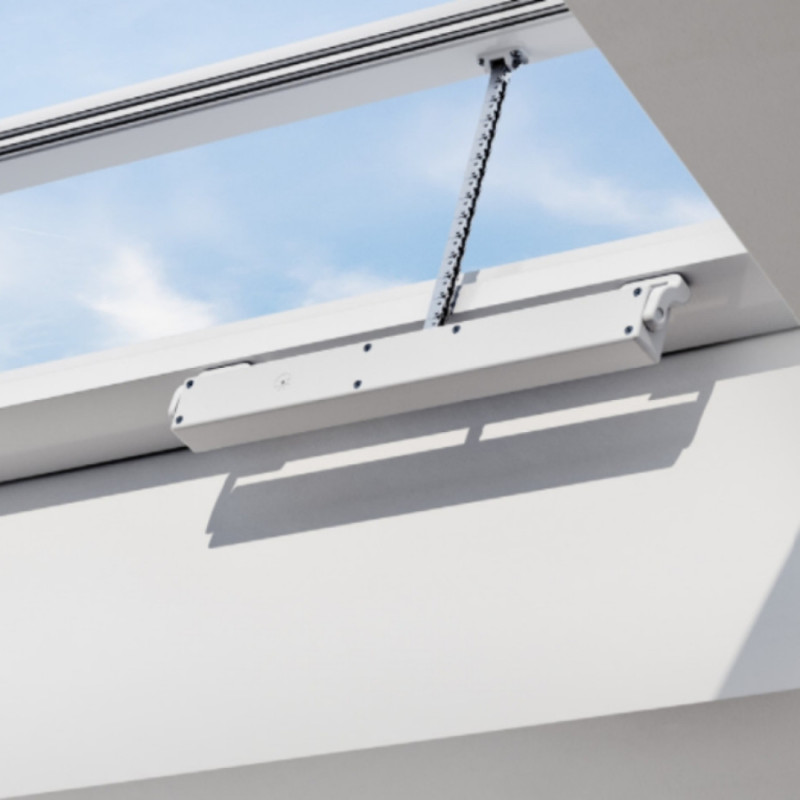

Comunello Star 25 chain actuator is the ideal solution for the automated opening and closing of wooden, PVC, aluminium and steel windows.
Suitable for vasistas, protruding windows, sheds, skylights and domes, Star 25 Comunello guarantees high performance with compact dimensions and a robust design.
Main features of the Star 25 Comunello actuator
- Power supply of your choice : can be ordered in 230V AC or 24V DC versions;

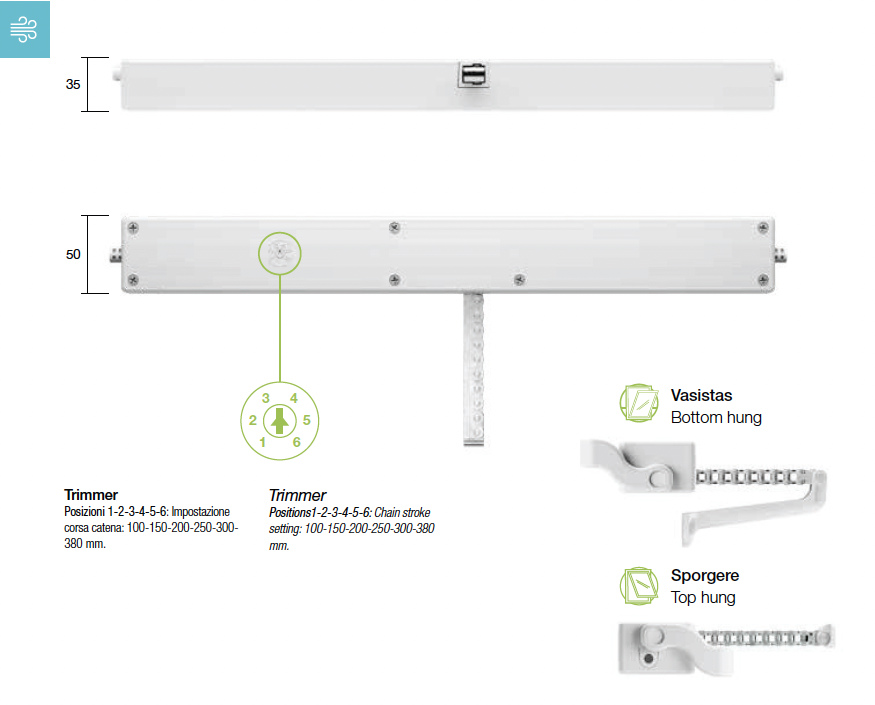

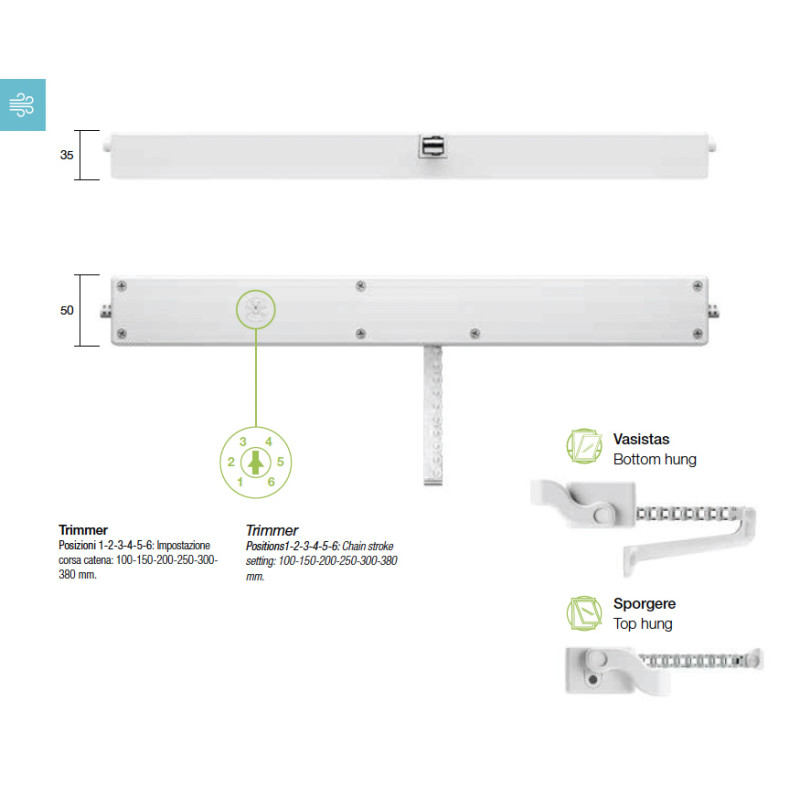

- Adjustable stroke : up to 6 different strokes (100-150-200-250-300-380 mm) easily set via trimmer;
- Electronic limit switch system : opening and closing adjustment with current absorption;
- Versatile installation : can be connected in parallel or with two actuators on the same window frame (using the AF 960 card);
- Smooth and safe movement : automatic slowdowns in opening and closing for greater precision;
- Durable construction : Reinforced double-link chain for increased push and pull resistance;
- Easy assembly : support brackets included, oscillating to follow the movement of the window.
Technical data window motor Star 25 Comunello
- Pull/push force: 250N
- Voltage: 230V AC / 24V DC
- Movement speed: 17mm/s
- IP protection: IP30
- Operating temperature: -5°C +50°C

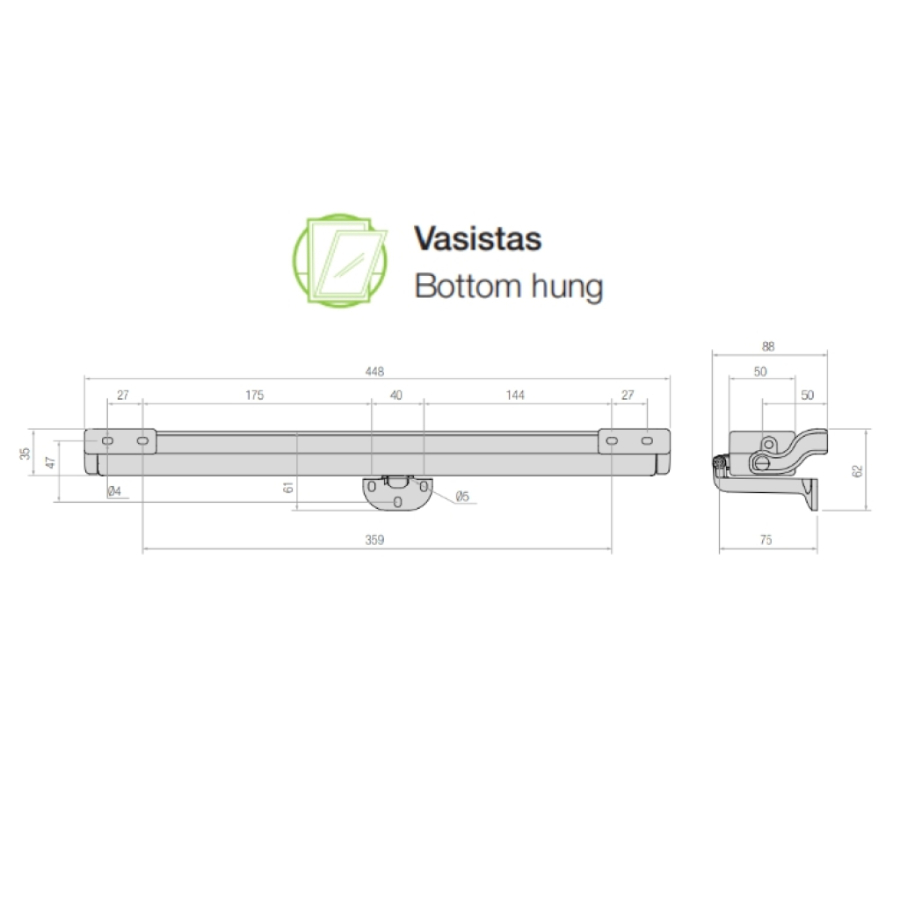

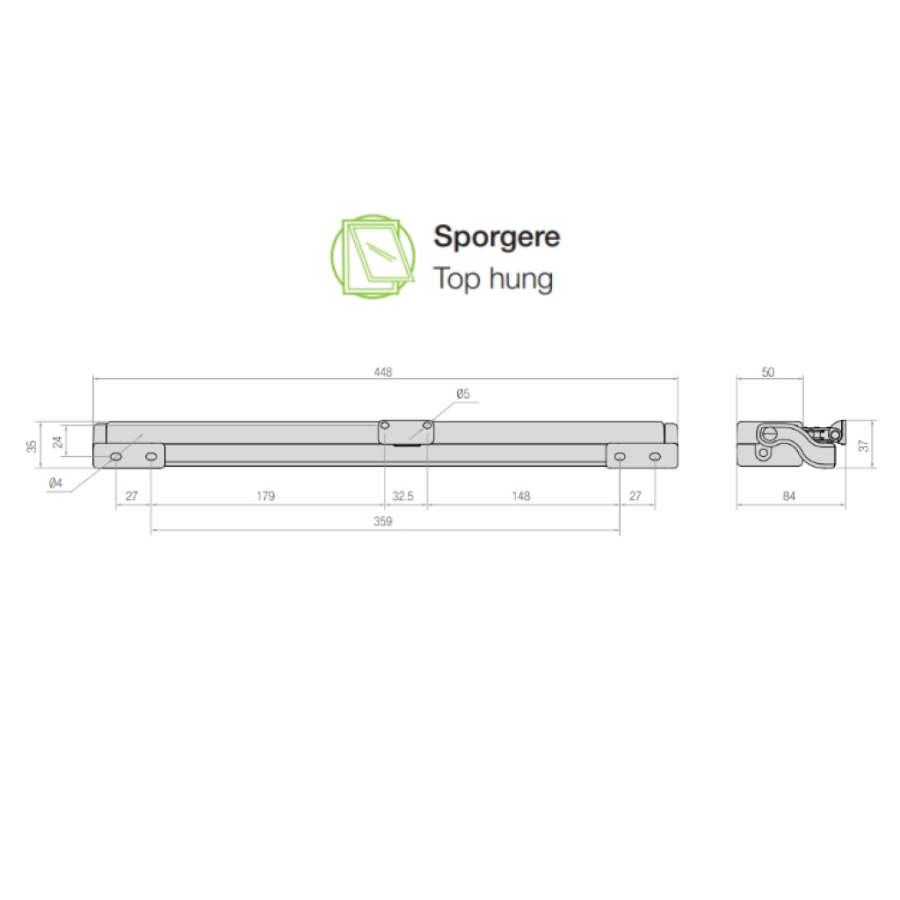

- Dimensions: 34 x 48 x 433 mm
- Weight: 1.12 kg
Star 25 Comunello actuator variants
- Colors: black, gray, white
- Power supply: 230V AC / 24V DC
- Adjustable stroke: 100-380mm
What does the package include?
- Star 25 Comunello actuator
- Mounting brackets for vasistas and protruding windows
- Installation template
- User Manual
Online sale of Comunello window motors
With over 50 years of
experience in the movement of windows and gates , Comunello is synonymous with quality and innovation.
Comunello electric window actuators offer stability, reliability and versatility, adapting perfectly to windows, skylights, domes, awnings, roller shutters and sunshade systems.
Discover on Windowo the selection of the best Comunello window motors , sold online at advantageous prices for superior comfort and energy efficiency.
