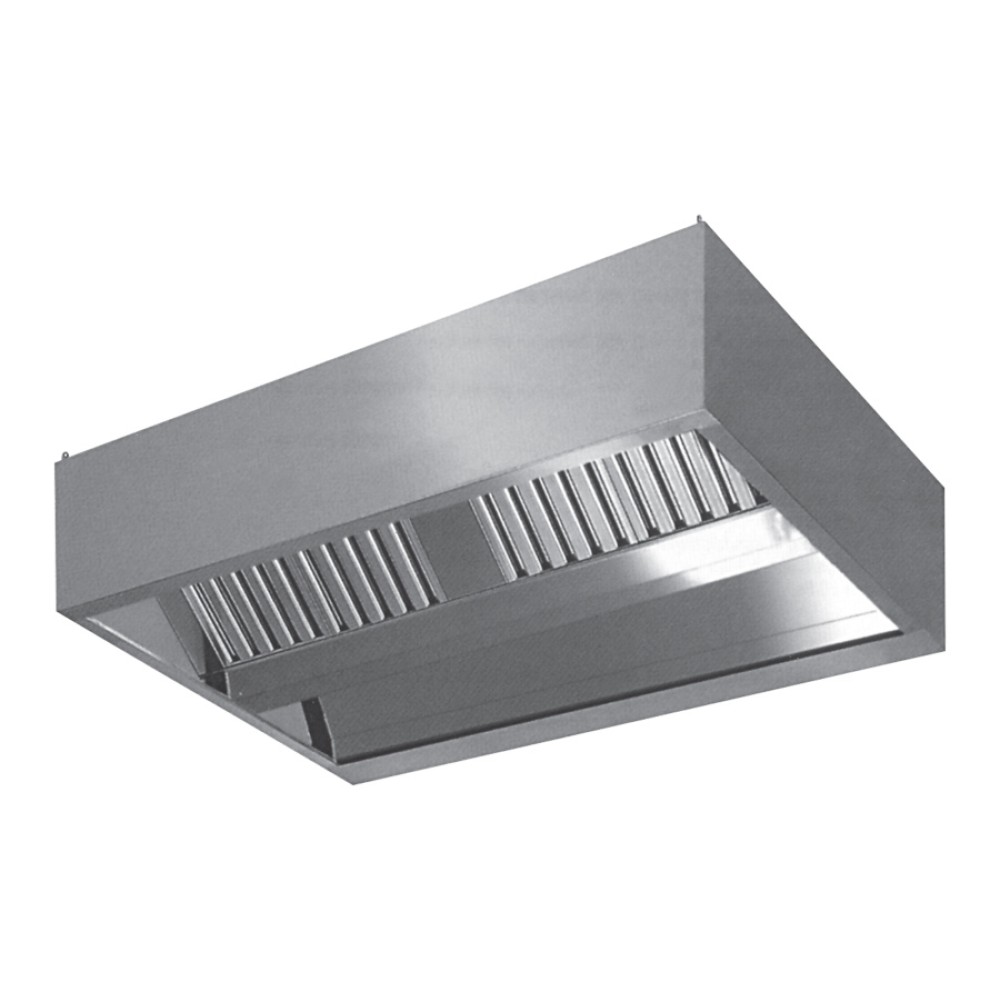

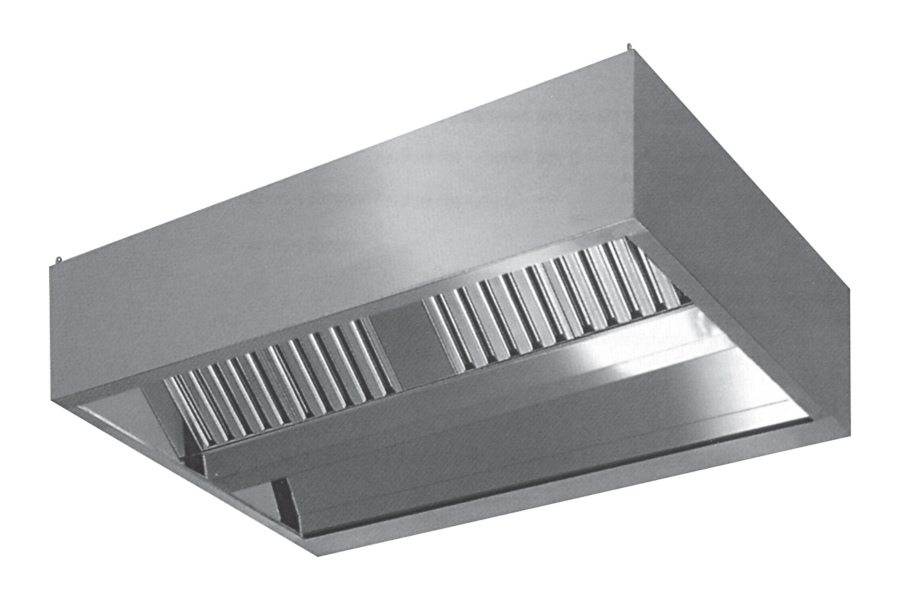

Isola Cubic Hood in Stainless Steel - with Electric Fan Motor - Self-suction
Cubic island hood in stainless steel , produced in Italy with high quality materials. It is an ideal solution for cleaning the air in cooking areas.
Discover our models of
cubic island hoods in stainless steel , parallelepiped-shaped hoods, made of resistant AISI 430 stainless steel, assembled by spot welding, complete with electric fan and
labyrinth filters in dishwasher-safe stainless steel grease.
The
parallelepiped hood profile allows efficient containment of the fumes and better expulsion, furthermore this model is in line with the classic aesthetics used abroad.
Isola Inox Cubic Hood - Construction Features
- Profile detail for cooking blocks with a depth of 60-70-90 cm, positioned in the center of the room;
- Construction in AISI 430 , Scotch-Brite satin finish. Fully edged, even in the internal parts;
- Complete with electric fan . Assembled by electro-welding;
- Special executions (execution in AISI 304, assembly by welding) on request.
Stainless Steel Cubic Island Hood - Included:
- Labyrinth grease filters in AISI 430 stainless steel;
- Centrifugal electric fan 220V Single-phase 50/60Hz;
- 1/2” condensate drain.
Notes on the cubic island hood:
- Bubble wrap packaging with polystyrene corners and wooden cage included in the price;
- Hanging kit and flange not included;
- The hoods of intermediate lengths not marked have the same price as the hoods with immediately greater lengths (e.g.: KP711 = KP712);
- For larger sizes, contact us to receive a free quote.
Cubic island hood with motor - Depth 120 cm

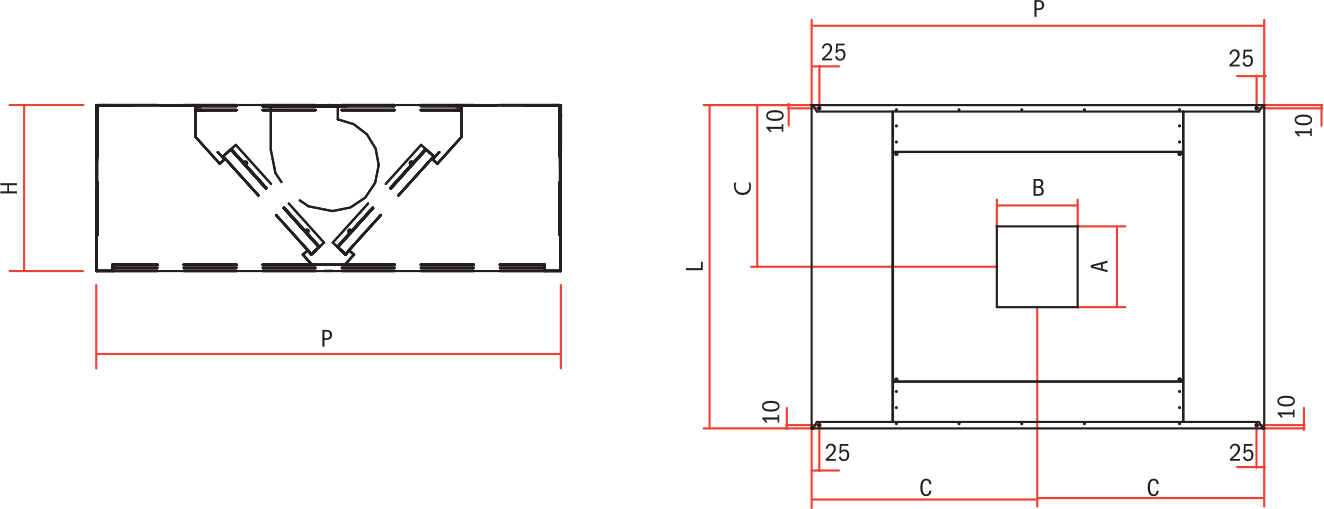

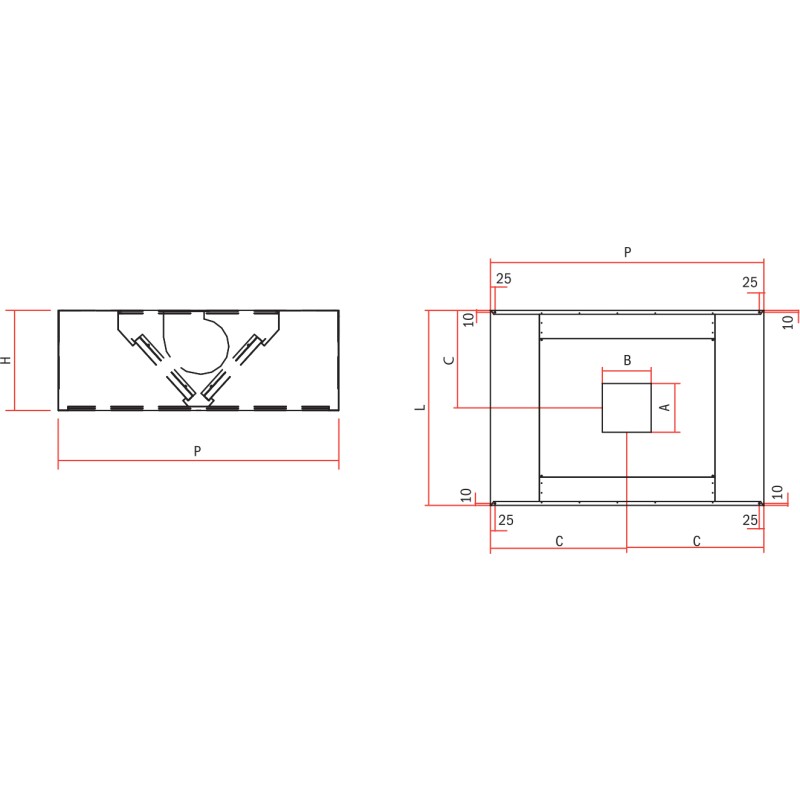

| Model |
Dimensions WxLxH |
A x B |
c |
n° Filters |
Weight |
Fan |
Watt |
| (mm) |
(mm) |
(mm) |
(kg) |
Amps |
| KCM 12/12 |
1200x1200x500 |
300x270 |
670 |
4b |
51 |
8/9T |
420/3.8 |
| KCM 12/14 |
1200x1400x500 |
300x270 |
670 |
4b |
55 |
8/9T |
420/3.8 |
| KCM 12/16 |
1200x1600x500 |
300x270 |
670 |
6a |
59 |
8/9T |
420/3.8 |
| KCM 12/18 |
1200x1800x500 |
300x270 |
670 |
6b |
63 |
8/9T |
420/3.8 |
| KCM 12/20 |
1200x2000x500 |
300x270 |
670 |
8a |
67 |
8/9T |
420/3.8 |
Cubic island hood with motor - Depth 140 cm
| Model |
Dimensions WxLxH |
A x B |
c |
n° Filters |
Weight |
Fan |
Watt |
| (mm) |
(mm) |
(mm) |
(kg) |
Amps |
| KCM 12/14 |
1400x1200x500 |
300x270 |
900 |
4b |
60 |
8/9T |
420/3.8 |
| KCM 14/14 |
1400x1400x500 |
300x270 |
900 |
4b |
64 |
8/9T |
420/3.8 |
| KCM 14/16 |
1400x1600x500 |
300x270 |
900 |
6a |
68 |
8/9T |
420/3.8 |
| KCM 14/18 |
1400x1800x500 |
300x270 |
900 |
6b |
74 |
8/9T |
420/3.8 |
| KCM 14/20 |
1400x2000x500 |
300x270 |
900 |
8a |
78 |
8/9T |
420/3.8 |
Electric fan 8/9T: 220V, 420W / 3.8A
The electric fans installed on the hood are made up of single-phase, 230 Volt, 50 Hz motors.
