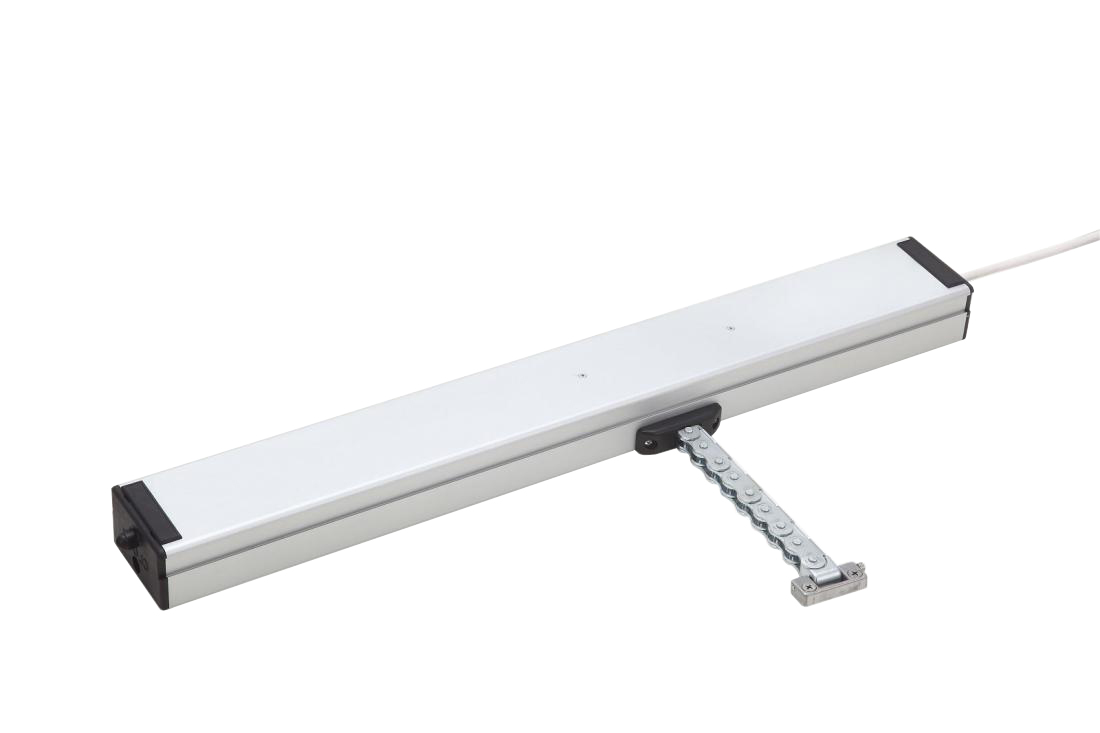

Supermaster 230Vac - Ultraflex Chain Actuator UCS 400N ( 300N for 800mm stroke )
Greater push force for heavy leaves: 400 N - Wide stroke: 450-600-800 mm
- Stroke (to choose between): 450-600-800 mm;
- Color (to choose between): anodized silver, anodized dark brown, painted white RAL 9010;

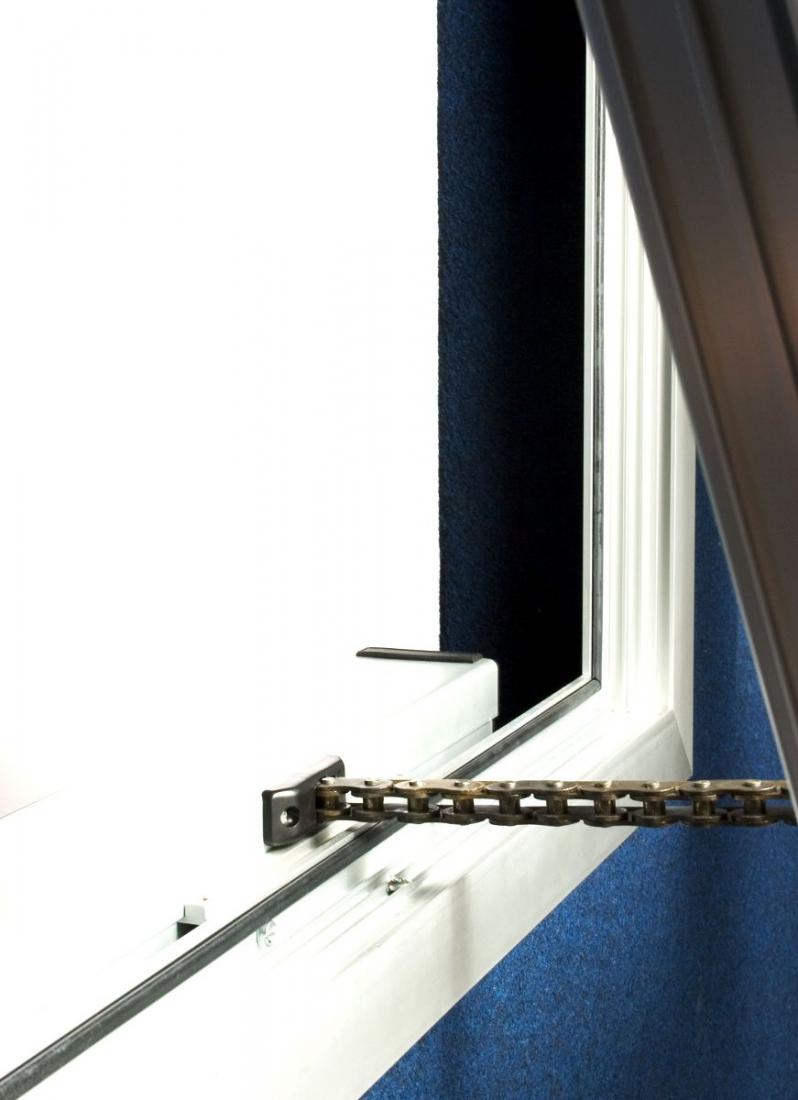

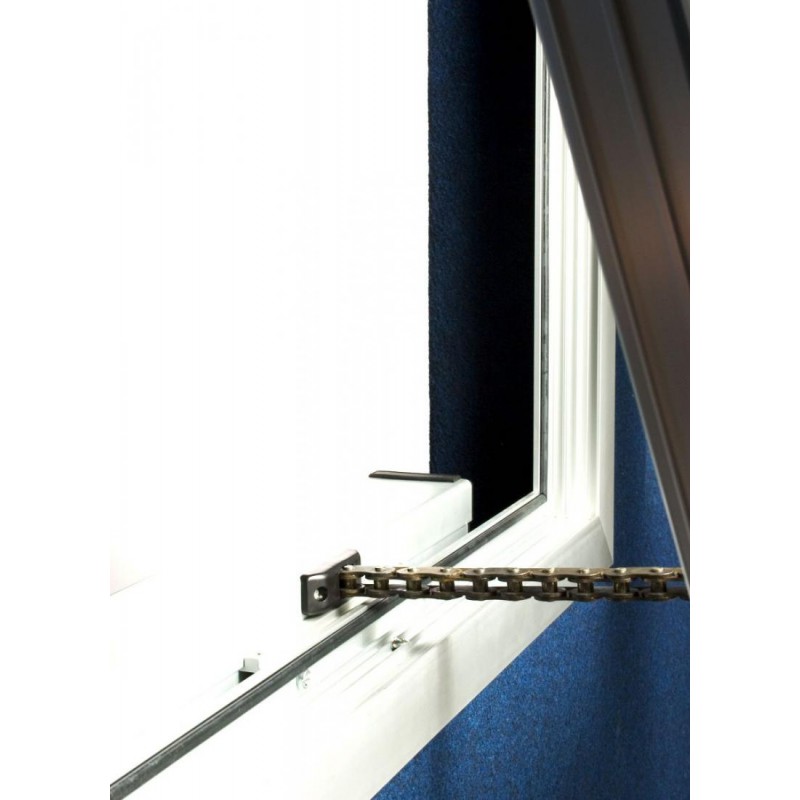

- Examples of applications: projecting, bottom-hung (accessories sold separately).
Supermaster: the actuator to move even the heaviest leaves!
The
widest stroke (up to 800mm) and the
greatest force for a chain actuator: it solves problems of moving very heavy leaves and the need for large openings without encumbrance inside the compartment.
Minimum window height: 900mm for 450mm stroke, 1200mm for 600mm stroke, 1600mm for 800mm stroke.

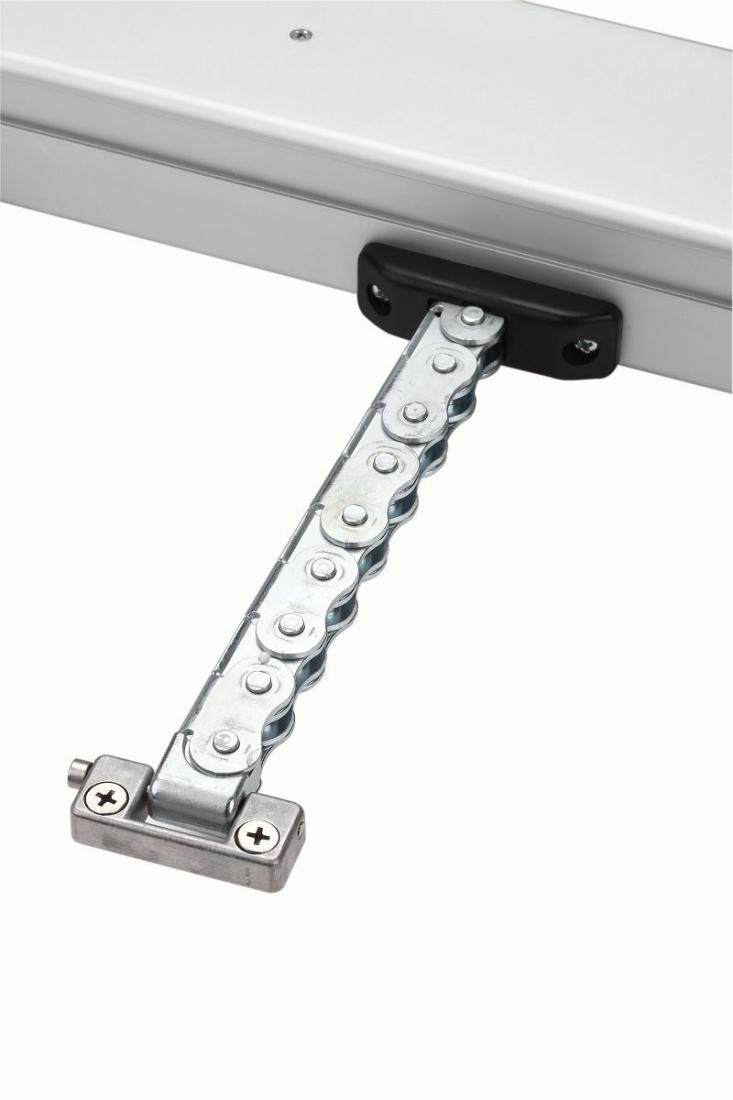

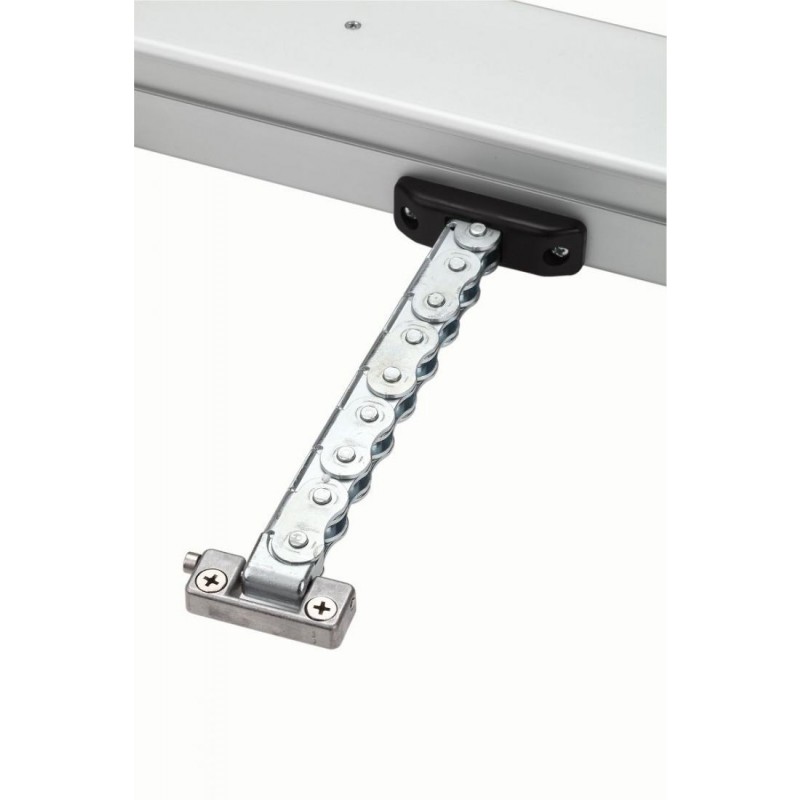

- Large double link chain.
- Supplied with 2-3m of electric cable.
- Enclosure in anodized (silver and dark brown) or painted (white) extruded aluminum.

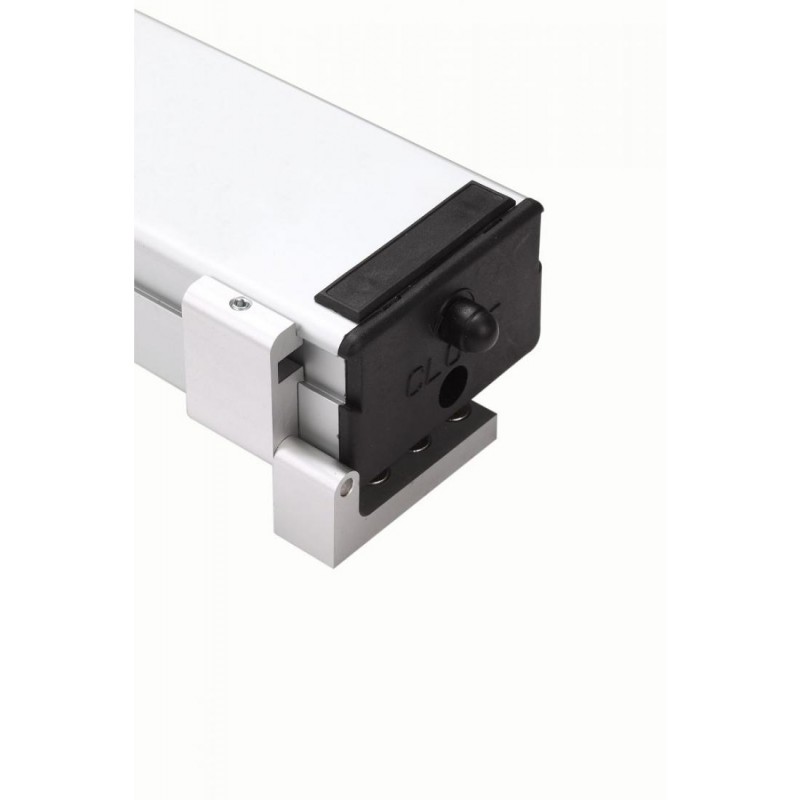

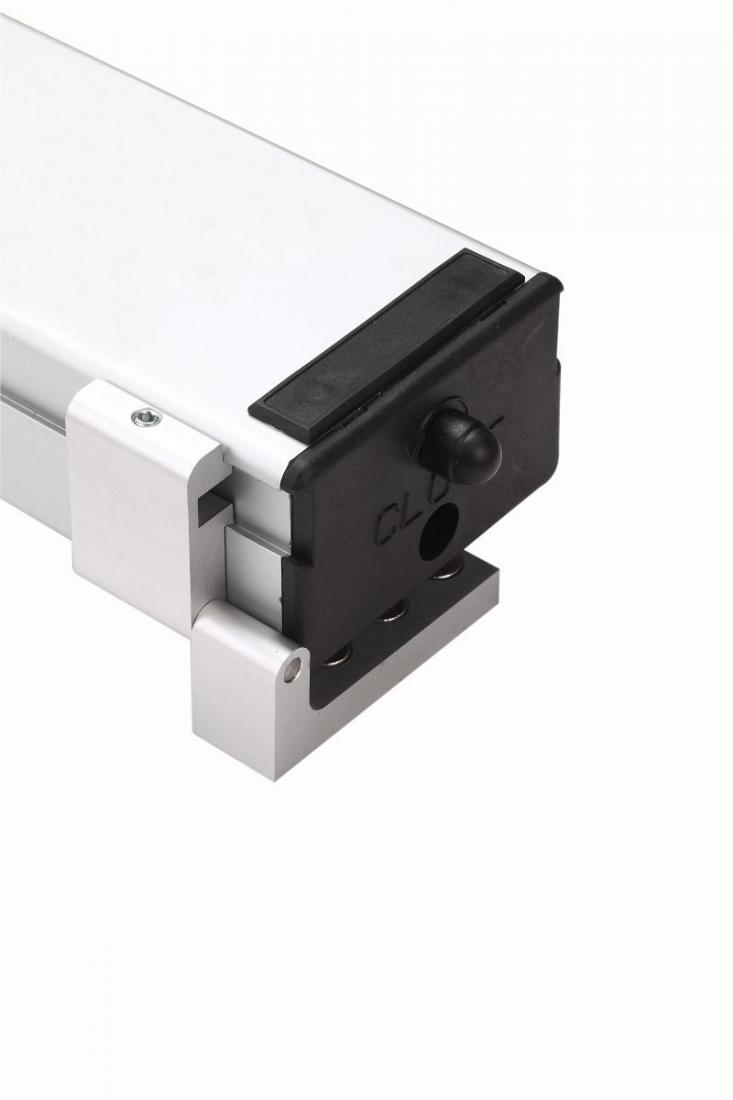

- Window closing signal via red light on the actuator.
- The greater stroke (800 mm) is indicated only for bottom-hung windows.
Technical features chain actuator Supermaster 230Vac Ultraflex UCS
- POWER SUPPLY 230 Vac ± 10%
- ELECTRICAL CONNECTION 3 wires + earth
- STROKE 450 - 600 - 800 mm
- PUSH FORCE 400 N (300 N for 800mm stroke)
- FORCE IN TRACTION 400 N
- SPEED ~23 mm/s
- ABSORPTION (at maximum load) 0.8 A
- CAN BE CONNECTED IN PARALLEL YES
- LIMIT SWITCHES microswitches
- Thermal PROTECTION
- PROTECTION DEGREE IP 20.
| CODE |
MODEL |
DESCRIPTION |
| 40462T |
Supermaster AC |
Supermaster actuator 230Vac 450 A ANODISED SILVER |
| 40465Z |
Supermaster AC |
Supermaster actuator 230Vac 450 B ANODIZED BROWN |
| 40466B |
Supermaster AC |
Supermaster actuator 230Vac 450 W PAINTED WHITE RAL 9010 |
| 40452P |
Supermaster AC |
Supermaster actuator 230Vac 600 A ANODISED SILVER |
| 40464X |
Supermaster AC |
Supermaster actuator 230Vac 600 B DARK BROWN ANODIZED |
| 40454U |
Supermaster AC |
Supermaster actuator 230Vac 600 W PAINTED WHITE RAL 9010 |
| 40518U |
Supermaster AC |
Supermaster 230Vac 800 A ANODISED SILVER actuator |
| 40753T |
Supermaster AC |
Supermaster actuator 230Vac 800 B DARK BROWN ANODIZED |
| 40774O |
Supermaster AC |
Supermaster actuator 230Vac 800 W PAINTED WHITE RAL 9010 |
Accessories that can be purchased separately: aluminum sliding bracket with shim bar cod. 40460N, aluminum dovetail swing bracket kit cod. 40560T, bottom hung kit: aluminum sliding bracket with shim bar and painted steel bottom hung bracket cod. 40472W.
