Supermaster 24Vdc Chain Actuator Ultraflex UCS 400N

Ultraflex (UCS)
Code: SUPERMASTER 24 Vdc
-35%
£ 175,25 £ 269,62
Prices excluding VAT
Are you looking for an actuator from the Ultraflex catalog that is not on our site? Contact us and ask for a quote.

- +
Supermaster 24Vdc Chain Actuator Ultraflex UCS 400N (300N for 800mm stroke)

STROKE   450 - 600 - 800 - 1000 mm (your choice)
COLOUR  SILVER ANODIZED - DARK BROWN ANODIZED - WHITE PAINTED RAL 9010 (your choice)

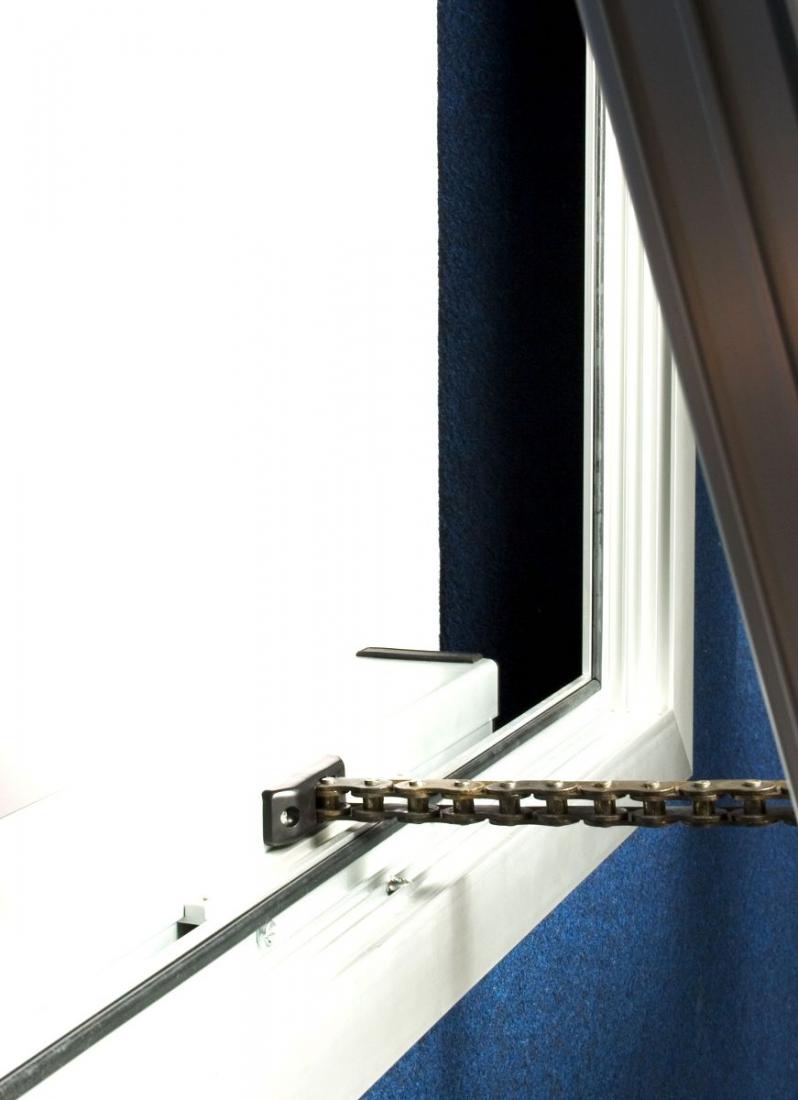

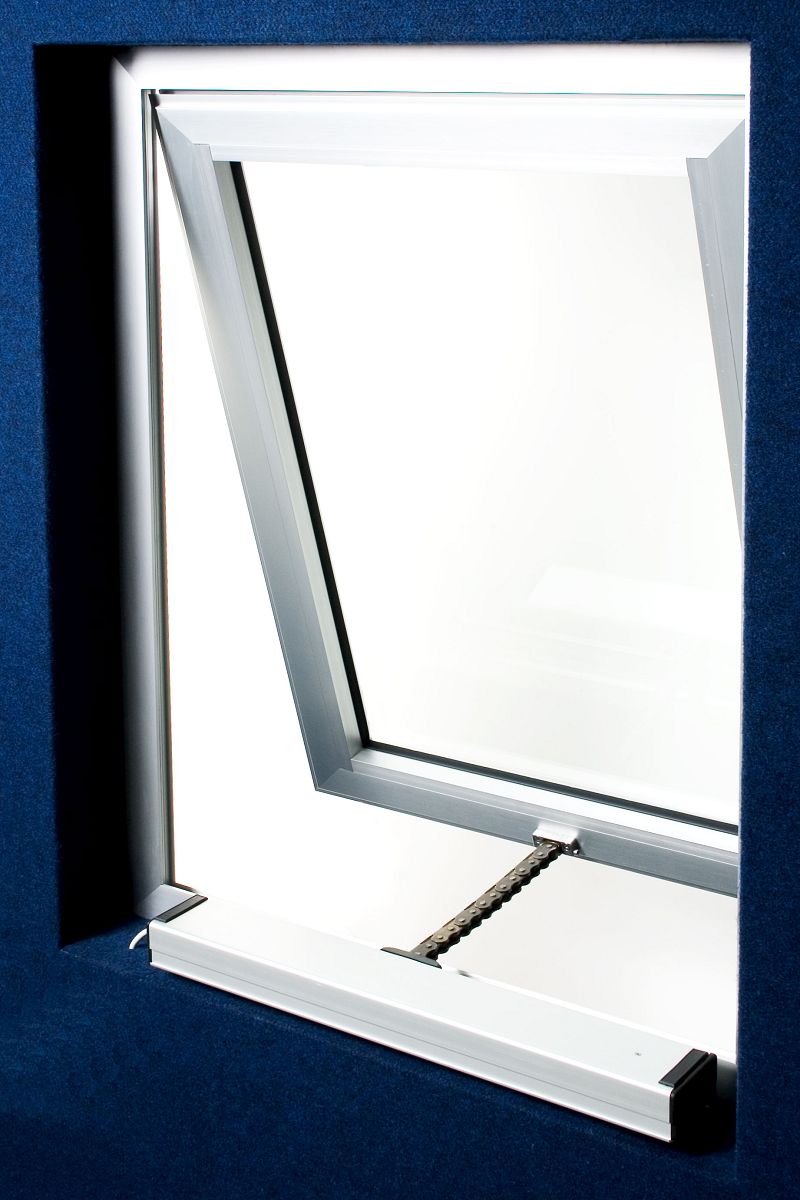

Supermaster chain actuator used to automate high level windows and lightweight roof vents and domes.
Available in a range of opening sizes.

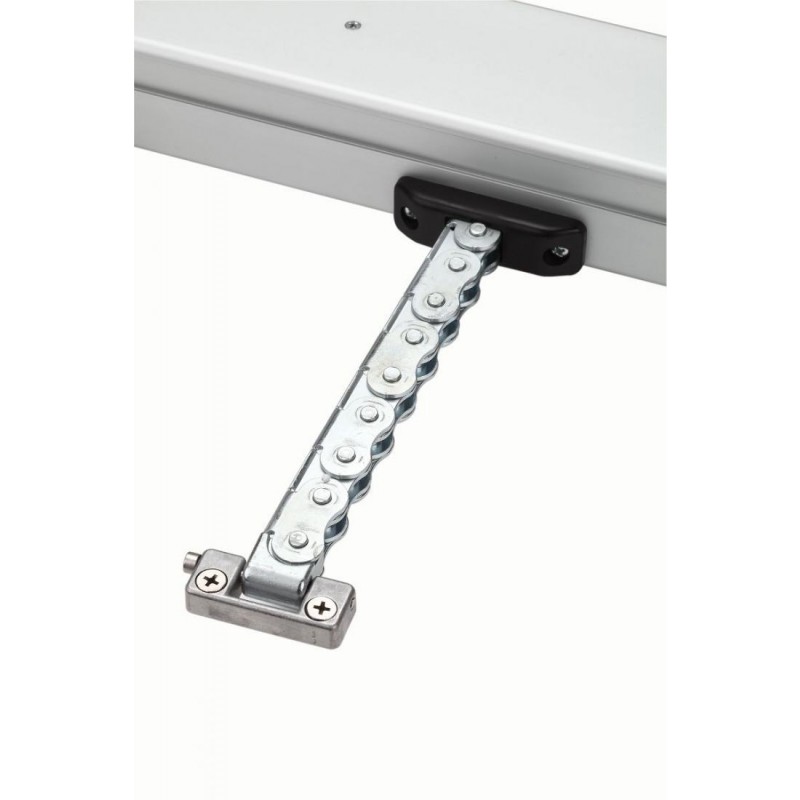

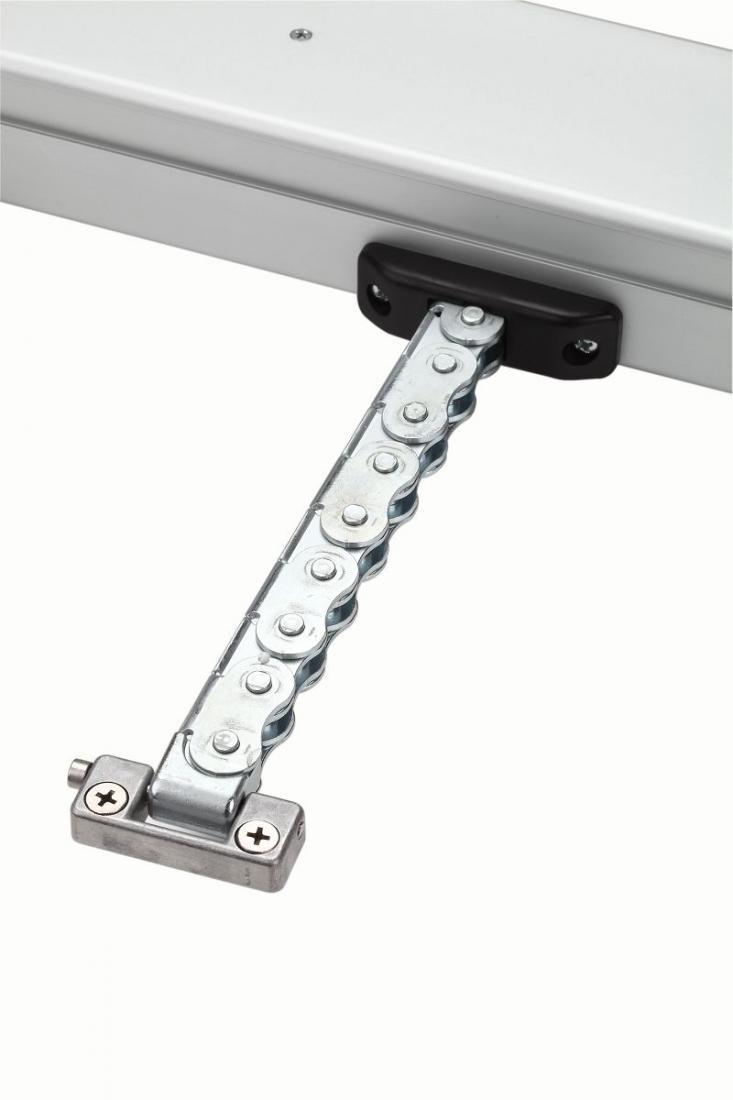

Big double link chain.
Anodized (silver or dark brown) or painted (white) aluminium casing.

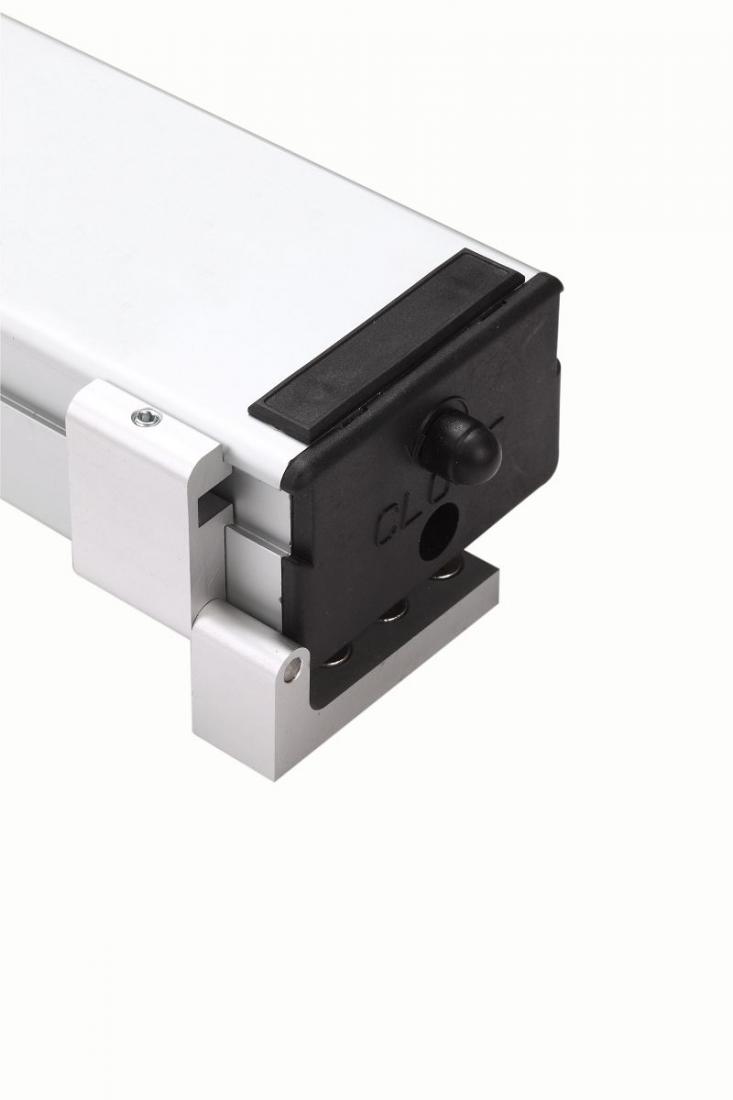

Red lamp placed on the actuator to signal the closed position.
The longest stroke (800mm - 1000mm) is indicated for bottom hinged windows only
Supplied complete with vent bracket and 1.5m cable.
24 Vdc version is suitable for installation on smoke and heat extraction systems in conformity to UNI EN 12101-2.

Supermaster

VOLTAGE SUPPLY    24 Vdc ± 10%
ELECTRIC CONNECTION   2 wires + signalling
OPERATION   by polarity inversion
STROKE   450 - 600 - 800 - 1000 mm
FORCE IN PUSH ACTION (stroke)   400 N (300 N for 800mm stroke)
FORCE IN PULL ACTION   400 N
SPEED   ~20 mm/s
CURRENT ABSORPTION (with max load)   2 A
PARALLEL CONNECTION   YES
LIMIT STOP   micro switches
SAFETY STOP   electronic
FEEDBACK SIGNAL   open/close
PROTECTION CLASS   IP 20

 PART NO.  MODEL  DESCRIPTION
 40506L  Supermaster DC  Actuator Supermaster 24Vdc 450 A ANODIZED SILVER
 40509T  Supermaster DC  Actuator Supermaster 24Vdc 450 B DARK BROWN ANODIZED
 40507N  Supermaster DC  Actuator Supermaster 24Vdc 450 W WHITE PAINTED RAL 9010
 40461R  Supermaster DC  Actuator Supermaster 24Vdc 600 A ANODIZED SILVER
 40467D  Supermaster DC  Actuator Supermaster 24Vdc 600 B DARK BROWN ANODIZED
 40468F  Supermaster DC  Actuator Supermaster 24Vdc 600 W WHITE PAINTED RAL 9010
 40469H  Supermaster DC  Actuator Supermaster 24Vdc 800 A ANODIZED SILVER
 40470S  Supermaster DC  Actuator Supermaster 24Vdc 800 B DARK BROWN ANODIZED
 40471U  Supermaster DC  Actuator Supermaster 24Vdc 800 W WHITE PAINTED RAL 9010
 41020I  Supermaster DC  Actuator Supermaster 24Vdc 1000 A ANODIZED SILVER
 41092Y  Supermaster DC  Actuator Supermaster 24Vdc 1000 W WHITE PAINTED RAL 9010

Accessories sold separately: sliding aluminium bracket with shim part No. 40460N, pivoting brackets kit part No. 40560T, sliding aluminium steel bracket with shim and bottom hinged painted steel bracket part No. 40472W.
