Swing Shutters Automation Chiaroscuro S TEL Double Leaf - Length 115-150cm
Swing shutters automation: move your swing shutter thanks to S TEL Doppia Anta, a high quality Italian product under the Chiaroscuro brand. L= 115 - 150 cm; First door right or left (your choice).
Discover the revolutionary
Chiaroscuro automation solution for swing shutters: the S TEL Double Leaf system, designed to transform the experience of using your shutters. This system is ideal for those looking not only for practicality and functionality, but also for a touch of modernity in their home.
Chiaroscuro S TEL Double Door is perfectly suitable for shutters with a length between 115 and 150 cm, ensuring extensive compatibility and tailor-made adaptation to the needs of each home. Thanks to its cutting-edge technology, it allows simple and intuitive control of the shutters, significantly improving the quality of home life.
Characterized by an
elegant and discreet design, the S TEL Double Leaf automation system integrates harmoniously with the aesthetics of the shutters, maintaining the style of the building unchanged. Its installation represents a smart choice for those who want to combine traditional elegance with modern functionality.

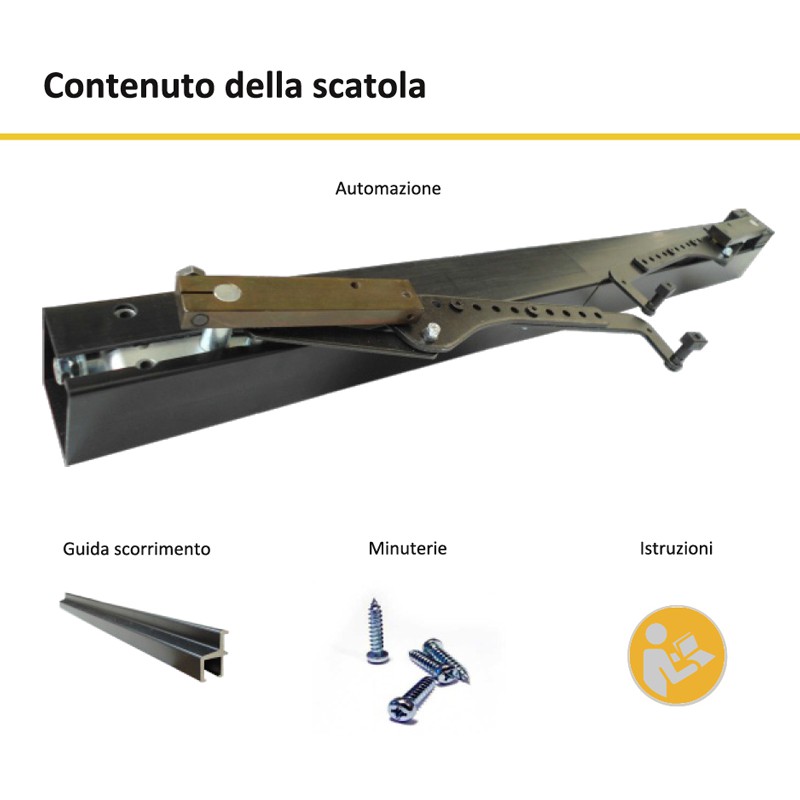

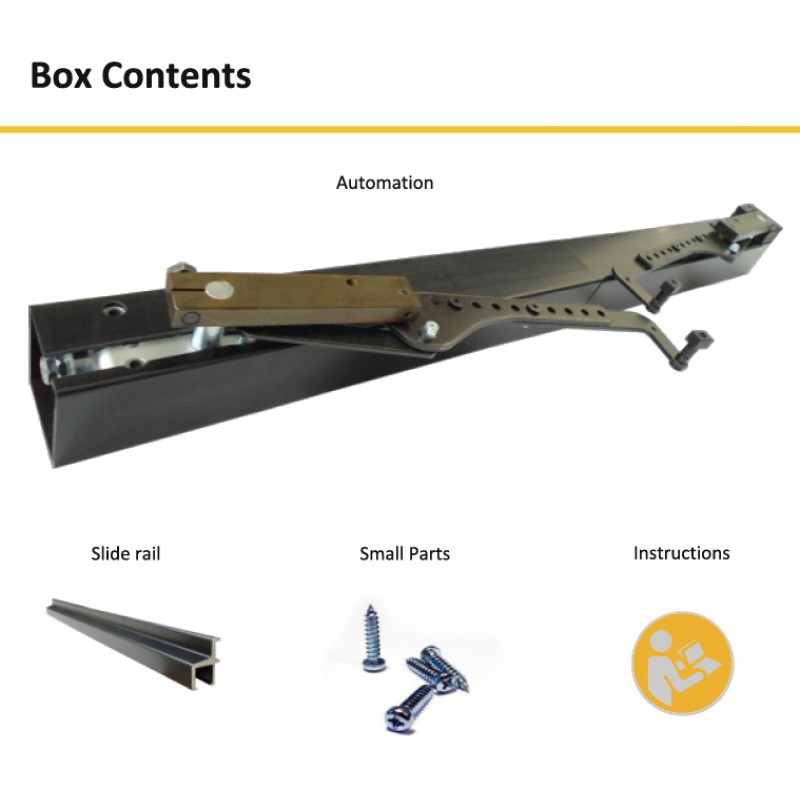

What does this shutter automation kit include?
The Chiaroscuro S TEL automation kit for swing shutters includes:
- Shutter automation: the main mechanical arm that constitutes the automation system for the movement of the shutters;
- Sliding guide: the guide that facilitates the sliding movement of the automation mechanism;
- Small parts: small parts such as screws and bolts necessary for the assembly and installation of the automation;
- Instructions: an instruction manual that provides directions on how to install and use the automation system safely and efficiently.

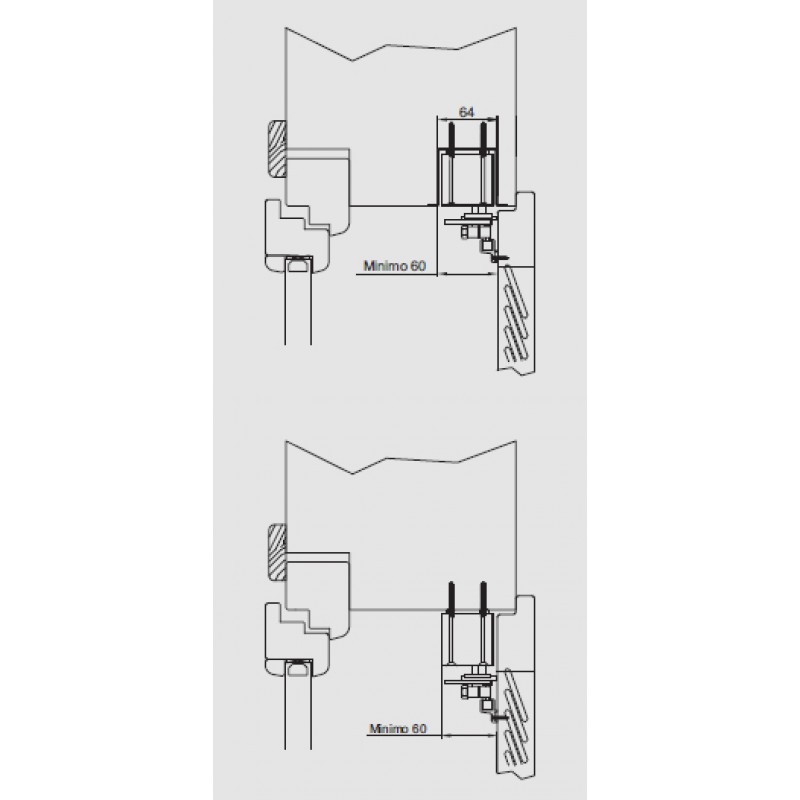

Shutter application with straight strip and brick-in hinge
Kits are available that allow the application of S TEL on Vicenza-style shutters (book door kit, code AC.LIBRO) and Paduan-style shutters (kit for Paduan flap, code AC.PD). These kits can be purchased separately on Windowo.
Simple and versatile: the ideal solution for the comfort and practicality of life at home.

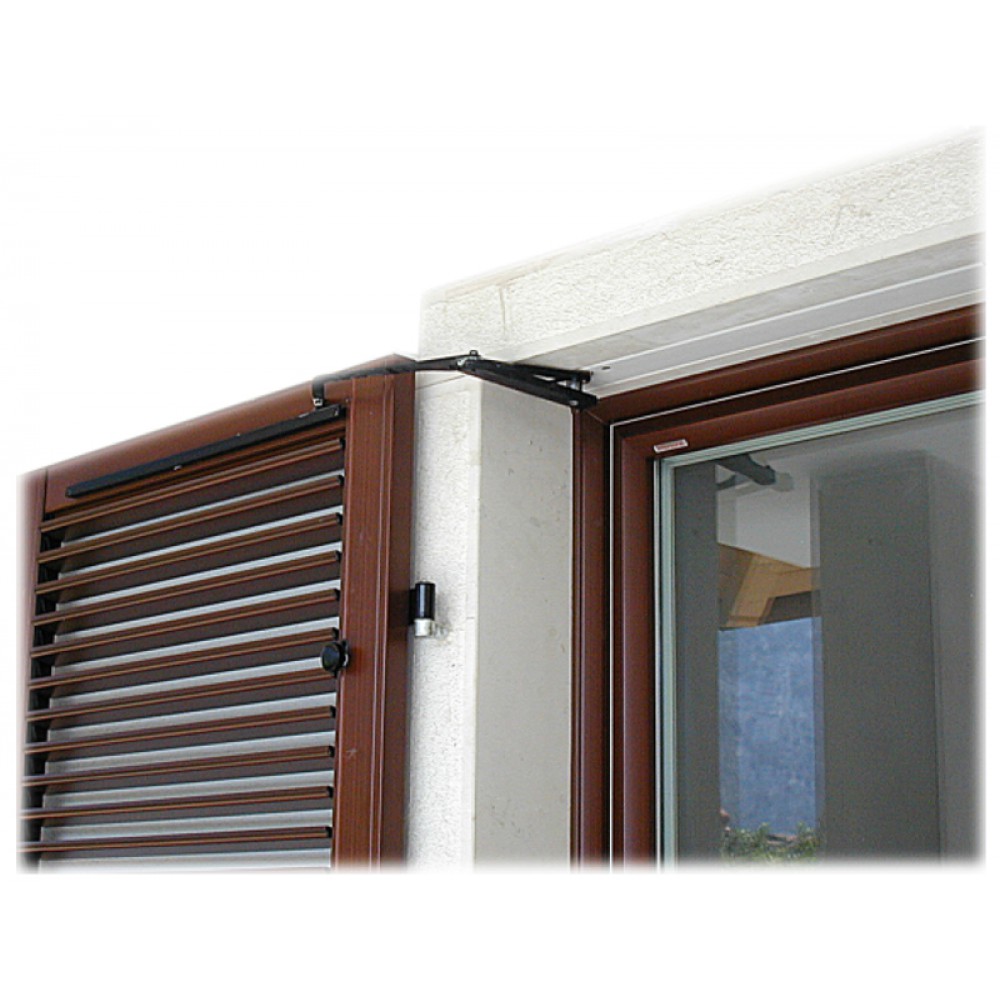

Shutter automation with arm motor - Chiaroscuro S TEL
- Convenient: no cold, rain and wind in winter or heat and mosquitoes in summer, the doors close at the push of a button inside the house without opening the windows.
- Ultra compact: recommended for installations with limited space.
- Safe: thanks to the irreversible motor.
- Practical: designed to fit perfectly into systems with aluminum cover and rail.
- Automatic control unit: automatic movement control unit that can be fully integrated with all home automation systems; it complies with safety requirements in the event of an impact and allows movement with partially closed or intermediate stop scenarios with a simple click.
| Model |
S TEL 2 doors
115 - 150 cm |
| Code |
TL.2A.115 |
| Motor power supply |
230 Vac |
| Max door weight |
50 kg |
| Max door size |
115 - 150 cm |
| Max door surface |
1.5 m² |
| Engine power |
60W |
| Average absorption |
0.8A |
| Couple |
25 Nm |
| Working cycle |
10 cycles/hour |
| Noise |
50 db |
| Degree of protection |
IP 32 |
| Electric lock |
Yes |
Shutter motor technical data sheet: Chiaroscuro S TEL 2 Doors
- Shutter automation model: Chiaroscuro S TEL 2 doors;
- Compatible dimensions: for shutters with a length of 115 - 150 cm;
- Product code: TL.2A.115;
- Motor power supply: 230 Vac for effective and efficient operation;
- Maximum weight per door: up to 50 kg, suitable for sturdy shutters;
- Maximum size per door: suitable for doors with dimensions between 115 and 150 cm;
- Maximum surface area per sash: up to 1.5 m², ensuring coverage for a wide range of shutter sizes;
- Motor power: 60W, offering optimal performance with low energy consumption;
- Average absorption: 0.8 A, indicative of efficient electronics and good energy efficiency;
- Torque: 25 Nm, which ensures adequate force for the movement of the shutters;
- Duty cycle: 10 cycles/hour, ideal for frequent home use without overloading the system;
- Noise level: 50 db, which guarantees silent and discreet operation;
- Degree of protection: IP 32, which offers good protection against the entry of solid bodies and the penetration of liquids;
- Electric lock: yes, it provides a safety mechanism to prevent unwanted movement or inadvertent opening.
This automation model is designed to guarantee efficiency, safety and comfort in the daily use of swing shutters.
We recommend reading the
instruction manual which you can find in PDF format by clicking on "Documents" at the top of this sheet.
Chiaroscuro shutter automation for sale at the best price
Since 1998, the
Italian company Chiaroscuro has stood out as a leader in the supply of advanced mechatronic solutions for the automation of doors and windows, positioning itself as a pillar in increasing the safety and energy efficiency of buildings. With a constant commitment to innovation and sustainability, Chiaroscuro has specialized in the
development of shutter automation systems, selecting eco-friendly materials and sustainable production processes.
The company's success is based on a complete service that ranges from design to after-sales assistance. Chiaroscuro's strength lies in the
internal management of the entire production process: from precision components to electronics, everything is created in-house according to the projects developed by its mechanical production division, CS Meccanica.
Since 2013, partners Luca and Marco Girelli have undertaken a significant strategic turning point, internalizing the mechanical production of components. This move allowed Chiaroscuro to make a qualitative leap in terms of product quality, flexibility and technological cutting edge.
