Switch IoT Connected Mechanism 14592.0 Plana Vimar - Wiring devices
VIEW Wireless electronic diverter mechanism with relay output 100-240 V 50/60 Hz for incandescent lamps 500 W, LED lamps 100 W, electronic transformers 250 VA, fluorescent lamps 120 W.
The
Vimar diverter mechanism allows local or remote control, has double IoT technology on the Bluetooth 5.0 standard for creating the VIEW Wireless mesh system and on the Zigbee 3.0 standard, 1 input for external button for actuator control or for recalling a scenario, identification in the dark with RGB LEDs with intensity adjustment, power supply 100-240 V 50/60 Hz, to be completed with interchangeable keys 1 module and 2 Plana modules.
- Configuration from App View Wireless for Bluetooth technology system and Amazon App for Zigbee technology;
- Compatible with Alexa, Google Home and IFTTT, through the appropriate Zigbee gateway or hub.
The device is equipped with
2 interlocked relay outputs to perform the diverter function and can also be connected to existing inverted / diverted rows to make the load function "connected".
Features of connected diverter 14592.0 Plana Vimar
- Nominal supply voltage: 100-240 V ~, 50/60 Hz;
- Power dissipated: 0.55 W;
- Transmitted RF power: <100mW (20dBm);
- Frequency range: 2400-2483.5 MHz.
Clamps:
- 2 terminals (L and N) for line and neutral;
- 1 terminal (P) for connection to the wired remote control (for example art. 20008-19008-16080-14008);
- The maximum distance between the IoT device and the button is 50 m with a cable with a minimum section of 1.5 mm2;
- 2 terminals (1 and 2) for the diverter output.

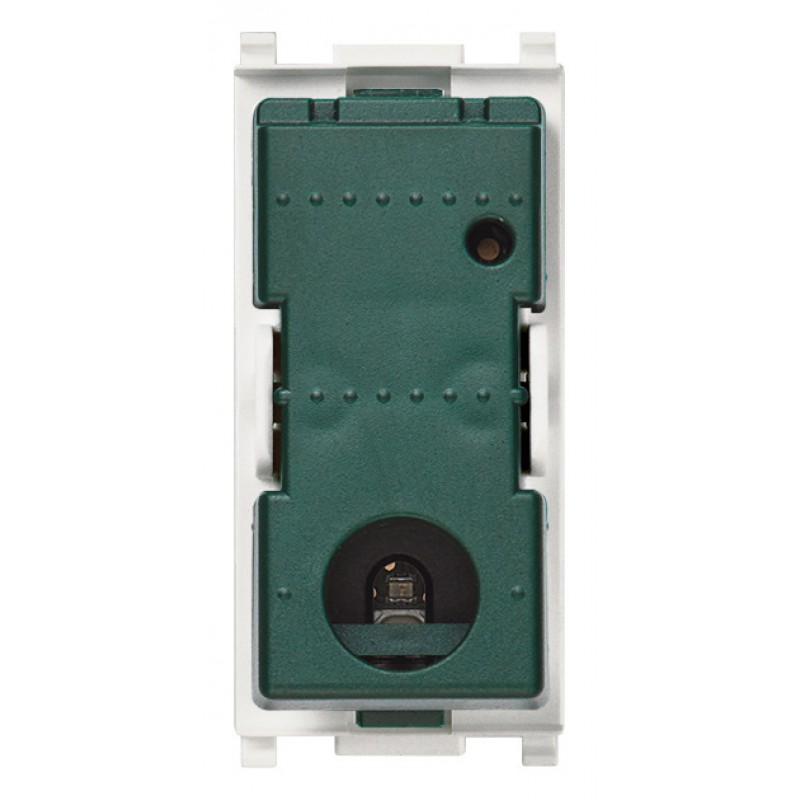

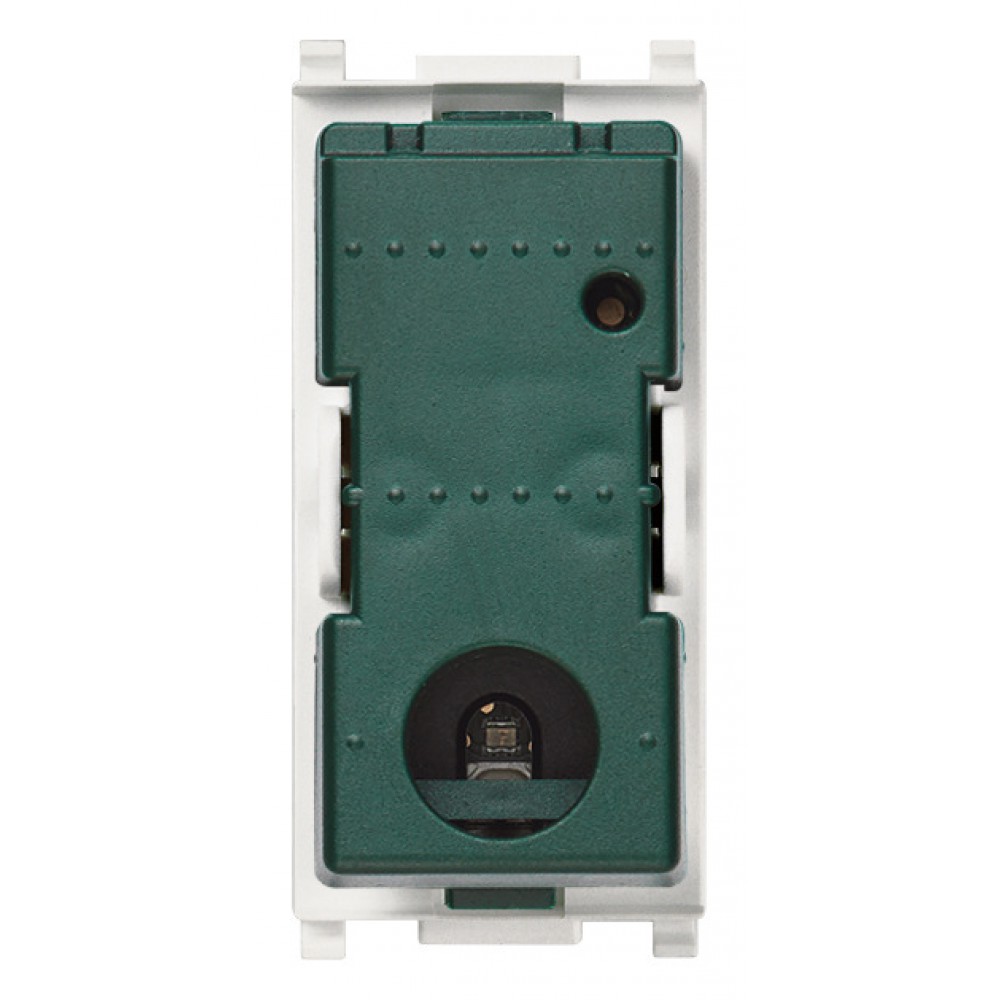

Front button that is used both for load control and as configuration button.
RGB LED that signals the load status (settable from the App View Wireless) and the configuration status (blinking blue)
In Bluetooth technology mode, up to 2 radio devices (art.03925) can be associated with the device, allowing the actuator to be controlled or a scenario to be activated.
- Operating temperature: -10 ÷ +40 ° C (for indoors);
- Degree of protection: IP20;
- Configuration from App View Wireless for Bluetooth technology system and Amazon App for Zigbee technology;
- Can be controlled from App View.
Vimar connected diverters for sale online
Vimar is an Italian company that produces
home automation and electrical equipment of different types: connected domestic series, wireless smart home products, video door entry systems, security, plates, electrical switches, plugs, sockets, adapters and much more.
The
Wireless View App allows the configuration of the connected domestic series devices which represent the ideal solution in new systems or renovations where basic smart functions are required.
