Switch mechanism VIMAR LINEA 30000 1P 10 AX 250 V~ illuminable, to be completed with 1-module button. Max 100 W for lamps with integrated power supply.
Minimum order quantity: 5
Are you looking for a product from the Vimar catalog that is not on our site? Contact us and ask for a quote.
VIMAR LINEA 30000 Switch Mechanism Buttonless Sockets Illuminated
The VIMAR LINEA 30000 switch mechanism is an essential component for completing domestic electrical systems. It is a 1-module, illuminable, single-pole switch to be combined with a Linea Series button (not included).
Thanks to its compact design and quality materials, this device ensures long life and precise operation. It is ideal for controlling a light point from a single location and can be used in homes, offices, shops or accommodation facilities.
Features of the VIMAR LINEA 30000 switch mechanism
Operation type: Single pole switch
Rated voltage: 250 V~
Rated current: 10 AX
Command: Rocker button
Number of modules: 1
Mounting: Recessed
Fixing: Snap (lock into place)
Material: Halogen-free thermoplastic
Colour: Black (RAL 7021)
Surface: Matte, untreated
Lighting: Optional, with replaceable LED
Lighting function: Control and orientation
Protection class: IP40
Electrical connection: Screw terminal
Max power of lamps with integrated power supply: 100 W
Reference standard: IEC 60669-1:2017

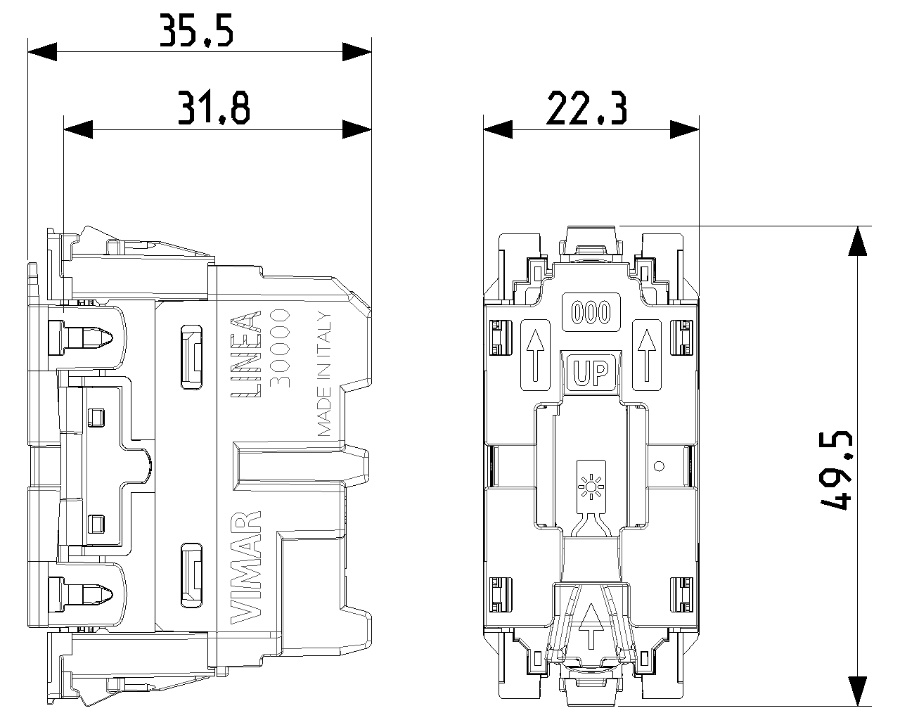

Width: 22.3 mm
Height: 49.5 mm
Depth: 28.9 mm
Recess depth: 31.8 mm
To be completed with 1 module button of the Linea Series
Why choose the VIMAR LINEA series?
The Linea Series by Vimar is appreciated for its essential style, perfect flatness and ergonomic controls. Each element is designed to guarantee maximum functionality and a contemporary aesthetic , in line with the most current trends in interior design.
Are you looking for original Vimar electrical mechanisms ? On Windowo you can find the 30000 model and the entire Linea Series at advantageous prices , with fast shipping and reliable customer service. Discover Italian quality and renew your electrical system with style.
