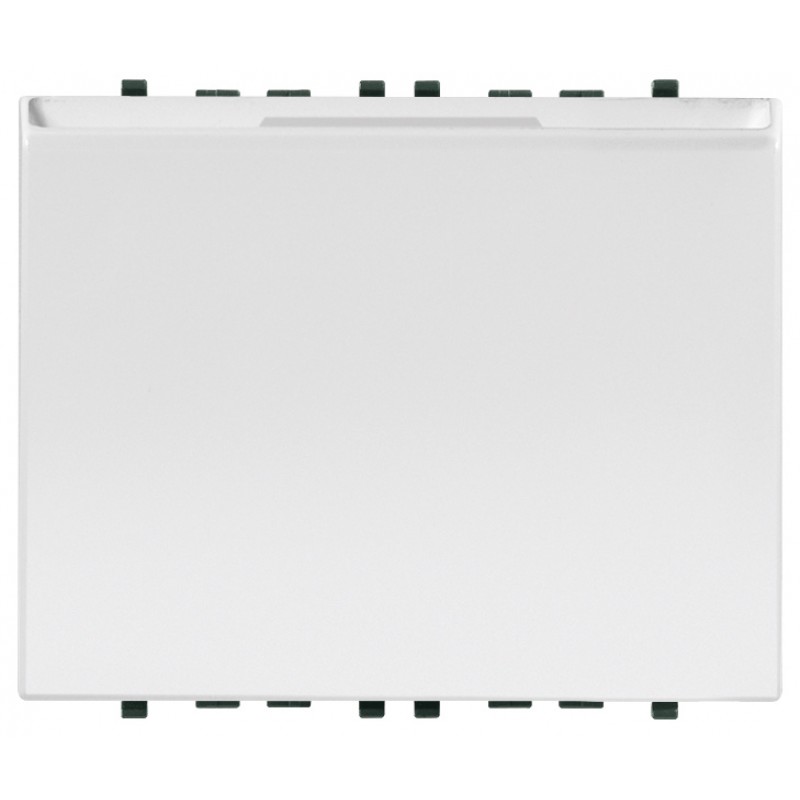

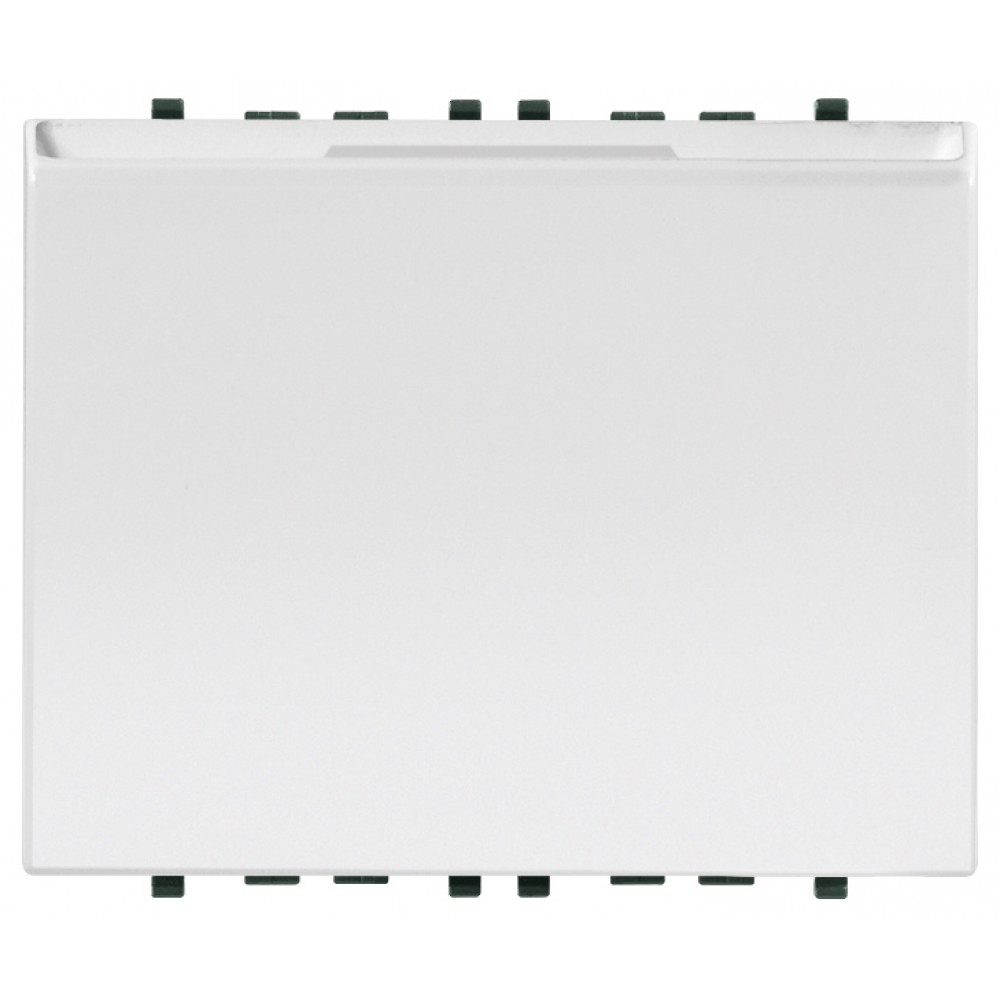

Connected Switch Smart Card Reader NFC/RFID - White or Silver 14467 Plana Vimar
NFC / RFID smart card reader pocket for installation inside the room, IoT technology on Bluetooth® technology 5.0 standard for creating the View Wireless mesh system, 1 NO 16 A relay output 100-240 V ~ 50/60 Hz, 1 configurable input, RGB LED dark detection with intensity adjustment, power supply 100-240 V ~ 50/60 Hz, gray - 2 modules.
Solutions for hospitality: connected access control
The
Vimar smart card reader device must be installed in a location (for example a hotel room, an office, etc.) and allows
users to be activated only if the associated wireless smart card is read and recognized. Using a smartphone or tablet, the pocket can be configured with Bluetooth technology using the View Wireless app and can be remotely supervised by installing the gateway 20597-19597-16497-14597.
The connected reader can communicate with the landing reader 20462-19462-14462 (if associated in the configuration phase) to manage access to the same room and ensure greater security through the "Relay crossing" option.
Features Vimar connected smart card reader pocket
- Power supply voltage: 100-240 V ~, 50/60 Hz;
- Max power absorbed by the network: 1.1 W;
- White led for illumination of the pocket for identification in the dark;
- RFID technology @ 13.56 MHz, Mifare ISO14443A standard;
- Frequency range: 13.553-13.567MHz;
- Transmitted RF power: <60 dBμA / m;

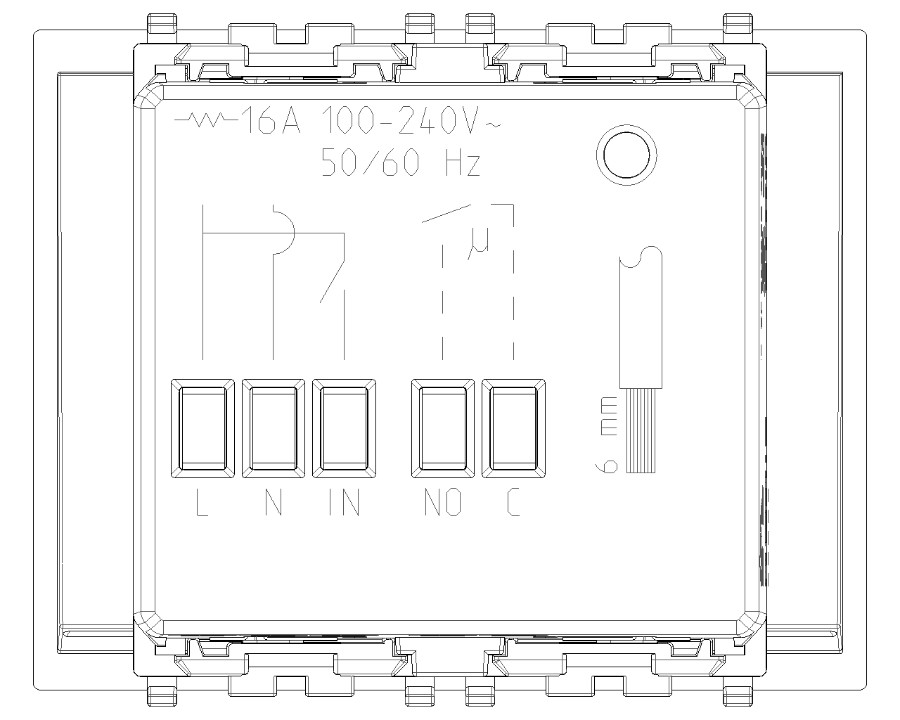

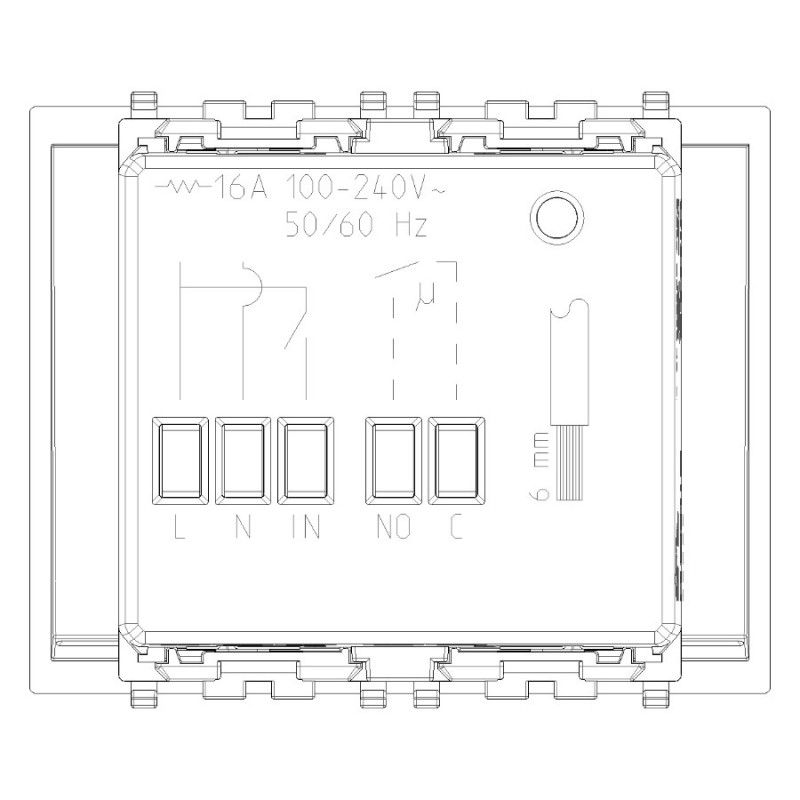

- Terminals: L and N for power supply;
- Relay output 16 A 240 V ~ C-NO (NO SELV);
- IN input (not used);
- 1 configuration button;
- Operating temperature: -10 ° C - +45 ° C (indoor use);
- Degree of protection: IP20;
- Configuration from App View Wireless for Bluetooth technology system;
- Frequency range: 2400-2483.5 MHz;
- Transmitted RF power: <100mW (20dBm).
Commandable loads 14467 Vimar
- Resistive loads: 16 A (20,000 cycles);
- Incandescent lamps: 5 A (20,000 cycles).
Led lamps
- 100 W at 240 V ~ (20,000 cycles);
- 30 W at 100 V ~ (20,000 cycles);
- fluorescent lamps: 0.5 A (20,000 cycles);
- electronic transformers: 4 A (20,000 cycles).
Technical data reader 14467 Plana Vimar
- Group: alarm, emergency call and signaling systems;
- Class: access control system;
- Stand-alone: Yes;
- Networkable: No;
- PC connection: No;
- Interface Type: others;
- Max number of people: 200;
- Reading method: code;
- Signal output: light signal;
- Mounting Type: Recessed;
- Operating voltage for AC 50 Hz: 120.00 - 230.00 v;
- Operating voltage for AC 60 Hz: 120.00 - 230.00 v;
- Operating voltage for DC: 0.00v;
- Operating temperature: 0 - 40 ° C;
- Degree of protection (IP): IP20;

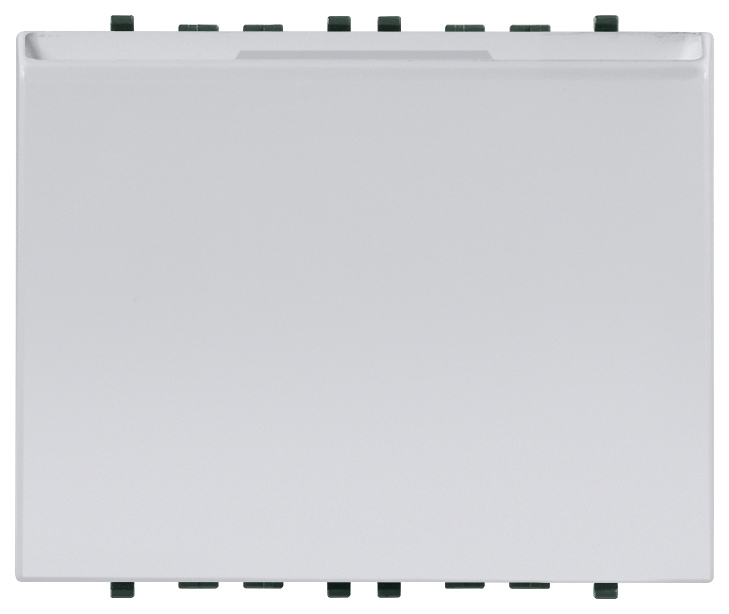

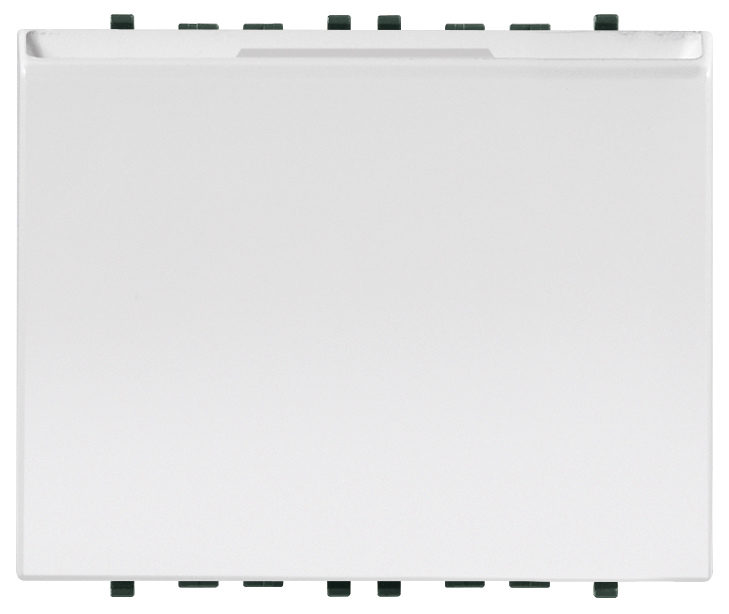

- Color: white or silver;
- Execution: reader;
- Material: plastic;
- Power over Ethernet: others;

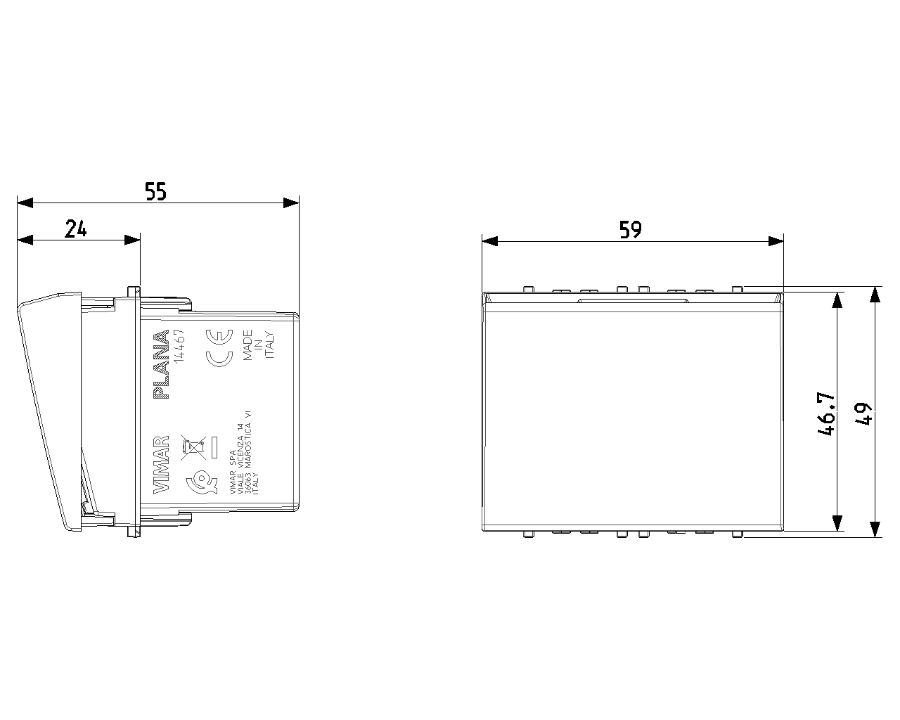

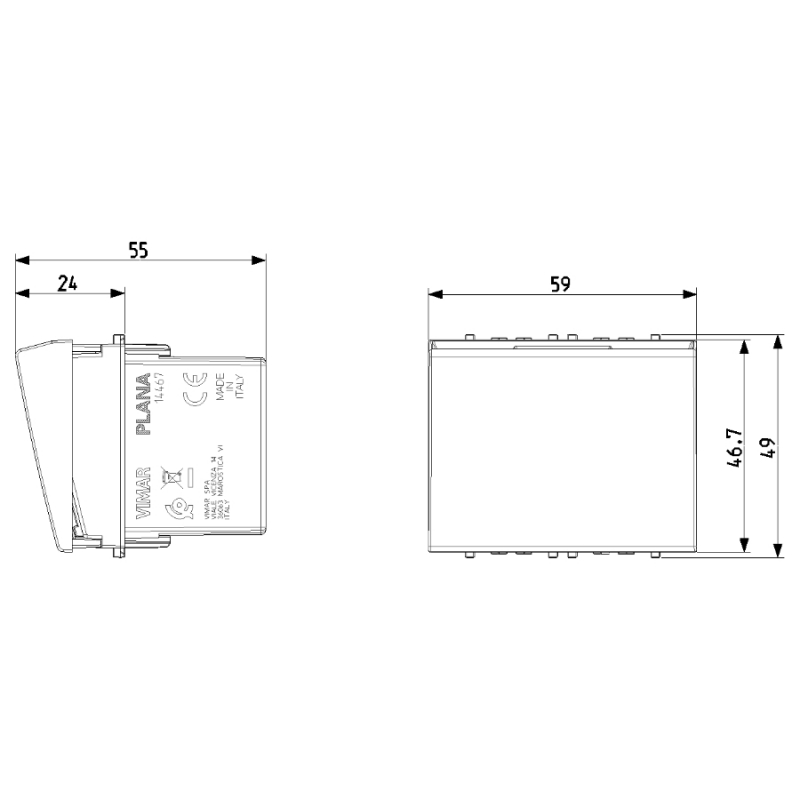

- Width: 67.30 mm;
- Height: 49.00 mm;
- Depth: 50.00 mm.
Operation Pocket Smart Card Reader 14467 Vimar
The Vimar 14467 smart card reader can work in two ways:
- The recognition of the smart card inserted in the pocket activates the internal relay. When the card is disconnected, the relay goes OFF after a time that can be set during the configuration phase.
- If the pocket is associated with a landing reader and the "Relay crossing" option is active, when the card is inserted into the pocket the reader relay remains ON, while when removed the relay goes OFF with a time that can be set during the configuration phase . In this case the door will be opened by the pocket relay ensuring a higher level of safety.
Connected device configuration 14467 Vimar
In Bluetooth technology operation, the device must be configured with the View Wireless app. For full details see the App View Wireless instruction manual.
