Shoulder for thermal break birch counterframe Termoframe Plus PosaClima

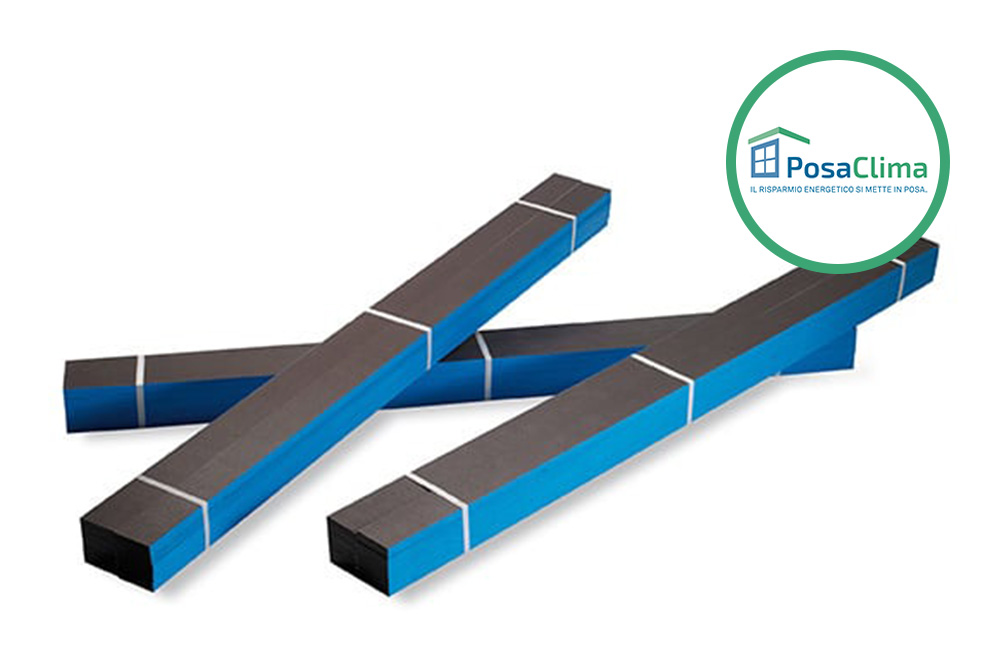

Termoframe Plus PosaClima for counterframes in filmed birch plywood
Termoframe Plus is built with a special 13-layer birch plywood on a thickness of 12 or 18 mm.
This thick stratification with a very compact wood like that of birch guarantees a
very high mechanical performance , particularly required on modern counterframes that must withstand the stress of large windows and above all a great resistance to humidity.
Mechanically tested, both in the 12 and 18 mm versions, with a load of over 250 kg per point at 1.5 cm from the edge without breaking.
What's in 1 pack?
IMPORTANT - The minimum order for this product is 1 pack which includes 10 bars of 3 meters.
Shoulder use for PosaClima Termoframe Plus counterframe
Termoframe Plus has been designed to be used in the construction of high thermal efficiency counterframes for the installation of modern windows.
It can be used for “L” shaped counterframes used in rebated installation, or for the construction of flat counterframes for installation in the opening. Thanks to the availability of the profile in any width starting from mm. 60 adapts to any thickness of the window.
What are the advantages of the PosaClima thermal counterframe?
- Excellent mechanical resistance thanks to the coupling of the layers of wood which improves the tightness of the screws;
- Excellent stability to humidity variations : bonding using special resins that reach the highest levels of resistance in humid environments (Class 3 according to the EN 314/2 standard);
- Edges treated with sealing and filling resin ;
- Resistant to attack by xylophagous insects ; PEFC certified.
Certifications and performances Termoframe Plus PosaClima
- Squaring tolerance - EN 324-2- 2 mm
- Breaking Strength - EN 310 - 69 Mpa
- Swelling - EN 317 - Max 0.7 mm
- Density - EN 323 - 700 Kg / mc
- Thermal conductivity - EN 12664 - λ = 0.12
- Surface screw extraction - EN 320 - 2932 N
- Moisture content - EN 322 - 12%
- Reaction to fire class - EN 13501-1 - D-s1; d0
PosaClima: thermal break system for doors and windows
PosaClima is the Made in Italy system for the installation of high energy efficiency windows . The advantages of this system range from high thermal and acoustic efficiency to flexibility in the construction phase. Discover all the PosaClima accessories in the Windowo online shop.
