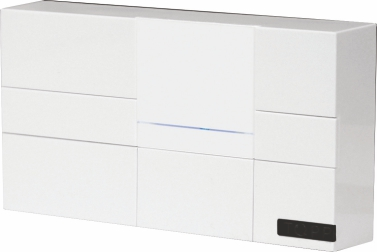

TF23R Control and Feeding Unit Topp
TF23R Control and feeding unit, 3 exits at 24V (C20), with 433 MHz remote control receiver and infra-red LED.
Built-in radio receiver at 433,92 MHz. Pre-set for RW wind sensor and RDC 12V rain sensor. CE marked device.
Box for wall fixing with sliding opening to programm remote control and emergency closure.
Can be used with TR8 infra-red/radio remote control.
Technical features:
Model: TF23R;
Supply voltage: 230 V ~ 50 Hz;
Output voltage: 24 V;
Max power consumption: 32 W;
Max absorbed current: 0.5 A;
Service type: S1 - Continuous;
Pre-set for: wind sensor, rain and manual controls;
Operating temperature: - 5 + 50 ° C;
Dimensions: 150x80x55 mm;
C20 that can be connected: 3;
C130 that can be connected: 3.
