TF24R Topp Control Unit and Power Supply 24V - 4 Outputs
TF24R Topp : 24 V (4 outputs) control and power supply unit with on-board 433 MHz receiver. Control unit that can be combined with the
TR8 remote control (sold separately).
- TF24R control unit (24V output voltage) suitable for powering and controlling low voltage TOPP motors.
- Built-in 433.92 Mhz rolling-code radio receiver.
- Wind sensor input RW and rain sensor RDC/12.
- CE marked.
TF24R Topp control unit technical characteristics
- Model: Topp TF24R;
- Power supply voltage: 230V~50Hz;
- Output voltage: 24 Vdc;
- Max absorbed power: 62W;
- Max Output Current: 1.35A;
- Service type: S1 – Continuous;
- Predispositions: wind, rain sensor and manual controls;
- Operating temperature: - 5 + 50 °C;

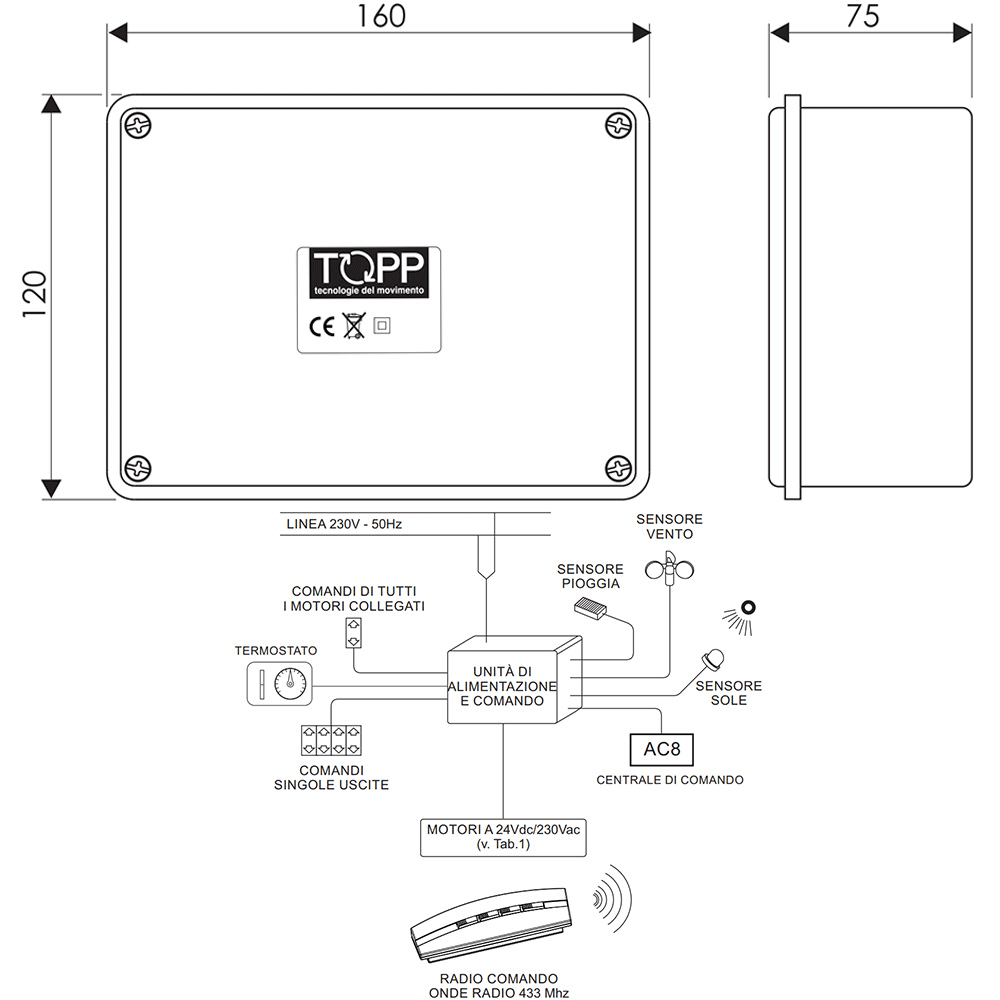

- Overall dimensions: 160x120x75 mm;
- Connectable C20 actuators: 4;
- Connectable tandem C20 actuators: 2;
- Connectable C30 actuators: 4;
- Connectable C40 actuators: 4;
- Connectable C130 actuators: 4;
- Connectable C240 actuators: 2;
- Connectable SL60 actuators: 4;
- Connectable T50 actuators: 1;
- Connectable T80 actuators: 1.
