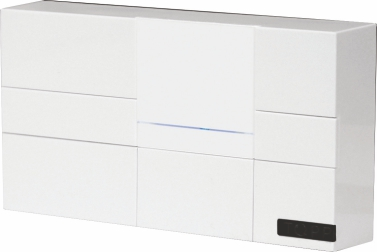

TF33R Control and Feeding Unit Topp
TF33R Control and feeding unit, 2 exits at 24V (C20) and 1 exit at 230V or 24V (your choice), with 433 MHz remote control receiver and infra-red LED.
Box for wall fixing with sliding opening to programm remote control and emergency closure.
Can be used with TR8 infra-red/radio remote control.
Control and feeding unit with 2 exits at 24V and 1 exit at 230V or 24V (your choice), max 1,5 A each.
With receiver for the remote control, either at 433,92 MHz or infra-red.
Input for one RW wind sensor with adjustable speed threshold via trimmer.
Possibility to operate two RDC 12V rain sensors simultaneously.
A blue LED indicates the state of the control unit and the remote control. The control unit’s functions (exclusion of the rain sensor, manual operation, thermostat connection, etc.) can be set out via dip-switch.
CE marked device.
Technical features
Model: TF33R;
Supply voltage: 230 V ~ 50 Hz;
Output voltage: 24 V - 230 V;
Max power consumption: 32 W;
Max absorbed current: 0.5 A;
Service type: S1 - Continuous;
Pre-set for: wind sensor, rain and manual controls;
Operating temperature: - 5 + 50 ° C;
Dimensions: 150x80x28 mm;
C20 that can be connected: 3;
C130 that can be connected: 3.
